Chicago Electric 95960 Guía del usuario

GENERATOR SET

16 HP - 7000/7500 WATTS

95960

SET UP, OPERATING, AND SERVICING INSTRUCTIONS

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES.

Generator exhaust contains carbon monoxide. This is

a poison you cannot see or smell.

NEVER use inside a home

or garage, EVEN IF doors

and windows are open.

Only use OUTSIDE and

far away from windows,

doors, and vents.

Distributed exclusively by Harbor Freight Tools®.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of

Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein. Tools required for

assembly and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Manual Revised 08i

Page 2SKU 95960 For technical questions, please call 1-800-444-3353.

SPECIFICATIONS

Electrical Requirements

7000 Watts (Rated) / 7500 Watts (Maximum) / 60 Hz / 3600 RPM

Output Receptacles:

20 A / 120 V~ / 3-Prong / (Qty. 1 Duplex) with a 20 A Circuit Breaker

30 A / 120 V~ / 3-Prong Twist Lock / (Qty. 1) with a 30 A Circuit Breaker

30 A / 240/120 V~ / 4-Blade Twist Lock / (Qty. 1) with two 30 A Circuit Breakers

Input Power: 12 VDC Battery / 7-1/4” Long x 3” Wide (not included) with an In-Line

Circuit Breaker

Voltmeters:

0 < - > 150 Volts / 50 Volt Marked Increments

0 < - > 300 Volts / 100 Volt Marked Increments w/50 Volt Hash Marks

Engine Specications

16 HP / 4 Cycle / Air Cooled / Electric & Recoil Start / 3600 RPM

420cc Displacement / 6.6 Gallon Fuel Tank

Powered with Mid to High Octane, Unleaded Gasoline

Engine Family: 5CSG.41925C

Recommended Oil:

37 Fluid Ounces

SAE 30W (Above 32 Fahrenheit) / SAE 5W-30 (Below 32 Fahrenheit)

Recommended Spark Plug Gap: 0.028” ~ 0.031”

Estimated Run Time: 8 Hours @ 50% Load

Automatic Low Oil Shutdown

Additional Features Locking ON/OFF with 2 Keys

Overall Dimensions 24-1/8” Long x 20-1/2” Wide x 24-1/2” High

Net Weight 188 Pounds

IMPORTANT! This product requires oil and fuel to be added before starting. Attempt-

ing to start the Engine without oil WILL ruin the Engine and void the warranty.

NOTE: The Engine’s carburetor may need to be adjusted by a qualied mechanic for

efcient high-altitude use.

The emission control system for this Generator’s Engine is warranted for standards

set by the U.S. Environmental Protection Agency and by the California Air Resources

Board (also known as CARB). For warranty information, refer to the last pages of this

manual

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and assembly

diagram. Keep your invoice with this manual. Write the invoice number on the inside of

the front cover. Write the product’s serial number in the back of the manual near the as-

sembly diagram, or write month and year of purchase if product has no number. Keep

this manual and invoice in a safe and dry place for future reference.

Page 3SKU 95960 For technical questions, please call 1-800-444-3353.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, re, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

Keep your work area clean and well lit.1. Cluttered and dark areas invite acci-

dents.

Do not operate power tools in explosive atmospheres, such as in the pres-2.

ence of ammable liquids, gases, or dust. Power tools create sparks which

may ignite the dust or fumes.

Keep bystanders, children, and visitors away while operating a power tool.3. Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed. Children

should never be allowed in the work area.

PERSONAL SAFETY

Stay alert. Watch what you are doing, and use common sense when operat-1.

ing a power tool. Do not use a power tool while tired or under the inuence

of drugs, alcohol, or medication. A moment of inattention while operating power

tools may result in serious personal injury.

Dress properly. Do not wear loose clothing or jewelry. Contain long hair.2. Keep your hair, clothing, and gloves away from moving parts. Loose clothes,

jewelry, or long hair can be caught in moving parts.

Remove adjusting keys or wrenches before turning the power tool on.3. A

wrench or a key that is left attached to a rotating part of the power tool may result

in personal injury.

Do not overreach. Keep proper footing and balance at all times.4. Proper foot-

ing and balance enables better control of the power tool in unexpected situations.

5. Use safety equipment. Always wear eye protection. Dust mask, non-

skid safety shoes, hard hat, or hearing protection must be used for appro-

priate conditions.

Page 4SKU 95960 For technical questions, please call 1-800-444-3353.

Tool Use And Care

Do not force the tool. Use the correct tool for your application.1. The correct

tool will do the job better and safer at the rate for which it is designed. Do not force

the tool and do not use the tool for a purpose for which it is not intended.

Do not use the power tool if the Engine Switch does not turn it on or off.2. Any

tool that cannot be controlled with the Engine Switch is dangerous and must be

replaced.

Disconnect the Spark Plug Wire from the Engine before making any adjust-3. ments, changing accessories, or storing the tool. Such preventive safety

measures reduce the risk of starting the tool accidentally. Always disconnect the

Spark Plug Wire before performing any inspection, maintenance, or cleaning

procedures.

Store idle tools out of reach of children and other untrained persons.4. Tools

are dangerous in the hands of untrained users.

Maintain tools with care. Keep the Generator clean.5. Properly maintained tools

are less likely to malfunction and are easier to control. Do not use a damaged tool.

Tag damaged tools “Do not use” until repaired.

Check for misalignment or binding of moving parts, breakage of parts, and6. any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly maintained

tools.

Use only accessories that are recommended by the manufacturer for your7. model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

SERVICE

Tool service must be performed only by qualied repair personnel. 1. Service or

maintenance performed by unqualied personnel could result in a risk of injury.

When servicing a tool, use only identical replacement parts. Follow instruc-2. tions in the “Inspection, Maintenance, And Cleaning” section of this manual.

Use of unauthorized parts or failure to follow maintenance instructions may create

a risk of injury.

SPECIFIC SAFETY RULES

IMPORTANT! Your Warranty is voided if:1.

Page 5SKU 95960 For technical questions, please call 1-800-444-3353.

You do not put engine oil in the Engine’s crankcase prior to its rst use. Be-

fore each use, check the oil level. Never run the Engine with low or no engine oil.

Running the Engine with low or no Engine oil will permanently damage the Engine.

Maintain labels and nameplates on the Generator.2. These carry important infor-

mation. If unreadable or missing, contact Harbor Freight Tools for a replacement.

Maintain a safe working environment.3. Make sure there is adequate surrounding

workspace.

Avoid unintentional starting.4. Make sure you are prepared to begin work before

turning on the Generator.

People with pacemakers should consult their physician(s) before use.5. Elec-

tromagnetic elds in close proximity to a heart pacemaker could cause pacemaker

interference or pacemaker failure. Caution is necessary when near the Engine’s

magneto or recoil starter.

Never leave the Generator unattended when it is running.6. Turn off the Engine

of the Generator before leaving the work area.

Always use the Generator on a at, level surface.7.

Make sure to keep hands, ngers, and feet away from all moving parts of the 8. Generator.

Keep all safety guards of the Generator in place and in proper working order.9.

TOXIC FUMES, FIRE, AND EXPLOSION PRECAUTIONS

This Generator is designed for outdoor use only. Do not operate the Genera-1. tor in a closed area or in a poorly ventilated area. When running, the Engine

of this unit produces carbon monoxide, a colorless, odorless, toxic fume

that, when inhaled, can cause serious personal injury or death. Whenever

possible, use a carbon monoxide detector (not included) to detect excessive car-

bon monoxide fumes in the work area and in the surrounding area.

Gasoline fuel and fumes are ammable, and potentially explosive. 2. Use

proper fuel storage and handling procedures. Always have multiple ABC class re

extinguishers nearby.

Keep the Generator, its Engine, and surrounding areas clean at all times.3.

When spills of fuel or oil occur, they must be cleaned up immediately.4. Dis-

pose of uids and cleaning materials as per any local, state, or federal codes and

regulations. Store oil rags in a covered metal container.

Never store fuel or other ammable materials near the Generator.5.

Page 6SKU 95960 For technical questions, please call 1-800-444-3353.

Do not smoke, or allow sparks, ames, or other sources of ignition around 6. the Generator.

Keep grounded conductive objects, such as tools, away from exposed, live7. electrical parts and connections to avoid sparking or arcing. These events

could ignite fumes or vapors.

Do not rell the Fuel Tank while the Engine is running or hot. 8.

Do not operate the Generator with known leaks in the Engine’s fuel system.9.

Use only oil and fuel recommended in the “Product Specications” section 10. of this manual.

MECHANICAL PRECAUTIONS

Prior to performing service, maintenance, or cleaning procedures, always1.

make sure the Engine Switch is in its “OFF” position. Allow the Engine to

completely cool. Then, remove the Spark Plug Wire from the Spark Plug.

Do not alter or adjust any part of the Generator or its Engine that is assem-2. bled and supplied by the manufacturer or distributor.

Always follow and complete scheduled Engine maintenance.3.

CHEMICAL PRECAUTIONS

Avoid contact with hot fuel, oil, exhaust fumes, and solid surfaces.1.

Avoid body contact with fuels, oils, and lubricants used in the Engine.2. If

swallowed, seek immediate medical treatment. Do not induce vomiting if fuel is

swallowed. For skin contact, immediately wash with soap and water. For eye con-

tact, immediately ush eyes with clean water.

NOISE PRECAUTION

Prolonged exposure to high noise levels is hazardous to hearing.1. Always

wear ANSI-approved hearing protection when operating or working around the

Generator when it is running.

ELECTRICAL PRECAUTIONS

All connections and conduits from the Generator to the load must only be installed1. by trained and licensed electricians, and in compliance with all relevant local, state,

Page 7SKU 95960 For technical questions, please call 1-800-444-3353.

and federal electrical codes and standards, and other regulations where applica-

ble.

The Generator must be earth-grounded in accordance with all relevant electrical2. codes and standards before operation.

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS* (120/240 VOLT)

NAMEPLATE AMPERES

(at full load)

EXTENSION CORD LENGTH

25’ 50’ 75’ 100’ 150’

0 – 2.0 18 18 18 18 16

2.1 – 3.4 18 18 18 16 14

3.5 – 5.0 18 18 16 14 12

5.1 – 7.0 18 16 14 12 12

7.1 – 12.0 18 14 12 10 -

12.1 – 16.0 14 12 10 - -

16.1 – 20.0 12 10 - - -

TABLE A * Based on limiting the line voltage drop to ve volts at 150% of the rated

amperes.

If an extension cord (not included) is used, make sure to use only UL® listed cords3. having the correct gauge and length. (See Table A.)

Do not attempt to connect or disconnect load connections while standing in water,4. or on wet or soggy ground.

Do not touch electrically energized parts of the Generator and interconnecting5. cables or conductors with any part of the body, or with any non-insulated conduc-

tive object.

Connect the Generator only to a load or electrical system (120 volt or 240 volt) that6. is compatible with the electrical characteristics and rated capacities of the Genera-

tor.

Make sure the Engine Switch is in its “OFF” position before moving the Generator7. and before performing any service, maintenance, or cleaning procedures on the

unit.

Keep all electrical equipment clean and dry. Replace any wiring where the insula-8. tion is cracked, cut, abraded, or otherwise degraded. Replace terminals that are

worn, discolored, or corroded. Keep terminals clean and tight.

Insulate all connections and disconnected wires.9.

Guard against electric shock. Prevent body contact with grounded surfaces such10. as pipes, radiators, ranges, and refrigerators.

Use only Class BC or Class ABC re extinguishers on electrical res.11.

Page 8SKU 95960 For technical questions, please call 1-800-444-3353.

UNPACKING

When unpacking, check to make sure all of the parts shown on the Parts List in this

manual are included. If any parts are missing or broken, please call Harbor Freight

Tools at the number shown on the cover (and at the bottom of each page) of this manu-

al as soon as possible.

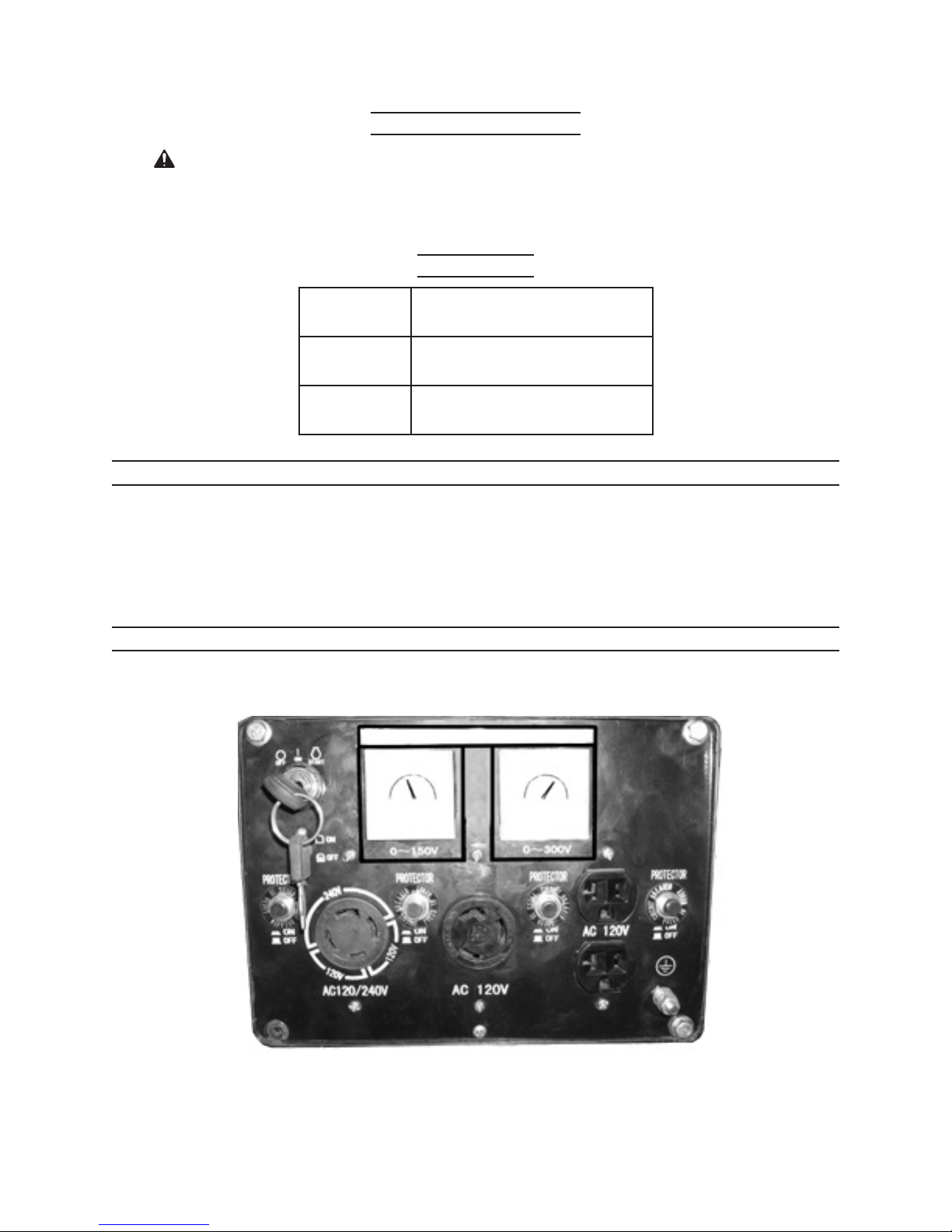

CONTROL PANEL FEATURES

5 5

10B

VOLTMETER VOLTMETER

7 7

FIGURE A

MISC. PRECAUTION

WARNING! The warnings and precautions discussed in this manual cannot

cover all possible conditions and situations that may occur. It must be understood

by the operator that common sense and caution are factors which cannot be built

into this product, but must be supplied by the operator.

Symbology

V~ Volts Alternating Current

AAmperes

n0xxxx/min. No Load Revolutions per Minute

(RPM)

Page 9SKU 95960 For technical questions, please call 1-800-444-3353.

Engine Switch (2):1. Used to start and stop the Engine. To start, insert the En-

gine Switch Key and turn to the right to its “START” position. Then immediately

release the Key. To turn off the Engine, turn the Key all the way to the left to its

“OFF” position. Always remove the Key from the Engine Switch when the unit is

not in use.

(See Figure A, previous page.)

Outlet Sockets (8, 10, 10B):2. The Generator features three Outlet Sockets with

which to power tools and equipment. The type and voltage of the Outlet Sockets

are as follows:

3-Prong, 120 volt Outlet Socket (8)a.

3-Prong, Twistlock, 120 volt Outlet Socket (10)b.

4-Prong, Twistlock, 240/120 volt Outlet Socket (10B)c.

WARNING! Connect tools and equipment only to the Outlet Socket (120 volt or

240 volt) that is compatible with the electrical characteristics and rated capacities

of the tools and equipment being used. (See Figure A.)

Circuit Breakers (3, 5):3. The Generator features ve Circuit Breakers to protect

the unit from overloading.

Onea. Circuit Breaker controls the 3-Prong, 120 volt Outlet Socket (8).

Oneb. Circuit Breaker controls the 3-Prong, Twistlock, 120 volt Outlet Socket (10).

Twoc. Circuit Breakers control the 4-Prong, Twistlock, 240/120 volt Outlet Socket

(10B).

Oned. In-Line Circuit Breaker to protect the Engine’s Starter (83A).

Should any of the four Circuit Breakers “trip”, the Engine will automatically shut

down. In this event, unplug all loads from the Generator. Allow the Generator to

cool down. Then, press the tripped Circuit Breaker and restart the Engine. (See

Figure A.)

Voltmeters (7):4. The Generator features two Voltmeters which provide readings

of voltage output depending on which of the three Outlet Sockets (8, 10, 10B) are

being used. (See Figure A.)

Grounding Terminal (9):5. Prior to each use, always connect a ground wire (not

included) to the Grounding Terminal to properly ground the Generator.

(See Figure C, page 11.)

BATTERY INSTALLATION

1. The Engine of the Generator may be started manually or electrically.

To use the Engine’s electric start capability, a Battery (45, not included) must rst 2. be installed. The type and size Battery required is: 12 volt DC, 7-1/4” long by 3”

wide. (See Figure B, next page.)

Page 10SKU 95960 For technical questions, please call 1-800-444-3353.

Locate the factory pre-installed Battery Guard Plate (44) and Battery Tray (48) be-3. neath the Control Panel of the Generator. (See Figure B.)

Slide the Battery into the Battery Guard Plate (44) with the Battery’s terminals fac-4. ing outward and with the Battery’s negative (--) terminal facing left. (See Figure

B.)

Align the two mounting holes in the Battery Bracket (47) with the two threaded5. mounting holes in the Battery Guard Plate (44). Then secure the Battery Bracket

to the Battery Guard Plate, using two Bolts with Lock Washers (46).

(See Figure B.)

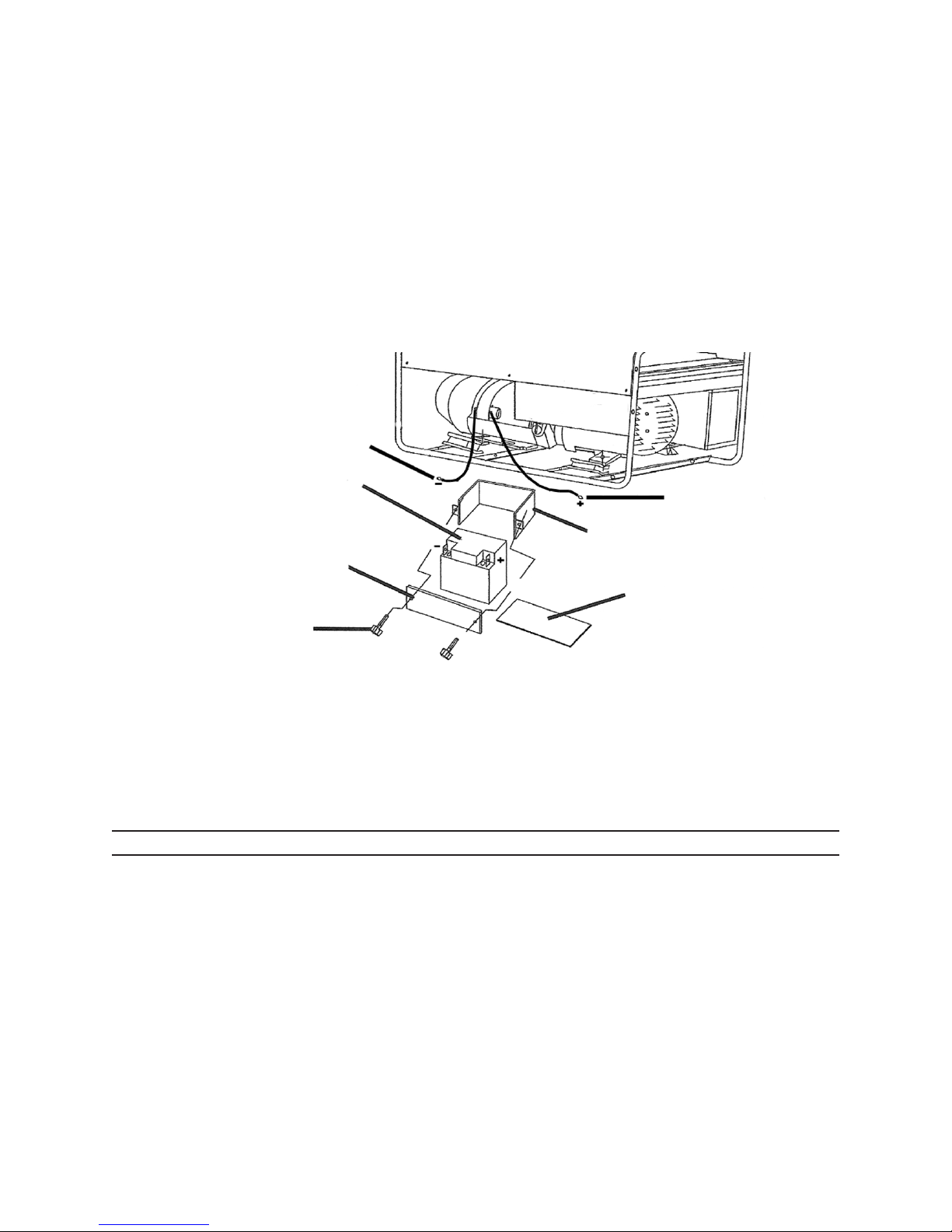

BOLT WITH LOCK WASHER (46)

NEGATIVE BATTERY CABLE

POSITIVE BATTERY CABLE

BATTERY GUARD PLATE (44)

BATTERY TRAY (48)

BATTERY BRACKET (47)

12 VDC BATTERY

(NOT INCLUDED)

FIGURE B

Connect the Engine’s Positive Battery Cable (RED +) to the Battery’s positive (+)6. terminal. Then connect the Engine’s Negative Battery Cable (BLACK --) to the

Battery’s negative (--) terminal. (See Figure B.)

TO ATTACH THE WHEEL ASSEMBLY

With additional assistance, and a proper lifting device, raise the left side of the1.

Generator about 6 to 8 inches off the oor surface.

Attach the two Axle Brackets (53) to the lower Frame (42), using two Bolts (52) and2. two Lock Washer Nuts (13) for each Axle Bracket.

(See Assy. Diagram.)

Slide the Axle (49) through the two Axle Brackets (53).3. (See Assy. Diagram.)

Insert one Wheel (50) onto each end of the Axle (49).4. (See Assy. Diagram.)

Tabla de contenidos

Otros manuales de Generador portátil de Chicago Electric

Chicago Electric

Chicago Electric 92456 Manual de usuario

Chicago Electric

Chicago Electric 65309 Guía del usuario

Chicago Electric

Chicago Electric 91523 Manual de usuario

Chicago Electric

Chicago Electric 90236 Manual de usuario

Chicago Electric

Chicago Electric 95189 Manual de usuario

Chicago Electric

Chicago Electric 65414 Guía del usuario

Chicago Electric

Chicago Electric 39321 Manual de usuario

Chicago Electric

Chicago Electric 65588 Guía del usuario

Chicago Electric

Chicago Electric 90300 Manual de usuario

Chicago Electric

Chicago Electric 95126 Manual de usuario

Chicago Electric

Chicago Electric 94191 Manual de lista de piezas

Chicago Electric

Chicago Electric 91213 Manual de usuario

Chicago Electric

Chicago Electric 96898 Manual de instalación

Chicago Electric

Chicago Electric 67561 Guía del usuario

Chicago Electric

Chicago Electric 96617 Manual de instalación

Chicago Electric

Chicago Electric 66619 Manual de operación

Chicago Electric

Chicago Electric 93881 Manual de usuario

Chicago Electric

Chicago Electric 45416 Assembly and Manual de usuario

Chicago Electric

Chicago Electric 66523 Guía del usuario

Chicago Electric

Chicago Electric 94678 and Manual de usuario

Chicago Electric

Chicago Electric 97906 Guía del usuario

Chicago Electric

Chicago Electric 98839 Guía del usuario

Chicago Electric

Chicago Electric 66603 Guía del usuario

Chicago Electric

Chicago Electric 39461 Generator Manual de usuario

Manuales populares de Generador portátil de otras marcas

Kohler

Kohler 20EORZ Manual de instrucciones

Powerhorse

Powerhorse 83171 Manual de usuario

HURST

HURST ML-630-SI Manual de usuario

ETQ

ETQ TG4000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 40265 Guía de configuración

ConMed

ConMed 7550 Manual de usuario

Owon

Owon Waveform Generator Manual de usuario

evertz

evertz 7700 Series Manual de usuario

Power Stroke

Power Stroke PS906025 Manual de usuario

Firefly

Firefly Cygnus CYG2400/460/24 Manual de usuario

Draper

Draper PG950S Actualización de firmware

PowerBoss

PowerBoss PowerBoss Manual de usuario

SDMO

SDMO SH 4000 Manual de usuario

EINHELL

EINHELL STE 5500 Manual de usuario

Wanco

Wanco WI3000P Manual de usuario

Full Boar

Full Boar FBT-3300 Manual de usuario

Dwyer Instruments

Dwyer Instruments ASG Manual de usuario

Westinghouse

Westinghouse WH1000i Series Manual de usuario
