Operating Manual

for Integral Electrical Appliance

Models: Solstice and Equinox

Please read the instructions carefully before installation or use

of this electric fire and retain for future reference.

This product is made by

Supplied under licence to

FDC (UK) Limited

Unit C4, Dinton Business Park

Catherine Ford Road

Dinton

Salisbury

SP3 5HZ

01722 716161

[email protected]

IMPORTANT INFORMATION

This appliance must not be located immediately below a socket-outlet.

This appliance must be earthed. If in any doubt consult a suitable competent

person.

In order to avoid a hazard due to inadvertent resetting of the thermal cut-out,

this appliance must not be supplied through an external switching device, such

as a timer, or connected to a circuit that is regularly switched on and off by a

utility company.

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless under supervision of a person responsible for their safety.

Children should not play with the appliance.

The fuel bed includes some small glass pebbles which could be harmful to

children if swallowed. It is recommended that these are not used if children can

access this appliance.

Cleaning and maintenance should only be carried out by a competent person.

Some parts of this product can become very hot and cause burns. Particular

attention has to be given where children and vulnerable people are present.

It is recommended that a fireguard should be used for the protection of children,

the elderly and infirm. Fireguards should conform to BS 6539 (1984)

(Fireguards for use with solid fuel appliances).

Do not use this fire as a free-standing appliance. It must always be fixed to a

wall or in a fireplace mantel.

WARNING: Do not cover the heater.

If the supply cord is damaged, it must be replaced by a genuine part available

from the manufacturer or its service agent.

APPLIANCE DATA

Supply Voltage AC 220-240V 50Hz

Output 1000W / 2000W

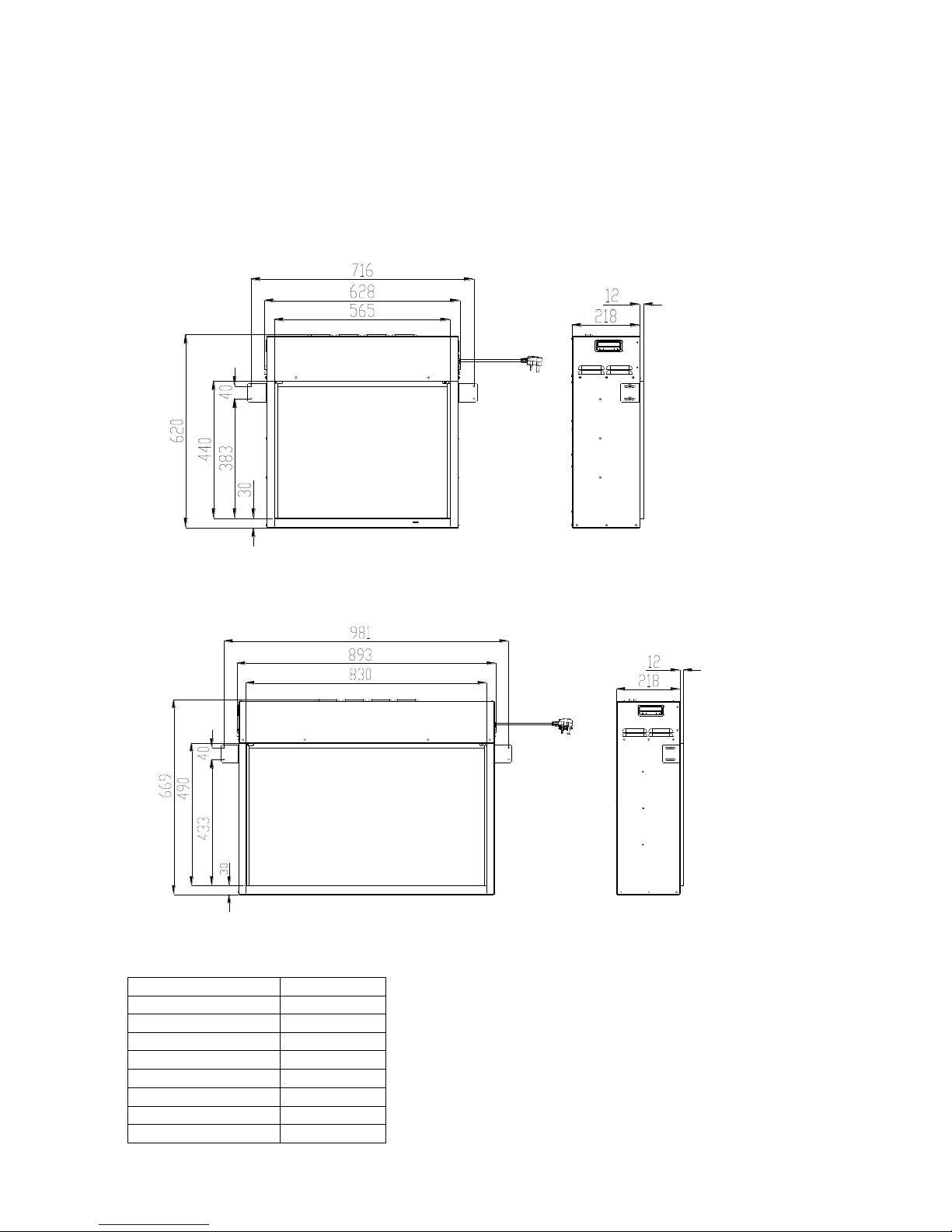

DIMENSIONS

SOLSTICE units: mm

EQUINOX units: mm

PARTS LIST

Part

Quantity

Appliance

Fuel Bed

Remote Control

AAA Battery

Instruction Manual

Fixing Bracket

Screw ST4*12

Washer 4.0

INSTALLATION

Choosing the position of your Electric Fire

Your new electric fire may be installed virtually anywhere in your home. When choosing a

location ensure that the general instructions are followed. For best results, install out of direct

sunlight.

WARNING! Ensure curtains and other combustible furnishings are kept at least

3ft/0.9m from the front of the electric fire.

The appliance can be installed in a number of different ways.

1. Incorporated in a marble, stone or timber fireplace.

2. Set into an external cavity wall when using a fire surround with a 3” rebate.

3. Set into an existing chimney breast with a stone or marble fascia.

4. Set into a false chimney breast with a stone or marble fascia.

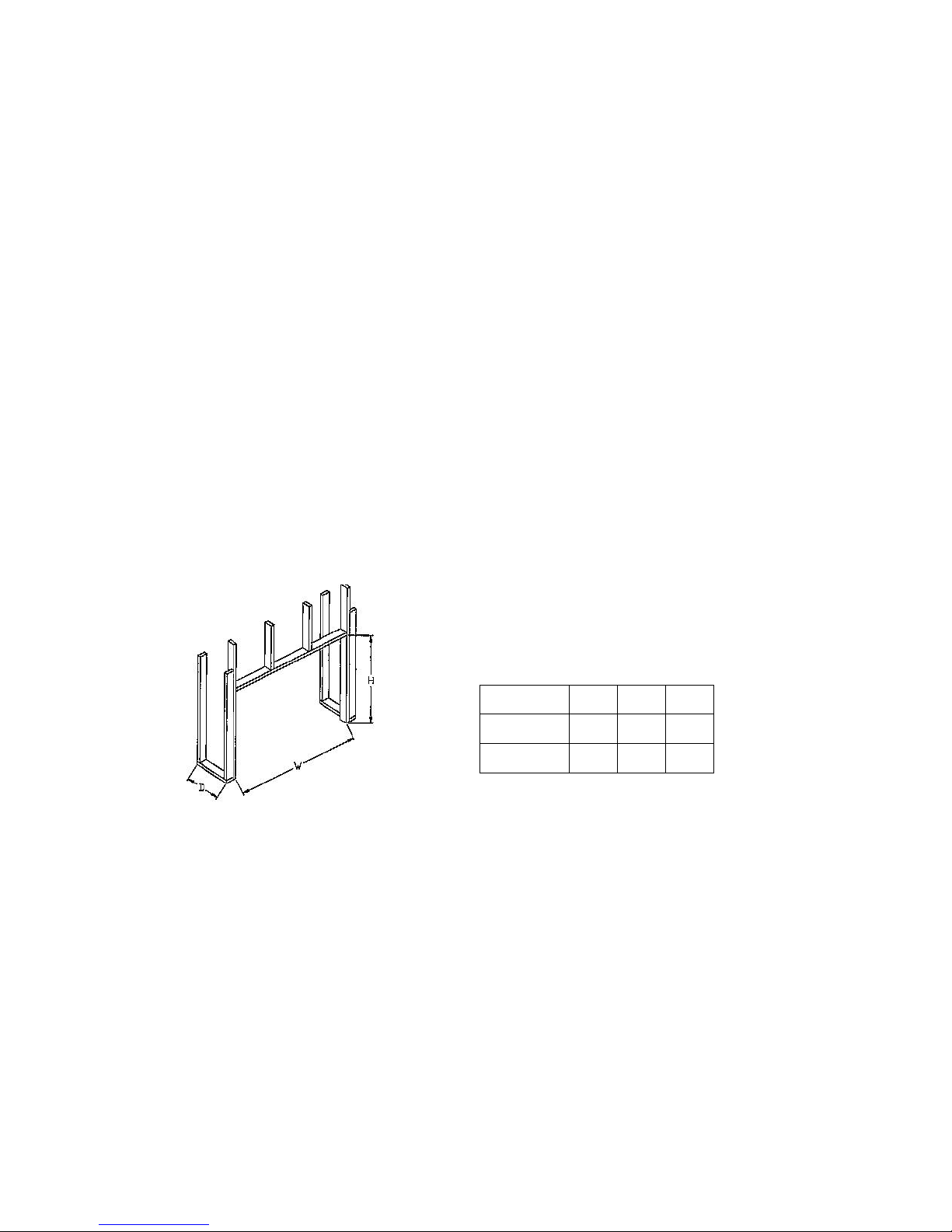

Typical construction of a false chimney breast

1. Position and construct a framework as shown in figure 1.

2. Allow sufficient width to accommodate your chosen fireplace and bear in mind that the

opening may need to be raised to suit the fireplace.

3. If being used with a stone or marble fascia it is important to allow for the thickness of the

fascia when fixing the depth of the appliance in the opening

4. Fix the appliance in the opening using the brackets supplied and level with shims if required.

5. The chimney breast may be clad in combustible or non-combustible materials.

Figure 1

General installation considerations and guidance

Where the appliance is fitted into an existing chimney breast or into an external wall cavity, then

consideration should be given to ensure the appliance is protected from the risk of the ingress

of water. This may be done by blocking the chimney or the cavity with rock wool tightly packed

into the void around and to the rear of the appliance or providing a suitable membrane to

protect the metal casing of the appliance. Ensure the vents on the top and sides of the

appliance are not obstructed and can access free air.

This appliance can be installed via a fused spur or 13 Amp plug. The location of both must be

accessible for isolation.

MODEL

SOLSTICE

630

225

625

EQUINOX

895

225

675

Laying the fuel bed

The fuel bed components are packed in a separate carton, please open this carefully as the

log shapes are fragile. Please notify us immediately if any of these shapes are damaged.

They are not covered by any warranty after they have been checked by the customer and

accepted as complete and undamaged. New fuel bed sets are available to purchase from FDC

(UK) Ltd. Also in the carton are some glass pebbles and a bag of loose vermiculite.

The glass pebbles could be harmful if swallowed, so please keep out of reach of children

and we recommend you don’t use them on the appliance if you consider there is any risk

of a child coming in contact with them.

There is no recommended layout for the fuel bed. It is entirely up to the customer to create their

own desired layout and finished look. Using the supplied fuel bed use as many or as few logs

as you wish. We recommend you lay the vermiculite on the chrome plate of the fire in a thin

layer leaving small areas on the chrome surface un-covered. Position the logs as you wish and

if you choose to use the glass pebbles place them randomly around and between the logs.

Examples are shown below;

Typical Fuel bed arrangement for Solstice

Typical Fuel bed arrangement for Equinox

OPERATION

This appliance can be operated by both remote control and manual buttons. Once the unit has

been properly connected to an earthed electrical outlet turn on the main switch. A beep should

be heard when the power is first applied.

NOTES:

To use both remote and manual functions the main on/off switch must be in the

‘on’ position.

The flame will always be on when the appliance is on.

In order to protect the product from becoming too hot, there is an 8 second delay

when turning on the heater. There is also an 8 second delay when turning off the

heater.

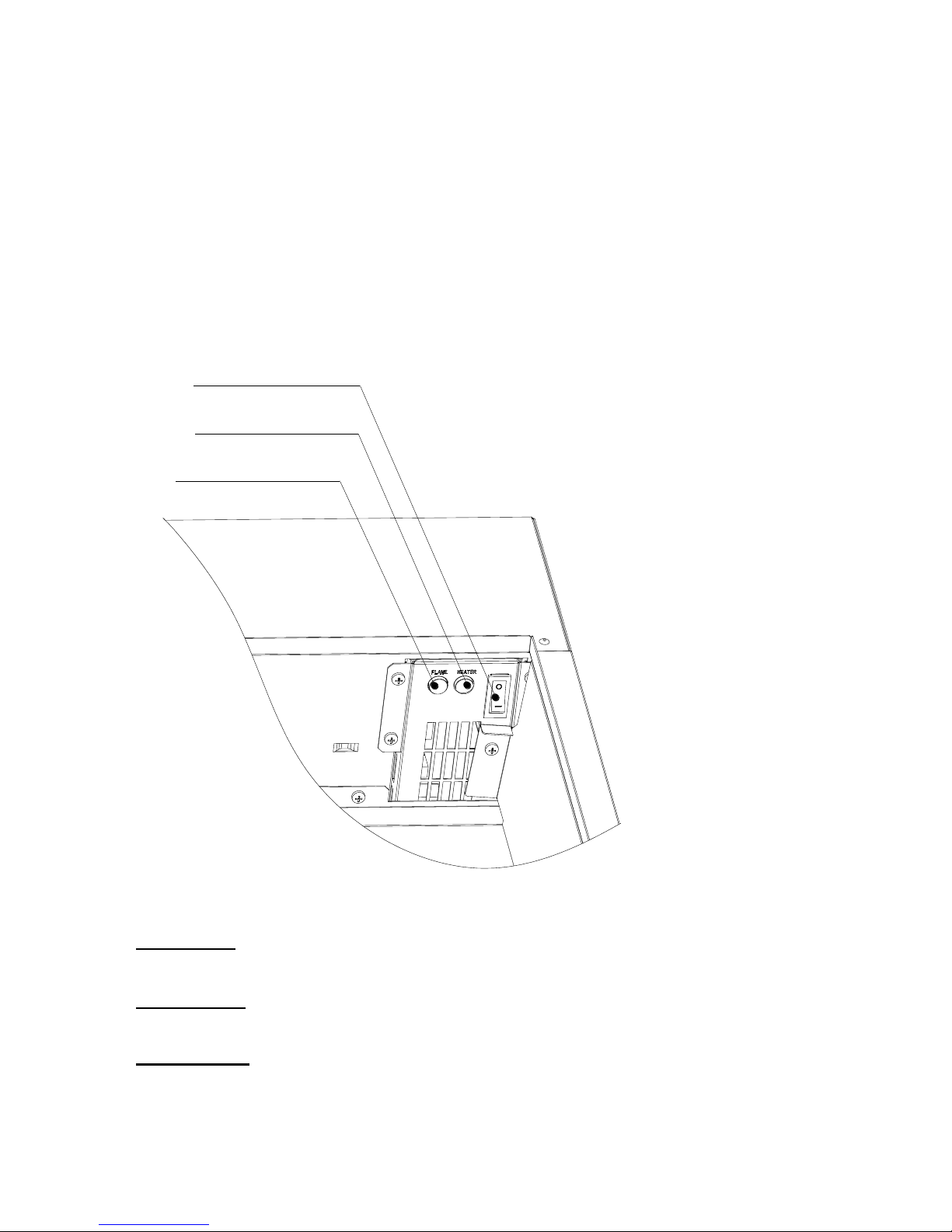

●Operating by Manual Button

Main switch

Heater button

Flame button

NOTE：

Main switch

This switch must be in the “ON” position for any of the functions including the remote to work.

Flame button

By pressing the FLAME button, the unit will cycle through four flame effects.

Heater button

Pressing once turns the fan on and 8 seconds later the low heat comes on. (Pilot lights

illuminated ●○) Pressing again turns on the high heat. (Pilot lights illuminated ●●)

Pressing third time turns the heat off. 8 seconds later the fan switches off (Pilot lights

illuminated ○○)

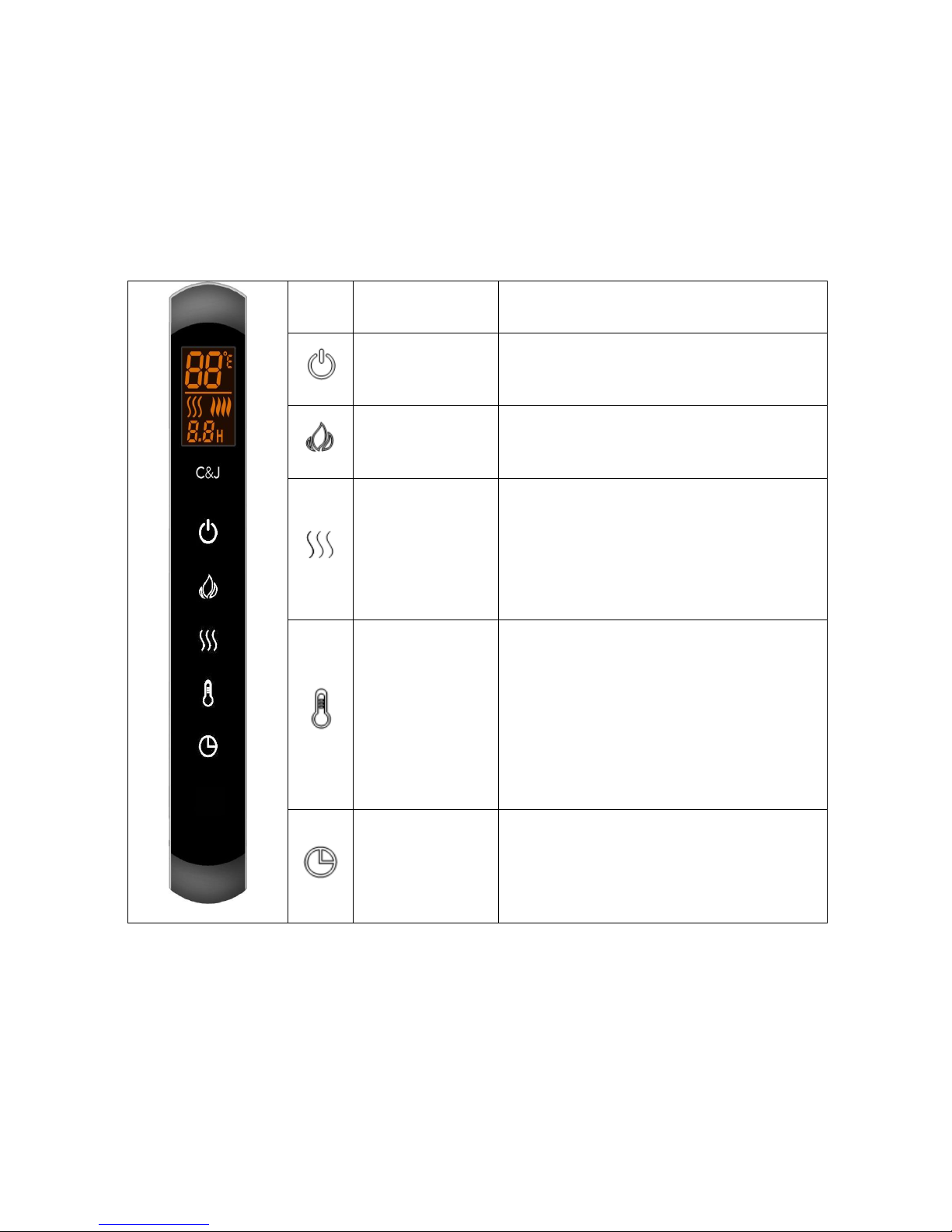

●Operating by Remote Handset

Multifunction Infrared Remote Handset

Make sure the batteries are installed properly in the remote control.

The effective range of the remote control is up to 4 meters or 13 feet.

ICON

TITLE

FUNCTION

POWER

Pressing once turns the appliance and

flame effect on. Pressing again turns the

appliance and flame effect off.

FLAME

The fire has four flame effects, by pressing

the flame effect button the unit will cycle

through each effect.

HEATER

Pressing once turns 1000W of power on.

(Pilot lights illuminated ●○)

Pressing again turns 2000W of power on

(Pilot lights illuminated ●●)

Pressing third time turns the heater off.

(Pilot lights illuminated ○○)

ROOM TEMP /

THERMOSTAT

Digital display shows a default TEMP

setting. To set the desired room temp press

the button and the TEMP will increase by

1°C up to 28°C when pressed each time.

The heater will cut out automatically once

the desired temperature is reached.

By pressing this button for 3 seconds the

digital display can change between °C and

°F.

TIMER

Once the appliance has been turned on,

you can program a length of time you would

like the appliance to run. Cycles from

TIMER OFF, 0.5H, 1H, 2H, 3H, 4H, 5H, 6H,

7H, 8H, to 9H.

MAINTENANCE

Warning: Before any maintenance and/or cleaning of the exterior of the fireplace,

disconnect the unit from the power supply and leave until cool.

Remote Handset Battery Replacement

Replace with two AAA batteries. Make sure the batteries are installed correctly in the

remote control.

Maintenance of Motors

The motors used on the fan and flame effect are pre-lubricated for extended bearing

life and require no further lubrication. However, periodic cleaning/vacuuming of the

fan/heater unit is recommended.

Resetting the Thermal Cut-out Switch

The appliance is fitted with an Electronic Safety Control (E.S.). This is a safety device,

which switches off the fire if, for any reason, the appliance overheats e.g. when

covered. If the heater stops operating whilst the flame effect continues normally this

could indicate that the E.S. Control is in operation. The E.S. Control can only be re-set

after the appliance has cooled down, in order to re-set the E.S. Control proceed as

follows:

Switch off the appliance (Main On/Off switch) and leave for approximately 10-

15 minutes.

Remove any obstruction to the fan heater outlet or fan blades etc. Make sure

that the power supply is disconnected at the plug socket outlet whilst you do

this.

Switch on the appliance and the E.S. Control will re-set.

Ensure that the appliance is functioning correctly. If the E.S. Control operates

again, the appliance should be checked by a competent Electrician.

Cleaning the Appliance

To remove fingerprints or other marks on the front glass panel, use a soft, damp, lint-

free cloth with a good quality household glass cleaner. The front glass panel should

always be completely dried with a clean, lint-free cloth or paper towel.

Caution: Do not use abrasive cleaners on the glass panel. Do not spray

liquids directly onto any surface of the unit.

Warning: An authorised service representative should perform any other

servicing.

Environment Do not dispose of electrical appliances as unsorted municipal waste,

use separate collection facilities. Contact your local council for

information regarding the collection systems available. If electrical

appliances are disposed of in landfills or dumps, hazardous

substances can leak into the groundwater and get into the food

chain, damaging your health and well-being. When replacing old

appliances with new ones, the retailer is legally obligated to take

back your old appliance for disposal free of charge.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de Charlton & Jenrick

Charlton & Jenrick

Charlton & Jenrick PARAGON 2016 Manual de usuario

Charlton & Jenrick

Charlton & Jenrick i920e Manual de usuario

Charlton & Jenrick

Charlton & Jenrick Infinity 780 BF Manual de usuario

Charlton & Jenrick

Charlton & Jenrick EF22NC Manual de usuario

Charlton & Jenrick

Charlton & Jenrick 4D Ecoflame 1250E Manual de usuario

Charlton & Jenrick

Charlton & Jenrick 4D Ecoflame 1250E Manual de usuario

Charlton & Jenrick

Charlton & Jenrick Paragon P3 Manual de usuario

Charlton & Jenrick

Charlton & Jenrick infinity 890 BF Manual de usuario

Charlton & Jenrick

Charlton & Jenrick EF16NC Manual de lista de piezas

Charlton & Jenrick

Charlton & Jenrick EF16NC Manual de usuario

Charlton & Jenrick

Charlton & Jenrick 2000 Plus Extra Remote Manual de usuario

Charlton & Jenrick

Charlton & Jenrick Infinity 800 HD Guía del usuario

Charlton & Jenrick

Charlton & Jenrick EF16/3R3T Manual de usuario

Charlton & Jenrick

Charlton & Jenrick Opulus 16 Manual de usuario

Charlton & Jenrick

Charlton & Jenrick PARAGON P9 Manual de usuario

Charlton & Jenrick

Charlton & Jenrick Luminosa 150 Manual de usuario

Charlton & Jenrick

Charlton & Jenrick Polaris 840 Manual de usuario

Charlton & Jenrick

Charlton & Jenrick iRange i560e Manual de usuario

Charlton & Jenrick

Charlton & Jenrick Valor GE3 Manual de usuario

Charlton & Jenrick

Charlton & Jenrick PARAGON 2000 Plus SLIDE CONTROL Manual de usuario

Charlton & Jenrick

Charlton & Jenrick Valor LEX2 Manual de usuario

Charlton & Jenrick

Charlton & Jenrick PANACHE 8040 Guía del usuario

Charlton & Jenrick

Charlton & Jenrick INFINITY 880 BF Manual de usuario

Charlton & Jenrick

Charlton & Jenrick iRange i750e Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
