Champion Power Equipment CSA42412 Manual

CSA42412

RevC42412-20081001

10006SantaFeSpringsRoad

SantaFeSprings,CA90670USA

MadeinChina

1500PeakWatts/1200RunningWatts

PORTABLEGENERATOR

Owner’sManualandOperatingInstructions

Table of Contents

Introduction ..................................... 1

Portable Power Generator........................ 1

Accessories................................................ 1

This Booklet.............................................. 1

Manual Conventions.........................2

Safety Rules......................................3

Controls and Features.......................5

Generator..................................................5

Power Panel..............................................6

Parts Included .......................................... 7

Assembly ..........................................8

Remove the Generator from the Shipping

Carton .......................................................8

Add Engine Oil .........................................8

Add Fuel....................................................8

Grounding.................................................9

Operation .......................................10

Generator Location.................................10

Grounding...............................................10

Surge Protection..................................... 10

Starting the Engine.................................10

Connecting Electrical Loads...................10

Stopping the Engine...............................10

Do Not Overload Generator ....................11

Capacity................................................11

Power Management.............................11

Wattage Reference Chart.........................11

Maintenance................................... 12

Engine Maintenance............................... 12

Oil........................................................ 12

Spark Plugs ......................................... 12

Air Filter.............................................. 12

Spark Arrester (if installed)................ 13

Cleaning .............................................. 13

Adjustments........................................ 13

Maintenance Schedule........................ 13

Generator Maintenance.......................... 13

Storage ........................................... 14

Engine Storage........................................ 14

Generator Storage................................... 14

Specifications ................................. 15

Engine Specifications..............................15

Generator Specifications.........................15

Fuel.......................................................... 15

Oil............................................................15

Spark Plugs .............................................15

Valve Clearance....................................... 15

Parts Diagram.........................................16

Parts List ................................................. 17

Wiring Diagram ......................................18

Troubleshooting .............................19

Warranty ........................................20

Warranty Qualifications ........................ 20

Repair/Replacement Warranty............. 20

Do not return the unit to the place of

purchase................................................. 20

Warranty Exclusions.............................. 20

Normal Wear...................................... 20

Installation, Use and Maintenance.... 20

Other Exclusions................................ 20

Limits of Implied Warranty and

Consequential Damage.......................... 20

Contact Information .............................. 20

Address............................................... 20

Customer Service ............................... 20

Technical Service................................ 20

Notes .............................................. 21

Introduction

Rev CSA42412-20081001 1

Introduction

Congratulations on your purchase of a

Champion Power Equipment generator. CPE

designs and builds generators to strict

specifications. With proper use and

maintenance, this generator will bring years

of satisfying service.

Portable Power Generator

This unit is a gasoline engine driven,

alternating current (AC) generator. It is

designed to supply electrical power for

lighting, appliances, tools and similar

equipment.

Accessories

Champion Power Equipment manufactures

and sells accessories designed to help you

get the most from your purchase. To find out

more about our covers, power cables and

storm kits, please visit our web site at

www.championpowerequipment.com

This Booklet

Every effort has been made to ensure the

accuracy and completeness of the

information in this manual. We reserve the

right to change, alter and/or improve the

product and this document at any time

without prior notice.

Record the model and serial numbers as well as date and place of purchase for future reference.

Have this information available when ordering parts and when making technical or warranty

inquiries.

Champion Power Equipment Support

1-877-338-0999

Model Number

CSA42412

Serial Number

Date of Purchase

Purchase Location

Manual Conventions

2 Rev CSA42412-20081001

Manual Conventions

This manual uses the following symbols to

help differentiate between different kinds of

information. The safety symbol is used with

a key word to alert you to potential hazards

in operating and owning power equipment.

Follow all safety messages to avoid or reduce

the risk of serious injury or death.

DANGER

DANGER indicates an imminently hazardous

situation which, if not avoided,

will

result in death

or serious injury.

WARNING

WARNING indicates a potentially hazardous

situation which, if not avoided,

could

result in

death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous

situation which, if not avoided,

may

result in

minor or moderate injury.

CAUTION

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which,

if not avoided,

may

result in property damage.

NOTE

If you have questions regarding your generator,

we can help. Please call our help line at 1-877-

338-0999.

Safety Rules

Rev CSA42412-20081001 3

Safety Rules

WARNING

Read this manual thoroughly before operating

your generator. Failure to follow instructions

could result in serious injury or death.

WARNING

The engine exhaust from this product contains

chemicals known to the state of California to

cause cancer, birth defects, or other reproductive

harm.

DANGER

Generator exhaust contains carbon monoxide, a

colorless, odorless, poison gas. Breathing carbon

monoxide will cause nausea, dizziness, fainting or

death.

Operate generator outdoors only in a well

ventilated area

DO NOT operate the generator inside any

building, enclosure or compartment, including the

generator compartment of a recreational vehicle.

DO NOT allow exhaust fumes to enter a confined

area through windows, doors, vents or other

openings.

DANGER

Rotating parts can entangle hands, feet, hair,

clothing and/or accessories.

Traumatic amputation or severe laceration can

result.

Keep hands and feet away from rotating parts.

Tie up long hair and remove jewelry.

Operate equipment with guards in place.

DO NOT wear loose-fitting clothing, dangling

drawstrings or items that could become caught.

DANGER

Generator produces powerful voltage.

DO NOT touch bare wires or receptacles.

DO NOT use electrical cords that are worn,

damaged or frayed.

DO NOT operate generator in wet weather.

DO NOT allow children or unqualified persons to

operate or service the generator

Use a ground fault circuit interrupter (GFCI) in

damp areas and areas containing conductive

material such as metal decking.

Use approved transfer equipment to isolate

generator from your electric utility and Notify

your utility company before connecting your

generator to your power system.

WARNING

Sparks can result in fire or electrical shock.

When servicing the generator:

Disconnect the spark plug wire and place it

where it cannot contact the plug.

DO NOT check for spark with the plug removed.

Use only approved spark plug testers.

WARNING

Running engines produce heat.

Severe burns can occur on contact.

Combustible material can catch fire on contact.

DO NOT touch hot surfaces.

Avoid contact with hot exhaust gases.

Allow equipment to cool before touching.

Maintain at least three feet of clearance on all

sides to ensure adequate cooling.

Maintain at least five feet of clearance from

combustible materials.

Safety Rules

4 Rev CSA42412-20081001

DANGER

Fuel and fuel vapors are highly flammable and

extremely explosive.

Fire or explosion can cause severe burns or

death.

Unintentional startup can result in entanglement,

traumatic amputation or laceration.

When adding or removing fuel

Turn the generator off and let it cool for at least

two minutes before removing the fuel cap.

Loosen the cap slowly to relieve pressure in the

tank.

Only fill or drain fuel outdoors in a well-ventilated

area.

DO NOT overfill the fuel tank.

Always keep fuel away from sparks, open flames,

pilot lights, heat and other sources of ignition.

DO NOT light or smoke cigarettes.

When starting the generator

DO NOT attempt to start a damaged generator.

Make certain that the gas cap, air filter, spark

plug, fuel lines and exhaust system are properly

in place.

Allow spilled fuel to evaporate fully before

attempting to start the engine.

Make certain that the generator is resting firmly

on level ground.

When operating the generator:

DO NOT move or tip the generator during

operation.

DO NOT tip the generator or allow fuel or oil to

spill.

When transporting or servicing the

generator:

Make certain that the fuel shutoff valve is in the

off position and the fuel tank is empty.

Disconnect the spark plug wire.

When storing the generator:

Store away from sparks, open flames, pilot lights,

heat and other sources of ignition.

WARNING

Rapid retraction of the starter cord will pull hand

and arm towards the engine faster than you can

let go.

Unintentional startup can result in entanglement,

traumatic amputation or laceration.

Broken bones, fractures, bruises or sprains could

result.

When starting engine, pull the starter cord slowly

until resistance is felt and then pull rapidly to

avoid kickback.

DO NOT start or stop the engine with electrical

devices plugged in.

CAUTION

Exceeding the generator’s running capacity can

damage the generator and/or electrical devices

connected to it

DO NOT overload the generator.

Start the generator and allow the engine to

stabilize before connecting electrical loads.

Connect electrical equipment in the off position,

and then turn them on for operation.

Turn electrical equipment off and disconnect

before stopping the generator.

DO NOT tamper with the governed speed.

DO NOT modify the generator in any way.

CAUTION

Improper treatment or use of the generator can

damage it, shorten its life and void your

warranty.

Use the generator only for intended uses.

Operate only on level surfaces.

DO NOT expose generator to excessive moisture,

dust, or dirt.

DO NOT allow any material to block the cooling

slots.

If connected devices overheat, turn them off and

disconnect them from the generator.

DO NOT use the generator if:

Electrical output is lost

Equipment sparks, smokes or emits flames

Equipment vibrates excessively

Controls and Features

Rev CSA42412-20081001 5

Controls and Features

Read this owner’s manual before operating your generator. Familiarize yourself with the location

and function of the controls and features. Save this manual for future reference.

Generator

Fuel Tank (1) – 1.45 gallon (5.5 L) capacity

fuel tank.

Fuel Valve (2) – Turn this valve to the

“On” position to supply fuel to the engine.

Choke (3) – Used to start the engine

Air Cleaner (4) – Protects the engine by

filtering dust and debris from the intake air.

Recoil Starter (5) – Used to start the

engine

Serial Number (6) – Please have this

number available when calling for

assistance.

Low Oil Sensor (7) – Senses the level of

oil in the crankcase and shuts the engine

down if the level falls too low.

Oil Filler Cap (8) – Check and fill engine

oil level.

Power Panel (9) – See “Power Panel”

Controls and Features

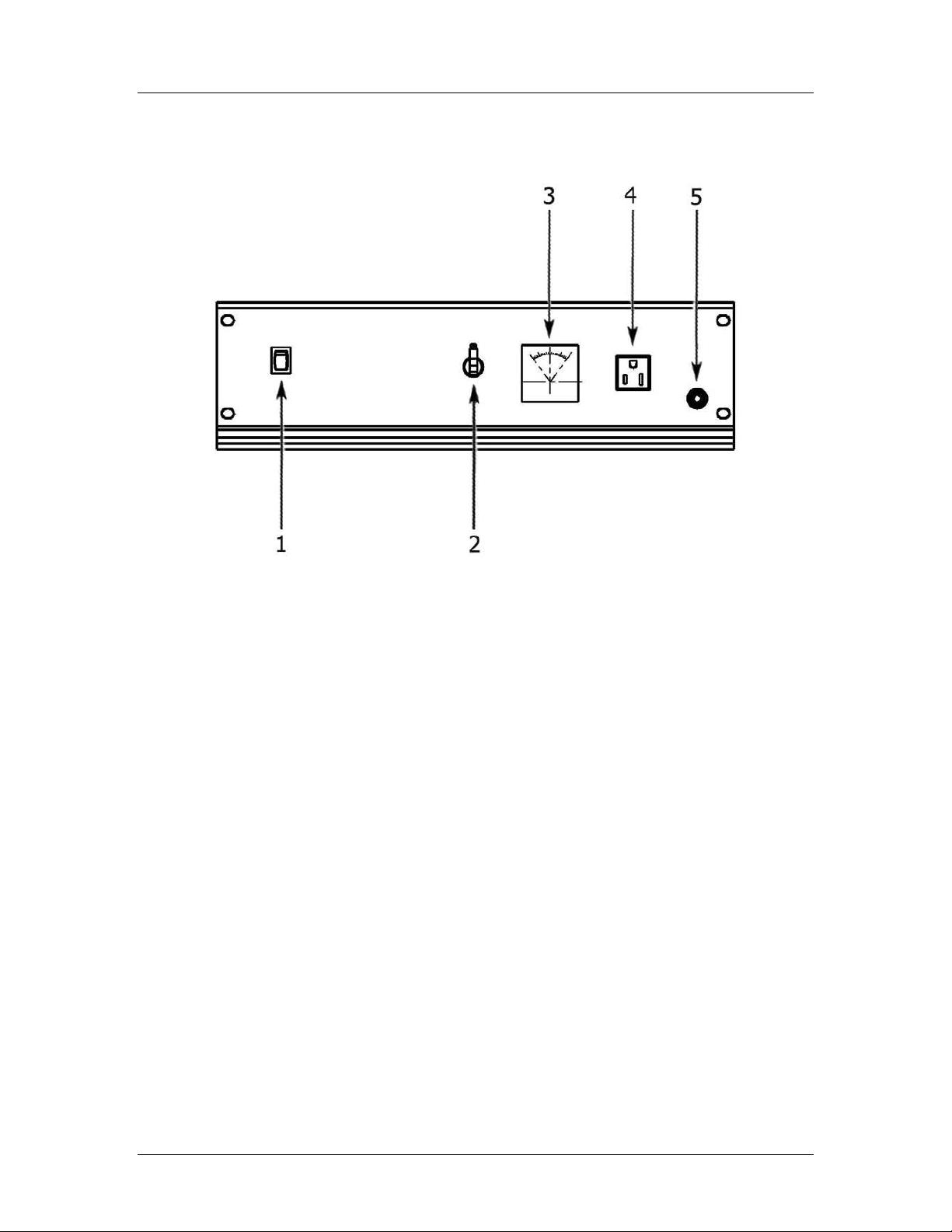

Power Panel

(1) Engine Switch – Flip the switch to the

“On” position and pull the recoil starter to

start the generator. Turn to the “Off”

position to turn off the generator.

(2) Circuit Breaker – Protects the

generator against electrical overload.

(3) Voltmeter – Displays the output

voltage of the generator.

(4) 120 V 10 A Outlet – Protected by a 10

A circuit breaker. This receptacle powers 120

Volt AC, 60 Hz, single phase loads requiring

up to 10 A or 1200 watts of power.

(5) Ground Bolt - Consult an electrician

for local grounding regulations.

Controls and Features

Rev CSA42412-20081001 7

Parts Included

Your CSA42412 Gasoline Powered Generator ships with the following parts:

Oil Funnel 1 piece

Spark Plug Socket 1 piece

Tabla de contenidos

Otros manuales de Generador portátil de Champion Power Equipment

Champion Power Equipment

Champion Power Equipment PORTABLE GENERATOR Manual

Champion Power Equipment

Champion Power Equipment CSA40043 Manual

Champion Power Equipment

Champion Power Equipment 72531 Manual del sistema

Champion Power Equipment

Champion Power Equipment 100136 Manual de usuario

Champion Power Equipment

Champion Power Equipment 71330 Manual del sistema

Champion Power Equipment

Champion Power Equipment 41135 Manual del sistema

Champion Power Equipment

Champion Power Equipment 100102 Manual del sistema

Champion Power Equipment

Champion Power Equipment 42431 Manual

Champion Power Equipment

Champion Power Equipment C41255 Manual de usuario

Champion Power Equipment

Champion Power Equipment 100110 Manual del sistema

Champion Power Equipment

Champion Power Equipment C71350E Manual de usuario

Champion Power Equipment

Champion Power Equipment C41155 Manual de usuario

Champion Power Equipment

Champion Power Equipment CSA40015 Manual

Champion Power Equipment

Champion Power Equipment 64023 Manual

Champion Power Equipment

Champion Power Equipment C42412-1 Manual de usuario

Champion Power Equipment

Champion Power Equipment Cabela's Outdoorsman Series Manual de usuario

Champion Power Equipment

Champion Power Equipment 41351 Manual

Champion Power Equipment

Champion Power Equipment 100331 Manual de usuario

Champion Power Equipment

Champion Power Equipment 46539 Manual del sistema

Champion Power Equipment

Champion Power Equipment 100900 Manual de usuario

Champion Power Equipment

Champion Power Equipment 71531 Manual del sistema

Champion Power Equipment

Champion Power Equipment C46540 Manual

Champion Power Equipment

Champion Power Equipment Champion Pro 100430 Manual de usuario

Champion Power Equipment

Champion Power Equipment Paralink 100740 Manual de usuario

Manuales populares de Generador portátil de otras marcas

Kohler

Kohler 20EORZ Manual de instrucciones

Powerhorse

Powerhorse 83171 Manual de usuario

HURST

HURST ML-630-SI Manual de usuario

ETQ

ETQ TG4000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 40265 Guía de configuración

ConMed

ConMed 7550 Manual de usuario

Owon

Owon Waveform Generator Manual de usuario

evertz

evertz 7700 Series Manual de usuario

Power Stroke

Power Stroke PS906025 Manual de usuario

Firefly

Firefly Cygnus CYG2400/460/24 Manual de usuario

Draper

Draper PG950S Actualización de firmware

PowerBoss

PowerBoss PowerBoss Manual de usuario

SDMO

SDMO SH 4000 Manual de usuario

EINHELL

EINHELL STE 5500 Manual de usuario

Wanco

Wanco WI3000P Manual de usuario

Full Boar

Full Boar FBT-3300 Manual de usuario

Dwyer Instruments

Dwyer Instruments ASG Manual de usuario

Westinghouse

Westinghouse WH1000i Series Manual de usuario
