Chamberlain J Manual de usuario

The Chamberlain Group, Inc.

A DUCHOSSOIS ENTERPRISE

845 Larch Avenue

Elmhurst, Illinois 60126

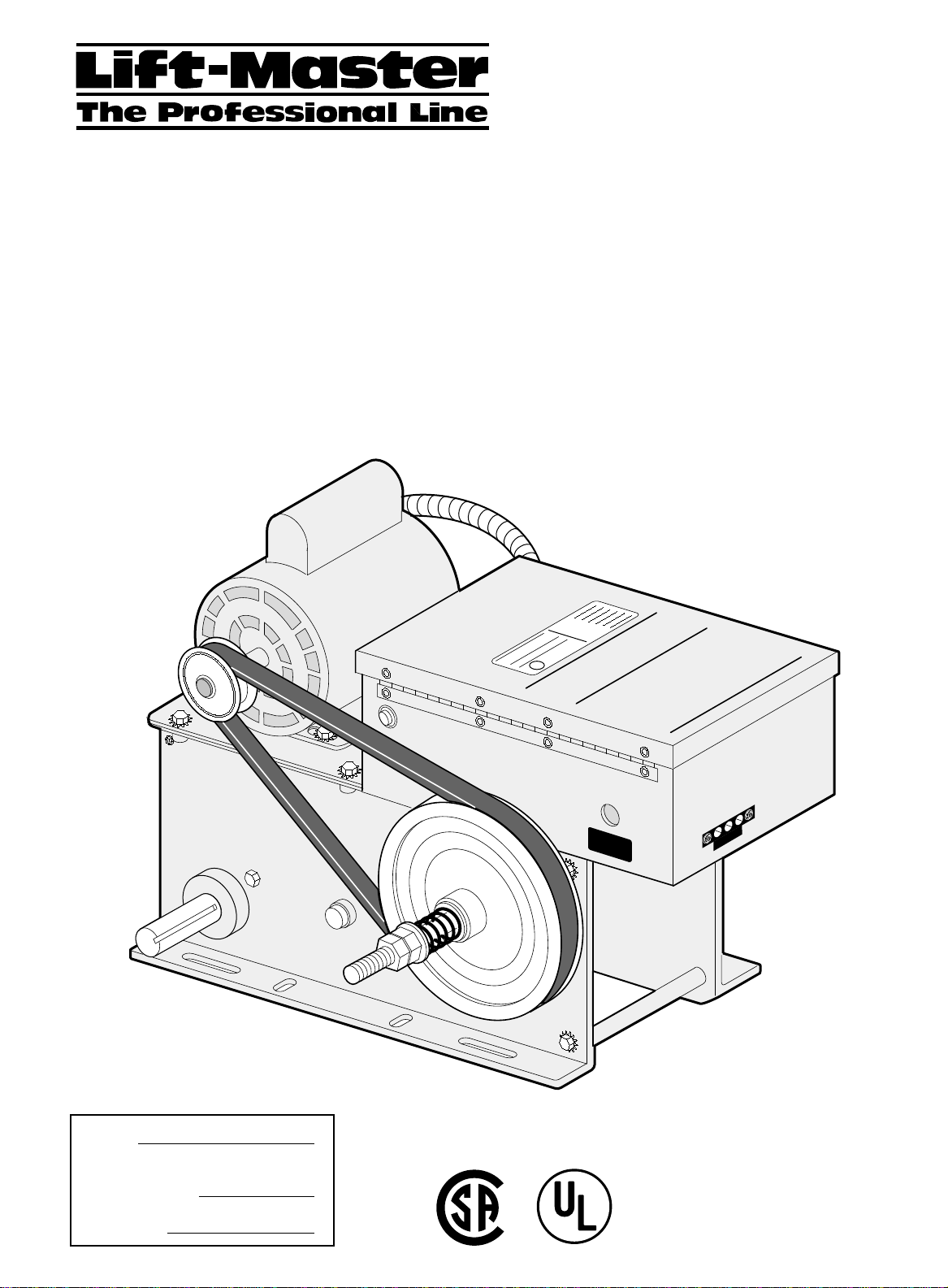

INSTRUCTIONS

SERIES 2000

MODEL J/EGRESS KIT

HEAVY DUTY

BELT DRIVEN JACKSHAFT OPERATOR

LOCATE CONTROL STATION SO THAT DOOR IS WITHIN

SIGHT OF PERSON OPERATING THE CONTROL. DOOR

MUST BE CONTROLLED BY 3 BUTTON STATION ONLY.

FORINDOOR USE ONLY

INSTALL MORE THAN 8' ABOVE FLOOR

CAUTION

CONNECT REVERSING EDGE

SWITCH - SEE INSTALLATION

INSTRUCTIONS

Model No.

Serial No.

Horsepower

Voltage/Phase

Amperage

Rated Load

Lift-Master

The Professioal Line

196L LISTED

COMMERCIAL DOOR OPERATOR

ASSEMBLED IN MEXICO

CONTROL

WIRING

321

®COMMERCIAL DOOR OPERATOR

LISTED

NOT FOR RESIDENTIAL USE

Serial #

(located on electrical box cover)

Installation Date

Wiring Type

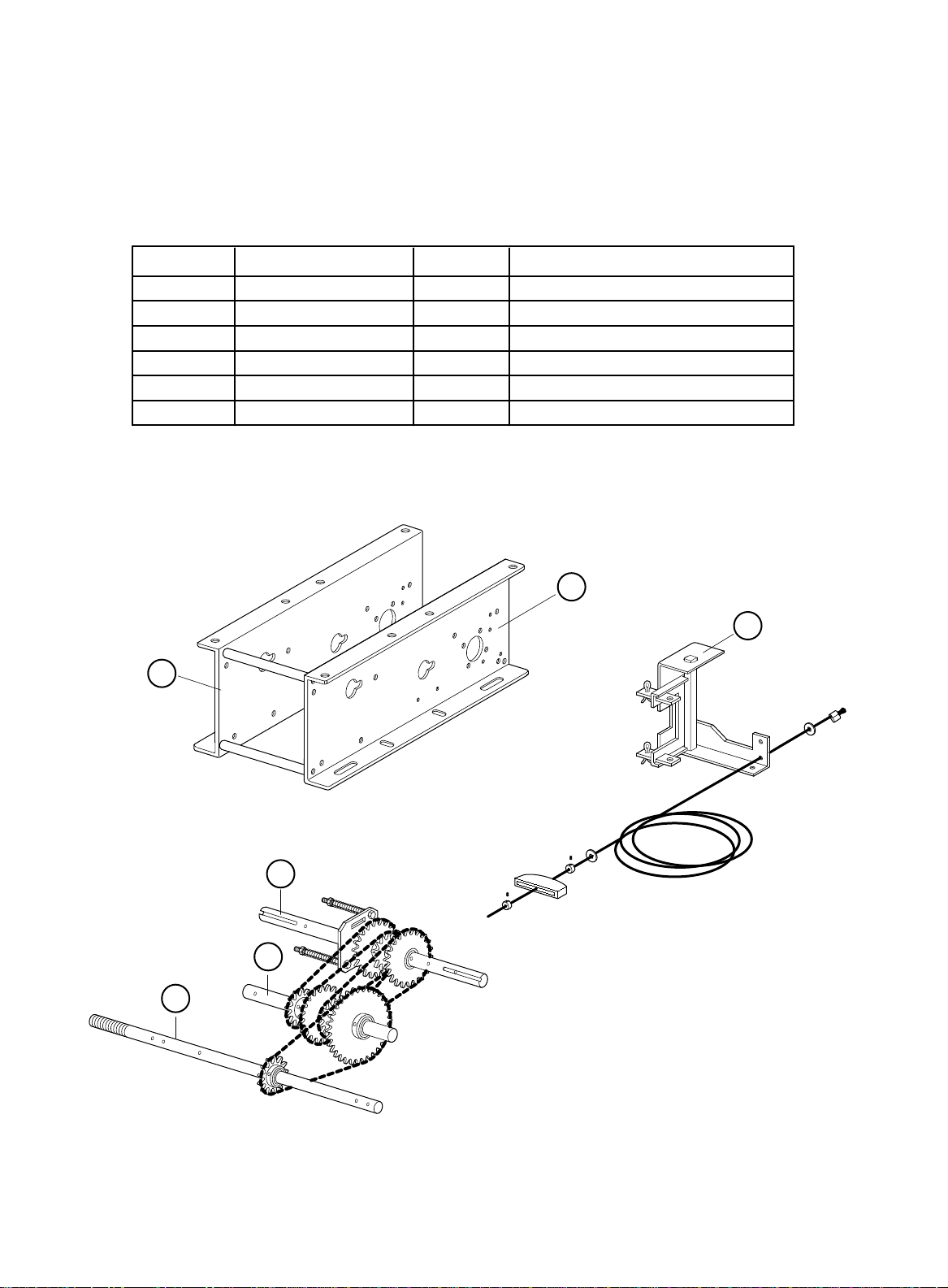

REPAIR PARTS - MODEL J

These parts are unique to Model J.

See HJ Repair Parts List for common parts.

ITEM NO. PARTS NO. QTY. DESCRIPTION

11C4636 1 Output Shaft Assembly

2 1C4635 1 Intermediate Shaft Assembly

3 1C4634 1 Pulley Shaft Assembly

4 59D48-8 1 Frame - Right

5 59D48-9 1 Frame - Left

6 1C4641 1 Disconnect Arm Assembly

EMERGENCY EGRESS FEATURE

(1A4651 OPTIONAL EMERGENCY EGRESS KIT)

EMERGENCY EGRESS

REMOVE LOCKS

PULL HANDLE DOWN FULLY

OPEN GRILLE GATE

Disconnect

Cable

Disconnect

Lever

Frame

Upper Stop

Lower Stop

Disconnect

Lever

Disconnect

Lever

Z-Bend

SIDE VIEW

Frame

Upper Stop Pin

Lower Stop

#8 Thread

Forming Screws

Flexible

Conduit

14-1/2" Diameter

Minimum

Flexible

Conduit

Handle in

UP Position

1 Loop

Maximum

Mount Egress

Box to Wall Studs

or Similar Supports

Conduit

Clamp

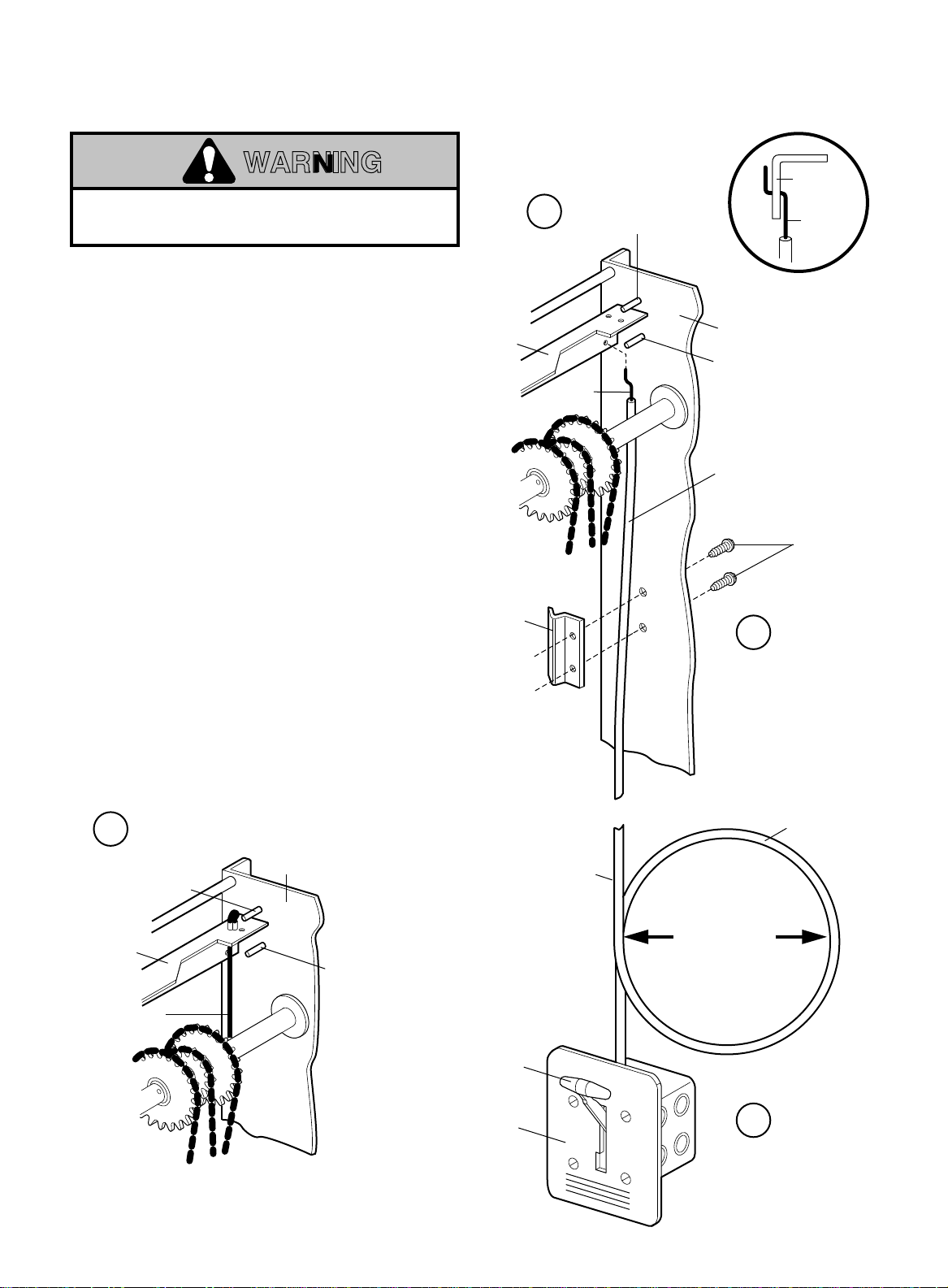

Disconnect all electric power before

proceeding with installation.

WARNING

1. Remove disconnect cable from disconnect lever.

2. Attach wire end of flexible conduit cable to

disconnect lever. Insert Z-bend through hole.

3. Fasten flexible conduit to frame with conduit

clamp and two #8 thread forming screws,

tighten securely.

CAUTION:

For proper operation make sure

that disconnect lever is against upper stop

pin and handle on emergency egress unit is

in the UP position before securing conduit

clamp.

4. Mount egress unit box to wall stud or similar

support. Flexible cable must be kept as straight as

possible. If necessary, one (1) coil with a minimum

diameter of 14-1/2 inches may be used to shorten

the length of the cable. Check disconnect function

several times before reconnecting electric power.

5. Reconnect electric power.

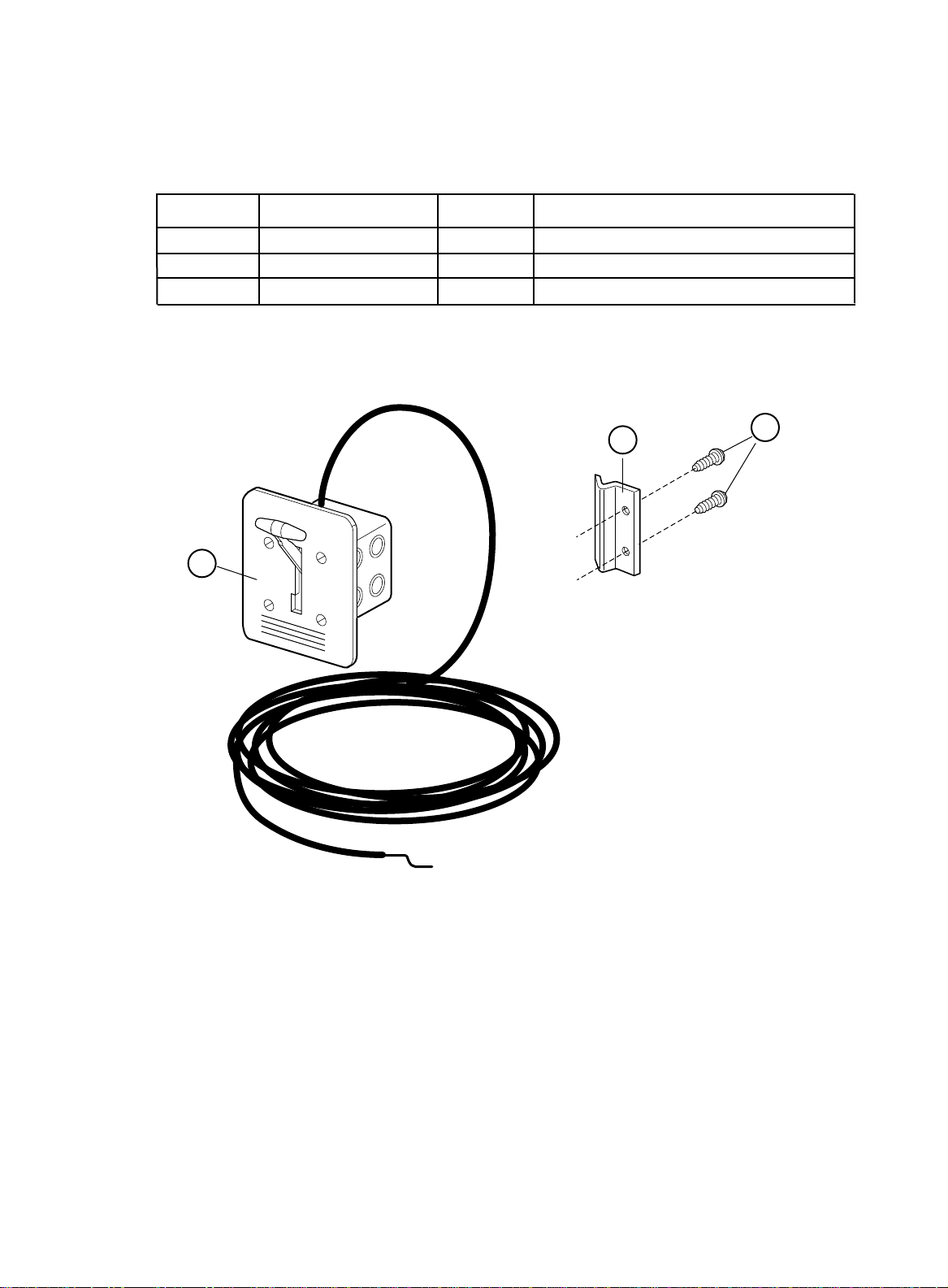

ITEM NO. PARTS NO. QTY. DESCRIPTION

12C420 1 Emergency Egress Control

2 28B101 1 Flexible Conduit Clamp

3 171A384 2 #8-32 x 3/8" Thread Forming Screw

EMERGENCY EGRESS

REMOVE LOCKS

PULL HANDLE DOWN FULLY

OPEN GRILLE GATE

REPAIR PARTS - EGRESS KIT 1A4651
