Emergency Power Supply for
the OMEGA ACTIVE-System
Operating Instructions
Preface
OMEGA ACTIVE Emergency power supply 2
Preface
These Operating Instructions will help you using the
Emergency Power Supply
as intended,
safely, and
advantageously.
Any person who
operates or
disposes of
the Emergency Power Supply must have read and understood
the entire contents of these Operating Instructions and other
required user manuals, operating and assembly instructions.
Depending on the configuration of your locking system, you
may require other user manuals, operating or fitting
instructions for an overall understanding of the system.
These Operating Instructions should always be kept within
your reach.
Notes on the layout
In these Operating Instructions, a number of elements are
highlighted with defined layout features so you can identify at
a glance whether a passage contains
standard text,
a list, or
individual steps in a sequence of actions.
Notes highlighted with this symbol contain additional
information on the efficient use.
Contents
OMEGA ACTIVE Emergency power supply 3
Contents
Preface............................................................................ 2
Notes on the layout .......................................................... 2
For your safety................................................................. 4
Basic safety instructions ......................................... 4
Notes on the handling of batteries .................................. 6
Explanation of the safety notes ...................................... 7
Intended use ............................................................... 7
Description ...................................................................... 8
Scope of delivery.............................................................. 9
Operation ...................................................................... 10
Inserting the batteries................................................. 10
Performing the emergency opening............................... 11
Updating the firmware ................................................ 15
Service and maintenance ................................................ 19
Trouble shooting ............................................................ 19
Disposal ........................................................................ 21
Technical data................................................................ 22
Glossary........................................................................ 23
Notes on the manufacturer's warranty .............................. 24
For your safety
OMEGA ACTIVE Emergency power supply 4
For your safety
Basic safety instructions
Observe all warnings and notes in these Operating Instructions
when you
assemble,
program, and
use
components of the system.
To prevent danger to life and limb, the following safety
instructions must be observed:
Danger to life
Make sure that the effects of your programming do not
expose any persons to any risk of injury or other hazards.
Satisfy yourself that your programming translates into the
desired function.
Make sure that all system components work perfectly.
Danger of explosion
Live parts of the system components may cause an
explosion. Do not use any components of the system in
potentially explosive atmospheres.
The batteries of the Emergency Power Supply may get
overheated if charged and may explode. Never charge the
batteries.
Danger of suffocation
Never allow children to play with packaging material and/or
plastic bags. Keep plastic film and other packaging material
out of reach of children.
For your safety
OMEGA ACTIVE Emergency power supply 5
Danger of poisoning
Always keep the system components out of reach of children.
There is a risk that children swallow small parts such as
batteries or screws.
Danger of property damage
To prevent property damage, the following safety instructions
should be observed:
Always have repairs performed by properly qualified
personnel.
Only use accessories and spare parts recommended by
CEStronics.
Do not drop the Emergency Power Supply on the floor, on
hard surfaces or on hard objects.
Protect the electronic parts of your system components
against water and other liquids.
The Emergency Power Supply contains highly sensitive
electronic parts that may be damaged or destroyed through
static charges. Do not disassemble the Emergency Power
Supply in rooms with built up static charge.
Danger through environmental conditions
Do not use the Emergency Power Supply in corrosive
atmospheres (chlorine, ammonia, lime water).
Only use the Emergency Power Supply in rooms in which the
humidity does not exceed 95%.
Do not use the Emergency Power Supply in rooms with a
high level of dust formation.
Do not use the Emergency Power Supply near sources of
heat.
For your safety
OMEGA ACTIVE Emergency power supply 6
Notes on the handling of batteries
Keep batteries out of reach of children. If a battery was
swallowed, consult a physician without delay.
Always insert new batteries. Never insert old and new
batteries at the same time.
Never mix the battery types. Always replace batteries by
batteries of the same or an equivalent type.
Before inserting the batteries, check that the terminals in the
device and at the batteries are clean. Clean them if
necessary.
Observe the correct polarity (+/-) when inserting the
batteries.
Never attempt to recharge non-rechargeable batteries.
There is a risk of explosion!
Never short-circuit the batteries.
Always store batteries at a cool, dry place. Direct heat may
damage the batteries. Do not expose any battery-powered
devices to strong sources of heat.
Never throw any batteries into a fire.
If you do not use your devices for a longer period, take out
the batteries.
Always remove leaked batteries immediately from the device.
Clean the terminals before inserting new batteries. There is
a danger of acid burns through battery acid!
Remove flat batteries from the device.
For your safety
OMEGA ACTIVE Emergency power supply 7
Explanation of the safety notes
These Operating Instructions include safety notes of the
following types:
ATTENTION
ATTENTION notes warn against possible property or
environmental damage.
Intended use
The Emergency Power Supply is intended for the emergency
opening of locking cylinders of the OMEGA ACTIVE system.
Any other use is considered to be improper and may result in
property damage or even personal injury.
CEStronics GmbH does not accept any liability for any damage
resulting from improper use.
Description
OMEGA ACTIVE Emergency power supply 8
Description
The Emergency Power Supply serves for the emergency
opening of locking cylinders of the OMEGA ACTIVE system in
case of flat batteries. The Emergency Power Supply also
allows you to update the firmware of your locking cylinders.
The Emergency Power Supply has its own power supply
comprised of four commercial rechargeable or non-
rechargeable AA batteries to supply locking cylinders with
power. This power supply is sufficient for about thirty
emergency opening operations.
For the emergency opening, the outside knob of the locking
cylinder is opened slightly and the Emergency Power Supply is
connected with the interface. The green LEDs of the locking
cylinder will light up green to signal the connection with the
Emergency Power Supply.
To open the locking cylinder, you need your authorized locking
medium. Hold your locking medium in front of the locking
cylinder and rotate the outside knob by at least one notch.
Without an authorized locking medium, the locking cylinder
cannot be opened.
With the "OMEGA ACTIVE Firmware-Update" software tool you
can transmit firmware updates from the PC into the locking
cylinder via the RS 232 interface.
Scope of delivery
OMEGA ACTIVE Emergency power supply 9
Scope of delivery
Before fitting and commissioning, please check the contents
of the package and the scope of delivery.
Check new devices for transport damage and inform your
dealer promptly if any damage is found.
1
Emergency Power Supply
2
4 batteries, type AA
Operation
OMEGA ACTIVE Emergency power supply 10
Operation

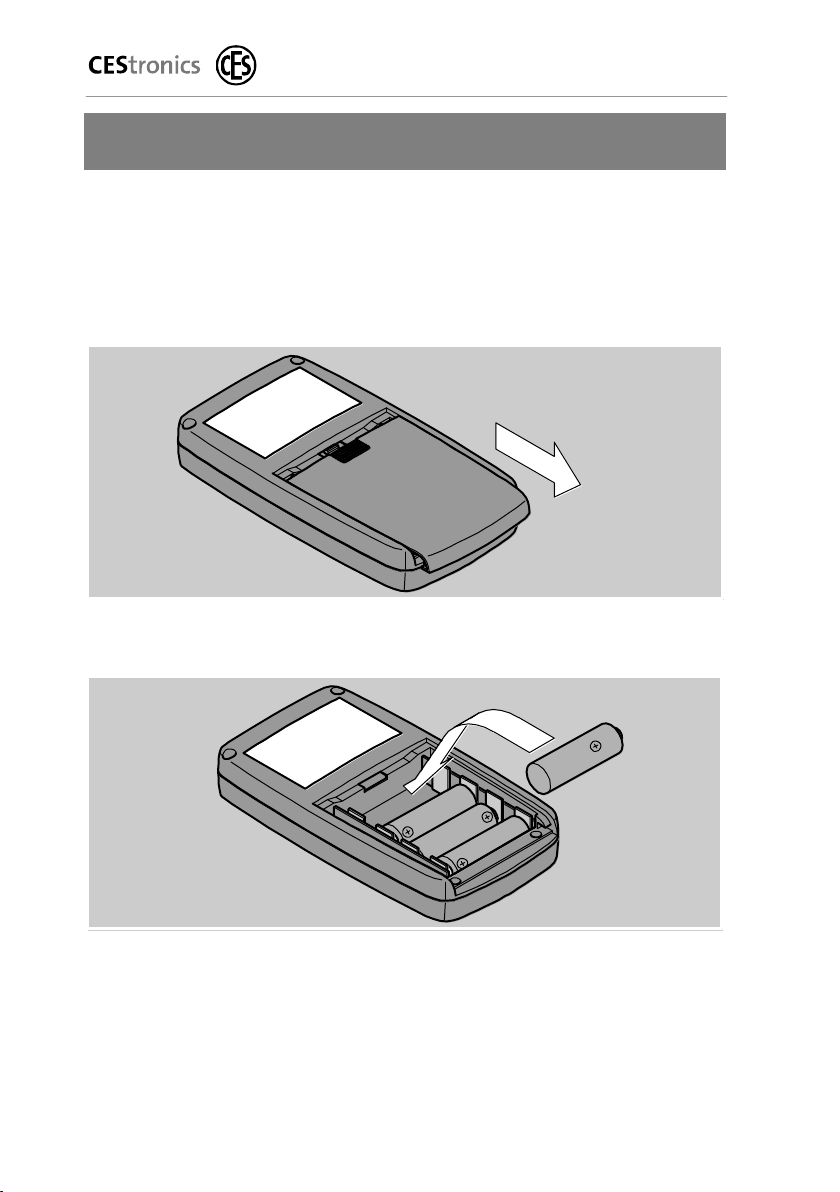

Inserting the batteries
The four supplied batteries must be inserted into the
Emergency Power Supply.
For this purpose, remove the cover of the battery
compartment on the rear of the Emergency Power Supply.
Insert the four batteries into the battery compartment.
Make sure that you insert them with the correct polarity.
Push the cover again over the battery compartment.
The Emergency Power Supply is now operative.
