Central Pneumatic Earthquake 92421 Manual de instalación

1” AIR IMPACT WRENCH

92421

SET UP AND OPERATING INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of

Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein. Tools required for

assembly and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Revised Manual 11h

Page 2 For technical questions, please call 1-800-444-3353. SKU 92421

SAVE THIS MANUAL

Keep this manual for the safety

warnings and precautions, assembly,

operating, inspection, maintenance and

cleaning procedures. Write the product’s

serial number in the back of the manual

near the assembly diagram (or month

and year of purchase if product has no

number). Keep this manual and the

receipt in a safe and dry place for future

reference.

Safety Alert Symbol and Signal

Words

In this manual, on the labeling,

and all other information

provided with this product:

This is the safety alert

symbol. It is used to alert

you to potential personal

injury hazards. Obey all

safety messages that

follow this symbol to avoid

possible injury or death.

DANGER indicates

a hazardous

situation which, if not

avoided, will result in death or

serious injury.

WARNING

indicates a

hazardous situation which, if

not avoided, could result in

death or serious injury.

CAUTION, used

with the safety

alert symbol, indicates a

hazardous situation which, if

not avoided, could result in

minor or moderate injury.

NOTICE is used to

address practices

not related to personal injury.

CAUTION, without

the safety alert

symbol, is used to address

practices not related to

personal injury.

IMPORTANT SAFETY

INSTRUCTIONS

INSTRUCTIONS PERTAINING

TO A RISK OF FIRE,

ELECTRIC SHOCK, OR

INJURY TO PERSONS

WARNING – When using tools, basic

precautions should always be

followed, including the following:

General

a. To reduce the risks of electric

shock, re, and injury to persons,

read all the instructions before

using the tool.

Work area

a. Keep the work area clean and well

lighted. Cluttered benches and dark

areas increase the risks of electric

shock, re, and injury to persons.

b. Do not operate the tool in

explosive atmospheres, such as in

the presence of ammable liquids,

gases, or dust. The tool is able to

create sparks resulting in the ignition

of the dust or fumes.

c. Keep bystanders, children, and

visitors away while operating the

Page 3For technical questions, please call 1-800-444-3353.SKU 92421

tool. Distractions are able to result in

the loss of control of the tool.

Personal safety

a. Stay alert. Watch what you are

doing and use common sense

when operating the tool. Do not

use the tool while tired or under

the inuence of drugs, alcohol, or

medication. A moment of inattention

while operating the tool increases the

risk of injury to persons.

b. Dress properly. Do not wear loose

clothing or jewelry. Contain long

hair. Keep hair, clothing, and

gloves away from moving parts.

Loose clothes, jewelry, or long hair

increases the risk of injury to persons

as a result of being caught in moving

parts.

c. Avoid unintentional starting.

Be sure the switch is off before

connecting to the air supply. Do not

carry the tool with your nger on the

switch or connect the tool to the air

supply with the switch on.

d. Remove adjusting keys and

wrenches before turning the tool

on. A wrench or a key that is left

attached to a rotating part of the tool

increases the risk of personal injury.

e. Do not overreach. Keep proper

footing and balance at all times.

Proper footing and balance

enables better control of the tool in

unexpected situations.

f. Use safety equipment. A

dust mask, non-skid safety

shoes and a hard hat must

be used for the applicable

conditions. Wear heavy-duty work

gloves during use.

g. Always wear eye

protection. Wear ANSI-

approved safety goggles.

h. Always wear hearing

protection when using

the tool. Prolonged

exposure to high intensity

noise is able to cause hearing loss.

Tool use and care

a. Use clamps or another practical

way to secure and support the

workpiece to a stable platform.

Holding the work by hand or against

the body is unstable and is able to

lead to loss of control.

b. Do not force the tool. Use the

correct tool for the application. The

correct tool will do the job better and

safer at the rate for which the tool is

designed.

c. Do not use the tool if the Trigger

does not turn the tool on or off.

Any tool that cannot be controlled

with the switch is dangerous and

must be repaired.

d. Disconnect the tool from the

air source before making

any adjustments, changing

accessories, or storing the tool.

Such preventive safety measures

reduce the risk of starting the tool

unintentionally. Turn off and detach

the air supply, safely discharge any

residual air pressure, and release the

throttle and/or turn the switch to its off

position before leaving the work area.

Page 4 For technical questions, please call 1-800-444-3353. SKU 92421

e. Store tool when idle and out

of reach of children and other

untrained persons. A tool is

dangerous in hands of untrained

users.

f. Maintain the tool with care. A

properly maintained tool is easier to

control.

g. Check for misalignment or binding

of moving parts, breakage of

parts, and any other condition

that affects the tool’s operation. If

damaged, have tool serviced before

using. Many accidents are caused

by poorly maintained tools. There is a

risk of bursting if the tool is damaged.

h. Use only accessories that are

identied by the manufacturer for

the specic tool model. Use of an

accessory not intended for use with

the specic tool model, increases the

risk of injury to persons.

Service

a. Tool service must be performed

only by qualied repair personnel.

b. When servicing a tool, use only

identical replacement parts. Use

only authorized parts.

c. Use only the lubricants supplied

with the tool or specied by the

manufacturer.

Air source

a. Never connect to an air

source that is capable of

exceeding 90 psi. Over

pressurizing the tool may

cause bursting, abnormal operation,

breakage of the tool or serious injury

to persons. Use only clean, dry,

regulated compressed air at the rated

pressure or within the rated pressure

range as marked on the tool. Always

verify prior to using the tool that the

air source has been adjusted to the

rated air pressure or within the rated

air-pressure range.

b. Never use oxygen, carbon dioxide,

combustible gases or any bottled

gas as an air source for the tool.

Such gases are capable of explosion

and serious injury to persons.

SAVE THESE

INSTRUCTIONS.

SYMBOLS AND

SPECIFIC SAFETY

INSTRUCTIONS

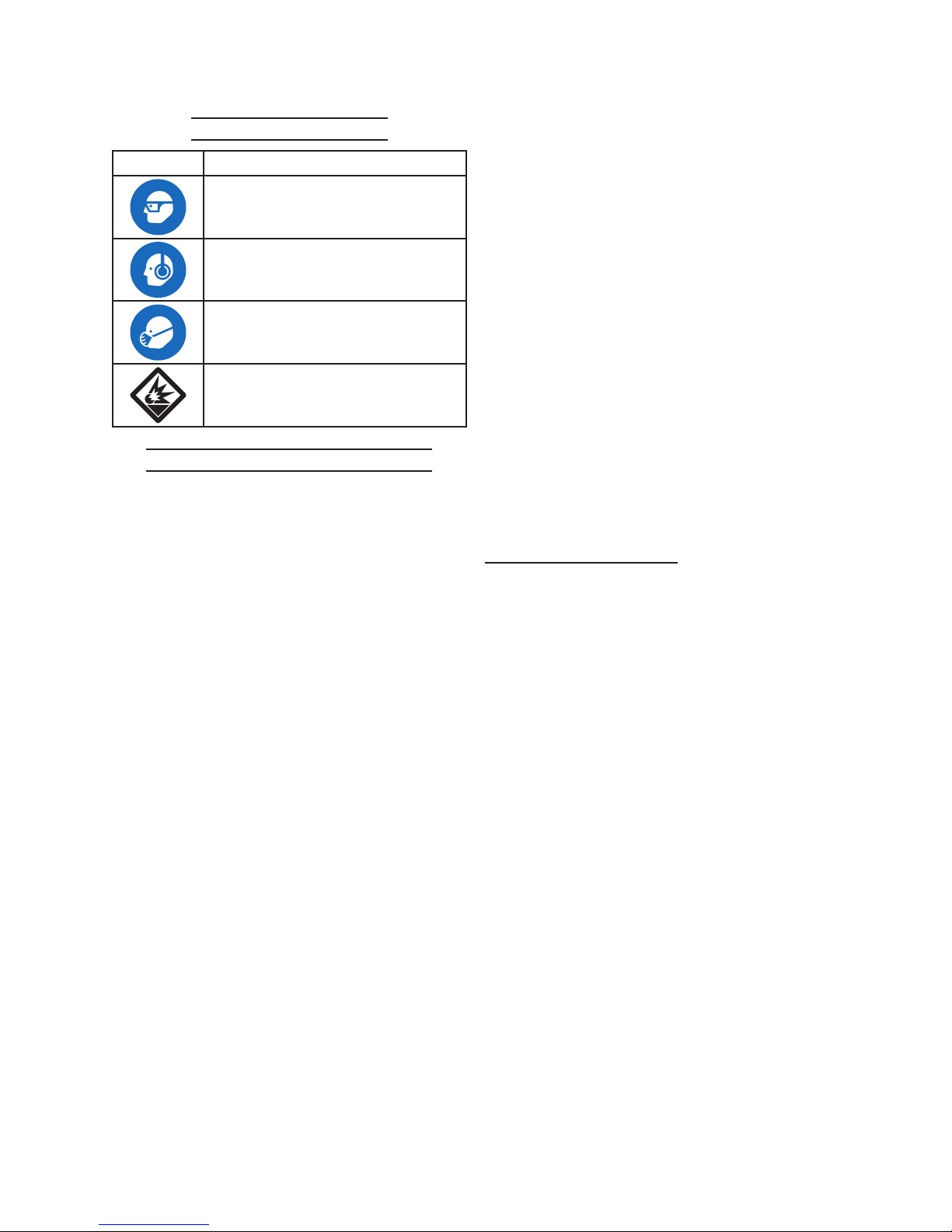

Symbol Denitions

Symbol Property or statement

noNo-load speed

.../min Revolutions or reciprocation per

minute

PSI Pounds per square inch of pressure

ft-lb Foot-pounds of torque

BPM Blows per minute

CFM Cubic Feet per Minute ow

SCFM Cubic Feet per Minute ow at

standard conditions

NPT National pipe thread, tapered

NPS National pipe thread, straight

Chart continued in next column.

Page 5For technical questions, please call 1-800-444-3353.SKU 92421

Symbol Denitions

Symbol Property or statement

WARNING marking concerning Risk

of Eye Injury. Wear ANSI-approved

eye protection.

WARNING marking concerning Risk

of Hearing Loss. Wear hearing

protection.

WARNING marking concerning Risk

of Respiratory Injury. Wear NIOSH-

approved dust mask/respirator.

WARNING marking concerning Risk

of Explosion.

Specic Safety Instructions

1. The warnings and precautions

discussed in this manual cannot

cover all possible conditions and

situations that may occur. It must

be understood by the operator that

common sense and caution are

factors which cannot be built into this

product, but must be supplied by the

operator.

2. Hold Impact Wrench with BOTH

hands during use. Failure to do so

can lead to loss of control, which can

cause personal injury and/or property

damage.

3. WARNING: The brass components

of this product contain lead, a

chemical known to the State of

California to cause birth defects (or

other reproductive harm). (California

Health & Safety code § 25249.5, et

seq.)

4. Only use with accessories rated to

handle the forces exerted by this tool

during operation. Other accessories

not designed for the forces generated

may break and forcefully launch

pieces.

5. Attach all accessories properly to the

tool before connecting the air supply.

A loose accessory may detach or

break during operation.

6. Obey the manual for the air

compressor used to power this tool.

7. Install an in-line shutoff valve to allow

immediate control over the air supply

in an emergency, even if a hose is

ruptured.

8. Do not lay the tool down until it has

come to a complete stop. Moving

parts can grab the surface and pull

the tool out of your control.

Vibration Precautions

This tool vibrates during use.

Repeated or long-term exposure to

vibration may cause temporary or

permanent physical injury, particularly to

the hands, arms and shoulders. To reduce

the risk of vibration-related injury:

1. Anyone using vibrating tools regularly

or for an extended period should

rst be examined by a doctor and

then have regular medical check-

ups to ensure medical problems are

not being caused or worsened from

use. Pregnant women or people

who have impaired blood circulation

to the hand, past hand injuries,

nervous system disorders, diabetes,

or Raynaud’s Disease should not use

this tool. If you feel any symptoms

related to vibration (such as tingling,

numbness, and white or blue ngers),

seek medical advice as soon as

possible.

Page 6 For technical questions, please call 1-800-444-3353. SKU 92421

2. Do not smoke during use. Nicotine

reduces the blood supply to the

hands and ngers, increasing the risk

of vibration-related injury.

3. Wear suitable gloves to reduce the

vibration effects on the user.

4. Use tools with the lowest vibration

when there is a choice.

5. Include vibration-free periods each

day of work.

6. Grip tool as lightly as possible (while

still keeping safe control of it). Let

the tool do the work.

7. To reduce vibration, maintain tool as

explained in this manual. If abnormal

vibration occurs, stop immediately.

SAVE THESE

INSTRUCTIONS.

FUNCTIONAL DESCRIPTION

Specications

Maximum Air Pressure 90 PSI

Air Inlet 1/2” -14 NPT

Drive Size 1” Square Drive

Maximum Speed* 5400 RPM

Average Air Consumption 8 SCFM @ 90 PSI

Maximum Torque 1800 ft-lb

Torque Range 400-1500 ft-lb

Blows Per Minute (BPM) 1080 (Approx.)

Bolt Capacity 1-3/8”

Recommended Air Hose 1/2”

* Maximum speed at stated maximum air pressure.

Excess air pressure is hazardous and may cause the

tool to exceed stated maximum speed.

INITIAL TOOL SET UP/

ASSEMBLY

Read the ENTIRE IMPORTANT

SAFETY INFORMATION

section at the beginning of this

manual including all text under

subheadings therein before set

up or use of this product.

Note: For additional information regarding

the parts listed in the following pages,

refer to the Assembly Diagram near

the end of this manual.

Unpacking

When unpacking, make sure that the

item is intact and undamaged. If any parts

are missing or broken, please call Harbor

Freight Tools at 1-800-444-3353 as soon

as possible.

• This air tool may be shipped with a

protective plug covering the air inlet.

Remove this plug before set up.

Page 7For technical questions, please call 1-800-444-3353.SKU 92421

Air Supply

TO PREVENT

EXPLOSION:

Use only clean, dry, regulated,

compressed air to power this

tool. Do not use oxygen,

carbon dioxide, combustible

gases, or any other bottled

gas as a power source for this

tool.

Quick

Coupler

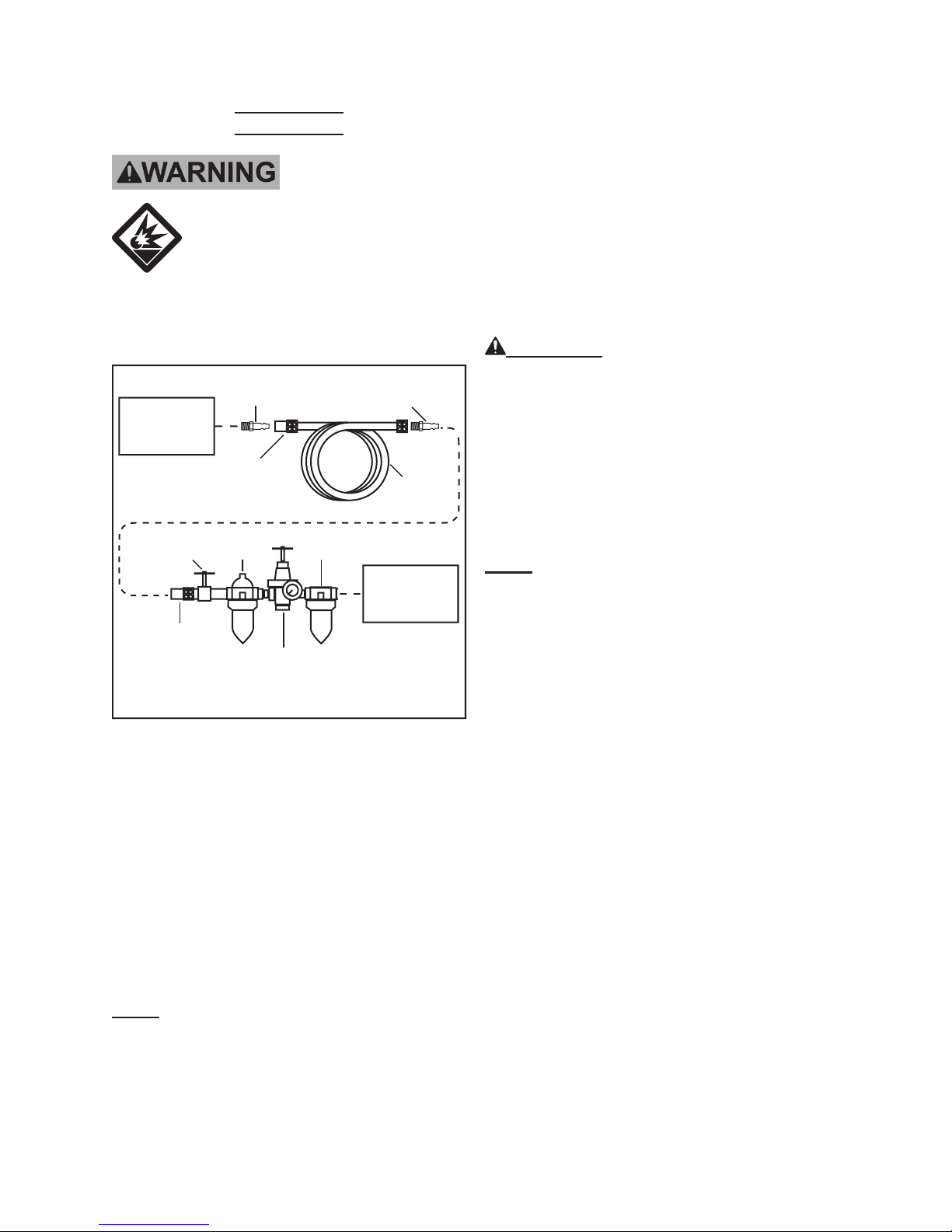

Recommended Air Line Components

Regulator with

Pressure Gauge

Quick

Coupler Air Hose

on Reel

Valve FilterOiler

Coupler

Plug

Tool

Air

Compressor

Coupler

Plug

1. Incorporate a lter, regulator with

pressure gauge, oiler, in-line shutoff

valve, and quick coupler for best

service, as shown in the diagram

above. An in-line shutoff ball

valve is an important safety device

because it controls the air supply

even if the air hose is ruptured.

The shutoff valve should be a ball

valve because it can be closed

quickly.

Note: If an automatic oiler system is not

used, add a few drops of Pneumatic

Tool Oil to the airline connection

before operation. Add a few more

drops after each hour of continual

use.

2. Attach an air hose to the

compressor’s air outlet. Connect the

air hose to the air inlet of the tool.

Other components, such as a coupler

plug and quick coupler, will make

operation more efcient, but are not

required.

WARNING! TO PREVENT SERIOUS

INJURY FROM ACCIDENTAL

OPERATION:

Do not install a female quick

coupler on the tool. Such a coupler

contains an air valve that will allow

the air tool to retain pressure and

operate accidentally after the air

supply is disconnected.

Note: Air ow, and therefore tool

performance, can be hindered by

undersized air supply components.

3. The air hose must be long enough

to reach the work area with enough

extra length to allow free movement

while working.

4. Release the tool’s Trigger (13); refer

to Operation section for description of

controls.

5. Close the in-line safety valve between

the compressor and the tool.

6. Turn on the air compressor according

to the manufacturer’s directions and

allow it to build up pressure until it

cycles off.

7. Adjust the air compressor’s output

regulator so that the air output is

enough to properly power the tool,

but the output will not exceed the

tool’s maximum air pressure at any

time. Adjust the pressure gradually,

Page 8 For technical questions, please call 1-800-444-3353. SKU 92421

while checking the air output gauge

to set the right pressure range.

8. Inspect the air connections for leaks.

Repair any leaks found.

9. If the tool will not be used at this

time, turn off and detach the air

supply, safely discharge any

residual air pressure, and release

the throttle and/or turn the switch to

its off position to prevent accidental

operation.

10. Drain the compressor regularly.

Note: Residual air pressure should not be

present after the tool is disconnected

from the air supply. However, it is a

good safety measure to attempt to

discharge the tool in a safe fashion

after disconnecting to ensure that the

tool is disconnected and unpowered.

Assembly

1. While main body of Impact Wrench

does come assembled, the Side

Handle (45) needs to be fastened to

the side of Hammer Case (43).

2. Attach Washers (46A) to Screws

(46). Position Handle (45) against

Hammer Case, attach Screws and

then securely tighten.

OPERATING INSTRUCTIONS

Read the ENTIRE IMPORTANT

SAFETY INFORMATION

section at the beginning of this

manual including all text under

subheadings therein before set

up or use of this product.

Inspect tool before use, looking

for damaged, loose, and

missing parts. If any problems

are found, do not use tool until

repaired.

Tool Set Up

TO PREVENT

SERIOUS INJURY

FROM ACCIDENTAL

OPERATION: Turn off the tool,

detach the air supply, safely

discharge any residual air

pressure in the tool, and

release Trigger before

performing any inspection,

maintenance, or cleaning

procedures.

TO PREVENT SERIOUS

INJURY: Do not adjust or

tamper with any control or

component in a way not

specically explained within

this manual. Improper

adjustment can result in

tool failure or other serious

hazards.

Work Piece and Work Area Set Up

1. Designate a work area that is clean

and well-lit. The work area must not

allow access by children or pets to

prevent distraction and injury.

2. Route the air hose along a safe

route to reach the work area without

creating a tripping hazard or exposing

the air hose to possible damage.

The air hose must be long enough

to reach the work area with enough

extra length to allow free movement

while working.

3. There must not be hazardous objects

(such as utility lines or foreign

Page 9For technical questions, please call 1-800-444-3353.SKU 92421

objects) nearby that will present a

hazard while working.

General Operating Instructions

1. WARNING! Use only 1” Drive Impact

type sockets (sold separately).

2. WARNING! The Impact Wrench is

heavy and supplies powerful amounts

of torque and should be operated

with BOTH hands. Failure to do

so can lead to personal injury or

property damage.

3. If an automatic oiler is not used, add

a few drops of Pneumatic Tool Oil

to the airline connection before use.

Add a few drops more after each

hour of continual use.

4. Push and snap the socket (not

included) onto the Anvil (38).

5. The Direction Valve (17) has three

forward and three reverse speed

settings Turn Direction Valve to the

right toward the Trigger Handle (1) to

tighten. See Figure 1, below.

6. Place the socket over the nut you

wish to tighten.

7. Grip tool rmly with BOTH hands and

gently squeeze Trigger (13).

8. Adjust air ow by turning Air

Regulator Knob from positions 1

through 3. Position 1 allows the

lowest amount of air ow, and

Position 3 the highest.

9. If the tool requires more force to

accomplish task, verify that the tool

receives sufcient, unobstructed

airow (CFM) and increase the

pressure (PSI) output of the regulator

up to the maximum air pressure

rating of this tool.

CAUTION! TO PREVENT TOOL

AND ACCESSORY FAILURE,

RESULTING IN INJURY:

Do not exceed the tool’s maximum

air pressure rating.

If the tool still does not have sufcient

force at maximum pressure and

sufcient airow, then a larger tool

may be required.

10. Once nut is tightened, release

Trigger. Turn off the air supply and

disconnect the hose.

11. If available, check the recommended

torque specication for the nut. Use

a torque wrench to tighten the nut

to the proper setting after using the

Impact Wrench.

12. To set Impact Wrench in Reverse,

slide Direction Valve to the left and

away from the Trigger Handle for

counterclockwise (reverse) rotation.

13. WARNING! Before changing the

rotational direction of the tool, release

the Trigger and allow Tool to come to

a complete stop.

14. Adjust air ow by turning Air

Regulator Knob from positions 1

To Trigger

Handle (1)

Direction Valve (17)

Reverse

Setting

Figure 1

Forward

Setting

Please Note: Figure 1 (view from side of tool)

shows Settings above Direction Valve without

protective black coating.

Page 10 For technical questions, please call 1-800-444-3353. SKU 92421

through 3. Position 1 allows the

lowest amount of air ow, and

Position 3 the highest.

15. When the nut is loosened, release

Trigger. Turn off air compressor

and disconnect the hose. If needed,

remove the nut from the socket.

16. To prevent accidents, turn off tool,

detach air supply, safely discharge

any residual air pressure in the tool,

and release the throttle and/or turn

the switch to its off position after use.

Clean external surfaces of the tool

with clean, dry cloth, and apply a thin

coat of tool oil. Then store the tool

indoors out of children’s reach.

USER-MAINTENANCE

INSTRUCTIONS

Procedures not specically

explained in this manual

must be performed only by a

qualied technician.

TO PREVENT

SERIOUS INJURY

FROM ACCIDENTAL

OPERATION: Turn off tool,

detach air supply, safely

discharge any residual air

pressure in tool, and release

Trigger before performing any

inspection, maintenance, or

cleaning procedures.

TO PREVENT SERIOUS

INJURY FROM TOOL

FAILURE: Do not use

damaged equipment. If

abnormal noise, vibration,

or leaking air occurs, have

problem corrected before

further use.

TO PREVENT EXPLOSION:

Lubricate tool only with

specied lubricants.

Lubricate air inlet using only

pneumatic tool oil. Lubricate

the internal mechanism using

only white lithium grease.

Other lubricants may damage

the mechanism and may be

highly ammable, causing an

explosion.

Cleaning, Maintenance, and

Lubrication

Note: These procedures are in addition to

the regular checks and maintenance

explained as part of the regular

operation of the air-operated tool.

1. Daily - Air Supply Maintenance:

Every day, perform maintenance

on the air supply according to

the component manufacturers’

instructions. The lubricator’s oil

level needs to be maintained and

the moisture lter must be regularly

drained. Performing routine

maintenance on the air supply will

allow the tool to operate more safely

and will also reduce wear on the tool.

2. Quarterly (every 3 months) -

Tool Disassembly, Cleaning,

and Inspection: Have the internal

mechanism cleaned, inspected, and

lubricated by a qualied technician.

3. Clean inlet bushing and air strainer

screen regularly.

4. Check if housing cap screws are

tight. If not, tighten them.

5. When storing, always store Impact

Wrench in clean, dry and safe

location out of reach of children).

Otros manuales para Earthquake 92421

Tabla de contenidos

Otros manuales de Atornillador de impacto de Central Pneumatic

Central Pneumatic

Central Pneumatic Earthquake 92421 Manual de usuario

Central Pneumatic

Central Pneumatic 95310 Manual de usuario

Central Pneumatic

Central Pneumatic 60629 Manual de usuario

Central Pneumatic

Central Pneumatic 95310 Manual de instalación

Central Pneumatic

Central Pneumatic 92921 Manual de usuario

Central Pneumatic

Central Pneumatic 32871 Manual de usuario

Central Pneumatic

Central Pneumatic Earthquake 92353 Manual de instalación

Central Pneumatic

Central Pneumatic 92622 Manual de usuario

Central Pneumatic

Central Pneumatic 95141 Manual de instalación

Central Pneumatic

Central Pneumatic 33567 Assembly and Manual de usuario

Central Pneumatic

Central Pneumatic 69576 Instrucciones de montaje

Central Pneumatic

Central Pneumatic 94108 Manual de usuario

Central Pneumatic

Central Pneumatic 92921 Manual de usuario

Central Pneumatic

Central Pneumatic 92037 Manual de instrucciones original

Central Pneumatic

Central Pneumatic 53176 Manual de usuario

Central Pneumatic

Central Pneumatic 37730 Manual de usuario

Central Pneumatic

Central Pneumatic 95310 Manual de usuario

Central Pneumatic

Central Pneumatic 92427 Manual de usuario

Central Pneumatic

Central Pneumatic 94803 Manual de usuario

Central Pneumatic

Central Pneumatic 69228 Manual de usuario

Central Pneumatic

Central Pneumatic 93100 Manual de instrucciones original

Central Pneumatic

Central Pneumatic ITEM 93296 Instrucciones de montaje

Central Pneumatic

Central Pneumatic Earthquake 92453 Manual de instalación

Central Pneumatic

Central Pneumatic Earthquake 92353 Manual de usuario

Manuales populares de Atornillador de impacto de otras marcas

stayer

stayer IW500D Manual de usuario

Makita

Makita DTD152 Manual de usuario

Milwaukee

Milwaukee M12 FID Manual de usuario

Grizzly

Grizzly H6140 Manual de usuario

Makita

Makita BTW450 Manual de usuario

Ozito

Ozito LID-3000 Manual de usuario

Astro Pneumatic Tool

Astro Pneumatic Tool 1812 Manual de usuario

Greenlee

Greenlee HW3 Manual de usuario

Sthor

Sthor 57091 Manual de usuario

Makita

Makita DTD145 Manual de usuario

Hilti

Hilti SIW 2-A12 Manual de usuario

Ryobi

Ryobi R18IW3 Manual de usuario

Parkside

Parkside PDSSA 20-Li A1 Manual de usuario

Flex

Flex FX1471 Manual de usuario

SATA

SATA 51075C Manual técnico

Cembre

Cembre NR-11P Manual de usuario

Makita

Makita BTP131RFE Manual de usuario

DeWalt

DeWalt XR Li-ion DCF902 Manual de usuario
