Installaon Guide

celexon screen

Manual Expert

Please read the installaon instrucons carefully

before using the screen.

Please keep for future reference

1

Installation

Install the screen so that it is central for most viewers. When fully extended,

please ensure that the lower third is about eye level. The screen can be wall or

ceiling mounted (You may be required to purchase screws and wall plugs

suitable for your specic building material, use Ø ca.5x35mm screws).

Ceiling installation

Mark out two parallel lines with the appropriate hole spacing of the mounting

brackets on the ceiling. Ensure that they are aligned and drill the holes. Screw the

mounting brackets to the ceiling (see g 1). Then hang the screen on the brackets

(see g 5) and tighten the safety screw underneath the screen (see g 6).

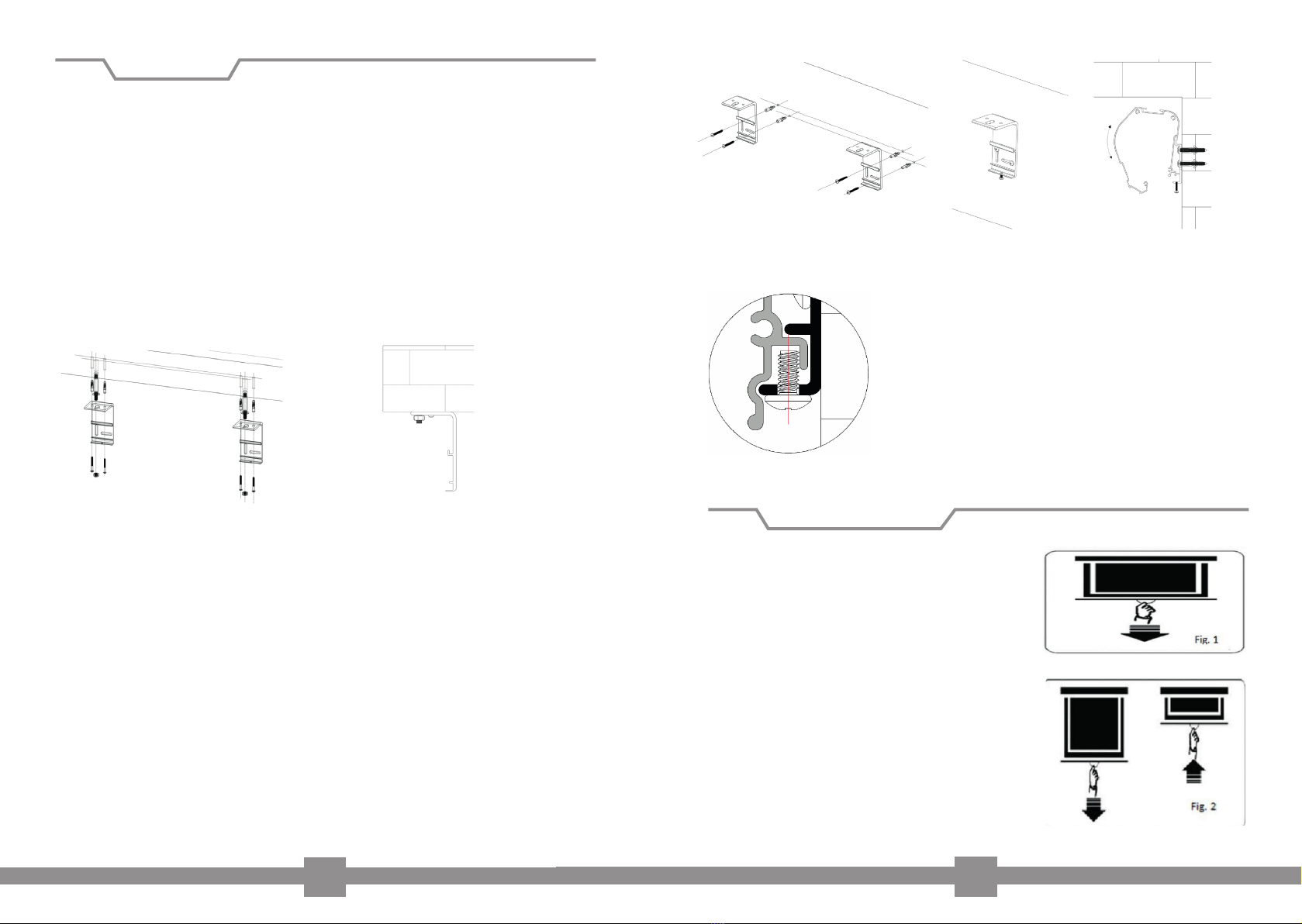

Fig 1: Mounting brackets attached to

ceiling

Fig 2: Side view of ceiling installation

Fig 3: Mounting brackets attached

to wall

Operating instructions

To lower the screen:

Pull the fabric down to the desired position using

the handle on the weighted bar (g 1). Wait for

about 3 seconds and slowly release the handle

until the screen has stopped. The screen can be

stopped approx. every 10cm.

To retract the screen:

Pull the fabric down, approx. 3-5cm to disengage

the locking mechanism (g 2) and pause for a

second. Once the locking mechanism has been

disengaged, the screen will pull back automatically

into its housing (slow-return-mechanism).

2

Wall installation

Mark out two parallel lines with the appropriate hole spacing of the mounting

brackets on the wall. Ensure that they are aligned and drill the holes. Screw the

mounting brackets to the wall (g 3). Next, hang the screen on the brackets (see g

5) and tighten the safety screw underneath the screen (see g 6).

Fig 4: Mounting

bracket

Fig 5: Side view of screen

attaching to mounting

bracket

Fig 6: Safety screw
