CDVI CDV4791 Manual de usuario

2Easy 1 User Video Entry Kit

CDV4791/2

Camera Lens

BUS

S1+ S2+ S-

1 2

Rain Cover

2Easy 1 User Video Entry Kit

CDV4791/2

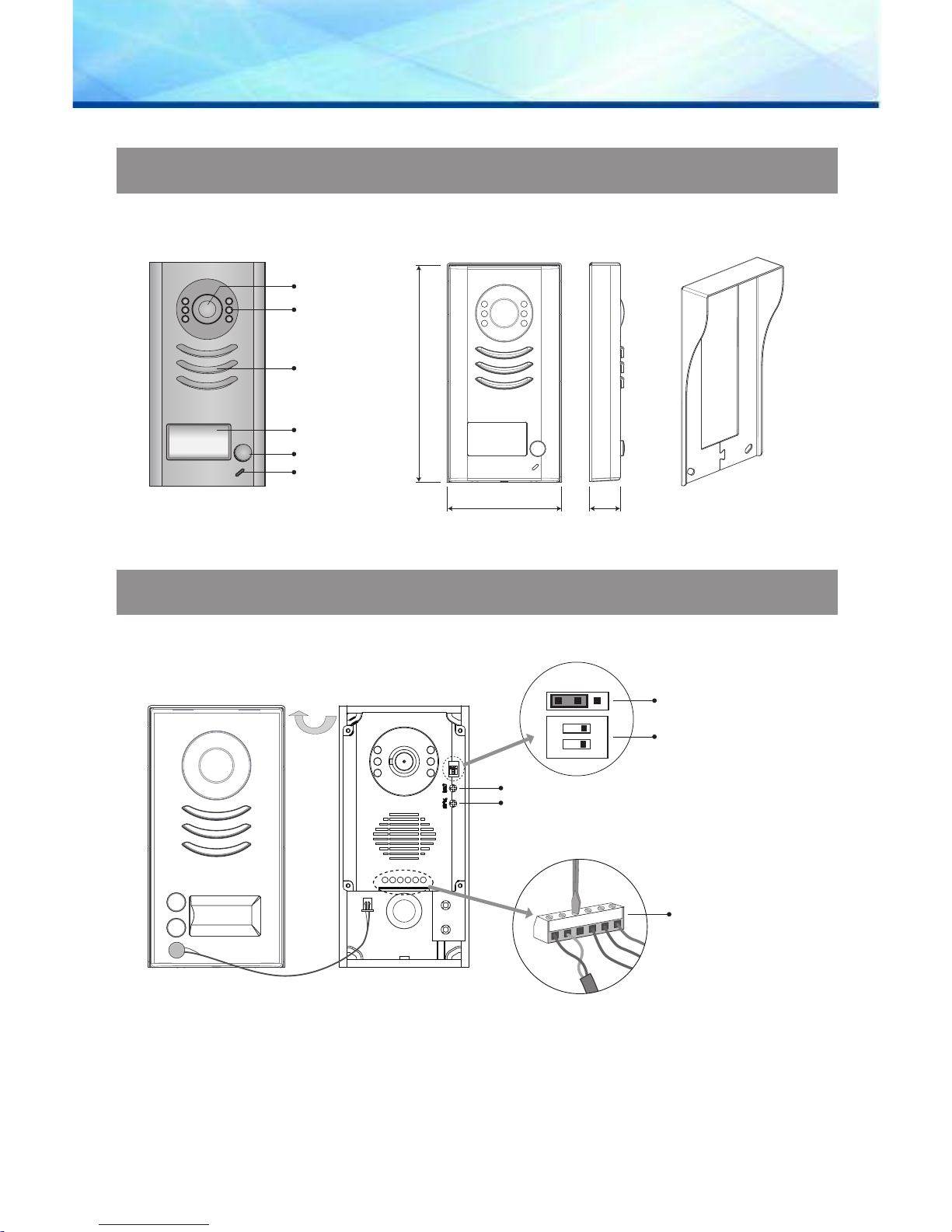

2.1: Terminal Descriptions

2: CDV91/92 Parts and Functions

Main Connection Port

160-165cm

1 2 3 4

2.2: Installation & Adjustments

Mounting Without Rain Cover

2Easy 1 User Video Entry Kit

CDV4791/2

160-165cm

1 2 3 4

Mounting With Rain Cover

name label

1 2

2Easy 1 User Video Entry Kit

CDV4791/2

From the rear of the metal section of the CDV91/92 unclip the plastic cover to open the transparent

name plate, insert a name label and replace the plastic cover.

The PC6A is a power/bus combiner unit, which is designed for the CDV 2Easy 2 wire

system to supply power for the external station, internal monitor and other accessories on

the bus. It can operate as a normal power/bus combiner or auxiliary PSU. The features are

as follows:

• Universal AC input/full range

• Multi protection: short circuit, overload, over voltage

• Integrated with DT-DPS(power separator), Additional

DT-DPS is not needed.

• Support up to 4~8 monitors(depend on models)

• DIN Rail Mounting

3.1:Description:

3: CDV-PC6A Parts and Functions

Fitting The Name Label

2Easy 1 User Video Entry Kit

CDV4791/2

LED

1 2 3

BUS(IM) BUS(DS)

N LPG L

100~240 Vac

PG NLL

PG: Earth ground terminal.

N: AC input terminal.

L: AC input terminal.

LED: Power indicator, on when power connected.

CN: Bus control terminal.

BUS(IM): Indoor monitor connection terminal.

BUS(DS): Door station connection terminal.

Open the AC cover:

1. Push the cover base towards

the centre with your fingers;

2. Lift up and pull out the cover.

After connecting the AC cable, it is

advised to replace the cover.

Note:

1. The AC cable is not included in the

package, it must comply to the specific

requirements of country where installed.

1 2 3

BUS(IM)

Connect to monitor Connect to door staiton

BUS(DS)

AC Input

100~240Vac

N L

PG L

2. Pins 1&2 should be short-circuited

with a C3-3P link(included in the package)

if the unit operates as a standard power

combiner. If operating as an auxiliary

power combiner, the link should be

removed.

2:Terminal Descriptions:

4: CDV47 Parts and Functions

145~160 cm

Terminal description

1 2 3 4 5 6

ON DIP

DIP Switches

SW+

SW-

RING

GND

1 2 3 4 5 6

ON DIP

L1,L2: Bus line terminal (green Connector).

NC: Reserved

SW+,SW-: Doorbell call button connection

port.

DIP switches: Total 6 bits can be

•Bit 1~Bit5: User Code (Address) setting.

•Bit6 : Set to ON if the monitor is at the

end of the line or operates with DBC4A.

Otherwise, set to OFF.

Ring,GND: Extra buzzer connection port.

2Easy 1 User Video Entry Kit

CDV4791/2

SETTINGS

PHONE

TCETEDNOITOMTHGIL

SMS

MEDIA

CALL RECORD

CALL SCENARIO

INTERCOM

Current date and time

Status bar

LOGO

Main Menu

00:10 DS-1

REC

The Main menu is the starting point for using all the applications on the monitor. The Main

menu can be customised to display a chosen logo.

Touch anywhere of the screen on monitor in standby mode, the Main menu will appear as fol-

lows:

MONITOR

Touch to view doorstation camera

Touch t o ent er

intercom options.

Touch to view Device

information.The logo

can be customized.

Touch to enter

set up page.

Touch to set up the divert

number or activate the divert

function.

Touch to activate the

light function via RLC.

Touch to enter motion

detection options.

Touch to turn off the screen

and set the monitor in standby

mode.

Touch to activate Mute,Left

message and Divert call

functions.

Touch to view calling in/calling

out records or missed calls .

Touch to write messages or

review the received/sent

messages.

Touch to play recorded images

or video from door stations.

In communication with a door station

Displays door station ID

during call.

Shows status of talk, unlock etc.

Displays talk time.

Flashes while recording.

Review messages left by visitor.

View information from memory/SD

card.

5 direction pad button,

To enable pan, tilt &

zoom of the picture.

Note: The 5 direction pad operates only with CDV97 door station.

2Easy 1 User Video Entry Kit

CDV4791/2

eInput No. User Code Input No. User Code Input No. User Cod

2Easy 1 User Video Entry Kit

CDV4791/2

User code (address) for the monitor:

4. Touch “ “ key to exit.

Cursor

Keypad type

abc- Alphabet keypad

123-Number keypad

Edit box

Delete the last character

Save setting

Exit current page

INSTALLER SETUP 123

00-31

Space key

Insert a space.

Move the cursor.

1.In the address setting page, select Manual Input Address setting mode, then touch icon,

a keypad will be displayed.

2.Enter the code by touching the digital number.

3.Touch “OK” key to save, code setting complete.

Switch the keypad

between alphabet

and numerical.

Manual Input Address

The address can also be entered manually .

•A total of 32 numbers can be set, from 00~31.

•When multiple monitors are installed in one apartment, the monitors should be set to

thsame user code and the master/slave mode should be set on the monitor. (Details refer

to the section of Setting Slave Monitor)

Touch the screen anywhere on monitor

in standby mode, the main menu page

will be shown as follows:

Setting the Slave address:

2Easy 1 User Video Entry Kit

CDV4791/2

INSTALLER SETUP 123

? + OK: Help Menu

@ + OK: Address Setting Menu

Master/Slave can also be set directly as follows:

Touch the keys“@ and ok” to open Address Setting menu. Refer to the following:

•Select Master/Slave setting option,

touch / icon to scroll to next

option,settings will saved

immediately.

Entering installer setup

00:10 DS-1

About

Local Address 00.00

Video Standard AUTO

System Verson 00.01.00

Display Driver 1.0

Font 1.0

UI 1.0

INSTALLER SETUP 123

? + OK: Help Menu

@ + OK: Address Setting Menu

•On main menu page, touch [Logo] icon to enter the About page.

•When the screen shows the About page, press UNLOCK button on front panel and

hold for 2 seconds.

Refer to the following:

•A keypad is shown.

A maximum of 4 monitors can be connected in one apartment (call button),one

master monitor together with 3 slave monitors, the address must be set

correctly.(Note: one monitor to be set as master monitor - address 00)

The code of 8000 is used to set the master monitor.

The code of 8001 is used to set the first slave monitor .

The code of 8002 is used to set the second slave monitor .

The code of 8003 is used to set the third slave monitor .
