EU Declarations of Conformity:

This appliance has been designed, constructed and marketed in

compliance with safety requirements of EU Directive 2014/35/EU

(Low voltage) and requirements of EU Directive 2014/30/EU (EMC).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.

4

•Steam cleaners must not be used when cleaning this appliance.

•The performance of your extractor will vary depending on anumber

of factors. These include: type of extraction, lengthof ducting, room

volume, ventilation available and cleanliness of the ﬁlters.

Note:

For best performance, you should switch on the extractor 15 minutes

before starting tocook and leave it torun for approximately 15

minutes after the end of cooking.

5

Using Your Extractor (ECA Range)

Control Panel

A- Light button

B - Speed level buttons

C- Power o button

To switch the extractor light on or o:

•Press button “A”.

To switch on the extractor or to change the speed at any time when

the extractor is running:

• Press the relevant “B” button for the ﬁrst,second or third speed level

as required.

To switch the extractor o:

•Press button “C”.

Fig. 1A B C

7

Care and Maintenance

IMPORTANT : DO NOT PERFORM

MAINTENANCE OR CLEANING OF

THE EXTRACTOR WITHOUT FIRST

SWITCHING OFF THE ELECTRICITY

SUPPLY.

Cleaning

You should use anonabrasive cleaner.

Any abrasive cleaner (including Cif) will

scratch the surface and could erase the

control panel markings.

You can clean your extractor eectively

by simply using adilutesolution of

water and mild detergent and drying to

ashine withaclean cloth, for example

the CDA E-Cloth.

Cleaning the grease ﬁlter

The grease ﬁlter should be kept clean

tominimise the risk of ﬁre.

At least once amonthyou should

remove the grease ﬁlter and clean

it withhot soapy water. You can also wash the grease ﬁlter in a

dishwasher, ensuring that you place it in an upright position toprevent

damage from other items in the dishwasher.

Fig. 4

Fig. 5

Fig. 3

In re-circulating mode, air is vented

back into the kitchen through the

opening in the cooker hood.

This method is advised if you are

not using your hob intensively.

Re-circulated air requires the use

of charcoal ﬁlters to remove odours.

2W

10

Mains Electricity Connection

THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY

BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE

POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A

3A FUSE.

We recommend that the appliance is

connected by aqualiﬁed electrician,

who is amember of the N.I.C.E.I.C. and

who will comply withthe I.E.T. and local

regulations.

The wires in the mains lead of this

appliance are coloured in accordance

withthe following code:

Green & Yellow = Earth

Blue = Neutral

Brown = Live

As the colours of the wires in the mains lead for the appliance may

not correspond withthe coloured markings identifying the terminals

connecting tothe fused spur, proceed as follows:

•The wire which is coloured green and yellow must be connected to

the terminal marked “E” (Earth) or coloured green.

•The wire which is coloured blue must be connected tothe terminal

marked “N” (Neutral) or coloured black.

•The wire which is coloured brown must be connected tothe

terminal marked “L” (Live), or coloured red.

Note: Use a 3A Fuse.

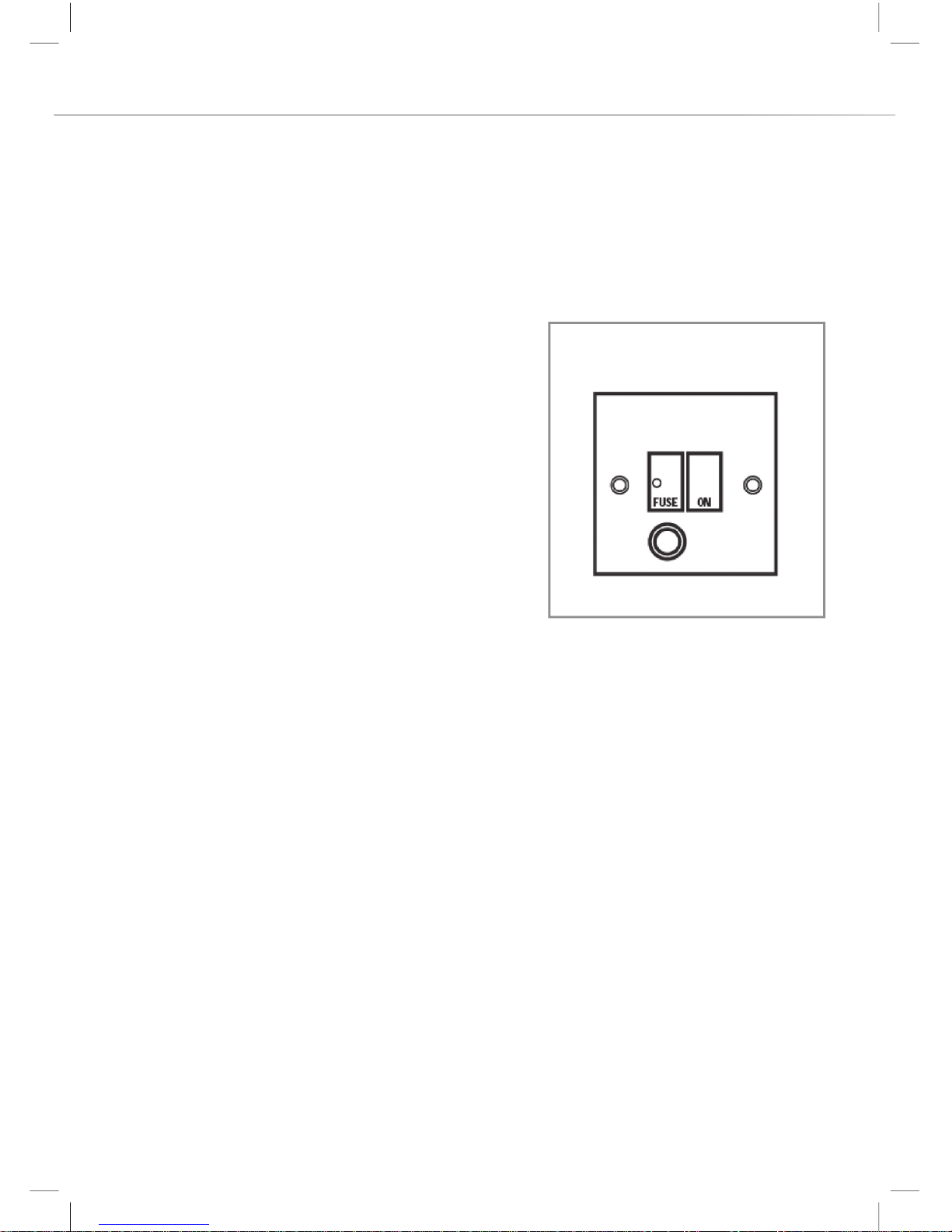

DOUBLE POLE

SWITCHED

FUSED SPUR OUTLET

USE A3AMP FUSE
