EVX100 Extractor

Manual for Installation, Use and Maintenance

Important

The CDA Group Ltd cannot be held responsible for injuries or losses

caused by incorrect use or installation of this product. Please note that

CDA reserve the right to invalidate the guarantee supplied with this

product following incorrect installation or misuse of the appliance or

use in a commercial environment.

This appliance is not designed to be used by people (including

children) with reduced physical, sensorial or mental capacity, or

who lack experience or knowledge about it, unless they have had

supervision or instructions on how to use the appliance by someone

who is responsible for their safety.

Under no circumstances should any external covers be removed for

servicing or maintenance except by suitably qualiﬁed personnel.

Appliance information:

Please enter the details on the appliance rating plate below for

reference, to assist CDA Customer Care in the event of a fault with

your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

CE Declarations of Conformity:

This appliance has been manufactured to the strictest standards and

complies with all applicable legislation, including Gas safety, Electrical

safety (LVD) and Electromagnetic interference compatibility (EMC).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must be taken to a special

local authority waste collection centre or to a dealer providing

appliance recycling services.

Disposing of a household appliance separately avoids possible

negative consequences for the environment and health. It also

enables the constituent materials to be recovered, saving both energy

and resources. As a reminder of the need to dispose of household

appliances separately, the product is marked with a crossed-out

wheeled dustbin.

Please note:

• Under no circumstances should the extractor be connected to any

gas ventilation system, ﬂue system or hot air ducting system.

• Do not vent the extractor into an attic or loft space.

• Only house the extractor in rooms with adequate ventilation.

Remember that the extractor is powerful and whatever air is

extracted needs to be replaced.

• Do not tile the extractor in. It should be removable for service or

maintenance.

• Do not use silicone sealant to secure the hood to the wall.

• You must be able to isolate the extractor from the mains electrical

supply after installation.

• This extractor has been designed to be used in a room with a

volume of less than 36 m.

• Steam cleaners must not be used when cleaning this appliance.

• The performance of your extractor will vary depending on a number

of factors. These include: type of extraction, length of ducting, room

volume, ventilation available and cleanliness of the ﬁlters.

Using your Extractor

For best performance, you should switch on the extractor 15 minutes

before starting to cook and leave it to run for approximately 15

minutes after the end of cooking.

To switch on the extractor and set the speed level

- Touch key A or press button 1 on the remote. The appliance will

switch on at the last speed level used.

- To increase the speed level touch key C or button 2 on the remote.

- To reduce the speed level touch key B or button 4 on the remote.

The speed cycles through speed levels, and the relevant number

indicator will show on the display.

- To switch the extractor o, touch key A or button 1 on the remote.

The intensive function

The extractor is equipped with an intensive function which runs for ten

minutes before returning to the previous selected speed level.

- To activate the intensive function press key D or button 5 on the

Add a picture of the control panel and the remote control

here - though they may need drawing :-(

ﬁg. 1

HGA B C D FE

remote. Whilst the intensive function is active HI appears on the

centre of the display and the bottom right hand dot ﬂashes once a

second.

- To cancel the intensive function, touch key D or button 5 again and

the extractor will return to the previous speed level.

The extractor lights

- To switch the lights on and o, press key G or button 6 on the

remote.

The extractor is equipped with an ambient light function, which dims

the lights. To activate the ambient light function, press key H or press

and hold button 6 on the remote for three seconds.

The timer

The extractor is equipped with a timer that allows the extractor to run

for 30 minutes before switching o automatically.

- To activate the timer, touch key F or press button 1 on the remote.

The working speed and time remaining will ﬂash alternative on the

display and a dot will ﬂash in the lower right hand corner of the

display.

- To cancel the timer, touch key F or button 1 on the remote.

Please note

The timer cannot be activated when the intensive function is on.

The clean air function

- The extractor is equipped with a clean air function that runs the

motor for 10 minutes every hour at 100m/h to keep the air in the

kitchen refreshed.

- To activate the clean air function, touch key E when the appliance is

either on or o. When the clean air function is running, 24 will show

on the display and a dot will ﬂash in the lower right hand corner of

the display when the motor is running

- To cancel the clean air function, touch any key except the light key.

Care and Maintenance

IMPORTANT : DO NOT PERFORM MAINTENANCE OR ATTEMPT

TO CLEAN THE EXTRACTOR WITHOUT FIRST SWITCHING OFF

THE ELECTRICITY SUPPLY.

Cleaning

You should use a nonabrasive cleaner. Any abrasive cleaner (including

Cif) will scratch the surface and could erase the control panel

markings.

You can clean your extractor eectively by simply using a dilute

solution of water and mild detergent and drying to a shine with a

clean cloth.

Cleaning the grease lter

The grease ﬁlter should be kept clean to minimise the risk of ﬁre.

After 100 hours of use, FF will show on the display when the extractor

is switched o. This indicates that you should remove and clean the

grease ﬁlters with hot soapy water. You can also wash the grease

ﬁlters in a dishwasher, ensuring that you place it in an upright position

to prevent damage from other items in the dishwasher. After rinsing

and drying, replace the ﬁlter.

To reset the ﬁlter alarms, press button E

for approximately 3 seconds when the

extractor is switched o.

To remove the grease ﬁlter follow the

steps below:

1. Open the stainless steel cover panels

by pulling them down and outwards

on either side. They will remain

located in their hinges.

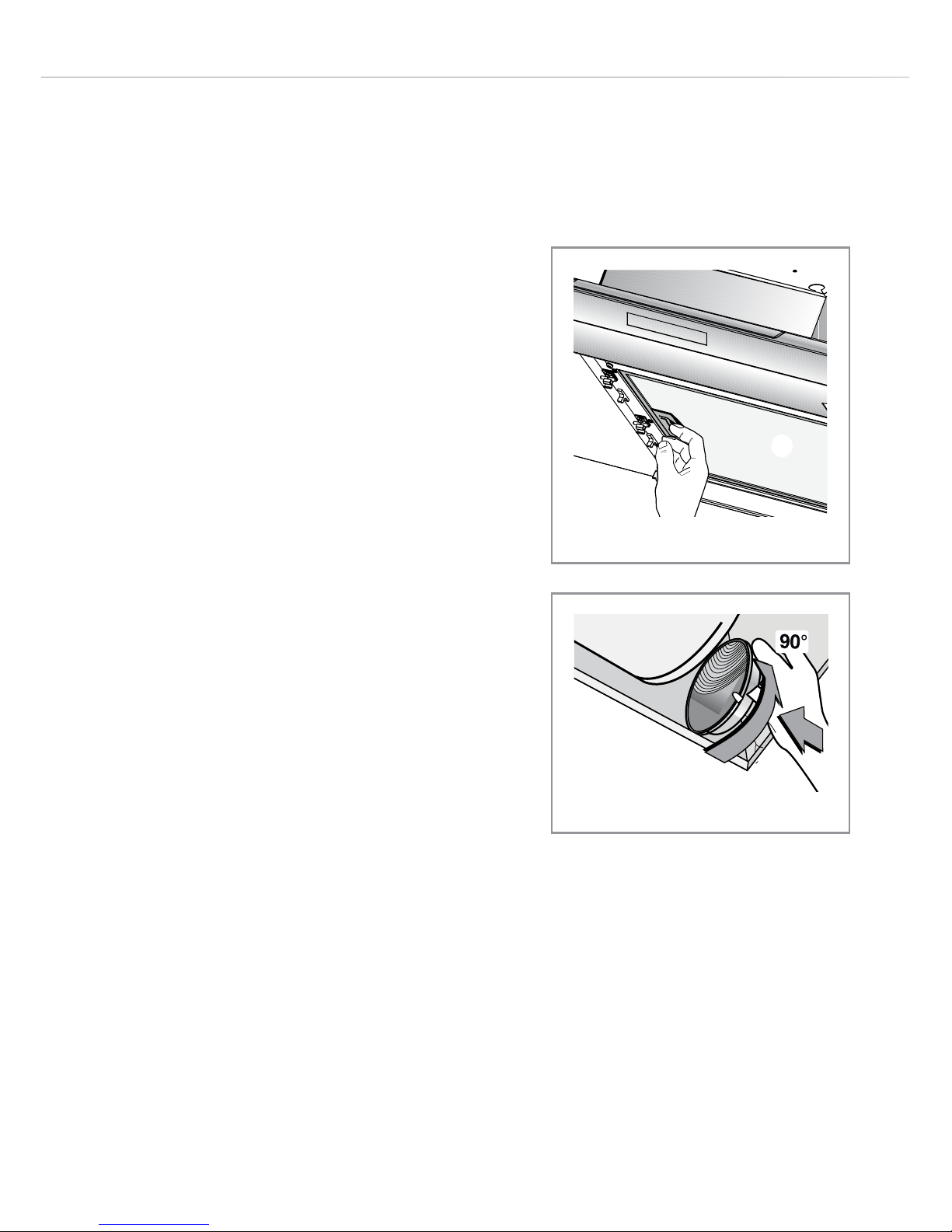

2. Pull open the handle on the grease

ﬁlter as shown in ﬁg. 3. It will release

at the handle side. Then lower the

grease ﬁlter to remove it completely.

To replace the grease ﬁlter, repeat the

steps in reverse.

Please note:

Cleaning the grease ﬁlter in the

dishwasher may lead to discolouration.

This is normal and does not constitute a

fault with the appliance.

Changing the charcoal lter

(re-circulating only)

After 200 hours of use EF will show

on the display when the extractor is

switched o. This indicates that you

ﬁg. 2

ﬁg. 3

should remove and replace the charcoal ﬁlters.

To attach a new charcoal ﬁlter, ﬁrst open the cover panels and remove

the grease ﬁlters as described above. Then oer up the charcoal ﬁlter

to the side of the motor as shown in ﬁgure 4 and turn it clockwise until

it locks into place. Repeat with the other charcoal ﬁlter on the other

side of the motor. Then replace the grease ﬁlters and cover panels.

To reset the ﬁlter alarms, press button E for approximately 3 seconds

when the extractor is switched o.

Care and Maintenance

IMPORTANT: DO NOT PERFORM

MAINTENANCE OR CLEANING OF

THE EXTRACTOR WITHOUT FIRST

SWITCHING OFF THE ELECTRICITY

SUPPLY.

DO NOT CHANGE THE LIGHT BULB

IMMEDIATELY AFTER USE AS THE

BULB WILL BE HOT. ALLOW IT TO

COOL BEFORE REMOVING IT.

Carefully remove the lamp securing

spring using a set of long-nose pliers or

a small screwdriver as shown in ﬁg. 4,

and the bulb will be released.

ﬁg. 4

Remove the old bulb from the holder.

Fit the new bulb, taking care not to touch the glass of the bulb.

Take care to ensure any tools used do not damage the extractor

body.

Do not touch bulbs or adjacent areas during or straight after

prolonged use of the lights.

The main extractor light is designed for use during cooking only. The

ambient light function can be used for general room illumination.

Extended use of the extractor light can reduce the life span of the

bulb.

Bulb replacement is not covered by the guarantee.

Only use bulbs recommended for your extractor. Do not ﬁt bulbs of

a higher power rating. This extractor is not suitable for use with LED

lighting.

Bulbs of a lower power rating may be adequate for use, generally last

longer and use less energy.

Model Lightbulbs required

EVX100SS GU10 28W
