Casio WSD-F20X Manual de usuario

WSD-F10/

WSD-F20/

WSD-F20S/

WSD-F20X/

WSD-F20SC/

WSD-F20A

User’s Guide

Thank you for purchasing this watch.

Before trying to use this watch, be sure to read the Safety Precautions in

the Quick Start Guide that comes with it. Make sure you use the watch

correctly.

Contents

Introduction ....................................................................................... EN-2

Watch Features ............................................................................ EN-2

Measurement Functions ............................................................... EN-4

Overview ...................................................................................... EN-6

About This Manual ....................................................................... EN-7

Getting Ready ................................................................................... EN-8

Basic Operations You Should Remember ................................... EN-13

Using Outdoor Watch Functions - Using CASIO Watch Faces and Apps

........................................................................................................... EN-18

Using CASIO Watch Faces ........................................................ EN-19

Using the Location Memory App (WSD-F20 series only) ........... EN-21

Using the TOOL App .................................................................. EN-27

Using the Activity App ................................................................ EN-38

Using the MOMENT SETTER App ............................................. EN-41

Using the Timepiece App ........................................................... EN-44

Common Outdoor Function Settings .......................................... EN-46

Monochrome Display ..................................................................... EN-60

Troubleshooting ............................................................................. EN-62

Important! ........................................................................................ EN-64

Precautions During Use .............................................................. EN-64

User Maintenance ...................................................................... EN-73

Chargeable Battery Handling (Please recycle!) .......................... EN-74

Personal Information Protection Precautions .............................. EN-74

Main Specifications ........................................................................ EN-75

Supplementary Information ........................................................... EN-81

EN-1

Introduction

Attention WSD-F10 Owners!

●This manual describes operations for a WSD-F10 watch that has been

updated to Wear OS by GoogleTM. For information about updating to Wear

OS by Google, visit the website below.

https://support.google.com/wearos/

●The functions below, which are described in this manual, are not supported

by the WSD-F10.

ーBuilt-in GPS

ーSome Activity app functions (Paddle, Snow)

ーSome watch faces (Location, Traveler)

ーLocation Memory app

●The WSD-F10 acquires location information from a phone. Be sure to use

it while connected with a paired phone.

Attention iPhone Owners!

●When using this watch while it is paired with an iPhone, be sure to have the

Wear OS by Google app running on the iPhone. If the Wear OS by Google

app is not running, functions that require communication with the iPhone

will not operate.

●Some watch functions are restricted when it is paired with an iPhone. For

details, visit the website below.

http://support.casio.com/wsd/

Watch Features

Powered with Wear OS by Google

This watch is designed primarily to be paired with a smartphone running

AndroidTM 4.4+ (excluding Go edition) or iOS 9.3+*1. Pairing with a

smartphone enables use of variety of different functions, both in conjunction

with the smartphone and when the watch is being used by itself.

*1 Recommended. However, a WSD-F10, F20, F20S, or F20X watch that is

already paired with a smartphone running Android 4.3+ or iOS 9+ can also

be used.

EN-2

Five-atmosphere Water Resistance + MIL-STD*2

Even though this watch has a built-in voice recognition microphone, it still is

water resistant up to five atmospheres. This means you can wear your watch

while swimming, fishing, etc. MIL-STD-810G standard environment

resistance allows you to wear your watch while engaged in a variety of

vigorous outdoor activities, including: mountain climbing, cycle sports,

fishing, and more.

*2 United States Department of Defense Military Standard

Built-in GPS (WSD-F20 series only)

This watch has GPS*3 built in, and you can acquire location information

without connecting with a phone. The watch itself can display a map*4 of your

current location, measure and record data for a variety of activities, and more.

*3 In addition to GPS (U.S.), your watch also supports GLONASS (Russia)

and QZSS (Japan) positioning. This manual uses “GPS” to refer to all of

the above positioning systems.

*4 To display the map when you do not have a smartphone, you need to have

the map data downloaded beforehand.

Dual-layer LCD for Improved Readability

CASIO app operations are designed to use either the color or the

monochrome LCD. The monochrome LCD makes display contents easier to

read when outdoors under sunlight.

Three Side Buttons Designed for Sure Operation

The three side buttons are designed for sure operation even when outdoors.

Apps can be freely assigned to the TOOL button and the APP button.

EN-3

CASIO MOMENT SETTER+ App for Smartphone Control of

the Watch

A CASIO MOMENT SETTER+ smartphone app (available from the Google

Play store for Android smartphones only) can be used to customize the watch

setup (MOMENT SETTER notifications, TOOL app functions, etc.) from your

smartphone.

CASIO Camera Linking

Use this app to control supported CASIO camera models from the watch. For

details, visit the CASIO website below.

http://support.casio.com/wsd/

Measurement Functions

Your watch can take barometric pressure, altitude, bearing, and other

readings. Its built-in watch faces and applications can use readings for display

and other useful functions. Note that this watch is not a special purpose

measuring instrument. Readings produced by measurement functions are

intended as general reference information only.

Compass (Bearing Measurement)

For serious mountain climbing and other activities that require accurate

bearing readings, take along a highly reliable compass to use in combination

with the watch’s compass.

Important!

●Note that accurate compass readings and/or correction will not be possible

in the areas described below.

ーIn the vicinity of a permanent magnet (magnetic accessory, etc.), metal

objects, high-voltage wires, aerial wires, or electrical household

appliances (TV, computer, cellphone, etc.)

ーIn motor vehicles, on boats, on aircraft, etc.

ーIndoors, especially inside of reinforced concrete structures.

EN-4

Altimeter, Barometer

The watch’s Altimeter uses a pressure sensor to measure barometric

pressure, and then calculates and displays relative altitude based on the

measured value. Because of this, readings taken at different times at the

same location may produce different altitude values due to changes in

temperature, humidity, barometric pressure, and other factors. Also note that

values displayed by the watch may be different from elevations indicated for

areas where you are located. When using the watch’s altimeter while

mountain climbing, it is recommended that you perform regular correction in

accordance with the local altitude (elevation) indications.

Tide Graph (Graphic Display of Tide Information)

The Tide Graph feature of your watch is intended to provide a rough image

of current tide conditions. Do not use its tide information for navigation

purposes. For navigation purposes, be sure to use official tide charts issued

by a reliable agency or authority for the area you are navigating.

EN-5

Overview

Package Contents

Watch, AC adaptor, charger cable, Quick Start Guide, warranty, cloth band/

band replacement tool (WSD-F20X only)

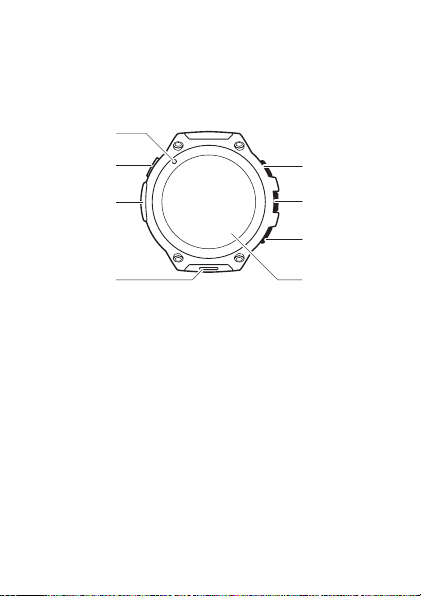

General Guide

①

②

③

④

⑤

⑥

⑦

⑧

ACharge LED

BCharger terminal

CPressure sensor

DMicrophone

ETOOL button

FPower button

GAPP button

HTouch screen

EN-6

About This Manual

●The contents of this manual are subject to change without notice.

●Copying of this manual, either in part or its entirety, is forbidden. You are

allowed to use this manual for your own personal use. Any other use is

forbidden without the permission of CASIO COMPUTER CO., LTD.

●CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits

or claims from third parties arising out of the use of this product or this

manual.

●CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost

profits due to loss of data caused by malfunction or maintenance of this

product, or any other reason.

●The watch and sample screens depicted in the illustrations in this manual

may be different from the actual appearance of the watch.

EN-7

Getting Ready

Be sure to read the precautions in the “Quick Start Guide”, and also perform

all of the steps under “Preparing the Watch for First Use” and “Preparing the

Watch for Outdoor Use”.

Preparing the Watch for First Use

You must perform the steps below before using the watch for the first time.

1. Charge the watch

Plug the provided AC adaptor into a power outlet, and then connect the

provided charger cable and AC adaptor as shown in the illustration.

●The charge LED lights red during charging, and green when a full

charge is achieved.

●The watch will turn on automatically when the charge reaches a certain

level.

AC adaptor*

Charge LED

* The shape of the AC adaptor supplied in your geographic area may be

different from the one shown in the illustration.

Important!

●To help promote longer battery life, regular charging of the watch (about

once a month) is recommended even if you do not use it for a long time.

2. Install the Wear OS by Google App on a Smartphone

Android smartphone: Download the Wear OS by Google app from the

Google Play store.

iPhone: Download the Wear OS by Google app from the iTunes App

Store.

EN-8

3. Pair the Watch with Your Smartphone

When pairing, it is recommended that you have the smartphone and

watch within one meter of each other. Refer to the websites below for

information about how to pair the watch with a smartphone.

Wear OS by Google Help

https://support.google.com/wearos/

CASIO website

http://support.casio.com/wsd/

4. Install the CASIO MOMENT SETTER+ App on the

Smartphone (Android Only)

If you are using an Android smartphone, download the “CASIO MOMENT

SETTER+” app from the Google Play store and install it. You can use the

CASIO MOMENT SETTER+ app to configure the following watch

settings from your smartphone: TOOL App, MOMENT SETTER App.

Important!

●There are two versions of the CASIO MOMENT SETTER+ app. Make sure

you have the latest version installed on your phone. Icons shown in the

Google Play store indicate whether the app is the old version or new version.

Old version icon New version icon

●In order to use all of the functionality provided by this watch, be sure to

update all of your related CASIO apps to their latest versions before using

your watch. For information about the update procedure, visit the website

below.

http://support.casio.com/wsd/

EN-9

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Mirar de Casio

Casio

Casio 3451 Manual de usuario

Casio

Casio QW-693 Manual de usuario

Casio

Casio QW-2983 Manual de usuario

Casio

Casio 2226 Manual de usuario

Casio

Casio 5303 Manual de usuario

Casio

Casio QW-3468 Manual de usuario

Casio

Casio 943 Manual de usuario

Casio

Casio 3143 Manual de usuario

Casio

Casio 1874 Guía de configuración

Casio

Casio ANA(HK1)V.I Manual de usuario

Casio

Casio QW-1000 Manual de usuario

Casio

Casio 3122 Manual de usuario

Casio

Casio G-Shock MTG-900DJ-4A Manual de usuario

Casio

Casio 5441 Manual de usuario

Casio

Casio G-SHOCK MUDMASTER GG1000 Manual de usuario

Casio

Casio 5382 Manual de usuario

Casio

Casio QW-2351 Guía de solución de problemas

Casio

Casio WSD-F21HR Manual de usuario

Casio

Casio 3515 Manual de usuario

Casio

Casio 5046 Manual de usuario

Casio

Casio Analog(MAF) 5125 Manual de usuario

Casio

Casio 3165 Manual de usuario

Casio

Casio G-SHOCK GD-350 Manual de usuario

Casio

Casio 5641 Manual de usuario

Manuales populares de Mirar de otras marcas

Pandora

Pandora WATCH2 Manual de usuario

Suunto

Suunto X6 Manual de usuario

Seiko

Seiko N830 Manual de usuario

MotionX

MotionX 365 Manual de usuario

Garmin

Garmin VENU SQ 2 Manual de usuario

QCY

QCY Watch GTC Manual de usuario

Canyon

Canyon Cindy CNE-KW41WP Manual de usuario

Esq

Esq Watches Guía de instalación

Crane

Crane AA5-CDSM-3A Manual de usuario

Timex

Timex W-214 Manual de usuario

DETOMASO

DETOMASO MATERA Manual de usuario

Geemarc

Geemarc Watch N Shake Manual de usuario

LORUS

LORUS W590 Manual de usuario

STENLILLE

STENLILLE Actío Manual de usuario

Sinn

Sinn HUNTER'S WATCH 3. Edition Manual de usuario

Slazenger

Slazenger SLZ800 Manual de usuario

iTOUCH

iTOUCH 3360 Manual de usuario

Seiko

Seiko 4R57A Guía de inicio rápido
