PA-2400W

C Library Manual

(Version 1.00)

CASIO Computer Co., Ltd.

July 1999

Table of Contents

Preface 4

Chapter 1 Supported Files 5

1.1 Dedicated Library and Utility 7

1.1.1 System Library 7

1.1.2 SIPanel Library 7

1.1.3 I/O Bootup Library 7

1.1.4 File Transfer Utility 8

1.1.5 File Check Utility 8

Chapter 2 Development Environment 9

Chapter 3 System Library 10

3.1 Overview 10

3.2 Details of Function 11

CA_BacklightOn 11

CA_BacklightOff 12

CA_BacklightCheck 13

SyncPowerOff 14

DisablePowerOff 15

EnablePowerOff 16

StatusPowerOff 17

ApoCountReset 18

SoftReset 19

SetPowerOnAlarm 20

GetPowerOnAlarm 21

SetPowerEventStat 22

GetPowerEventStat 24

Chapter 4 SIPanel Library 25

4.1 Overview 25

4.2 Use of SIPanel Library 26

4.3 Restrictions 26

4.4 Details of Function 27

SIP_ExecutePanel 27

SIP_ShowPanel 28

4.5 SIPANEL.EXE 34

4.5.1 Overview 34

4.5.2 Options of Command Line 34

Chapter 5 I/O Bootup Library 35

5.1 Overview 35

5.2 Function 35

5.3 Details of Function 36

iobox_chk 36

5.4 Use of iobox_chk 37

5.5 Sample Program 38

Chapter 6 Registry of Libraries 42

6.1 System Library 42

6.2 SIPanel Library 42

Chapter 7 File Transfer Utility 43

7.1 Overview 43

7.2 List of Supported Commands 44

7.3 Use of FLCE 45

7.4 Termination of FLCE 45

7.5 Restrictions 46

7.6 Communication Commands 47

7.7 Method of Describing Pathname 48

7.8 Conditions at Communication Partner 50

7.8.1 Rules of Naming File and Directory Pathname 50

7.9 Setting Up Registry 51

7.9.1 Setting Up Items 51

7.9.2 Setting Up Registry with User Application 52

7.10 Termination Codes 54

7.11 Log File 56

7.12 Precautions 57

7.13 Details of Command and Option 58

FLCE /Y 58

FLCE /S 59

FLCE /R 60

FLCE /A 61

FLCE /D 62

FLCE /N 63

FLCE /T 64

FLCE (Idle Start) 65

7.14 Command and Status 66

7.15 Retry Process When Downloading File 67

7.15.1 Overview 67

7.15.2 Retry Method 67

7.15.3 Restriction 68

Chapter 8 File Check Utility 69

8.1 Overview 69

8.2 List of Commands 69

8.3 Operation Method 70

8.4 Describing Method 72

8.4.1 Pathname 72

8.4.2 Rules of Naming File and Directory Pathname 72

8.5 Details about Command and Option 73

8.6 Command of FCHKCE 74

8.6.1 Generation of List File 74

8.6.2 Comparison by List File 75

8.7 Format of List File 76

8.8 Syntax Analysis of Script File 77

8.9 Error Messages/Codes 79

8.10 Restriction 80

8.11 Details of Command and Option 81

FCHKCE /G 81

FCHKCE /C 83

Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft Corporation in the USA.

Other company, product and service names used in this manual may also be trademarks or service marks of

respective companies.

Preface

This manual describes the C language-dedicated library functions and utilities that run on the CASIO

PA-2400W (hereinafter referred to as "H/PC", which stands for Handheld PC).

The PA-2400W uses the Windows CE operating system (Ver. 2.11), and uses the Win32 API functions to

generate user application programs. However, more functions may be required if generating a business

application, etc.

The C language-dedicated library functions and utilities described in this manual are used to support

functions that are not supported by the API functions.

Information about the Win32 API functions can be retrieved using the Help function in the Windows

95 system.

Available from

Microsoft

Available from

CASIO

Win32 API Function

C language dedicated library, utility

(I/O bootup, FLCE, FCHKCE)

1. Supported Files

The following files will be supported by the C-library functions and utilities described in this manual.

Table 1.1

File Function Description

System Library CA_BacklightOn Turns on the backlight.

CA_BacklightOff Turns off the backlight.

CA_BacklightCheck Acquires the status of the backlight.

SyncPowerOff Turns off the power after completion of access to card.

DisablePowerOff Disables power off with the power button.

EnablePowerOff Enables power off with the power button.

StatusPowerOff Acquires the status of enable/disable power off with the

power button.

ApoCountReset Resets the APO’s counter.

SoftReset Performs soft-reset (warm-bootup).

SetPowerOnAlarm Enables or disables power on with the alarm.

GetPowerOnAlarm Acquires the status of enable/disable power on with the

alarm.

SetPowerEventStat Enables or disables power-on notification.

CasioSys.lib

CasioSys.h

GetPowerEventStat Acquires the status of enable/disable power-on notification.

SIPanel Library SIP_ExecutePanel Starts up the SIPanel.

SIPanel.lib

SIPanel.h

SIPanel.dll (note 1)

SIPanel.exe

(for individual

execution)

SIP_ShowPanel Displays the SIPanel on the LCD screen or erases it from

the screen.

I/O Bootup Library

Iobox1.lib

Iobox1.h

Iobox1.dll

iobox_chk Checks the condition of connection between PA-2400W

and I/O Box, and acquires a result of the status.

File Transfer Utility

FLCE.EXE Execution file

SND.LNK Shortcut for PA-2400W-to-PA-2400W communication

RCV.LNK Shortcut for PA-2400W-to-PA-2400W communication

IDLE.LNK Shortcut for idle

File Check Utility

FCHKCE.EXE Execution file

MAKE.LNK Shortcut for PA-2400W-to-PA-2400W communication

CHECK.LNK Shortcut for downloading AP

Notes:

1. Since the “SIPanel.dll” and “SIPanel.exe” in English version are pre-installed in the ROM, you do not

need to install it every time you use the software input panel. However, if you use other language

versions of the SIPanel, you need to replace them.

2. Each library function or utility command can be made available to the user when the DLL/EXE file is

copied into the Windows directory on the PA-2400W (see the figure below).

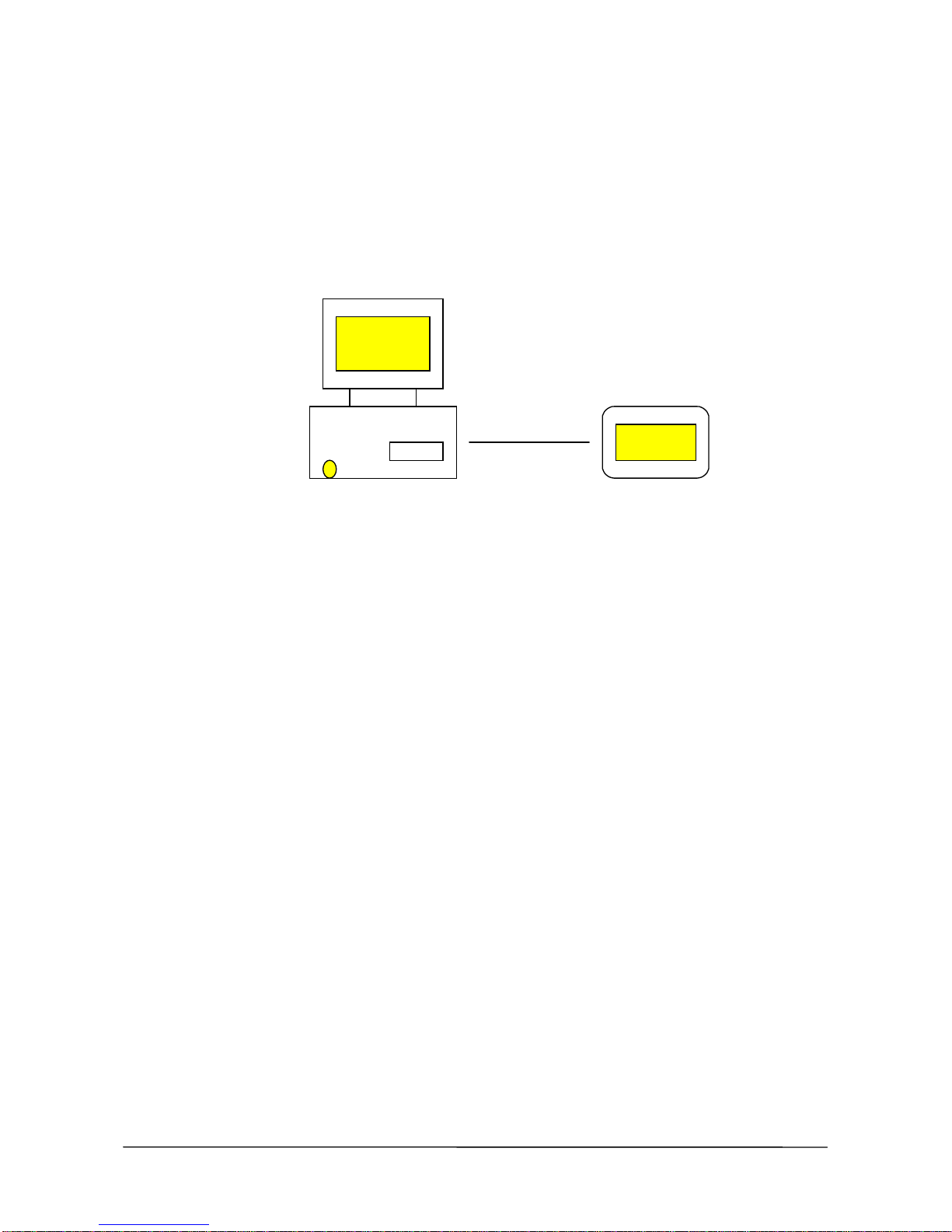

Host PC

PA-2400W

Fig. 1.1 System configuration

1.1 Dedicated Library and Utility

1.1.1 System Library

Table 1.2

No. Function Description Page

1CA_BacklightOn Turns on the backlight. 11

2CA_BacklightOff Turns off the backlight. 12

3CA_BacklightCheck Acquires the status of backlight. 13

4SyncPowerOff Turns off after completion of access to a card. 14

5DisablePowerOff Disables power off with the power button. 15

6EnablePowerOff Enables power on with the power button. 16

7StatusPowerOff Acquires the status of enable/disable power off with the

power button. 17

8ApoCountReset Resets the APO’s counter. 18

9SoftReset Resets the system and then starts up warm bootup. 19

10 SetPowerOnAlarm Enables or disables automatic power on with the alarm. 20

11 GetPowerOnAlarm Acquires the status of automatic power on with the alarm. 21

12 SetPowerEventStat Enables or disables power on event notification. 22

13 GetPowerEventStat Acquires the status of enable/disable power on event

notification. 24

1.1.2 SIPanel Library

Table 1.3

No. Function Description Page

1SIP_ExecutePanel Starts up the SIPanel. 27

2SIP_ShowPanel Displays the SIP or erases it from the LCD screen. 28

1.1.3 I/O Bootup Library

Table 1.4 I/O Bootup library function

No. Function Description Page

1iobox_chk Monitoring the connection status of PA-2400W with I/O Box 36

1.1.4 File Transfer Utility

Table 1.5 File transfer utility

No. Command Description Page

1 FLCE /Y Communication environment setup/Idle start 58

2 FLCE /S File transmission 59

3 FLCE /R File reception 60

4 FLCE /A File transmission (append) 61

5 FLCE /D File deletion 62

6 FLCE /N File move/File name modification 63

7 FLCE /T Time transmission 64

8 FLCE Idle start 65

1.1.5 File Check Utility

Table 1.6 File check utility

No. Command Description Page

1 FCHKCE /G Generation of a list file 81

2 FCHKCE /C Comparison of list files 83

2. Development Environment

Your own application program can be developed by implementing the CASIO’s dedicated library functions

and utility commands listed in the previous pages under the following software development environment.



Microsoft Visual C/C++ version 6.0



Microsoft Windows CE Toolkit for Visual C/C++ 6.0



Windows CE version 2.11 SDK (US version)

3. System Library

3.1 Overview

This System Library functions can provide you with various dedicated functions such as backlight control,

power OFF supplement control, power-ON control with alarm, etc.

These functions to be described in the next pages are developed only for the PA-2400W and therefore not

guaranteed for use with other hardware platforms. Also, please note that it is not a Windows CE general-

purpose library.
