Casio WK210ES1A Manual de usuario

GUÍA DEL USUARIO

USER’S GUIDE

WK210ES1A

Guarde toda la información para futuras consultas.

Please keep all information for future reference.

Precauciones de seguridad

Antes de intentar usar el teclado, asegúrese de leer

las “Precauciones de seguridad” separadas.

Safety Precautions

Before trying to use the keyboard, be sure to read the

separate “Safety Precautions”.

EnglishEspañol

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

Declaration of Conformity

Model Number: WK-210

Trade Name: CASIO COMPUTER CO., LTD.

Responsible party: CASIO AMERICA, INC.

Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801

Telephone number: 973-361-5400

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

English

E-1

Important!

Please note the following important information before using this product.

• Before using the optional AC Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully check

the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is

seriously damaged.

• Never attempt to recharge batteries.

• Do not use rechargeable batteries.

• Never mix old batteries with new ones.

• Use recommended batteries or equivalent types.

• Always make sure that positive (+) and negative (–) poles are facing correctly as indicated near the battery compartment.

• Replace batteries as soon as possible after any sign they are getting weak.

• Do not short-circuit the battery terminals.

• The product is not intended for children under 3 years.

• Use only a CASIO AD-5 adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

This mark applies in EU countries only.

Manufacturer:

CASIO COMPUTER CO.,LTD.

6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan

Responsible within the European Union:

CASIO EUROPE GmbH

Casio-Platz 1, 22848 Norderstedt, Germany

●Company and product names used in this manual may be registered trademarks of others.

●Any reproduction of the contents of this manual, either in part or its entirety, is prohibited. Except for your own, personal

use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.

●IN NO EVENT SHALL CASIO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,

DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE

USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

●The contents of this manual are subject to change without notice.

E-2

Contents

General Guide ............................. E-4

Using the 10-key Pad (bs) .................................E-6

FUNCTION Button (ct) Functions .....................E-6

Getting Ready to Play ................ E-8

Preparing the Music Stand .................................E-8

Power Supply .....................................................E-8

Playing the Digital Keyboard..... E-9

Turning on Power and Playing ...........................E-9

Using Headphones .............................................E-9

Changing Keyboard Response to

Touch Pressure (Touch Response)..................E-10

Adjusting Display Contrast ...............................E-10

Using the Voice Pads .......................................E-11

Using the Metronome .......................................E-12

Controlling the

Keyboard Sounds..................... E-14

Select from a variety of

musical instrument sounds ...............................E-14

Layering Two Tones.........................................E-15

Splitting the Keyboard between

Two Different Tones .........................................E-15

Using Reverb....................................................E-16

Using Chorus....................................................E-16

Using a Pedal ...................................................E-17

Changing the Pitch

(Transpose, Tuning, Octave Shift)....................E-17

Sampling Sounds and

Playing Them on the

Digital Keyboard ....................... E-19

Connection and Preparation.............................E-19

Sampling and Playing a Melody Sound

(Melody Sampling) ...........................................E-20

Incorporating a Sampled Sound into a

Drum Set (Drum Sampling) ..............................E-22

Other Sampling Functions................................E-24

Playing Built-in Songs ............. E-27

Playing the Demo Songs..................................E-27

Playing Back a Particular Song ........................E-28

Increasing the Selection of Songs

(User Songs) ....................................................E-30

Using Built-in Songs to

Master Keyboard Play .............. E-31

Phrases............................................................ E-31

Step Up Lesson Flow....................................... E-31

Selecting the Song, Phrase, and

Part You Want to Practice................................ E-32

Lessons 1, 2, and 3.......................................... E-33

Lesson Settings ............................................... E-34

Using Auto Step Up Lesson............................. E-36

Music Challenge

Keyboard Game ........................ E-37

Using Auto Accompaniment.... E-38

Playing the Rhythm Part Only.......................... E-38

Playing All Parts............................................... E-39

Using Auto Accompaniment Effectively ........... E-41

Using One-Touch Preset ................................. E-42

Using Auto Harmonize ..................................... E-43

Editing Auto Accompaniment

Patterns...................................... E-44

Saving Keyboard Setups to

Registration Memory ................ E-48

To save a setup to registration memory........... E-49

To recall a setup from registration memory ..... E-49

Recording Your

Keyboard Play........................... E-50

Recording and Playing Back

Keyboard Play.................................................. E-50

Using Tracks to Record and Mix Parts ............ E-51

Recording Two or More Songs, and

Selecting One for Playback.............................. E-53

Recording while Playing Along with a

Built-in Song..................................................... E-53

Saving Recorded Data on an

External Device................................................ E-54

English

Contents

E-3

Other Useful Digital Keyboard

Functions .................................. E-55

Changing the Scale of the Keyboard................E-55

Using Music Preset ..........................................E-56

Using the Arpeggiator.......................................E-56

Deleting User Song Data..................................E-57

Deleting All Data in

Digital Keyboard Memory .................................E-58

Connecting External Devices

... E-59

Connecting a Computer ...................................E-59

MIDI Settings....................................................E-60

Storing and Loading

Digital Keyboard Memory Data.........................E-62

Connecting to Audio Equipment .......................E-63

Reference .................................. E-64

Troubleshooting................................................E-64

Specifications ...................................................E-66

Operating Precautions......................................E-67

Error Messages ................................................E-68

Song List ..........................................................E-69

Chord Example List ..........................................E-70

MIDI Implementation Chart

Included Accessories

●Music Stand

●Song Book

●Leaflets

Items included as accessories are subject to change without notice.

Separately Available Accessories

• You can get information about accessories that

are separately for this product from the CASIO

catalog available from your retailer, and from the

CASIO website at the following URL.

http://world.casio.com/

• Safety Precautions

• Appendix

• Other (Warranty, etc.)

E-4

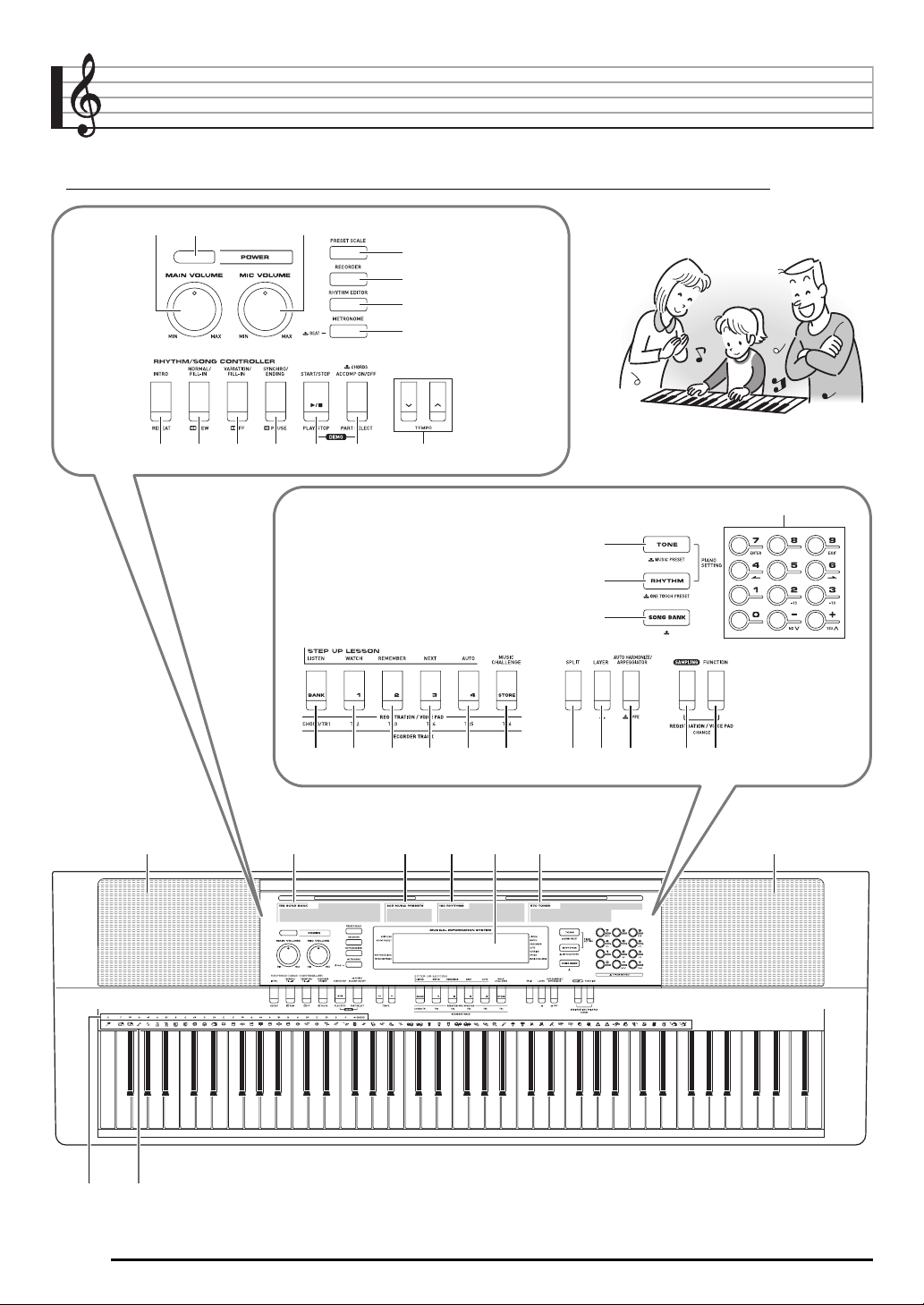

General Guide

• In this manual, the term “Digital Keyboard” refers to the WK-210.

• In this manual, buttons and other controllers are identified using the numbers shown below.

132

bt ck cl cm cn co cp cq cr cs ct

9bkbl bm bn

dk dkdl dm dn do dp

dq dr

English

General Guide

E-5

1POWER button ☞E-9, 26, 46, 49, 51, 62

2MAIN VOLUME knob ☞E-9

3MIC VOLUME knob ☞E-19

4PRESET SCALE button ☞E-55

5RECORDER button ☞E-50, 51, 52, 53, 54

6RHYTHM EDITOR button ☞E-44, 45

7METRONOME, BEAT button ☞E-12

8INTRO, REPEAT button ☞E-29, 34, 41, 44, 45

9NORMAL/FILL-IN, REW button

☞E-28, 32, 38, 41, 44, 45

bk VARIATION/FILL-IN, FF button

☞E-28, 32, 41, 44, 45

bl SYNCHRO/ENDING, PAUSE button

☞E-28, 41, 42, 44, 45

bm START/STOP, PLAY/STOP button

☞E-27, 28, 30, 33, 34, 38, 50, 52, 53, 54

bn ACCOMP ON/OFF, CHORDS, PART SELECT

button ☞E-27, 30, 32, 34, 39, 43, 44, 45, 54, 61

bo TEMPO buttons ☞E-13, 29, 42

bp TONE, MUSIC PRESET button

☞E-9, 14, 20, 22, 23, 24, 26, 56

bq RHYTHM, ONE TOUCH PRESET button

☞E-11, 14, 21, 22, 24, 38, 42, 45, 49, 50, 53, 55

br SONG BANK button ☞E-28, 30, 32, 37, 53

bs Number buttons, [–]/[+] buttons ☞E-6

bt BANK, PAD SET SELECT, CHORD/TR1,

LISTEN button ☞E-11, 21, 33, 48, 49

ck Area1,VOICE PAD1, TR2,WATCH button

☞E-11, 21, 33, 48, 49, 52

cl Area2,VOICE PAD2, TR3,REMEMBER button

☞E-11, 21, 34, 48, 49, 52

cm Area3,VOICE PAD3, TR4,NEXT button

☞E-11, 21, 32, 48, 49, 52

cn Area4,VOICE PAD4, TR5,AUTO button

☞E-11, 21, 36, 48, 49, 52

co STORE, VOICE PAD5, TR6, MUSIC CHALLENGE

button ☞E-11, 21, 37, 49, 52

cp SPLIT button ☞E-15, 16

cq LAYER button ☞E-15, 18

cr AUTO HARMONIZE/ARPEGGIATOR, TYPE button

☞E-43, 56, 57

cs SAMPLING button ☞E-11, 20, 21, 22, 23, 49

ct FUNCTION button ☞E-6

dk Speakers

dl Song Bank list

dm Music Preset list

dn Rhythm list

do Display

dp Tone list

dq CHORD root names ☞E-39

dr Percussion instrument list ☞E-14

ds USB port ☞E-59

dt SUSTAIN/ASSIGNABLE JACK ☞E-17

ek PHONES/OUTPUT jack ☞E-9, 63

el AUDIO IN jack ☞E-19, 63

em DC 9V terminal ☞E-8

en MIC IN jack ☞E-19

ds dt ek enemel

General Guide

E-6

Use the number buttons and the [–] and [+] buttons to change

the settings of the parameters that appear in the upper left

area of the display.

Use the number buttons to enter numbers and values.

• Enter the same number of digits as the currently displayed

value.

Example: To enter tone number 001, input 0 30 31.

• Negative values cannot be input using the number buttons.

Use [–] (decrease) and [+] (increase) instead.

You can use the [–] (decrease) and [+] (increase) buttons to

change the displayed number or value.

• Holding down either button scrolls the displayed setting.

• Pressing both buttons at the same time will revert to the

initial default setting or the recommended setting.

You can use the FUNCTION button (ct) to adjust the reverb

effect, to delete data, and to perform a wide range of other

Digital Keyboard operations.

Press ct to display the function menu.

Use the bs (10-key) [4] (o) and [6] (p) keys

to display the function you want.

• You can exit the function menu by pressing ct.

• After selecting functions 8 through 12, press the bs

(10-key) [7] (ENTER) key to display the menu item’s

submenu. Then use [4] (o) and [6] (p) to select an

item. You can exit a submenu by pressing the bs

(10-key) [9] (EXIT) key.

Refer to the indicated pages for details about

each function.

Using the 10-key Pad (bs)

Number Buttons

[–] and [+] Buttons

St .GrPno

Setting

FUNCTION Button (ct) Functions

To select a function

English

General Guide

E-7

• The tone and other parameters revert to their initial

defaults whenever you turn on power (page E-9).

Function Display See

Page

1 Transpose Trans. E-17

2 Accompaniment Volume AcompVol E-42

3 Song Volume Song Vol E-30

4 Touch Response Touch E-10

5 Tuning Tune E-17

6 Reverb Reverb E-16

7 Chorus Chorus E-16

8 Sampling SAMPLING

Automatic Sampling Start AutoStrt E-24

Automatic Sampling Stop AutoStop E-25

Sampled Tone Protect (Protect) E-26

9 Step Up Lesson LESSON

Voice Fingering Guide Speak E-34

Note Guide NoteGuid E-35

Performance Evaluation Scoring E-35

Phrase Length PhraseLn E-35

10 Other Settings OTHER

Arpeggiator Hold ArpegHld E-57

Pedal Effect Jack E-17

Accompaniment Scale AcompScl E-55

LCD Contrast Contrast E-10

11 MIDI Settings MIDI

Keyboard Channel Keybd Ch E-60

Navigate Channels Navi. Ch E-60

Local Control Local E-61

Accomp Out AcompOut E-61

12 Delete DELETE

Sampled Sound Delete (tone name) E-25

User Rhythm Delete (rhythm name) E-47

User Song Delete (song name) E-57

All Data Delete All Data E-58

E-8

Getting Ready to Play

Either an AC adaptor or batteries can be used to power this

Digital Keyboard. Normally, use of AC adaptor power is

recommended.

• The AC adaptor does not come with this Digital Keyboard.

Purchase it separately from your retailer. See page E-3 for

information about options.

Use the AC adaptor when you want to power the Digital

Keyboard from a household electrical outlet.

Specified AC Adaptor: AD-5

• Be sure to turn off Digital Keyboard power before

connecting or disconnecting the AC adaptor.

• Be sure to turn off power before loading batteries.

• It is up to you to prepare six commercially available

D-size batteries. Do not use oxyride batteries or any

other nickel based batteries.

Open the battery cover on the bottom of the

Digital Keyboard.

Load six D-size batteries into the battery

compartment.

Make sure the positive +and negative -ends of the

batteries are facing as shown in the illustration.

Insert the tabs of the battery cover into the

holes on the side of the battery compartment,

and close the cover.

■Low Battery Indication

The indicator shown below starts to flash to let you know

when battery power is low. Replace the batteries with new

ones.

Preparing the Music Stand

Power Supply

Using the AC Adaptor

Music stand

Household power outlet

AC adaptor

DC 9V terminal

Using Batteries

Tabs

Low battery indicator

(flashes)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Teclado electrónico de Casio

Casio

Casio LK-120 Guía de solución de problemas

Casio

Casio Tone Bank CT-636 Manual de usuario

Casio

Casio Celviano AP420ES1B Manual de usuario

Casio

Casio CTK-601 Manual de usuario

Casio

Casio CTK-8IOin Manual de usuario

Casio

Casio Celviano AP-420 Manual de usuario

Casio

Casio LK-80 Manual de usuario

Casio

Casio Privia PX-330BK Guía de solución de problemas

Casio

Casio CDP-200R Manual de usuario

Casio

Casio CTK-631 Manual de usuario

Casio

Casio Casiotone CT-S190 Manual de usuario

Casio

Casio CTK-501 Manual de usuario

Casio

Casio Adaptor Manual de usuario

Casio

Casio PRIVIA PX130ES1A Manual de usuario

Casio

Casio WK-1800 Manual de usuario

Casio

Casio WK-200 Manual de usuario

Casio

Casio CTK-720 Manual de usuario

Casio

Casio CELVIANO AP-31V Manual de usuario

Casio

Casio Privia PX-410R Manual de usuario

Casio

Casio CTK-485 Manual de usuario

Casio

Casio Casiotone MT-600 Manual de usuario

Casio

Casio LK-50 Guía de configuración

Casio

Casio CTK-500 Manual de usuario

Casio

Casio HT-3000 Manual de usuario

Manuales populares de Teclado electrónico de otras marcas

Yamaha

Yamaha PortaTone PSR-225GM Manual de usuario

Behringer

Behringer U-CONTROL UMX49 Manual de usuario

Yamaha

Yamaha Portatone X2500 Manual de usuario

Yamaha

Yamaha Portatone PSR-100 Manual de usuario

Keith McMillen Instruments

Keith McMillen Instruments K-Board Pro 4 Hoja de especificaciones

Yamaha

Yamaha PortaSound PCS-30 Manual de usuario

Roland

Roland Juno-6 Manual de usuario

McGrey

McGrey 6170 Manual de usuario

Yamaha

Yamaha PortaTone PSR-41 Manual de usuario

HDC

HDC Kurzweil KP300X Manual de usuario

Akai

Akai MPK88 Manual de usuario

Waldorf

Waldorf IRIDIUM Manual de usuario

Yamaha

Yamaha NP-30 Instrucciones de montaje

Yamaha

Yamaha Portatone PSR-38 Manual de usuario

Yamaha

Yamaha PortaTone PSR-40 Manual de usuario

Behringer

Behringer MOTÖR 61 Manual de usuario

Yamaha

Yamaha PortaTone PSR-62 Manual de usuario

Yamaha

Yamaha PS-20 Manual de usuario
