Casio HR-100TM Guía de solución de problemas
(without price)
HR-100TM/100TM-PLUS/150TEC
APR. 2006
Ver.1 : Aug. 2007
HR-100TM
CONTENTS
1. SPECIFICATIONS ............................................................................................. 1
2. DISASSEMBLY .................................................................................................. 2
3. SCHEMATIC DIAGRAMS .................................................................................. 4
4. PARTS LIST ....................................................................................................... 7
5. EXPLODED VIEW .............................................................................................. 8
— 1 —
1. SPECIFICATIONS
Ambient temperature range: 0°C to 40°C (32°F to 104°F)
Power supply:
AC: AC adaptor (AD-A60024)
DC:
HR-100TM/100TM-PLUS: Four AA-size manganese batteries provide approximately 390 hours of continu-
ous display (540 hours with type R6P (SUM-3)); or printing of approximately 3,000
consecutive lines of ‘‘555555’’ with display (7,000 lines with type R6P (SUM-3)).
HR-150TEC: Four AA-size manganese batteries provide approximately 390 hours of continu-
ous display (540 hours with type R6P (SUM-3)); or printing of approximately 3,000
consecutive lines of ‘‘555555’’ with display (7,000 lines with type R6P (SUM-3)).
Dimensions:
HR-100TM/100TM-PLUS: 67mm(H)
×
165.5mm(W)
×
285mm(D)
(25/8" H
×
61/2" W
×
111/4" D) including roll holders
HR-150TEC: 67mm(H)
×
165.5mm(W)
×
285mm(D)
(25/8" H
×
61/2" W
×
111/4" D) including roll holders
Weight:
HR-100TM/100TM-PLUS: 520 g (18.3 oz) including batteries
HR-150TEC: 520 g (18.3 oz) including batteries
Consumable supplies: Ink Roller (IR-40T)
Roll Paper
* The AC outlet must be located near the unit and must be easily accessible.
— 2 —
2. DISASSEMBLY
1. Remove the battery cover and the battery.
2. Remove two screws.
Hook positions
3. Remove eight hooks and remove the lower case.
4. Unsolder five lead wires.
Black
Orange
Red
Yellow
White
5. Unsolder the cable.
— 3 —
6. Remove the printeer.
7. Remove nine screws.
8. Remove the main PCB and rubber pad.
.
— 4 —
3. SCHEMATIC DIAGRAMS
MAIN PCB (HR-100TM/100TM-PLUS)
— 5 —
MAIN PCB (HR-150TEC)
— 6 —
DISPLAY
— 7 —
4. PARTS LIST
Notes: N - New parts R - A:Essential
Q - Quantity used per unit B:Stock recommended
R - Rank C:Others
X:No stock recommended
N Item Part Code Part Name Specufication Q'ty Applicable R
PCB UNIT
N
1
10238589
LCD
A82620
1
Common
C
N
2
10238590
HEAT SEAL
RHA501823-001V01
1
Common
C
N 3 10236436 PRINTER/DIGITAL M-32TL-061 1
HR-100TM/
HR-100TM-PLUS
B
N
3
10236437
PRINTER/DIGITAL
M-32TL-071
1
HR-150TEC
B
COMPONENTS
N 4 10238557 CASE/UPPER RHA501812-001V01 1
HR-100TM/
HR-100TM-PLUS
C
N
4
10238576
CASE/UPPER
RHA501812-004V01
1
HR-150TEC
C
N
5
10238558
CASE/LOWER
RHA501813-001V01
1
Common
C
N 6 10238559 PLATE/DISPLAY RHA501814-001V01 1
HR-100TM/
HR-100TM-PLUS
C
N
6
10238578
PLATE/DISPLAY
RHA501814-004V01
1
HR-150TEC
C
N
7
10235575
CUTTER/PAPER
HA311192-002V02
1
Common
C
N 8 10238560 COVER/BATTERY RHA501815-001V01 1
HR-100TM/
HR-150TEC
C
N
8
10246400
COVER/BATTERY
RHA501815-002V01
1
HR-100TM-PLUS
C
N
9
10238561
KNOB/SWITCH
RHA501816-001V01
2
Common
C
N
10
10238562
COVER/SWITCH
RHA501817-001V01
2
Common
C
N 11 10246401 SPACER RHA500963-003V01 1
HR-100TM/
HR-150TEC
C
N
11
10246402
SPACER
RHA500963-005V01
1
HR-100TM-PLUS
C
N 12 10238564 KEY/A RHA501818-001V01 1
HR-100TM/
HR-100TM-PLUS
C
N
12
10238597
KEY/A
RHA501818-004V01
1
HR-150TEC
C
N 13 10238565 KEY/B RHA501819-001V01 1
HR-100TM/
HR-100TM-PLUS
C
N
13
10238598
KEY/B
RHA501819-004V01
1
HR-150TEC
C
N 14 10238566 KEY/C RHA501820-001V01 1
HR-100TM/
HR-100TM-PLUS
C
N
14
10238599
KEY/C
RHA501820-004V01
1
HR-150TEC
C
N 15 10238587 KEY/D RHA501821-001V01 1
HR-100TM/
HR-100TM-PLUS
C
N
15
10238600
KEY/D
RHA501821-004V01
1
HR-150TEC
C
N
16
10238588
RUBBER/KEY
RHA501805-001V01
1
Common
C
17
10103643
RUBBER/RESET
A341594-002V01
1
Common
C
18
10138142
PLATE/SWITCH/A
RHA500995-001V01
2
Common
C
19
63452238
SPRING/BATTERY
A42606B-1
2
Common
C
20
60006091
SPRING/BATTERY
A43656-1
2
Common
C
21
60511280
SPRING/BATTERY
P41469-1
2
Common
C
22
60540960
RUBBER/FOOT
P410035-4
2
Common
C
N
23
10246403
RUBBER/FOOT
RCA502784-001V01
1
Common
C
24
35010063
JACK/DC
YKB31-0011
1
Common
C
25 10283115 PCB/MAIN TK-RHA501767*001 1
HR-100TM/
HR-100TM-PLUS
A
25
10283117
PCB/MAIN
TK-RHA501830*001
1
HR-150TEC
A
ACCESSARY
N 101 10235576 ROLL ARM HA210150-008V02 2
HR-100TM/
HR-150TEC
C
N
102
10235577
ROLL ARM
HA210150-009V02
2
HR-100TM-PLUS
C
Parts prices will be informed separately by Parts Price List.
— 8 —

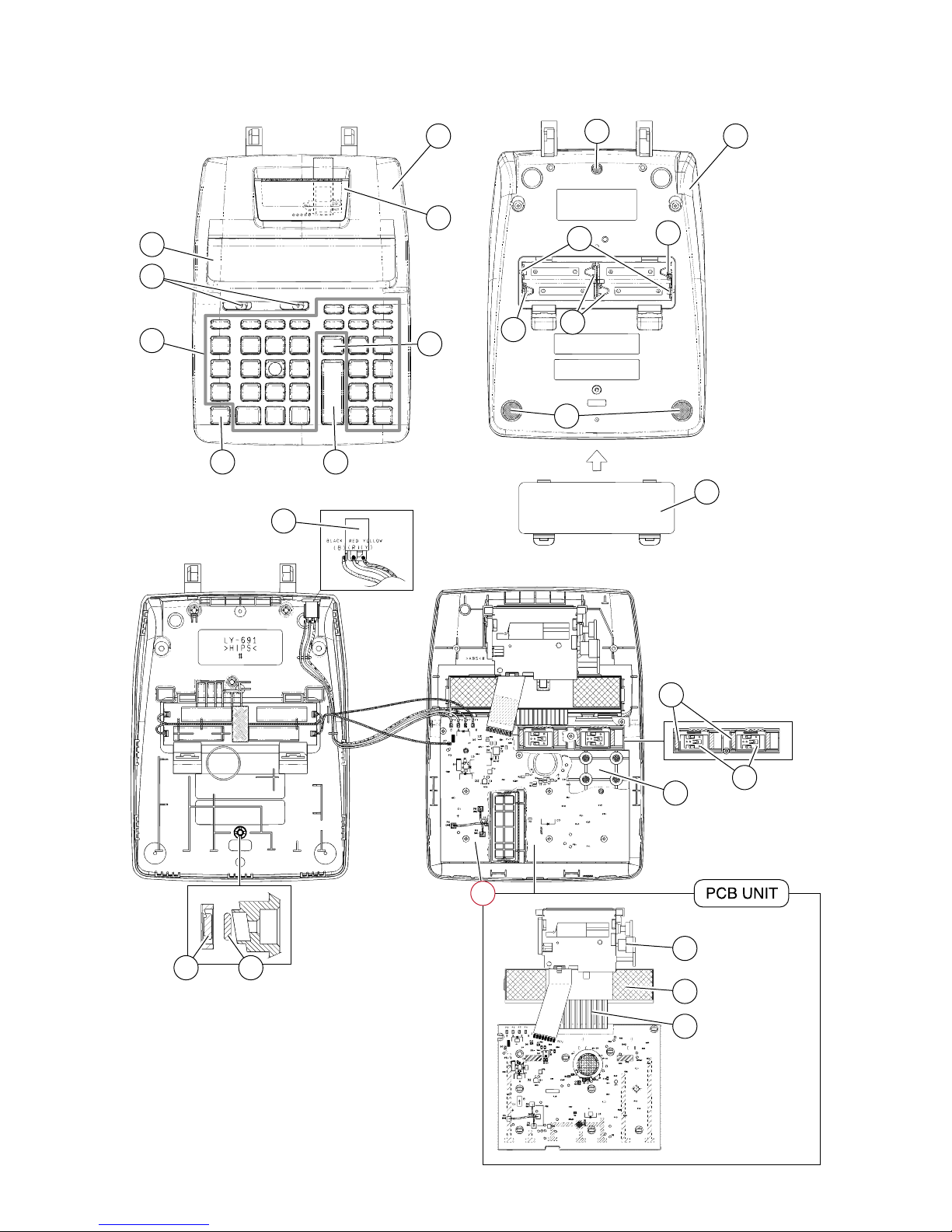

5. EXPLODED VIEW
4
7
6
12
13
15
14
5
8
1117
3
1
2
9
10
18
16
24
19
21
22
23
20
20
25
