Casio ALGEBRA FX 2.0 Plus Manual de usuario

Chapter

4-1 E-CON Overview

4-2 EA-100 Setup

4-3 Setup Memory

4-4 Program Converter

4-5 Starting a Sampling Operation

E-CON

All of the explanations provided here assume that you are already familiar

with the operating precautions, terminology, and operational procedures of

the calculator and the EA-100.

20010101

4-1-1

E-CON Overview

4-1 E-CON Overview

•From the Main Menu, select E-CON to enter the E-CON Mode.

•The E-CON provides the functions listed below for simple and more efficient data

sampling using the CASIO EA-100.

•1(SETUP) ... Displays a screen for setting up the EA-100.

•2(MEM) ....... Displays a screen for saving EA-100 setup data under a file name.

•3(PRGM) ..... Performs program conversion.

•This function converts EA-100 setup data created by E-CON to a

program.

•It can also be used to convert data to a program that can be run on

a CFX-9850 Series/fx-7400 Series calculator, and to transfer the

data to the calculator.

•4(STA RT) .... Starts data collection.

•6(HELP) ...... Displays E-CON help.

•Pressing the Kkey (Setup Preview) or a cursor key while the E-CON main menu is on

the screen displays a preview dialog box that shows the contents of the setup in the

current setup memory area.

To close the preview dialog box, press i.

About online help

Pressing the 6(HELP) key displays online help about the E-CON Mode.

20010101

4-2 EA-100 Setup

You can use the E-CON Mode to set up the EA-100 for sampling and then start sampling

immediately or save the setup in calculator memory. You can use either of the following two

methods to set up the EA-100.

Setup Wizard: With this method, you set up the EA-100 simply by replying to

questions as they appear.

Advanced Setup: Advanced setup gives you control over a variety of sampling

parameters, which means you can set up the EA-100 for exactly the

type of sampling you want.

kUsing Setup Wizard to Create an EA-100 Setup

With Setup Wizard, you set up the EA-100 simply by replying to questions as they appear.

uSetup Wizard parameters

Setup Wizard lets you make changes to the following three EA-100 basic sampling

parameters using an interactive wizard format.

•Sensor (Select Sensor)

Specify a CASIO or VERNIER*1sensor from a menu of choices.

•Sampling Interval (Sampling Time)

When you have Photogate specified as the sensor type, you can specify the sampling

timing (Gate Status) and sampling time recording method (Record Time) with this

parameter.

•Number of Samples (Number of Samples)

You can specify a value from 1 to 255.

Note the following limitations that apply to a setup made using Setup Wizard.

•You can use Setup Wizard only when the EA-100 sampling channel is CH1 or SONIC.

•The trigger for a Setup Wizard setup is always the wkey.

•Sampling results are always stored in List 1 (for the sampling time) and List 2 (for

sample values).

4-2-1

EA-100 Setup

*1Vernier Software & Technology

20010101

uTo create an EA-100 setup using Setup Wizard

Before getting started...

•Before starting the procedure below, make sure you first decide if you want to start

sampling immediately using the setup you create with Setup Wizard, or if you want to

store the setup for later sampling.

•See sections 4-3, 4-4, and 4-5 of this manual for information about procedures required to

start sampling and to store a setup. We recommend that you read through the entire

procedure first, referencing the other sections and pages as noted, before actually trying

to perform it.

•To terminate Setup Wizard part way through and cancel the setup, press !i(QUIT).

1. Display the E-CON main menu.

2. Press 1(SETUP). This displays the “Setup EA-100” sub-menu.

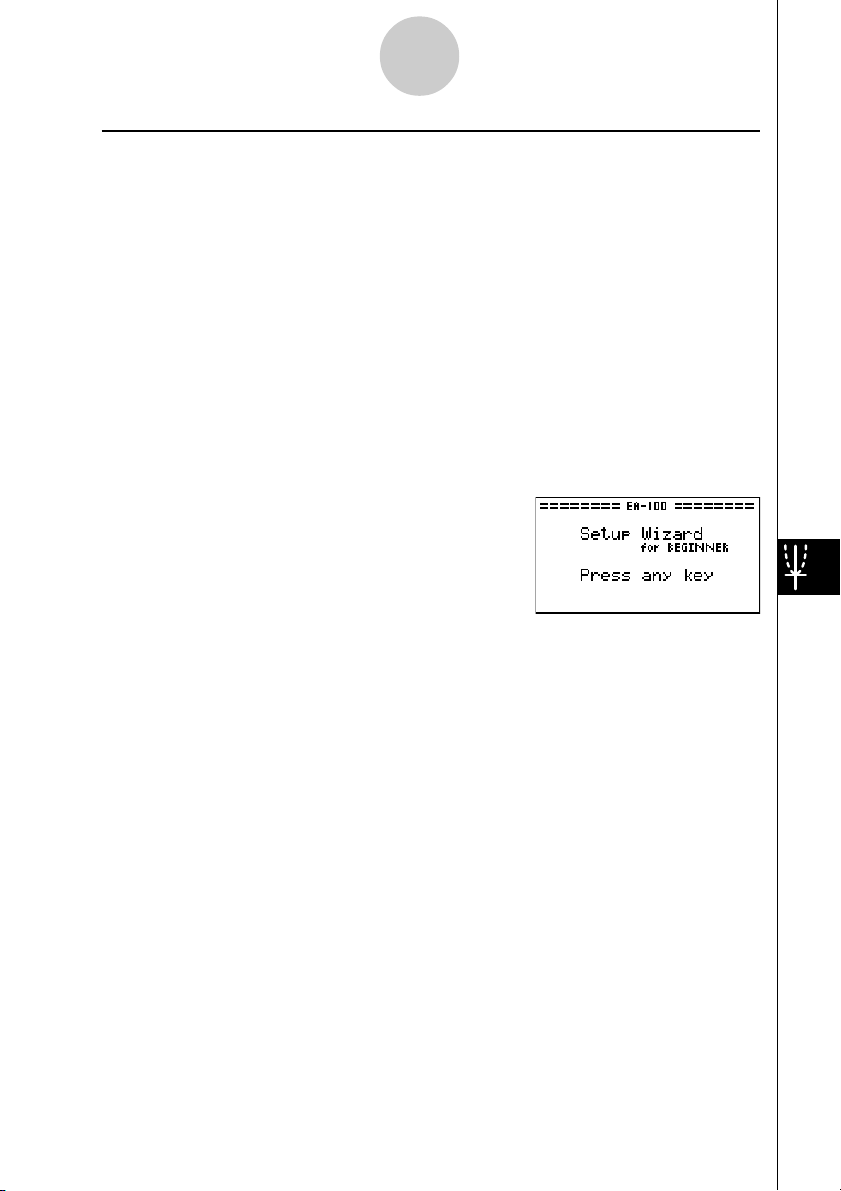

3. Press b(Wizard). This displays the Setup Wizard initial screen.

4-2-2

EA-100 Setup

4. Press any key to start Setup Wizard and display the sensor specification screen.

•Press 1to specify a CASIO sensor, or 2to specify a VERNIER sensor. From the

menu of supported sensors that appears, select the one you want.

5. The screen that appears after you select a sensor in step 4 depends on whether or not

you specified “Photogate” as the sensor.

• If you did not specify “Photogate,” a screen for setting the sampling interval appears after

step 4.

1. Use the number keys to input the sampling interval.

•Inputting a value in the range of 0.52 to 300 enables real-time sampling. Inputting

a value outside this range enables non-real-time sampling.

2. Press w.

•If you specified “Photogate” as the sensor, a screen for setting the sampling timing

appears after step 4.

1. Press either 1(Open) or 2(Close) to specify the sampling timing. Pressing either

key advances to a screen for setting the time recording method.

•See online help (GATE TRIGGER STATUS HELP) for details about the Open and

Close settings.

2. Press 1(Abs) or 2(Rel) to specify the sampling time recording method.

20010101

6. After you complete step 5, a screen for setting the number of samples appears on the

display.

•Use the number keys to input the number of samples, and then press w.

7. After you complete step 6, a screen like the one shown below appears on the display.

•Press one of the function keys described below to specify what you want to do with the

setup you have created with the above steps.

•1(YES) ........ Starts sampling using the setup (page 4-5-1).

•2(NO) .......... Returns to the E-CON main menu (page 4-1-1).

•3(SAVE) ...... Saves the setup (page 4-3-1).

•4(PRGM) ..... Converts the setup to a program (page 4-4-1).

•Pressing 2(NO) in step 7 returns to the E-CON main menu and stores the setup in the

E-CON Mode’s current setup memory area. You can use the following function key

operations from the E-CON main menu to manipulate the contents of the current setup

memory area.

•2(MEM), then 2(SAVE)

....................... Saves the current setup memory area setup (page 4-3-1).

•3(PRGM) ..... Converts the setup in the current setup memory area to a program

(page 4-4-1).

•4(STA RT) .... Starts sampling using the setup in the current setup memory area

(page 4-5-1).

•Pressing 1(SETUP) and then c(Advan) displays an Advanced Setup screen for more

detailed control over the parameters that make up the setup in the current setup memory

area. See “Creating an EA-100 Setup Using Advanced Setup” for more information

about changing advanced setup parameters.

4-2-3

EA-100 Setup

20011101

20010101

kCreating an EA-100 Setup Using Advanced Setup

Advanced Setup provides you with total control over a number of parameters that you can

adjust to create the EA-100 setup that suits your particular needs.

uTo create an EA-100 setup using Advanced Setup

The following procedure describes the general steps for using Advanced Setup. Refer to the

pages as noted for more information.

1. Display the E-CON main menu.

2. Press 1(SETUP). This displays the “Setup EA-100” sub-menu.

3. Press c(Advan). This displays the Advanced Setup menu.

4. If you want to configure a custom probe at this point, press f(Custom Probe). Next,

follow the steps under “To configure a custom probe starting from the Advanced Setup

menu” on page 4-2-12.

•You can also configure a custom probe during the procedure under “To change Channel

parameter settings” on page 4-2-6.

•Custom probe configurations you have stored in memory can be selected using Channel

in step 5, below.

5. Use the Advanced Setup function keys described below to set other parameters.

•b(Channel) .... Displays a screen for setting the following parameters: sampling

channel, sensor, sensor configuration, and storage location for

sample data (page 4-2-5).

•c(Sample) ..... Displays a screen for setting the following parameters: real-time

settings, sampling interval, number of samples, measurement time

recording method, and storage location for measurement time

records (page 4-2-7).

•d(Trigger) ...... Displays a screen for setting sampling start (trigger) conditions

(page 4-2-8).

•e(Option) ....... Displays a screen for making View Window settings, real-time

settings (channel for real-time sampling), and filter settings (page

4-2-10).

4-2-4

EA-100 Setup

20010101

•You can return the settings on the above setup screens (bthrough e) using the

procedure described under “To return setup parameters to their initial defaults”.

6. After you create a setup, you can use the function key operations described below to start

sampling or perform other operations.

•1(STA RT) .... Starts sampling using the setup (page 4-5-1).

•2(MULT) ...... Starts MULTIMETER Mode sampling using the setup (page 4-2-14).

•3(MEM) ....... Saves the setup (page 4-3-1).

•4(PRGM) ..... Converts the setup to a program (page 4-4-1).

uTo return setup parameters to their initial defaults

Perform the following procedure when you want to return the parameters of the setup in the

current setup memory area to their initial defaults.

1. While the Advanced Setup menu is on the display, press g(Initialize).

2. In response to the confirmation message that appears, press wto initialize the setup.

•To clear the confirmation message without initializing the setup, press i.

uAdvanced setup parameters

This section provides detailed information about the parameters you can change in step 5 of

the procedure under “To create an EA-100 setup using Advanced Setup” on page 4-2-4.

Channel

Selecting this parameter displays a screen where you can specify the EA-100 channel to be

used for sampling, the type of sensor used for each channel, and the storage location for

saving sample data.

4-2-5

EA-100 Setup

20011101

20010101

• To change Channel parameter settings

1. While the Advanced Setup menu is on the display, press b(Channel).

•This displays the Channel parameter setting screen.

4-2-6

EA-100 Setup

#If the list you specify for the Sample Data

Storage Location (Store Data) in step 2 is

already being used, data is overwritten

according to the priority sequence shown

below.

1. (Highest) SONIC 4. CH1

2. CH3 5. (Lowest) Record Time

3. CH2

Example: Specifying the same list number for

CH3 sample data and SONIC

sample data causes the CH3 data to

be overwritten by the SONIC data.

2. Use the function key operations described below to change Channel parameter settings.

(1) Selected Channel

•1(CH1) ........ Channel 1

•2(CH2) ........ Channel 2

•3(CH3) ........ Channel 3

•4(SONIC) .... Sonic channel

(2) Selected Sensor (Sensor)

•1(CASIO) .... CASIO sensor

•2(VERN) ..... VERNIER sensor

•3(CSTM) ..... Custom probe

•4(None) ....... No sensor

(3) Sample Data Storage Location (Store Data)

•1(LIST) ........ Displays a dialog box for specifying the list for storage of

measurement data. Specify a list number from 1 to 20.

•To change the setting of an item, first use the fand ccursor keys to move the

highlighting to the item. Next, use the function keys to select the setting you want. Note

that the Channel parameter settings you make affect the Selected Channel only. You

need to make separate settings for each channel you plan to use for sampling.

•Specifying a sensor causes its sampling range (Range) and measurement unit (Unit) to

appear on the display.

3. After all the settings are the way you want, press wto return to the Advanced Setup

menu.

Current setting of selected item

Selected item

20011101

20010101

Sample

Selecting this parameter displays a screen for making real-time settings, and for specifying

the sampling interval, number of samples, measurement time recording method, and storage

location for measurement time records.

• To change Sample Setup settings

1. While the Advanced Setup menu is on the display, press c(Sample).

•This displays the Sample Setup screen.

2. Use the function key operations described below to change Sample Setup settings.

•To change the setting of an item, first use the fand ccursor keys to move the

highlighting to the item. Next, use the function keys to select the setting you want.

(1) Real-time Settings (Real-Time)

•1(NO) .......... Disables real-time sampling.

•2(YES) ........ Enables real-time sampling.

(2) Sampling Interval (Interval)

•1(TIMER) .... Displays a dialog box for specifying a timer value, and enables fixed-

interval sampling.

•2(KEY) ........ Starts sampling operation that uses the EA-100 [TRIGGER] key. The

[TRIGGER] key must be pressed the number of times specified for

the number of samples.

•3(GATE) ...... Starts sampling in accordance with the Photogate Gate Status trigger

timing. Press 1, 2, or 3to specify the channel of the Photogate

sensor. Photogate is assigned to the sensor of the specified channel.

(3) Number of Samples (Number)

•1(NUM) ....... Displays a dialog box for specifying the number of samples by

inputting a value from 1 to 255.

4-2-7

EA-100 Setup

20011101

20010101

(4) Measurement Time Recording Method (Rec Time)

•1(None) ....... No time recorded.

•2(Abs) ......... Absolute time in seconds from start of sampling

•3(Rel) .......... Relative time (interval between samples) in seconds

•4(Int A) ........ Absolute time calculated from sampling interval and number of

samples

•5(Int R) ........ Relative time calculated from sampling interval and number of

samples

(5) Sample Data Storage Location (Store Data)

•1(LIST) ........ Displays a dialog box for specifying the list (1 to 20) for storing

sample data.

3. After all the settings are the way you want, press wto return to the Advanced Setup

menu.

Trigger

Use the Trigger Setup screen to specify the following measurement start (trigger) conditions:

trigger source, trigger threshold, trigger edge.

• To change Trigger Setup settings

1. While the Advanced Setup menu is on the display, press d(Trigger).

•This displays the Trigger Setup screen.

4-2-8

EA-100 Setup

Current setting of selected item

Selected item

Otros manuales para ALGEBRA FX 2.0 Plus

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calculadora de Casio

Casio

Casio fx-CG50 Manual de usuario

Casio

Casio ALGEBRA FX 2.0 Plus Manual de instrucciones y seguridad

Casio

Casio DC-7500A Guía de solución de problemas

Casio

Casio fx-CG50 Manual de usuario

Casio

Casio FX-85SA Manual de usuario

Casio

Casio fx-5800P Manual de usuario

Casio

Casio HR-150LA Manual de usuario

Casio

Casio CFX-9970G Manual de usuario

Casio

Casio D-120S Manual de usuario

Casio

Casio fx-82EX Manual de instalación y operación

Casio

Casio CFX-9850G PLUS Manual de usuario

Casio

Casio fx-4800P Manual de usuario

Casio

Casio fx-82AU PLUS Instrucciones de instalación y funcionamiento

Casio

Casio FX-9750GII - SOFTWARE VERSION 2-00 Manual de usuario

Casio

Casio fx-7700G Manual de usuario

Casio

Casio personal-mini Instrucciones de montaje

Casio

Casio ClassWiz fx-991EX Manual de usuario

Casio

Casio FX-9860GII - SOFTWARE VERSION 2-00 Manual de usuario

Casio

Casio FX-9750GII - SOFTWARE VERSION 2-00 Manual de usuario

Casio

Casio CFX-9850G PLUS Instrucciones de montaje

Casio

Casio FX-9750G Manual de usuario

Casio

Casio FX-9750GII - SOFTWARE VERSION 2-00 Manual de usuario

Casio

Casio fx-570A Manual de usuario

Casio

Casio HR-100TM Manual de usuario

Manuales populares de Calculadora de otras marcas

HP 35s Manual

LEXIBOOK

LEXIBOOK EL350 Manual de usuario

HP HP-97 Manual de usuario

Citizen

Citizen SDC-414N Manual de usuario

Canon

Canon P26-DHIII Manual de usuario

Citizen

Citizen 520DPA Manual de usuario

Sharp

Sharp EL-9900 Manual de usuario

Sharp

Sharp WriteView EL-W506 Manual técnico

HP HP-67 Guía del usuario

Royal

Royal CBC2000 Manual de usuario

Heathkit

Heathkit IC-2009 Manual de usuario

Universal

Universal UNV-15907 Manual de usuario

Sharp

Sharp EL-9650 Manual de usuario

Sharp

Sharp EL2192RII - Printing Calculator Manual de usuario

Ativa

Ativa AT-30i Manual de usuario

HP StreamSmart 400 Manual de usuario

HP 20b Business Consultant Manual de usuario

HP 9g Manual de usuario
