Casablanca M8501-01 Manual de usuario

www.CasablancaFanCo.com 1.888.227.2178

PAGE

30 inches

7 feet

PAGE

What to Expect with

Your Installation Ceiling Bracket

Ladder

PAGE

Tools Needed

Wiring Canopy

Maintenance &

Cleaning Troubleshooting

DownrodPreparation

PAGE

Blades Switch Housing Light Kit

Table of Contents

Operation

PAGE

Mounting Options

Congratulations on purchasing your new

Casablanca® ceiling fan! It will provide

comfort and performance in your home

or ofce for many years. This installation

and operation manual contains complete

instructions for installing and operating

your fan.

We are proud of our work and appreciate

the opportunity to supply you with the

best ceiling fan available anywhere in the

world.

To register your fan, please visit:

www.CasablancaFanCo.com/register

Save your receipt for proof of purchase.

M8501-01 • 02/15/16 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

What to Expect with Your Installation

Know your wiring

If you are unfamiliar

with wiring, use a

qualied electrician.

You may need a

friend to help you.

Check box to see

fan weight

Assess location

30 inches

from blade tip to

nearest wall or

obstruction 7 feet

from bottom

edge of blade

to the oor

Select a downrod length

Assess ceiling angle

Must be able to

secure the fan to

building structure or

fan-rated outlet box

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Ceiling angles greater

than 34° will require an

Angled Mounting Kit.

See page 4 for details.

w.1 - To reduce the risk of re, electrical shock, or

personal injury, mount fan directly from building

structure and/or an outlet box marked acceptable for

fan support of 70 lbs (31.8 kg) and use the mounting

screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing

or servicing your fan, disconnect the power by turning

off the circuit breakers to the outlet box and associated

wall switch location. If you cannot lock the circuit

breakers in the off position, securely fasten a prominent

warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor

damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the

blade brackets when installing the blade brackets, balancing

the blades, or cleaning the fan. Do not insert foreign objects

in between rotating fan blades.

c.1 - All wiring must be in accordance with national and

local electrical codes ANSI/NFPA 70. If you are unfamiliar

with wiring, use a qualied electrician.

c.2 - Use only Casablanca replacement parts.

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

CAUTIONS

M8501-01 • 02/15/16 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

M8501-01 • 02/15/16 • © Casablanca Fan Company

Tools Needed

Ladder

Power Drill

(optional)

9/64” Drill Bit

(optional)

Screwdrivers

Pliers Wire Strippers

If mounting to a support structure, you will also need these tools.

www.CasablancaFanCo.com 1.888.227.2178

M8501-01 • 02/15/16 • © Casablanca Fan Company

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will

also need an Angled Mounting Kit (sold separately).

Guide Touches

BOTH Ceiling & Wall

Guide Touches Wall

but

NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

You need ONLY

a Longer

Downrod

*most common

If you have a at ceiling:

Hang your fan by a standard downrod (included).

Mounting Options

Support

Structure

Ceiling

Outlet Box

(required)

Angled

Mounting

Style

Standard

Mounting

Style

Support

Structure

Ceiling

Outlet Box

(required)

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

34OCEILING

WALL

OPTION

Standard

Mounting

OPTION 2

Angled

Mounting

2 3

SLIDE

toward ceiling

PLACE

against wall

FOLD

on dotted line

34°

Use the three steps below to determine if your ceiling angle is greater than 34°

1.888.227.2178

M8501-01 • 02/15/16 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.21781.888.227.2178

www.CasablancaFanCo.com

Ceiling Bracket

OFF

Make sure all four bumpers are

still attached.

For angled ceilings, point

opening toward peak.

Refer to warning w.1 on pg. 2

To avoid possible electrical shock, before

installing your fan, disconnect the power by

turning off the circuit breakers to the outlet

box associated with the wall switch location.

If you are unable to do this,

call Technical Support at

1-888-227-2178.

Use wood screws

(included) when securing

to support structure with

approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid

in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

Turn Power

M8501-01 • 02/15/16 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

Ceiling Bracket (continued) Preparation 1.888.227.2178

www.CasablancaFanCo.com

Remove the shipping blocks from the

motor. Save the screws. They will be

needed for blade iron installation.

Note: Some fans will have a shipping

ring instead of shipping blocks. Please

remove the ring and save the screws.

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

M8501-01 • 02/15/16 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

Downrod

Slide

1 2 3 4 5

678910

Sold Separately

Included

Longer

Downrod

for angled

ceilings or

ceilings 10’ or

higher

Shorter

Downrod

for fans installed

close to ceiling

Standard

Downrod

for ceilings 8-10’ high

Option 1Option 2

Option 3

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

Steps 6-10 to reassemble with new pipe

Included

(pre-assembled)

M8501-01 • 02/15/16 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

KEEP!

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Downrod (continued)

8” 3/8”

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

If the setscrew is not tightened

securely, the fan may fall.

8”

3/8”

(not to scale)

Slide the adapter cover onto

the downrod, then hand

tighten the downrod (at least

4-5 full turns) until it stops.

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Note: e adapter cover is not

used for low-proﬁle mounting.

M8501-01 • 02/15/16 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

M8501-01 • 02/15/16 • © Casablanca Fan Company

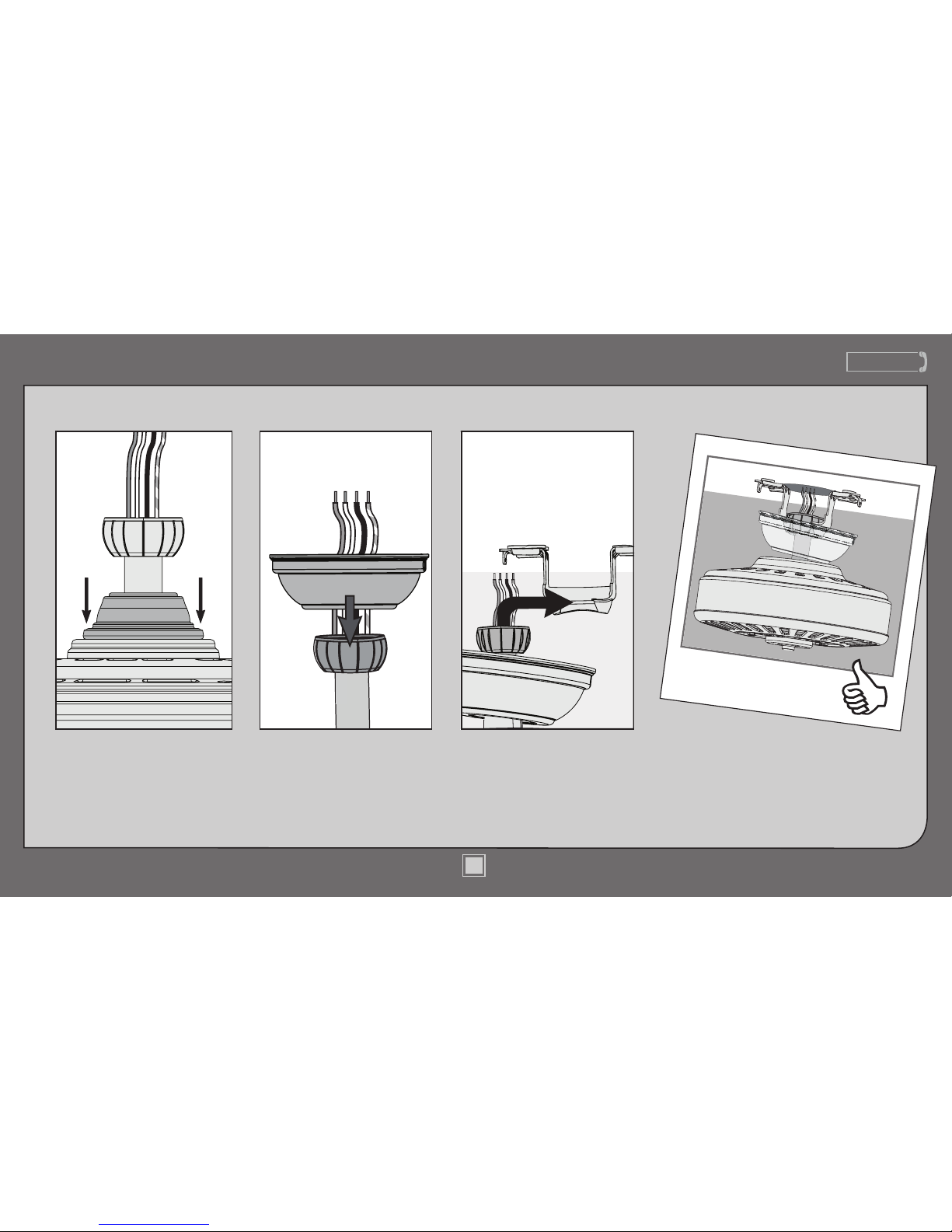

Downrod (continued)

Put the wires and downrod

through the canopy. Let the

canopy sit loosely on top of the fan.

DO NOT PICK THE FAN UP BY

THE CANOPY OR WIRES. Place

the downrod ball into the slot

in the ceiling bracket.

Lower the adapter cover until it rests

ush against the motor housing.

www.CasablancaFanCo.com 1.888.227.2178

Wiring

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Refer to CAUTION c.1 on pg. 2

Using an orange wire

connector from

the hardware bag,

connect the three

grounding wires

(green, green/yellow

stripe, or bare copper)

coming from the ceiling,

downrod, and hanging

bracket.

(grounding) Green/Yellow

Stripe

Green/Yellow

Stripe

White

Black

(grounded)

Note: To connect the wires,

hold the bare metal leads

together and place a wire

connector over them, then twist

clockwise until tight.

Using the orange wire

connectors from

the hardware bag, connect

the black wire (ungrounded)

from the ceiling to the black

and the blue wires from the

fan. Connect the white wire

(grounded) from the ceiling to

the white wire from the fan.

Using orange wire

connectors from

the hardware bag,

connect the white wire

(grounded) from the

ceiling to the white wire

from the fan.

Connect the black wire

(ungrounded) from the

ceiling to the black wire

from the fan. Connect the

second (ungrounded) wire

from the ceiling to the blue

wire from the fan.

White

(Ungrounded)

Black

Blue

(Grounded)

(Ungrounded)

Blue

For Dual Switches

For a Single Switch

(ungrounded)

Tabla de contenidos

Otros manuales de Admirador de Casablanca

Casablanca

Casablanca M8515-01 Manual de usuario

Casablanca

Casablanca Capistrano Manual de usuario

Casablanca

Casablanca Silhouette II Manual de usuario

Casablanca

Casablanca M8517-01 Manual de usuario

Casablanca

Casablanca 54022 Manual de usuario

Casablanca

Casablanca utopia 54040 Manual de usuario

Casablanca

Casablanca PANAMA Manual de usuario

Casablanca

Casablanca WAILEA Manual de usuario

Casablanca

Casablanca Metropolitan Manual de usuario

Casablanca

Casablanca M8513-01 Manual de usuario

Casablanca

Casablanca C19xxxK Manual de usuario

Casablanca

Casablanca Perseus Manual de servicio

Casablanca

Casablanca FOUR SEASONS III Manual de usuario

Casablanca

Casablanca C42GxxxL Manual de usuario

Casablanca

Casablanca 59065 Manual de usuario

Casablanca

Casablanca Verrazano Manual de usuario

Casablanca

Casablanca New Orleans Centennial Manual de usuario

Casablanca

Casablanca Bel Air Halo Manual de usuario

Casablanca

Casablanca CEILING FAN Manual de usuario

Casablanca

Casablanca S3 Manual de usuario

Casablanca

Casablanca 59021A Manual

Casablanca

Casablanca AURORA II Manual de usuario

Casablanca

Casablanca C3443001 AT0209 Manual de usuario

Casablanca

Casablanca M6006-01 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
