REMOTE CONTROLLER

OWNER’S MANUAL

Thank you very much for purchasing our air conditioner. Please read this

owner’s manual carefully before using your air conditioner. Make sure to

save this manual for future reference.

CONTENTS

Remote controller Specications ...............................................................1

Function buttons ..........................................................................................2

Handling the remote controller ...................................................................4

Remote LCD screen indicators ...................................................................5

How to use the basic functions...................................................................6

How to use the advanced functions .........................................................13

RemoteControllerSpecications

Model RG66B3(2H)/BGEFЈRG66B4(2H)/BGEF

Rated Voltage 3.0V (Dry batteries R03/LR03Ў2)

Signal Receiving Range 8m

Environment -5 °C~60 °C (23 °F~140 °F)

NOTE:

●Buttons design is based on typical model and might be slightly different from the actual one

you purchasedŁthe actual shape shall prevail.

●All the functions described are accomplished by the unit. If the unit has no this feature,

there is no corresponding operation happened when press the relative button on the remote

controller.

●When there are wide differences between “Remote controller Illustration” and “USER’S

MANUAL” on function description, the description of “USER’S MANUAL” shall prevail.

ON/OFF

Turns the unit on or off

FunctionButtons

Before you begin using your new air conditioner, make sure to familiarize yourself with its

remote control. The following is a brief introduction to the remote control itself. For instructions

on how to operate your air conditioner, refer to the How to Use The Basic/Advance Functions

section of this manual.

NOTE Please do not select HEAT mode if the machine you purchased is cooling only type.

Heat mode is not supported by the cooling only appliance.

Mode Fan

TimerTimer

LED

Self

clean

Turbo

ON/OFF

MODE

Scrolls through operation

modes as follows:

AUTO → COOL → DRY

→ HEAT → FAN

ECO/SLEEP

Starts and stops energy

efcient feature. If hod

down this button for more

than 2 seconds, the sleep

feature is activated.

TIMER

Sets timer to turn unit

on and off (see How to

Use Basic Functions for

instructions)

LED

Turns indoor unit’s LED

display on and off.

FOLLOW ME

Temperature sensing and

room temperature display

button.

TURBO

Enables unit to reach

preset temperature in

shortest possible time

INTELLIGENT EYE

Detects the people activities

in the room.

Model: RG66B3(2H)/BGEF

FAN

Selects fan speeds in the

following order:

AU% → 20% → 40% →

60% → 80% → F% (100%).

Press the Adjust +or –

button to increase/decrease

the fan speed in 1%

increments.

TEMP +

Increases temperature in

1 °F (0.5 °C) increments

for each press. If pressing

and holding down this

button, the temperature

will increase in 1 °F (1 °C)

increments.

Max. Temperature is 86 °F

(30 °C).

TEMP –

Decreases temperature in

1 °F (0.5 °C) decrements

for each press. If pressing

and holding down this

button, the temperature

will decrease in 1 °F (1 °C)

decrements.

Min. temperature is 60 °F

(16 °C).

SWING

Starts and stops horizontal

louver movement.

SWING

Starts and stops vertical

louver movement.

SELF CLEAN

Starts and stops the unit self

clean feature.

FunctionButtons

Before you begin using your new air conditioner, make sure to familiarize yourself with its

remote control. The following is a brief introduction to the remote control itself. For instructions

on how to operate your air conditioner, refer to the How to Use The Basic/Advance Functions

section of this manual.

NOTE Please do not select HEAT mode if the machine you purchased is cooling only type.

Heat mode is not supported by the cooling only appliance.

ON/OFF

Turns the unit on or off

Mode Fan

TimerTimer

LED

Self

clean

Turbo

Fresh

ON/OFF

MODE

Scrolls through operation

modes as follows:

AUTO → COOL → DRY

→ HEAT → FAN

ECO/SLEEP

Starts and stops energy

efcient feature. If hod

down this button for more

than 2 seconds, the sleep

feature is activated.

TIMER

Sets timer to turn unit

on and off (see How to

Use Basic Functions for

instructions)

LED

Turns indoor unit’s LED

display on and off.

FOLLOW ME

Temperature sensing and

room temperature display

button.

TURBO/FRESH

Enables unit to reach

preset temperature in

shortest possible time.

If hold down this button

for 2 seconds, the Fresh

feature is activated. INTELLIGENT EYE

Detects the people activities

in the room.

Model: RG66B4(2H)/BGEF

FAN

Selects fan speeds in the

following order:

AU% → 20% → 40% →

60% → 80% → F% (100%).

Press the Adjust +or –

button to increase/decrease

the fan speed in 1%

increments.

TEMP +

Increases temperature in

1 °F (0.5 °C) increments

for each press. If pressing

and holding down this

button, the temperature

will increase in 1 °F (1 °C)

increments.

Max. Temperature is 86 °F

(30 °C).

TEMP –

Decreases temperature in

1 °F (0.5 °C) decrements

for each press. If pressing

and holding down this

button, the temperature

will decrease in 1 °F (1 °C)

decrements.

Min. temperature is 60 °F

(16 °C).

SWING

Starts and stops horizontal

louver movement.

SWING

Starts and stops vertical

louver movement.

SELF CLEAN

Starts and stops the unit self

clean feature.

HANDLING THE REMOTE CONTROLLER

NOT SURE WHAT A FUNCTION DOES?

Refer to the How to Use Basic Functions and

How to Use Advanced Functions sections of

this manual for a detailed description of how to

use your air conditioner.

SPECIAL NOTE

●Button designs on your unit may differ

slightly from the example shown.

●If the indoor unit does not have a particular

function, pressing that function’s button on

the remote control will have no effect.

INSERTING AND REPLACING BATTERIES

Your air conditioning unit comes with two

AAA batteries. Put the batteries in the remote

control before use:

1. Remove the back cover from the remote

control, exposing the battery compartment.

2. Insert the batteries, paying attention

to match up the (+) and (-) ends of the

batteries with the symbols inside the battery

compartment.

3. Install the back cover on.

INSTALLING REMOTE CONTROL HOLDER

The remote controller can be attached to a wall

or stand by using a remote controller holder

(optional part, not supplied with the unit).

1. Before installing the remote controller, check

that the air conditioner receives the signals

properly.

2. Install the holder with two screws.

3. Put the remote controller in the holder.

BATTERY NOTES

For optimum product performance:

●Do not mix old and new batteries, or

batteries of different types.

●Do not leave batteries in the remote control

if you don’t plan on using the device for

more than 2 months.

BATTERY DISPOSAL

Do not dispose of batteries as unsorted

municipal waste. Refer to local laws for proper

disposal of batteries.

TIPS FOR USING REMOTE CONTROL

●The remote control must be used within 8

meters of the unit.

●The unit will beep when remote signal is

received.

●Curtains, other materials and direct

sunlight can interfere with the infrared

signal receiver.

●Remove batteries if the remote control will

not be used more than 2 months.

●Prevent any liquid from falling into the

remote controller.

●If other electrical appliances react to

the remote controller, either move these

appliances or consult your local dealer.

Remove the back cover to

install batteries

Put the remote controller in

the holder.

RemoteLCDScreenIndicators

Information are displayed when the remote controller is powered up.

ON/OFF display

Appears when the unit is turned

on, and disappears when the it

is turned off.

Transmission Indicator

Lights up when remote sends

signal to indoor unit

MODE display

Displays the current

mode, including:

TIMER ON display

( )

Displays when TIMER

ON is set

TIMER OFF display

( )

Displays when TIMER

OFF is set

Silence feature

display

Fresh feature display

Follow me feature

display

Not available for this

unit

Not available for

this unit

Not available for

this unit

Sleep mode display

Horizontal louver auto swing display

Vertical louver auto swing display

Wind ow follow people

Wind ow away from people

Turbo mode display

LOCK feature display

Displays when ECO feature is

activated

Battery display

Low battery detection

Temperature/Timer/Fan

speed display

Displays the set temperature

by default, fan speed or timer

setting when using TIMER

ON/OFF functions

●Temperature range: 16-

30 °C/60-86 °F

●Timer setting range:

0-24 hours

● Fan speed setting range:

AU -F%

This display is blank when

operating in FAN mode.

Fan speed display

Displays selected fan speed:

1%-10%

11%-20%

21%-30%

.................

F% (100%)

AUTO

This fan speed can not be

adjusted in AUTO or DRY

mode.

Note:

All indicators shown in the gure are for the purpose of clear presentation. But during the actual

operation only the relative functional signs are shown on the display window.

HowToUseTheBasicFunctions

Mode Fan

ON/OFF

TimerTimer

LED

Self

clean

Turbo

SETTING TEMPERATURE

The operating temperature range for units is

16-30 °C/60-86 °F. You can increase or decrease

the set temperature in 0.5 °C/1 °F increments.

AUTOoperation

In AUTO mode, the unit will automatically select

the COOL, FAN, HEAT or DRY mode based on

the set temperature.

1. Press the MODE button to select Auto mode.

2. Set your desired temperature using the

Temp + or Temp – button.

3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED can’t be set in Auto mode.

COOLoperation

1. Press the MODE button to select COOL

mode.

2. Set your desired temperature using the

Temp +or Temp –button.

3. Press the FAN button to select the

fan speed in a range of Au%-F%, in

conjunction with Temp +or Temp –

button.

4. Press the ON/OFF button to start the

unit.

Mode Fan

ON/OFF

TimerTimer

LED

Self

clean

Turbo

HowToUseTheBasicFunctions

Mode Fan

ON/OFF

TimerTimer

LED

Self

clean

Turbo

DRYoperation(dehumidifying)

1. Press the MODE button to select DRY

mode.

2. Set your desired temperature using the

Temp +or Temp –button.

3. Press the ON/OFF button to start the

unit.

NOTE: FAN SPEED can’t be set in DRY

mode.

FANoperation

1. Press the MODE button to select FAN

mode.

2. Press the FAN button to select the

fan speed in a range of Au%-F%, in

conjunction with Temp +or Temp –

button.

3. Press the ON/OFF button to start the

unit.

NOTE: You can’t set temperature in FAN,

mode. As a result, your remote control’s

LCD screen will not display temperature.

Mode FanON/OFF

TimerTimer

LED

Self

clean

Turbo

HowToUseTheBasicFunctions

Mode FanON/OFF

TimerTimer

LED

Self

clean

Turbo

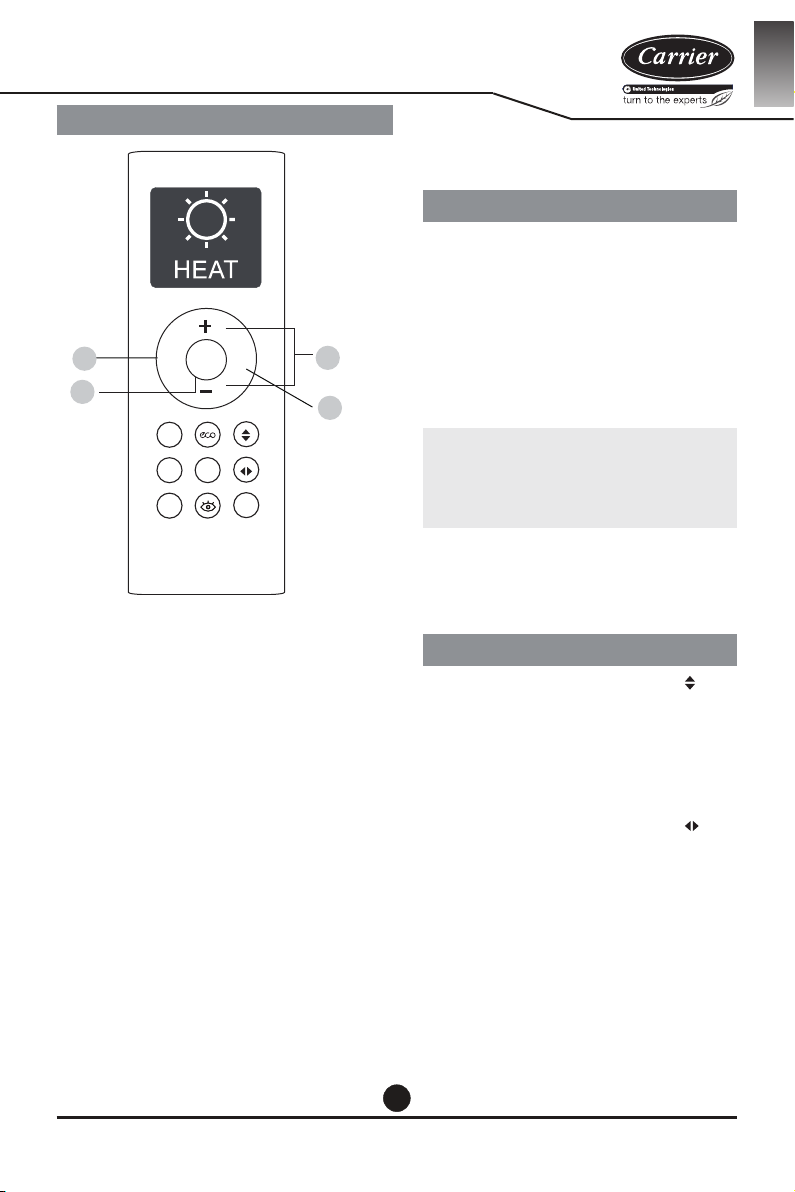

HEAToperation

1. Press the MODE button to select HEAT

mode.

2. Set your desired temperature using the

Temp +or Temp –button.

3. Press the FAN button to select the

fan speed in a range of Au%-F%, in

conjunction with Temp +or Temp –

button.

4. Press the ON/OFF button to start the

unit.

NOTE: As outdoor temperature drops, the

performance of your unit s HEAT function

may be affected. In such instances, we

recommend using this air conditioner in

conjunction with other heating appliance.

Settheangleofairow

When the unit is on, press the swing

button, to activate the louver. Each time you

press the button, it will adjust the louver by

6°. Press the O button until the direction

you prefer is reached. If press and hold this

button for more than 2 seconds, the louver

will swing up and down continuously.

When the unit is on, press the swing

button, to activate the louver. Each time you

press the button, it will adjust the louver by

6°. Press the O button until the direction

you prefer is reached. If press and hold this

button for more than 2 seconds, the louver

will swing left and right continuously.

SettingtheTIMERfunction

Your air conditioning unit has two timer-related

functions:

●TIMER ON - sets the amount of timer after

which the unit will automatically turn on.

●TIMER OFF - sets the amount of time after

which the unit will automatically turn off.

TIMER ON function

The TIMER ON function allows you to set

a period of time after which the unit will

automatically turn on, such as when you come

home from work.

1. Press the Timer button, the Timer on

indicator “ ” displays and ashes. By

default, the last time period that you set

and an “h” (indicating hours)will appear on

the display.

Note: This number indicates the amount

of time after the current time that you want

the unit to turn on. For example, if you set

TIMER ON for 2.5 hours, “2.5” will appear

on the screen, and the unit will turn on after

2.5 hours.

2. Press the Temp +or Temp –button

repeatedly to set the time when you want

the unit to turn on.

3. Wait 3 seconds, then the TIMER ON

function will be activated. The digital display

on your remote control will then return to

the temperature display. The “ ” indicator

remains on and this function is activated.

ON/OFF

MODE

FAN

SHORT

CUT

TIMER ON

TIMER OF

TEMP

LEEP

3sec

Timeror

Example: Setting unit to turn on after

2.5 hours.

Otros manuales para RG66B3/BGEF

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Mando a distancia de Carrier

Carrier

Carrier SYSTEM PILOT 33PILOT-01 Manual de usuario

Carrier

Carrier RG66B3/BGEF Manual de usuario

Carrier

Carrier Infinity SYSTXCCRWF01 Manual de usuario

Carrier

Carrier RG67V/BGEF Manual de usuario

Carrier

Carrier RG10B2/BGEF Manual de usuario

Carrier

Carrier split room air conditioner remote control Manual de usuario

Carrier

Carrier AQUASNAP Manual de usuario

Carrier

Carrier RG56V Series Manual de usuario

Carrier

Carrier 33CSPGMR-01 Manual de usuario

Carrier

Carrier NTC-IR2 Manual de usuario

Carrier

Carrier 40VM900003 Guía de solución de problemas

Carrier

Carrier RG67N/BGEF Manual de usuario

Carrier

Carrier EU-OSK105 Manual de usuario

Carrier

Carrier WTC-IR-LB Manual de usuario

Carrier

Carrier RG67V/BGEF Manual de usuario

Carrier

Carrier 42QHF025 Manual de usuario

Carrier

Carrier Aquasnap Plus 33AW-RC1 Manual de usuario

Carrier

Carrier RG56/BGEF-CA Manual de usuario

Carrier

Carrier OSK102 Manual de usuario

Carrier

Carrier 33CSIRRCVR-01 Manual de usuario

Carrier

Carrier RBC-AMS54E-UL Guía de solución de problemas

Carrier

Carrier WTC-IR Manual de usuario

Carrier

Carrier Infinity Control SYSTXCCUID01 Instrucciones y recetas

Carrier

Carrier TruVu UC683T Manual de instalación

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
