MANUAL

OPERATOR’S

XSeries

Truck

Direct Drive

Truck Refrigeration Units

With

Cab Command Controller

OPERATOR’S MANUAL FOR

XSERIES DIRECT DRIVE TRUCK UNITS

WITH CAB COMMAND CONTROLLER

This guide has been prepared for the operator of Carrier Transicold

X Series direct drive truck refrigeration units using the Cab

Command controller. It contains basic instructions for the daily

operation of the refrigeration unit as well as safety information, and

other information that will help you to deliver the load in the best

possible condition. Please take the time to read the information

contained in this booklet and refer to it whenever you have a

question about the operation of your Carrier Transicold truck

refrigeration unit.

Your refrigeration unit has been engineered to provide long,

trouble-free performance when it is properly operated and

maintained. A comprehensive maintenance program will help to

insure that the unit continues to operate reliably. Such a

maintenance program will also help to control operating costs,

increase the unit’s working life, and improve performance.

This guide is intended as an introduction to your unit and to provide

general assistance when needed. More comprehensive

information can be found in the Operation and Service Manual for

your unit. This manual can be obtained from your Carrier Transicold

dealer.

When having your unit serviced, be sure to specify genuine Carrier

Transicold replacement parts for the highest quality and best

reliability.

At Carrier Transicold, we are continually working to improve the

products that we build for our customers. As a result, specifications

may change without notice.

CONTENTS

Page

Safety 1....................................

Unit Identification 2..........................

Symbols used on Cab Control 4...............

Unit Operation 5............................

Starting 6..................................

Temperature Setpoint 7......................

Manual Defrost 8............................

Defrost Interval 9............................

Minimum Setpoint, Out-of-Range and

Continuous Airflow 10.........................

Stopping Unit 11.............................

Product Loading 12...........................

Recommended Transport

Temperatures 14.............................

Problems & Alarms 15........................

Alarm Display 16.............................

Alarm List 17................................

Alarm Reset 18..............................

Fuses 19....................................

Unit Maintenance 20..........................

Emergency Road Service 22...................

162--10892

SAFETY

Your Carrier Transicold refrigeration unit has been designed with

the safety of the operator in mind. During normal operation, all

moving parts are fully enclosed to help prevent injury. During all

pre-trip inspections, daily inspections, and problem

troubleshooting, you may be exposed to moving parts; please stay

clear of all moving parts when the unit is in operation.

WARNING

Beware of unannounced starting of the unit. The unit

may cycle the fans and operating compressor unex-

pectedly as control requirements dictate. Press OFF

key on the Cab Command.

REFRIGERANTS

The refrigerant contained in the refrigeration system of your unit

can cause frostbite, severe burns, or blindness when in direct

contact with the skin or eyes. For this reason, and because of

legislation regarding the handling of refrigerants during system

service, we recommend that, whenever your unit requires service

of the refrigeration system, you contact your nearest Carrier

Transicold authorized repair facility for service.

62--10892

UNIT IDENTIFICATION

The unit is identified by a nameplate which identifies the complete

model number of the unit, the serial number, the refrigerant charge

and quantity, and the date the unit was placed in service.

If a problem occurs, please refer to the information on this plate,

and make a note of the model and serial number before calling for

assistance. This information will be needed when you contact a

technician or Carrier Transicold Service Engineer so that he or she

may properly assist you.

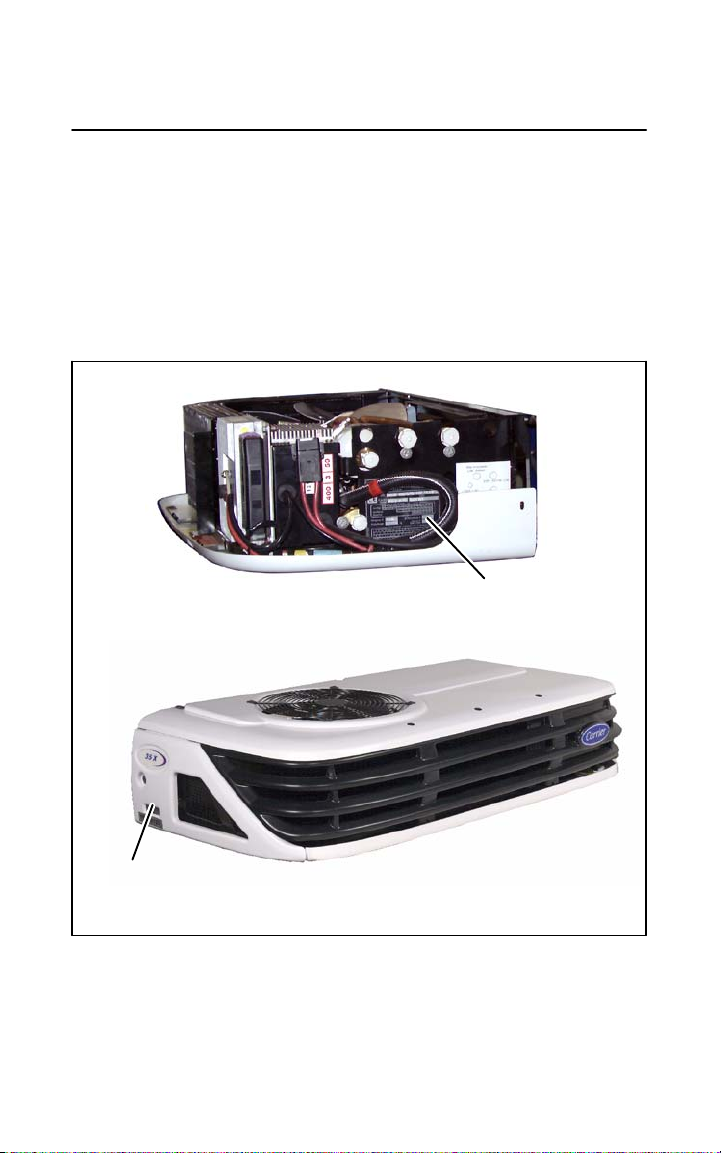

20X

NAMEPLATE

35X

NAMEPLATE

Nameplate Location

362--10892

A : Evaporator

B : Condenser

C : Cab Command control

D : Compressor

E : Vehicle battery

62--10892

SYMBOLS USED ON CAB CONTROL

Readout

Standby operation display (Not Applicable)

Road operation display

Manual defrost control key

Unit start-up key

Unit shut-down key

Data selection key

Selected data decrease key

Selected data increase key

Unit operation display

SGreen = in-range (left half)

SRed = malfunction (right half)

562--10892

UNIT OPERATION

OPERATING PRINCIPLE

After starting up the refrigeration unit by pressing the ON key on the

Cab Command, unit start--up and shut--down are automatic.

Road operation, an open--type compressor is driven by the

engine of the vehicle. The vehicle battery powers the

evaporator and condenser fans. The unit automatically shuts

down when the engine is switched off with the ignition key.

62--10892

STARTING

1. Press ON key.

2. Check if box temperature is

displayed.
