Cardo Systems PACKTALK Manual de usuario

CONTENTS

1. Introduction 3

2. Getting Started 4

2.1 Getting to Know Your PACKTALK OUTDOOR 4

2.2 Charging Your PACKTALK OUTDOOR 4

2.3 Switching Your Unit On/Off 5

2.4 Using Your PACKTALK OUTDOOR 5

2.5 Pairing Your Unit to Bluetooth Devices 5

3. Cardo Connect App 7

3.1 Registering Your unit 7

3.2 Updating Your Unit 8

4. On-The-Go 9

4.1 Basic Audio Functions 9

4.2 Making and Receiving Phone Calls 10

4.3 Streaming Music 12

4.4 Voice Commands 13

5. Communicating with Others 14

5.1 Managing DMCIntercom Groups 14

5.1.1 Creating DMC Intercom Groups 14

5.1.2 Joining DMC Intercom Groups 15

5.1.3 leaving DMC Intercom Groups 15

5.2 Using DMC Intercom 15

5.2.1 Mute/unmute MICROPHONE 15

5.2.2 DMC Intercom ON/OFF 16

6. Troubleshooting 17

6.1 Reboot 17

6.2 Reset to Factory Settings 17

6.3 FAQ 17

7. Personalizing Your Device 18

7.1 Audio Source Priorities 18

8. Support 19

1. INTRODUCTION

Thank you for choosing the Cardo PACKTALK OUTDOOR communication and entertainment system for helmets.

We hope you enjoy using PACKTALK OUTDOOR and encourage you to visit the support page regarding any

questions, suggestions or comments you may have.

If you have not yet installed the PACKTALK OUTDOOR unit on your helmet, please install it as described in the

Installation Guide provided in the package. You can also watch the installation video accessible on this link.

For easy reference while on-the-go, download the Pocket Guide here.

This is version 1.0 of the PACKTALK OUTDOORManual. The latest version of the manuals in your preferred language

can be found here.

2. GETTING STARTED

2.1 GETTING TO KNOW YOUR PACKTALK OUTDOOR

2.2 CHARGING YOUR PACKTALK OUTDOOR

Make sure that your PACKTALK OUTDOOR battery is charged for at least 4 hours before initial use.

To charge the unit:

1. Using the supplied USB cable, connect your computer or wall charger to the USBport on your PACKTALK

OUTDOOR.

2. Fast charging:

●You will have 2 hours of talk time after 20 minutes of charging. (3 hours for full charge).

The battery of your PACKTALK OUTDOOR supports up to 10 hours of talk-time.

While charging, the LED indicates the charging status as follows:

●Red LED on — charging

●Red LED off — charging complete

TIP: You can check the battery charge at any time by saying "Hey Cardo, battery status".

2.3 SWITCHING YOUR UNIT ON/OFF

To switch your PACKTALK OUTDOORon:

●Press for 2 seconds.

The speaker plays a startup sound.

The LED confirms your PACKTALK OUTDOOR is on:

●Normal/Low battery — LED flashes blue three times

●Charging — LED flashes purple three times

To switch your PACKTALK OUTDOOR off:

●Press for 5 seconds.

The LED flashes red three times, confirming that your unit is switching off. The speaker plays a sound and a

voice message indicates the battery status, "Battery Status X%, ".

2.4 USING YOUR PACKTALK OUTDOOR

You can operate the various features of your PACKTALK OUTDOOR in the following ways:

●Press a button or a combination of buttons on the unit

●Use the Cardo Connect App on your mobile device (once it is paired with the unit)

●Use natural voice operation (by saying a command, for example "Hey Cardo, Music On")

2.5 PAIRING YOUR UNIT TO BLUETOOTH DEVICES

To connect your unit to a Bluetooth device, you must first pair them. Once paired, they automatically recognize

each other whenever they are within range.

To pair to a mobile phone:

1. Enable Bluetooth on your mobile phone.

2. On the unit in standby mode, press for 5 seconds

The LED flashes red and blue.

3. On your mobile phone, search for Bluetooth devices.

4. When your PACKTALK OUTDOOR appears in the list of available devices, select it.

If prompted for a PIN or Passkey, enter 0000 (four zeros). If prompted to allow pairing on your phone, allow it.

The phone confirms that pairing has succeeded and the LED flashes purple for 2 seconds. A voice message

confirms "Phone connected".

To stop phone pairing:

●Tap once.

3. CARDO CONNECT APP

The Cardo Connect App enables you to configure the settings of your PACKTALK OUTDOOR. In addition, the App

offers you remote controlled operation from the screen of your smartphone.

3.1 REGISTERING YOUR UNIT

1. Download the Cardo Connect App.

2. Register your PACKTALK OUTDOOR.

3. Select your language.

3.2 UPDATING YOUR UNIT

Before using your unit for the first time, and whenever a new software update is available, make sure to have the

latest software update. Updating with the latest software keeps your unit free of bugs and provides you with

additional new functionalities.

Your PACKTALK OUTDOOR can be updated Over the Air, via Cardo Connect app.

To update your PACKTALK OUTDOOR unit with the Cardo Connect App:

Whenever a new software update is available, a pop-up will open on your App screen. Press Install and follow the

on-screen instructions.

If you press Remind me later, the pop-up will re-open the next day.

To update your PACKTALK OUTDOOR:

1. Open Cardo Connect app.

2. Press Settings.

3. Select your unit.

4. Select the software version.

5. Press Update Now.

When the update is finished, press Finish to go back to the main screen.

To update your PACKTALK OUTDOOR unit with your computer:

1. Download and install the Cardo Update tool https://www.cardosystems.com/update.

2. Open Cardo Update.

3. Register (first time only).

4. Connect the unit to the computer using an USB cable and update the firmware.

Cardo Update on Windows/Mac - minimum requirements - Windows® 7/macOS x10.8.

4. ON-THE-GO

PACKTALK OUTDOOR makes it easy for you to receive phone calls and listen to music in a convenient and safe

manner.

4.1 BASIC AUDIO FUNCTIONS

The basic audio functions are the same whether you are listening to music, speaking on the intercom, or having a

phone conversation.

To turn the volume up:

●Roll the Control Wheel forwards.

An increasingly louder tone is played on the speaker until you reach the maximum volume, as indicated by the

maximum volume tone.

To turn the volume down:

●Roll the Control Wheel backwards.

An increasingly quieter tone is played on the speaker until you reach the minimum volume, as indicated by the

minimum volume tone.

To mute the microphone completely:

●Fast roll the Control Wheel backwards.

To unmute the microphone:

●Roll the Control Wheel forwards.

4.2 MAKING AND RECEIVING PHONE CALLS

You can use your mobile phone to make and receive phone calls while paired to your PACKTALK OUTDOOR.

You can make a hands-free call using your mobile phone's voice dial option or using the Cardo speed dial.

To make a phone call:

●To dial using your mobile phone's voice dial option, tap the Control Wheel or say "Hey Siri" (if you are using

an iOS device) or "OK Google" or "Hey Google" (if you are using an Android device), then make your call as

per the instructions for your mobile device.

To redial a phone number:

●To redial a phone number say "Hey Cardo, redial number"

To set a speed dial number:

●On the Cardo Connect App, select "Phone". go to the line+, then select a contact and tap SET.

To call a preset speed dial number:

Otros manuales para PACKTALK

Tabla de contenidos

Otros manuales de Sistema de intercomunicación de Cardo Systems

Cardo Systems

Cardo Systems Freecom 4 Plus Manual de usuario

Cardo Systems

Cardo Systems SMARTH Manual de usuario

Cardo Systems

Cardo Systems PRO1 Manual de usuario

Cardo Systems

Cardo Systems FREECOM 1 Plus Manual de usuario

Cardo Systems

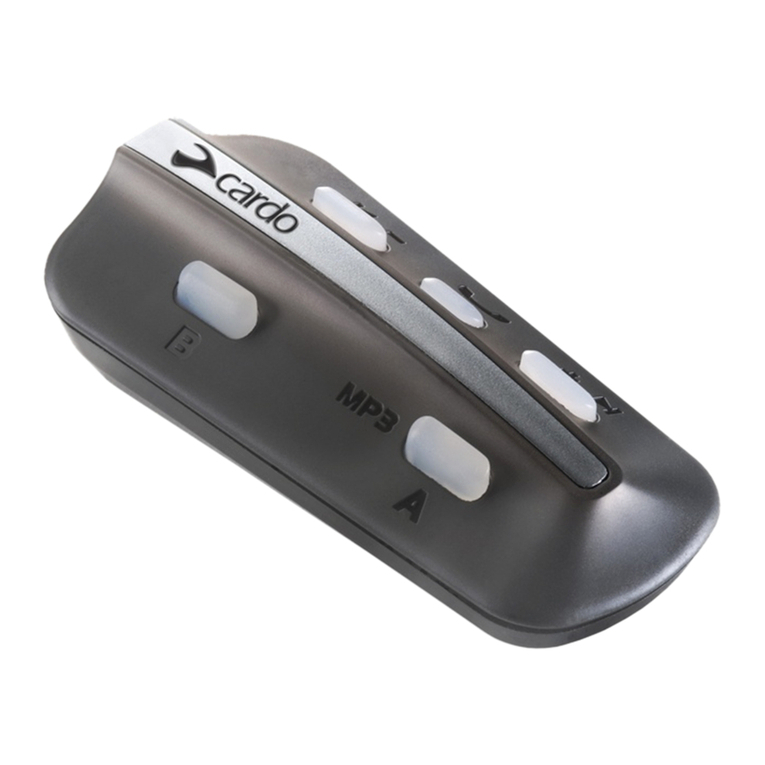

Cardo Systems cardo BK-1 Manual de usuario
