Car-Interface CI-RL1-MIB2-E Manual de usuario

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Video inserter

CI-RL1-MIB2-E

(previous model CI-RL2-MIB2-E)

Compatible with

VW / SEAT / SKODA vehicles

with MIB2 Entry infotainment and 5inch monitor

Video-inserter with 2 video inputs and 1 rear-view camera input

Product features

Video-inserter for factory-infotainment systems

1 CVBS rear-view camera video-input

2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)

Automatic switching to rear-view camera input on engagement of the reverse gear

Video-in-motion (ONLY for connected video-sources)

Video-inputs NTSC compatible

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Connectors –video interface

1.4. Dip-switch settings

1.4.1. Enabling the interface’s video inputs (dip 2-3)

1.4.2. Rear-view camera setting (dip 5)

2. Installation

2.1. Place of installation

2.1.1. Place of Installation –video interface

2.1.2. Place of Installation –daughter PCB

2.2. Connection schema

2.3. Connecting video-interface –Power

2.4. Opening the factory monitor (not Skoda vehicles)

2.5. Connection of the 50pin ribbon cables

2.5.1. Warning notes, concerning the installation of ribbon cables

2.6. Closing the monitor’s rear-side.

2.7. Assembly - head unit, monitor and daughter PCB

2.8. Connection –picture signal cable

2.9. Installation –Skoda vehicles

2.9.1. Skoda monitor –removal and opening

2.9.2. Skoda monitor mainboard –disconnection and removal

2.9.3. Connection of the 50pin ribbon cables –Skoda

2.9.4. Reassembling –Skoda head unit and monitor

2.10. Connection –video sources

2.11. After-market rear-view camera

2.12. Audio insertion

2.13. Connection –video interface and external keypad

2.14. Picture settings

3. Video interface operation

4. Specifications

5. FAQ –Trouble Shooting-Interface function

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. Apart from using this

product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-

camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to

one year after purchase we offer free software-updates for our interfaces. To receive a free

update, the interface has to be sent in at own cost. Wages for de-and reinstallation and

other expenditures involved with the software-updates will not be refunded.

No liability for vehicle wire colours and pin definition!

Changes by the vehicle manufacturer are possible. The given information has to be verified

by the installer.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Page4

Requirements

Brand

Compatible vehicles

Infotainment

Seat

Ibiza (6P) model years 2016 –05/2017

Leon3 (5F) model year 2013-2017

Toledo4 (KG) model year 2016-2017

MIB2 Entry - Media System Touch Color –

with 5inch monitor

Skoda

Fabia3 (NJ) model years 10/2014-05/2017

Octavia3 (5E) model years 2012-2017

Rapid (NH1) model years 2016-2017

Superb3 (3V) model years 2015-2017

Yeti (5L) model years 2015-2016

MIB2 Entry - Radio Swing - 5 inch color

monitor and SD-slot without CD-drive

Beetle (5C) model years since 2015-

Caddy4 (SA) model years 2016-2020

Golf7 Sportsvan model years 2014-2017

Polo5 (6C) model years 2014-2017

Scirocco3 (13) model years 2016-2018

Sharan (7N) model years since 2016

Touran (5T) model years 2016-2017

Transporter T6 (SG) 07/2015-10/2019

MIB2 Entry - Composition Color (Only LG

HU) - 5 inch monitor and CD-drive above

monitor or without CD-drive.

Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting

Audio signals either the possibly existing factory audio-AUX-input or a FM-

modulator can be used. If 2 audio sources shall be connected to the

infotainment, an additional electronic is necessary to switch them.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is

only possible while the reverse gear is engaged. To delay the switch-back an

additional electronic part is required.

Video input signal Only NTSC compatible.

1.2. Checking the compatibility of vehicle and accessories

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Page5

1.3. Boxes and connectors

1.3.1. Video Interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and

converts them for the video interface.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Page6

1.3.2. Dip-switch settings

Some settings have to be selected by the dip-switches on the

video interface. Dip position down is ON and position up is OFF.

After each Dip-switch-change a power-reset of the Can-box has to be performed!

See the following chapters for detailed information.

1.3.2.1. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed by switching through the interface’s video

sources. It is recommended to enable only the required inputs, because the disabled inputs

will be skipped while switching through the video interfaces inputs.

1.3.2.2. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged

to display factory rear-view camera or factory optical park system picture.

If set to ON, the interface switches to its rear-view camera input while the reverse gear is

engaged.

Note: Dips 1, 4, 6, 7 and 8 are out of function and have to be set to OFF.

Dip

Function

ON (down)

OFF (up)

No function

set to OFF

CVBS AV1-input

enabled

disabled

CVBS AV2-input

enabled

disabled

No function

set to OFF

Rear-view cam type

after-market

factory or none

No function

Set to OFF

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Page7

2. Installation

To install the interface, first switch off the ignition and disconnect the vehicle’s battery.

Please read the owner`s manual of the car, regarding the battery`s disconnection! If

required, enable the car`s Sleep-mode (hibernation mode)

In case the sleep-mode does not succeed, the disconnection of the battery can be done

with a resistor lead.

If the necessary stabilized power supply for the interface is not taken directly from the

battery, the chosen connection has to be checked for being constantly stabile.

The interface needs a permanent 12V source!

2.1. Place of installation

2.1.1. Place of installation - interface-box

The interface is prepared to be connected behind the vehicle`s monitor and head-unit.

2.1.2. Place of installation - daughter PCB

The interface’s daughter PCB is prepared to be installed inside or outside the monitor

housing depending on the head unit.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Page8

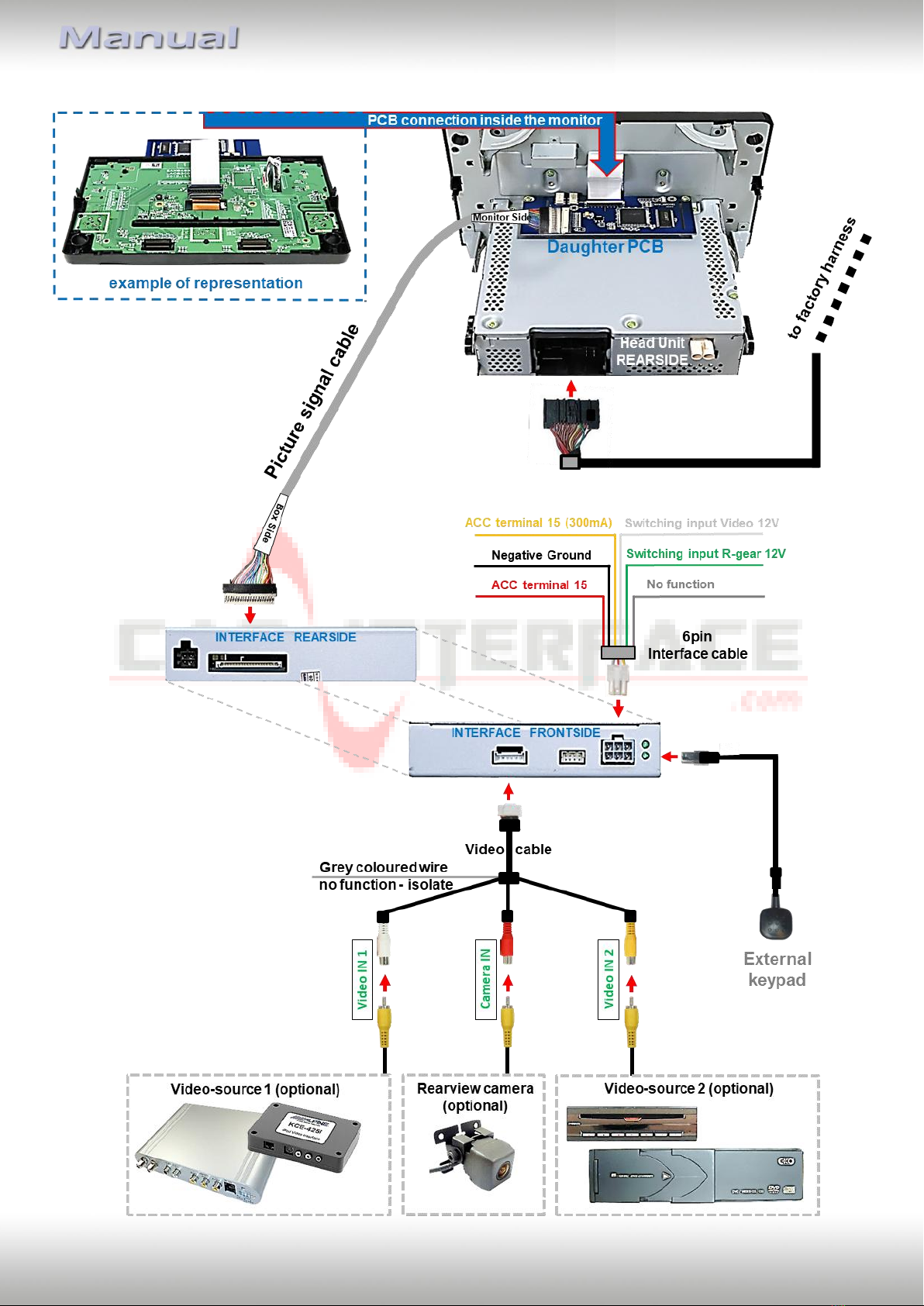

2.2. Connection schema

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Page9

2.3. Connecting video-interface –Power

Connect the white female 6pin connector of the 6pin interface cable to the male 6pin

connector of the video interface.

Connect the yellow wire of the 6pin interface cable to +12V ACC (min.300mA).

Connect the black wire of the 6pin interface cable to the vehicle’s negative Ground.

Connect the red wire of the 6pin interface cable to +12V ACC.

The white wire of the 6pin interface cable switchest he video sources by a 12V

impulse for 2-3 seconds as an alternative to the external keypad.

Connect the green switching input wire of the 6-pin interface cable to the reversing

light, according to the connection diagram in the section "After-Market rear view

camera".

Note: The connection of the green wire (Reverse signal) will be described in chapter “After-

market rear-view camera”. The white wire will be used to switch the enabled video sources

(see chapter “video interface – operation”).

The possibly existing grey wire is out of function and has to be isolated.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E

Page10

2.4. Opening the factory monitor (not Skoda vehicles)

Remove the vehicle’s head-unit.

Turn out both screws at the outer side of the top part of the head unit (red arrows)

and both screws at the bottom part of the head unit (red arrows). Remove the head

unit from the monitor and lay it aside.

Turn out the 7 screws (red arrows) at the rear side of the monitor and remove the

metal sheet to set free the mainboard’s ribbon cable base with the factory picture

signal cable.
