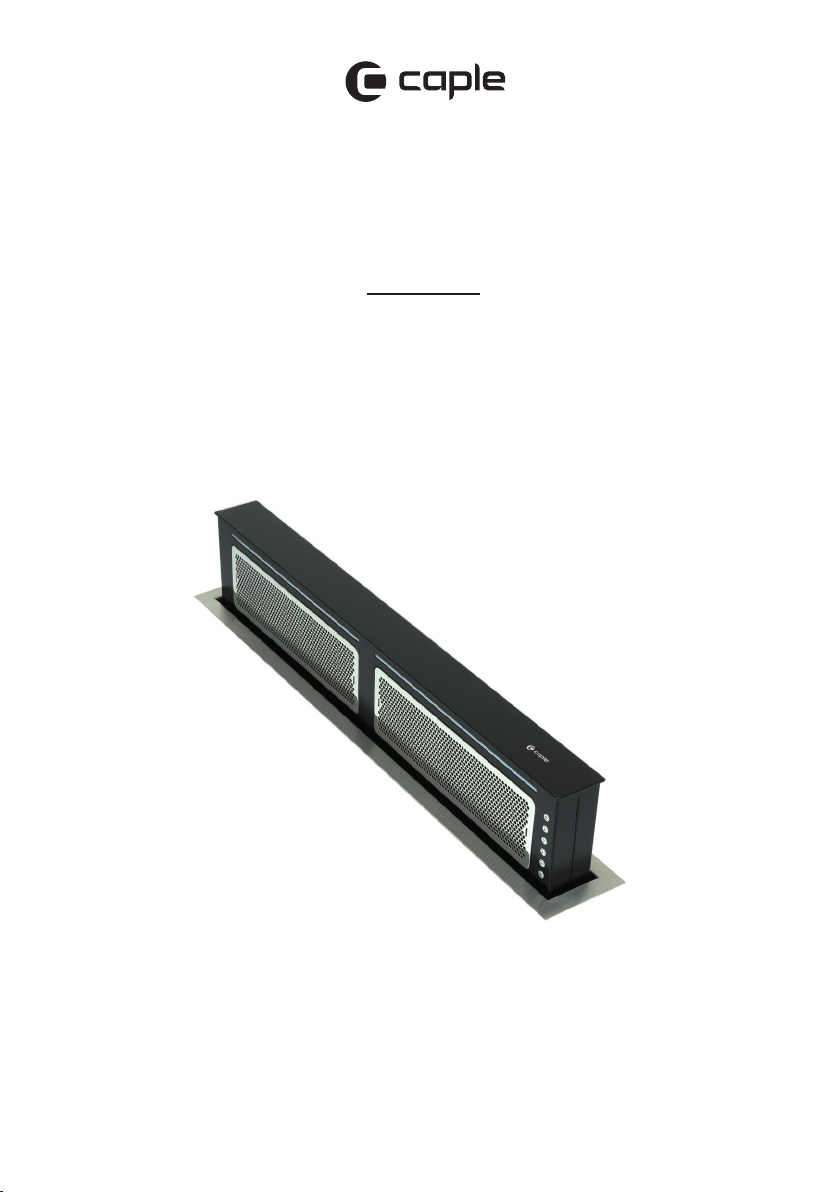

Caple DD901BK Manual de usuario

Downdraft Extractor

Instruction Manual

DD901BK

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Instruction manual DD901BK

2Please keep this instruction manual for future reference

CONTENTS

Introduction 3

Safety Instructions and Warnings 4

Installation 8

Electrical Connection of the Downdraft Extractor 12

Appliance Description 14

Operating the Downdraft Extractor 15

Care and Maintenance 17

Troubleshooting 18

Instruction manual DD901BK 3

Please keep this instruction manual for future reference

INTRODUCTION

Thank you for choosing this Caple downdraft extractor.

To ensure that you get the best results from your new

downdraft extractor, we strongly suggest that you read

this instruction manual thoroughly before use. If treated

with care, your Caple product should give you years of

trouble-free use.

To register ownership, please ensure you complete and

return the guarantee card supplied with the appliance or

visit www.caple.co.uk and register here.

This instruction manual is designed to provide you with

all the required information related to the installation, use

and maintenance of the appliance.

This downdraft extractor is designed to extract unpleasant

odours and cooking vapours from the kitchen. In order

to operate the unit correctly and safely, please read this

instruction manual carefully before installation and use.

Please read this manual carefully before using your

appliance. It contains important safety advice; it explains

how to use and look after your appliance so that it will

provide you with many years of reliable service.

Should a fault arise, please ﬁrst consult the

“Troubleshooting” section. You can often rectify minor

problems yourself, thus saving unnecessary service costs.

Please keep this manual in a safe place and pass it on to

new owners for their information and safety.

Instruction manual DD901BK

4Please keep this instruction manual for future reference

SAFETY INSTRUCTIONS

AND WARNINGS:

-These hoods have been designed for personal use in the

home. The appliance must be used by adults. Make sure

that the appliance is out of reach of children and that

they do not use it to play with. Make sure that children

do not operate the controls.

-When the appliance is delivered, check the overall

appearance of the packaging and the product, to ensure

there is no damage.

-Any damage should be reported to your retailer straight

away.

-Your appliance is designed for normal domestic use.

It is not designed for commercial or industrial use, or for

purposes other than those for which it was designed.

-Any consequences of or damage from incorrect

installation or incorrect use of the appliance will not be

covered by the manufacturer’s guarantee.

-Do not ever change or try to change the characteristics

of this appliance. This would be a danger. Repairs must

be performed only by an authorised technician.

-Always disconnect the hood before carrying out cleaning

or maintenance operations.

-Adequately ventilate the room when a cooker hood

and other appliances, powered by energy other than

electricity, are used simultaneously, so that the hood

does not suck any combustion fumes.

Instruction manual DD901BK 5

Please keep this instruction manual for future reference

-It is not allowed to cook food over open ﬂames (ﬂambé)

or operate gas hobs without pots or pans on them under

the hood itself (the ﬂames sucked into the hood might

damage the appliance).

-Frying near the appliance must be done under constant

supervision as hot oils and fats may ignite.

-Respect the guidelines for cleaning and replacement of

grease ﬁlters. Accumulated deposits of grease are a ﬁre

hazard.

-This appliance must not be used over cook tops powered

by wood or coal or in any case, over cook tops with

power levels that could damage the appliance.

-Never use steam or high-pressure devices for cleaning

your hood (regulations regarding electrical safety).

-Never use the cooker hood without the grease ﬁlters.

-The minimum distance between the Downdraft (closed)

and the surface above it must be at least 200mm.

-When handling the downdraft, never put your hands in

the ﬁeld of action of the extractable unit.

-There must be a minimum space of 50mm between the

edge of a gas hob and the downdraft frame.

-Constantly seeking to improve our products, we reserve

the right to modify their technical, functional, or

aesthetic characteristics deriving from their upgrading.

-In the case of the version with external motor, for normal

downdraft operation, it is necessary to use a suctioning

unit (external motor) made by the same manufacturer.

Instruction manual DD901BK

6Please keep this instruction manual for future reference

-The air collected must not be conveyed into a ﬂue

used for smoke or fumes from appliances powered by

anything other than electricity (central heating systems,

etc.). As far as discharging exhaust air is concerned,

please follow the guidelines given by competent

authorities.

-This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety.

-Children should be supervised to ensure that they do not

play with the appliance.

GENERAL INFORMATION ON

THE DOWNDRAFT EXTRACTOR:

-It is designed to work in both vented mode, with outside

evacuation, and recirculation mode.

-Keep these instructions for use with the appliance. If the

appliance should be sold or passed on to others, make

sure that the instructions are passed on with it. We thank

you for taking note of these suggestions before installing

and using the appliance. They have been written for your

personal safety and the safety of others.

Instruction manual DD901BK 7

Please keep this instruction manual for future reference

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where

facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is

marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. The symbol on the product indicates that this

product may not be treated as household waste. Instead it shall be handed over to the applicable

collection point for the recycling of electrical and electronic equipment. Disposal must be carried

out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please

contact your local council, your household waste disposal service or the retailer where you

purchased the product

CE DECLARATIONS OF CONFORMITY

This appliance has been manufactured to the strictest standards and complies with all applicable

legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

Instruction manual DD901BK

8Please keep this instruction manual for future reference

INSTALLATION

Before carrying out the appliance installation, please check that all components are not damaged,

in such a case contact your retailer and do not carry out any installation operation.

Before the installation of the Downdraft, please remove all of the packaging. Furthermore, please

read carefully all of the following installation instructions.

»Use an air exhausting pipe whose maximum length does not exceed 5 meters.

»Limit the number of elbows in the piping, since each elbow reduces the air capacity of 1 linear

meter. (Eg: if you use no. 2 x 90˚ elbows, the length of piping should not exceed 3 meters).

»Avoid abrupt direction changes.

»Use a 150mm. constant diameter pipe for the whole length.

»Use piping approved by standards in force.

The manufacturer shall not be deemed responsible for air capacity or noise problems caused by

failure to comply with the above instructions and no warranty on the product shall be provided.

Before making the worktop cut out, check that there are no structural interference or other parts

inside the cabinet, where the appliance is to be placed, which could hinder a proper installation.

Check that the dimensions of the Downdraft and the ones of the hob are compatible with the

cabinet so that the installation can be carried out properly.

Make a rectangular

opening, 790 x 100mm

in size, at the back of

the hob. In the version

with the motor already

installed, remove

the screws and the

suctioning unit in order

to ﬁt the downdraft in

the opening made.

DIMENSIONS

510mm

785mm

75mm

325mm

200mm

96mm

1.6mm

4mm

140mm

790mm

758mm

810mm

68mm

116mm

100mm

Downdraft cut-out can be

connected to hob cut-out*

Ø150mm

*For electric hobs only. Gas hobs will require a 50mm gap

Instruction manual DD901BK 9

Please keep this instruction manual for future reference

Fit the Downdraft in the opening, by inserting it from above as shown in (Fig. 1).

Secure the downdraft inside the cabinet, by using the special ﬁxing brackets supplied with the

product (Fig. 2). Insert the brackets in the lower side of the downdraft, in such a way that there

is a 3mm gap between the lower side of the bracket and the bottom of the cabinet (Fig. 3).

This distance will allow to pull the appliance downwards during installation, in order to make

the stainless steel frame perfectly adhere with the worktop. Before inserting the screws into the

cabinet, please make sure that the appliance is perfectly perpendicular with the worktop.

After completing installation and connecting the appliance to the power supply, lift the downdraft

up by pressing on the top side, as shown in ﬁg. 4.

Remove the felt protections as shown in ﬁg. 14.

Fig.1 Fig.2 Fig.3

Fig.4 Fig.14

Instruction manual DD901BK

10 Please keep this instruction manual for future reference

If the appliance is used in the recirculation mode, ﬁt the charcoal ﬁlters (charcoal ﬁlters are not

included and need to be ordered separately) and the grease ﬁlters (see ﬁg. 10). Then ﬁt the top

glass by sticking the magnets into the speciﬁc seats (see ﬁg. 13).

NOTE: The top glass panel comes packaged separately and will need to be ﬁxed onto the

downdraft during installation.

If the Downdraft is equipped with external motor, place the suctioning unit (external motor) in a

suitable area and ﬁt the exhaust air ﬂue. Then ﬁt the air outlet ducts between the external motor

and the downdraft. Select the air outlet among the ﬁve available options (Fig. 6) and ﬁt the spigot

supplied with the appliance.

Place the metal box containing the electronic components in an easily reachable area for possible

technical assistance operations. (Fig.7), by connecting the related connectors (ﬁg. 8A).

Fig.7

Fig.6

Fig.10 Fig.13

Fig.8

Otros manuales para DD901BK

Tabla de contenidos

Otros manuales de Campana de ventilación de Caple

Caple

Caple CSB606 Manual de usuario

Caple

Caple DD810BK Manual de usuario

Caple

Caple GC100SS Manual de usuario

Caple

Caple 2MINCH8 Manual de usuario

Caple

Caple Storm ST524 Manual de usuario

Caple

Caple J129 Manual de usuario

Caple

Caple DD520BK Manual de usuario

Caple

Caple Orbit OI363 Manual de usuario

Caple

Caple CHIMNEY FGC600SS Manual de usuario

Caple

Caple ST851 Manual de usuario

Caple

Caple ST851 Manual de usuario

Caple

Caple BU525BK Manual de usuario

Caple

Caple OM600 Manual de usuario

Caple

Caple Mirage MC900SS Manual de usuario

Caple

Caple P900 Manual de lista de piezas

Caple

Caple FSCHSS8 Manual de usuario

Caple

Caple BUCH Manual de usuario

Caple

Caple AS611 Manual de usuario

Caple

Caple ATA900 Manual de usuario

Caple

Caple Ceramica CR700 Manual de usuario

Caple

Caple BXI911 Manual de usuario

Caple

Caple ST852 Manual de usuario

Caple

Caple SC900SS Guía

Caple

Caple VIE551BK Manual de usuario

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
