IRIScan Express 4

Quick User Guide

Contents

1. Introduction

2. Software Installation

2.1 Installation on Windows

2.2 Installation on Mac OS

3. Supported Documents

4. Using the Scanner

4.1 Top view

4.2 Rear view

4.3 Scanning with the IRIScan Express 4

5. Maintenance

5.1 Calibrate the scanner

5.2 Cleaning the scanner

6. Troubleshooting

6.1 Clearing a Paper Jam

6.2 Questions and Answers

6.3 Product Support

7. Specifications

8. Legal Information

1. Introduction

This User Guide helps you get started with the IRIScan Express 4.

Please read this guide before operating this scanner and its software. All information is subject

to change without prior notice.

The software delivered with this scanner is:

Windows:

Readiris Pro 14

Cardiris 5

Button Manager

Capture Tool

Mac OS:

Readiris Pro 14

Cardiris 4

Capture Tool

For detailed information about the full range of features of Readiris, Cardiris, the Button

Manager and the Capture tool, see their corresponding documentation on

www.irislink.com/support.

2. Software Installation

Important Notes

Install the software before you connect the scanner to your computer.

Check the System Requirements on the I.R.I.S. website to make sure your system is

compatible.

Precautions

Keep the scanner out of direct sunlight. Direct exposure to the sun or excessive heat

may cause damage to the unit.

Do not install the scanner in a humid or dusty place.

Place the scanner securely on an even, flat surface. Tilted or uneven surfaces may cause

mechanical or paper-feeding problems.

Retain the scanner box and packing materials for shipping purposes.

2.1 Installation on Windows

1. Go to www.irislink.com/download/iriscan-express-4.

2. Click the Windows link and download the IRIScan Express 4 package.

3. Once the download is complete, run the IRIScanExpress4.exe file.

4. The following setup screen is displayed:

5. Click "Readiris Pro 14” to install Readiris. Follow the on-screen instructions.

6. Return to the setup screen and click “IRIScan Express 4” to install the scanner driver.

7. Click “Next” until you reach the step “Plug in the USB Cable”.

Connect the micro USB connector to the USB port of the scanner.

Connect the other end of the USB connector to a USB port on your computer.

8. When the driver is successfully installed the following message appears: “This device is

now ready to use”.

9. Click “Finish” and return to the setup screen.

10. Click “Button Manager” to install the Button Manager. A language selection window

appears.

11. Choose the language you wish to install. The InstallShield wizard guides you through the rest

of the installation.

12. Click “Finish” to complete the installation.

13. Click "Cardiris Pro 5” to install Cardiris. Follow the on-screen instructions.

Note: all license numbers required to activate the software can be found on the license sheet

included in the box.

2.2 Installation on Mac OS

1. Go to www.irislink.com/download/iriscan-express-4.

2. Click the Mac link and download the IRIScan Express 4 package.

3. Once the download is complete, run the IRIScanExpress4.dmg file.

4. The following setup screen is displayed:

5. Run the Readiris Pro 14.pkg file and follow the on-screen instructions.

6. Then click “Install” to start the actual installation.

You might be asked to enter an Administrator Username and Password to install Readiris.

7. You are prompted to enter the serial number.

The serial number can be found on the license sheet inside the product box and contains

15 digits.

8. When the installation is finished, click “Close”.

The Readiris folder is added to the Applications folder by the installation program.

9. Return to the setup screen, run the IRIS Scanner.pkg file and follow the on-screen

instructions.

Again you might be asked to enter an Administrator Username and Password.

10. Connect the scanner to your computer.

11. Return to setup screen and install Cardiris 4.

Note: all license numbers required to activate the software can be found on the license sheet

included in the box.

3. Supported Documents

The scanner is designed to obtain the best scanning results with the following types of originals:

Photos and documents (3”x5”, 4”x6”, 5”x7”, 8.5”x14”) (76 x 127mm, 102 x 152 mm, 127 x

177 mm, 216 x 356 mm)

Business cards [standard 3.5”x 2” (88 x 50 mm) or larger]

Long page (8.5”x36”) (216 x 914 mm) for 300 dpi only

Paper Weight: 60~107 g/m2(16~28 lb)

Unsuitable Documents

Do not use the following types of originals for scanning, or the scanner may malfunction or

cause the original to jam in the slot.

Originals thicker than 0.8 mm

Originals with either side shorter than 50 mm

Originals with lots of black or dark colors

Originals with dark colors surrounding the edges

Printed media (newspapers, magazines, etc.)

Soft and thin materials (thin paper, cloth, etc.)

4. Using the Scanner

4.1 Top view

Item

Name

Description

Feed slot

Insert document into the feed

slot, printed side UP and aligned

with the left edge to begin

scanning.

Paper guide

Adjust to scan documents of

different size.

Power

button

Press lightly to power on the

scanner.

Press and hold for 3 seconds

to power off the scanner.

4.2 Rear view

Item

Name

Description

Micro USB

port

Connect to a computer via

the micro USB cable.

2 3

4.3 Scanning with the IRIScan Express 4

The IRIScan Express 4 can be used in several ways:

With the Button Manager (Windows only) to scan documents directly to Readiris for

text recognition, scan them to other applications of your choice, to multiple Cloud

destinations, etc.

From within Readiris or Cardiris.

From within the Capture Tool.

Important!

Insert only one page at a time, and insert the next one only when the previous one is done.

Otherwise, the scanner may malfunction.

The paper detector is quite sensitive. Please do not push your document into the feeding

slot or the top of your image will be cut. Simply let go the document when it begins to feed

into the slot.

1. Insert your document FACE UP into the feeder and align it to the left edge of the feeder.

Then, adjust the paper guide to the right-hand side of the document.

2. Gently push the document into the feed slot.

3. On Windows: press the Power button once to start scanning.

4. On Mac OS: click Scan from within Readiris or the Capture Tool.

In this User Guide we only describe the basics how to scan.

Separate User Guides are available for the Button Manager, the Capture Tool, Readiris and

Cardiris.

The documentation package can be found on in the installation package and on

www.irislink.com/support.

5. Maintenance

5.1 Calibrate the scanner

Calibrate only if the scanned image looks fuzzy, the color looks abnormal (e.g., darker than

normal), after more than 8,000 scans, or the scanner has been stored without use for a long

time. The calibration process resets the Contact Image Sensor to resume its color and sharpness

precision.

1. Power on the scanner.

2. Start the Capture Tool.

In Windows:

Click Start > All Programs > IRIScan Express 4 scanner > Capture Tool

Select your driver type and scanner model and click OK.

On Mac OS:

Click Finder > Applications > Capture Tool

3. The Capture Tool dialog box will be displayed.

4. Click the “Setup”button to open the Scanner Properties dialog box.

5. In Windows: click the “Settings”tab and then click the “Calibration”button.

6. On Mac OS: click the “Enhancement” tab and then click the “Calibration”button.

7. The “Insert calibration sheet”dialog box appears.

8. Hold the edges of the calibration sheet (included) and insert it with the text facing up and

the white area feeding first into the feeder (As shown below).

9. Click “OK”in the “Insert calibration sheet”dialog box to start calibrating the scanner.

10. When the calibration is finished, the scanner powers off automatically.

WARNING: If the calibration failed, the Red LED will be flashing and an error message will

be displayed on the screen. Power off the scanner and then repeat the calibration.

11. Power on the scanner to proceed with normal use.

5.2 Cleaning the scanner

In order to maintain an optimal scan quality and prevent dust accumulation, it is recommended

you clean the scanner (outer casing and feed rollers) approximately every 200 scans, or if

vertical lines or stripes appear on the scanned image.

Use only the recommended and supplied tools to clean the scanner.

WARNING: Do not use any solvents or corrosive liquid (i.e., alcohol, kerosene, etc.) to

clean any part of the scanner, otherwise the plastic material may be permanently damaged.

1. Open the cover by holding the scanner with one thumb on the feeder and another thumb on

the cover. Carefully and firmly press your thumb into the feeder and then raise the cover.

This will cause the top of the scanner to release from the bottom of the scanner.

2. Gently wipe the glass and feed rollers on the scanner, and the CIS cover with the cleaning

cloth (included).

Glass

Feed rollers

6. Troubleshooting

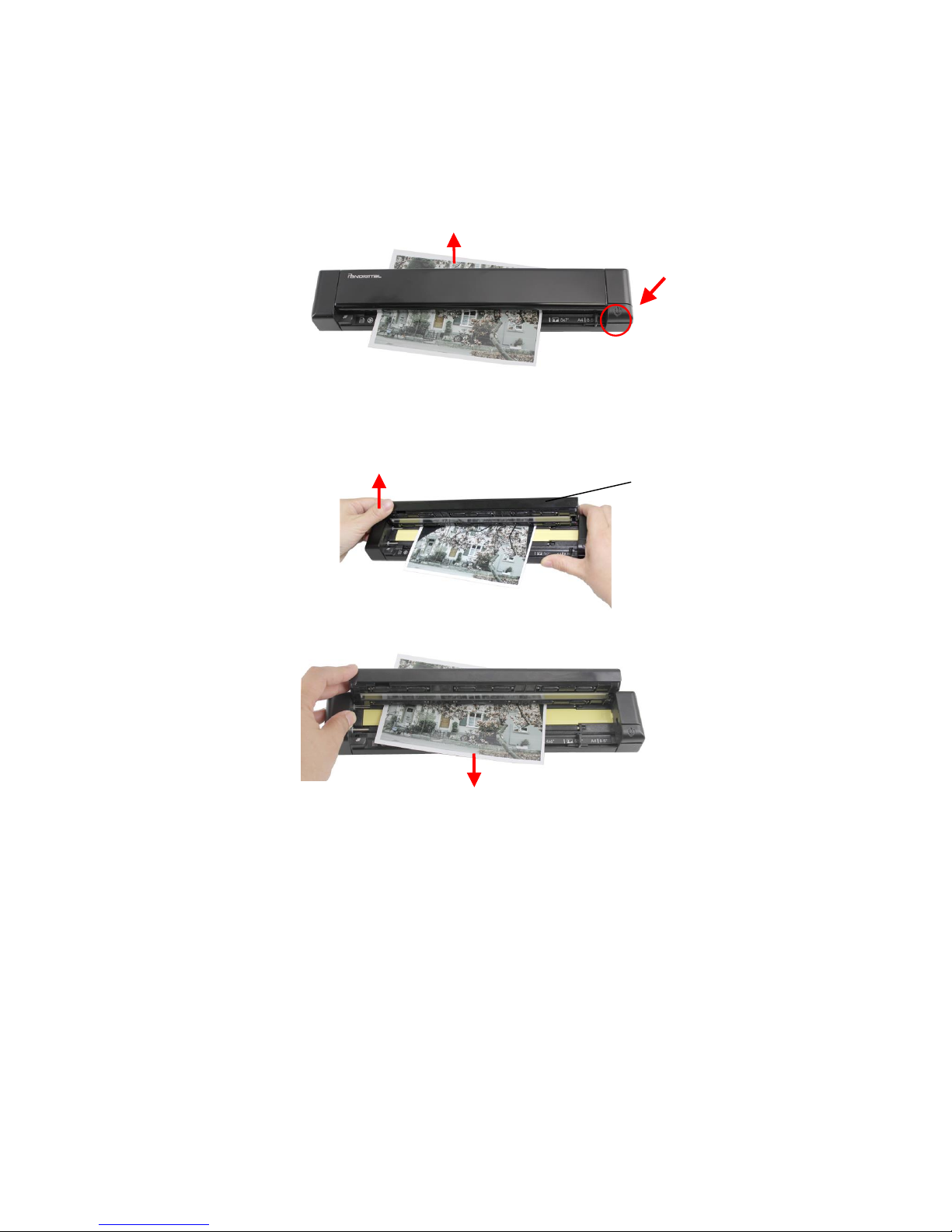

6.1 Clearing a Paper Jam

To clear a jam from the feeder, press and hold the Power button for 3 seconds to power off, then

press quickly to power on again. The jammed photo will be fed through automatically.

If the item is still jammed, follow these steps to remove the item:

1. Open the cover by holding the scanner with one thumb on the feeder and another thumb on

the cover. Carefully and firmly press your thumb into the feeder and then raise the cover.

This will cause the top of the scanner to release from the bottom of the scanner.

2. Remove the item.

3. Close the cover and reinsert the item to rescan.

Cover
