1. Installing the Printer

For the procedure with icon, you can watch the video

tutorials for installing the printer by accessing the following

URL or scanning the QR codes.

Watch the

movie

Checking Included Items

CD-ROM for

computer

(Windows)

Manuals

Removing Packing Materials/Turning

on the Printer

You can watch the procedure on a movie by scanning

the QR codes.

Android iOS

1 Remove the packing materials (such as tape and

SURWHFWLYH¿OPRQWKHtouch screen) from outside

the printer.

8VLQJWKHSULQWHUZLWKWKHSURWHFWLYH¿OPDWWDFKHG

may cause malfunction.

2 C Hook the hollows on the both sides of

WKHSULQWHUZLWK\RXU¿QJHUVDQGRSHQWKH

scanning unit / cover.

D Remove the orange tape and discard it.

3 LIFT UP the scanning unit / cover, and then close

it.

4 C Connect the power cord.

D Lift the operation panel.

E Press the ON button.

Do not connect a USB cable or LAN cable yet.

5 Drag the screen and tap the language to select.

6 Read the messages and follow the on-screen

instructions.

7 Read the messages and tap OK.

Installing the Ink Tank

You can watch the procedure on a movie by scanning

the QR codes.

Android iOS

1 Open the scanning unit / cover.

Do not touch the print head holder (A) until it

stops.

(A)

2 C Remove the orange tape.

D Remove the protective wrap.

Remove the orange tape completely.

3 +RRNWKHRUDQJHFDSZLWK\RXU¿QJHUWRUHPRYHLW

GENTLY.

(A) Do not push the both sides of the ink tank with

the Y-shape air hole blocked.

(B) Do not touch.

(A) (B)

4 Insert the ink tank into the print head holder and

SXVKLWGRZQ¿UPO\XQWLOLWVQDSVLQWRSODFH

After the lamp lights up, install the next ink tank.

5 Check that all lamps are lit.

6 LIFT UP the scanning unit / cover, and then close

it.

If an error message appears, make sure the ink

tanks are installed correctly.

Loading Paper / Aligning the Print

Head

You can watch the procedure on a movie by scanning

the QR codes.

Android iOS

To obtain better print result, print a pattern for print head

alignment and scan it.

1 C Pull out the cassette.

D Remove the cassette cover.

ENGLISH

2 C Pull out the cassette forward while pressing

the lock on the cassette.

D Open the paper guides, and then align the

guide in front with the mark of LTR or A4.

3 C Load several sheets of plain paper with the

print side facing down.

D Slide the right paper guide to align it with the

side of the paper stack.

E Align the paper stack with the paper guide in

front.

4 C Attach the cassette cover.

D Insert the cassette.

5 Read the messages and tap OK.

6 When the pattern for print head alignment is

printed, tap Yes.

7 Follow the on-screen instructions to load the

pattern on the platen glass.

8 Close the document cover, and then follow the on-

screen instructions to tap OK.

9 If the following screen appears, tap OK.

The print head alignment is now

complete.

Selecting a Printer Connection Method

The connection method varies depending on how you use the printer. Select a printer connection method according to the

table below. In the following description, smartphones and tablet devices are collectively described as smartphone.

Using the printer with your computer or smartphone connected Using the printer

without connecting

any other devices

Wireless LAN connection Wired LAN connection USB connection Do not connect

Connecting the printer to your

computer or smartphone via a

wireless router

router

Connecting the printer to your

computer or smartphone directly

without a wireless router *

LAN cable

router

USB cable

Tap Do not connect

on the connection

method selecting

screen. The setup is

now complete.

* You may not connect your smartphone to the Internet wirelessly during connecting the printer to

the smartphone directly. In that case, you may be charged depending on the contract with your

service provider.

* Up to 5 devices can be connected to the printer via wireless LAN connection directly.

1 Tap your printer connection method.

Follow the on-screen instructions to proceed

with the setup.

Users who select Wired LAN connection:

The wired LAN connector is on the back of the

printer.

LAN

Users who select USB connection:

Do not connect a USB cable until you are

instructed.

2 If the following screen appears, proceed to the

next page.

ŶIf you select Wireless LAN connection:

ŶIf you select Wired LAN connection or USB

connection:

ENGLISH

Connecting with Computer

You need connection setup for each computer. Proceed

with the setup from step 1 for each computer.

The followings describe the procedures for Windows and

Mac OS.

If you use a computer except for Windows or Mac OS

such as Chrome OS, access "http://canon.com/ijsetup",

and then follow the instructions on the Canon website to

set up your computer.

1 Select one of the following steps or to start

XSWKHVHWXS¿OH

Accessing the Canon website

CVisit the Canon website below and click Set Up.

Follow the on-screen instructions to proceed

with the setup.

DIf the following screen appears, click Download.

E6WDUWXSWKHGRZQORDGHG¿OH

Using the Setup CD

CInsert the setup CD into your computer.

When using Windows 10, Windows 8.1 or Windows 8:

DClick or File Explorer on the taskbar.

ESelect This PC or Computer on the left side of the

opened window.

FDouble-click the CD-ROM icon on the right side

of the window.

* If the contents of the CD-ROM appear, double-click

MSETUP4.EXE.

2 Click Start Setup.

Follow the on-screen instructions to proceed

with the setup.

You can set up your smartphone in the middle

of the steps.

On the following screen, click Instructions to

proceed with setup of your smartphone.

* Depending on your settings, the screen above may

not appear. In that case, proceed to "Connecting with

Smartphone" on page 6DIWHU¿QLVKLQJWKHFRQQHFWLRQ

to your computer.

3 If the following screen appears, click Exit.

The connection with your computer

is now complete. You can print from

your computer.

2. Connecting with Computer and Smartphone/Tablet

If you connect the printer to both your computer and your smartphone, connect it to the

FRPSXWHU¿UVW

To connect the printer only to your smartphone, proceed to "Connecting with

Smartphone" on page 6.

Connecting with Smartphone

You need connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone.

Preparation

• Turn on Wi-Fi on your smartphone.

• If you have a wireless router, connect your smartphone to the wireless router.

* For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.

1 Install the application software Canon PRINT Inkjet/SELPHY in your smartphone.

: Search "Canon PRINT" in App Store.

: Search "Canon PRINT" in Google Play.

Or access the Canon website by scanning the QR code.

2 Check the display on the printer.

The screen turns off when no operation is made for 10 minutes. Tap the touch screen to display the screen.

ŶIf the following screen appears:

Check the icon on the lower left, and then proceed

to or .

If appears, the printer can not communicate by

wireless LAN connection. For details, access "http://canon.

com/ijsetup" to see Frequently Asked Questions.

ŶIf the following screen appears:

Proceed to .

No (Proceed to .)

Yes

CTap the installed application software.

DFollow the on-screen instructions to register the

printer.

EMake sure that the following screen appears.

The connection with your smartphone is

now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading

Photo Paper" on page 8.

The following icon appears.

(The printer is connected to a network.)

ENGLISH

Procedures below vary depending on iOS or Android. Select your operating system and proceed to its

procedure.

CTap Settings on the HOME screen, and then tap

Canon_ij_XXXX on the Wi-Fi settings.

If Canon_ij_XXXX does not appear on the list, see

"Preparation of the Printer" below to operate the

printer, and then repeat step C.

DTap the installed application software.

EFollow the on-screen instructions to register the

printer.

Follow the on-screen instructions to proceed

with the setup.

If you select Auto Select Conn. Method

(recommended) on the connection method

selecting screen, the appropriate connection

method is selected automatically depending on

your environment.

FMake sure that the following screen appears.

CTap the installed application software.

DFollow the on-screen instructions to register the

printer.

If a message saying "Printer is not registered.

Perform printer setup?" does not appear, see

"Preparation of the Printer" below to operate the

printer, and then wait for a while until a message

appears.

Follow the on-screen instructions to proceed

with the setup.

The appropriate connection method is selected

depending on your environment.

EMake sure that the following screen appears.

The connection with your smartphone is now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading Photo Paper" on page 8.

CTap on the printer's touch screen.

DTap the icon on the lower left of the HOME screen.

ETap Yes or No.

FTap LAN settings > Wireless LAN > Wireless

LAN setup > Easy wireless connect.

GTap Yes.

HReturn to the operation of your smartphone.

Preparation of the Printer

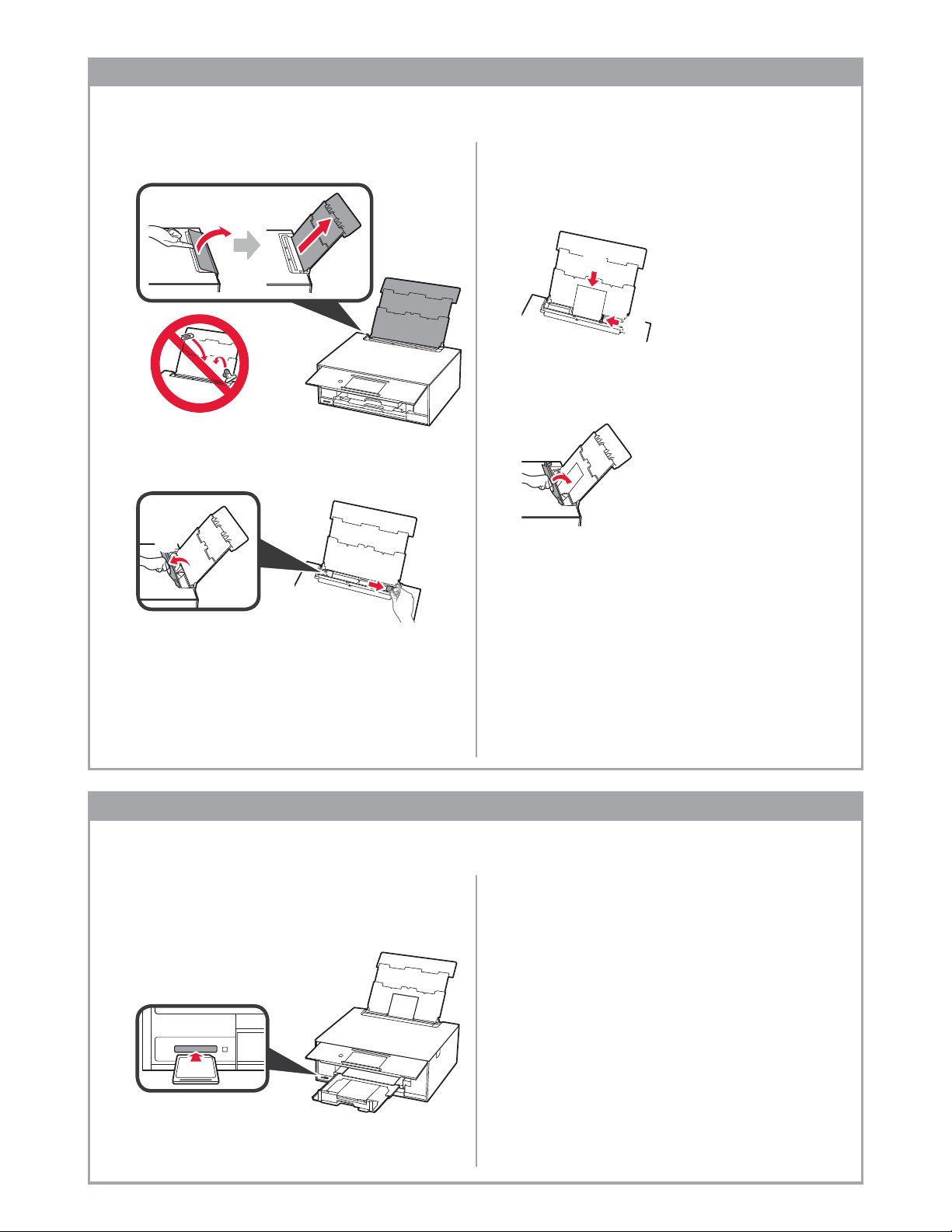

1 Open the rear tray cover and pull out the paper

support.

2 C Open the feed slot cover.

D Slide the right paper guide to the end.

3 C Load several sheets of photo paper with the

print side facing up.

D Slide the right paper guide to align it with the

side of the paper stack.

4 Close the feed slot cover.

Read the message on the printer's screen and

1 Make sure the printer is turned on.

2 Load several sheets of photo paper.

3 Insert the memory card into the card slot.

4 Select photos to be printed.

5 Tap the Color button.

The printer starts printing.

Loading Photo Paper

Printing Photos Saved on a Memory Card

You can print photos saved on a memory card with easy operations.

Load photo paper in the rear tray.

Otros manuales para TS9000 series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Canon

Canon

Canon GP405 Manual de usuario

Canon

Canon 8996A001 - i 455 Color Inkjet Printer Guía de configuración

Canon

Canon imgaePRESS 1110+ Manual técnico

Canon

Canon PIXMA MX850 Manual de usuario

Canon

Canon imagePROGRAF W7200 Manual de usuario

Canon

Canon MAXIFY MB2350 Guía de configuración

Canon

Canon varioPRINT 120 Manual técnico

Canon

Canon iPF655 - imagePROGRAF Color Inkjet Printer Manual de usuario

Canon

Canon iR C6800 Series Cómo utilizar

Canon

Canon GX5500 Series Guía de configuración

Canon

Canon imageCLASS X MF 1238 II Manual de usuario

Canon

Canon SELPHY SQUARE QX10 Manual de usuario

Canon

Canon Pixma G1000 series Guía de configuración

Canon

Canon DS810 - SELPHY Color Inkjet Printer Manual de usuario

Canon

Canon iPF5100 - imagePROGRAF Color Inkjet Printer Manual de usuario

Canon

Canon MP490 series Manual de usuario

Canon

Canon PIXMA MG8170 Manual de usuario

Canon

Canon Pixma Pro9500 Series Manual de usuario

Canon

Canon PIXMA PRO-10 Manual de usuario

Canon

Canon PIXMA MG5600 Series Manual de usuario

Canon

Canon i-SENSYS MF6180dw Guía de instalación y uso

Canon

Canon iP90v - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon BJC-S9000 Manual de usuario

Canon

Canon LBP 3370 Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario

Epson

Epson Stylus Photo PX700W Instrucciones de montaje

Ricoh

Ricoh SP204SF Manual de usuario

Star Micronics

Star Micronics futurePRNT TSP100 Manual de usuario

Epson

Epson TM-TM88V-i Manual de uso y cuidado
