Canon Selphy CP720 Guía de configuración

Unpack

Prepare

Printing Guide

Basic to Advanced

Printing

Thank you for purchasing a SELPHY Compact

Photo Printer. You can start to print immediately

with the items in your package. There are three

easy steps: Unpack the contents, prepare them

and print.

Enjoy a Multitude of

Functions

ENGLISH

p. 2

p. 3

p. 5

p. 8

Boundless

Possibilities

Troubleshooting

p. 13

p. 16

p. 11

Installing the PDF

Manual

Main Printer Unit

Compact Power Adapter

Postcard Size Paper

Cassette

Although you will not use them when

following the steps in this guide, be

sure the following items are also in

your package.

Starter Paper Pack

(Postcard size: 100 x

148 mm (4 x 6 in.))

Starter Ink Cassette

(Postcard Size)

Power Cord

Cleaner

You will need a memory card with

images on it that has been removed

from the camera.

CD-ROM:

Compact Photo

Printer Solution Disk

Printer User Guide

for More Detailed Information

The supplied CD-ROM contains the Printer User Guide, an electronic manual.

Refer to this manual for detailed procedures or troubleshooting tips.

You can install the Printer User Guide onto your computer (p. 11). It is also

installed with the Easy Install option.

Unpack

In this step, you will

unpack the printer and

arrange the items you

will need to prepare

the printer and print.

Separately Sold Accessories

This product is designed to achieve excellent performance when used with

genuine Canon accessories. Canon shall not be liable for any damage to this

product and/or accidents such as fire, etc., caused by the malfunction of non-

genuine Canon accessories (e.g., a leakage and/or explosion of a battery pack).

Please note that this warranty does not apply to repairs arising out of the

malfunction of non-genuine Canon accessories, although you may request

such repairs on a chargeable basis.

Depending on the region, L size

items may be supplied with the

printer.

In this step you will insert the ink and paper cassettes to prepare for printing.

Although these illustrations show the CP730 model, the procedures apply

equally to the CP720 model.

1. Install the ink cassette.

2. Place paper into the paper cassette.

3. Install the paper cassette into the printer.

Open the ink cassette

compartment cover on the

printer.

Insert the starter ink cassette into

the printer until it clicks firmly into

place and close the cover.

Align the paper

beneath the tabs.

Slide the lid of the paper cassette

and open it upward, as shown.

Next, place the paper in the

cassette with the shiny side

upward. Try not to touch the

shiny side of the paper.

Close the lid but do not slide it

forward. You should see a portion

of the paper through the opening.

Open the paper cassette slot

cover.

Insert the paper cassette all the

way into its slot.

Hold it here.

Paper visible through

opening

Prepare

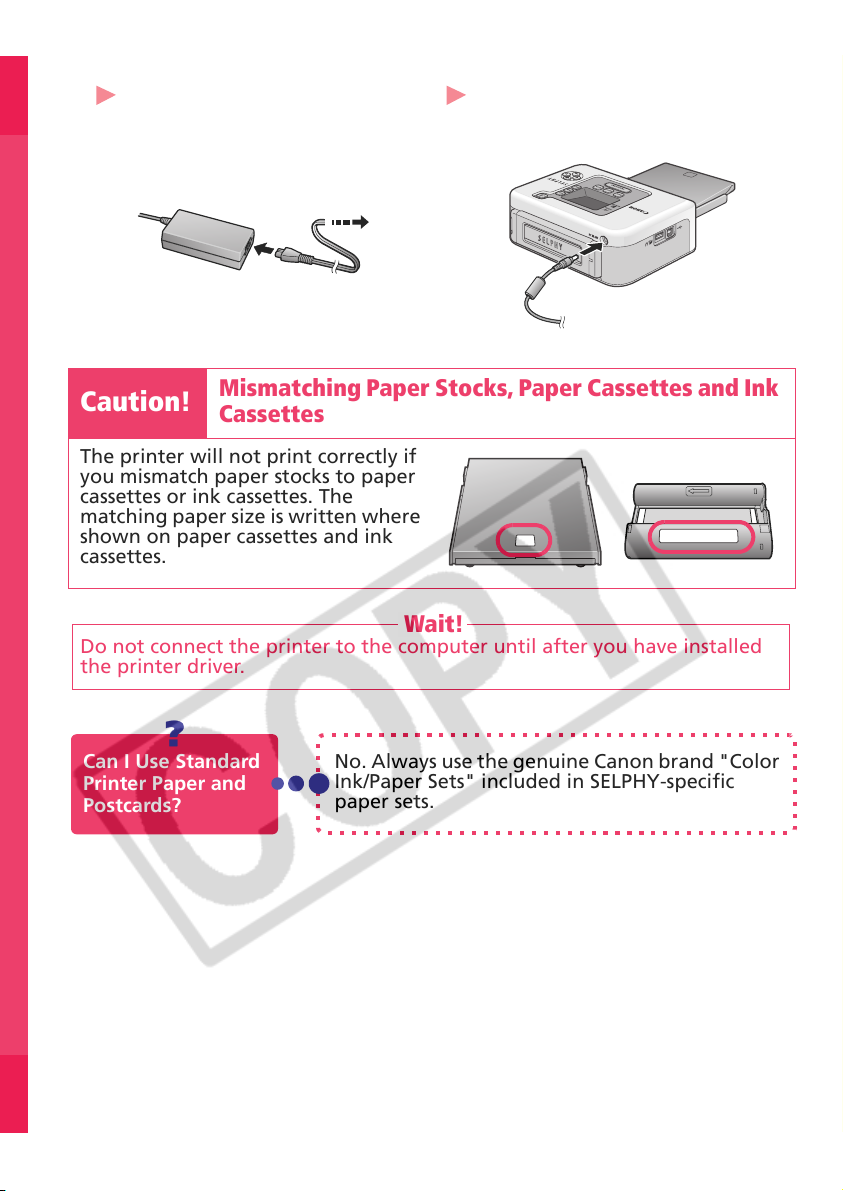

4. Attach the power cord.

Caution! Mismatching Paper Stocks, Paper Cassettes and Ink

Cassettes

The printer will not print correctly if

you mismatch paper stocks to paper

cassettes or ink cassettes. The

matching paper size is written where

shown on paper cassettes and ink

cassettes.

Plug the power cord into the

compact power adapter and then

into a power outlet.

Attach the compact power adapter

connector to the printer's DC IN

terminal.

Wait!

Do not connect the printer to the computer until after you have installed

the printer driver.

Can I Use Standard

Printer Paper and

Postcards?

No. Always use the genuine Canon brand "Color

Ink/Paper Sets" included in SELPHY-specific

paper sets.

In this step you will insert a memory card with images into the printer, and

print.

1. Press the power button until the start-up image (shown right)

displays on the LCD monitor.

2. Insert the memory card into the appropriate card slot.

With the label side upward, insert the memory card fully.

Press until the image

appears.

Memory Stick PRO Duo

Memory Stick Duo

Memory Stick PRO

Memory Stick SD Memory Card

SDHC Memory Card

miniSD Card

miniSDHC Card

MultiMediaCard

RS-MMC

CompactFlash Card

Microdrive

xD-Picture Card (a separate adapter*

is required)

* Purchase a CompactFlash Card

Adapter for xD-Picture Cards

separately.

3. Press or to select an image to print.

5. Press .

The printer will start. The paper will pass in and out four times. Do not pull

on or force the paper during this process.

After confirming that the image has printed, remove the memory card.

To turn the printer off, press the power button again for a moment.

CP730 CP720

4. Press [DATE] and select whether or not to include the

shooting date.

When the bottom right of the monitor shows , the date does

not print. When it shows , the date will print in the [month/

day/year] format.

How many prints

can the starter ink

cassette print?

It can make five prints, the same

number as the supplied starter

paper sheets. A symbol similar to the

one at the right will appear on the

LCD monitor when the ink runs out. Please

exchange the ink cassette with a new one.

Note that dye-sublimation thermal transfer

photo printers such as the SELPHY series cannot

print any more prints than those noted on the

color ink/paper set packages. They use a

technology very different from that used in ink

jet printers.

You Can Also Connect the Camera to Print

If your Canon digital camera has a (Print/Share) button on it, you

can connect the camera to the printer for easy printing. If your camera

does not have a (Print/Share) button, please check its user manual.

1. Pull the cable out of the printer and attach it to the camera's DIGITAL

terminal.

If the connector on the cable does not fit your camera's terminal, use

the USB cable supplied with your camera.

2. Press the power button until the start-up image displays on the LCD

monitor.

3. Select an image on the camera's LCD monitor and press the

(Print/Share) button.

Other camera brands that are PictBridge compliant can also be connected

for direct printing.

Confirm that all memory

cards have been removed

from the printer.

DIGITAL Terminal

Extends up to 30 cm (12 in.).

This section introduces the

numerous functions that make

printing fun.

MODE Button

This button sets the printing

mode.

Single

Prints one copy of the

displayed image.

Select

Prints the specified

number of copies of the

selected images.

Printing Using the

Select Mode

1. Press or to

select an image to

print.

2. Select the number

of prints using the

or button.

3. Repeat Steps 1 and 2

as required for

successive images.

4. When you finish,

press .

All

Prints one copy of each

image.

DPOF

Prints according to the

DPOF settings set using

the camera. See the user

guide included with

your camera for

instructions regarding

DPOF settings.

LAYOUT Button

This button sets the print layout.

Borderless Bordered

2 Images 4 Images

8 Images Index

xxxxxx xxxxxx

The image number

also prints.

Enjoy a

Multitude of

Functions

DATE Button

This button sets the date

imprint that can be added to

images.

No Date

Year/Month/Day

Month/Day/Year

Day/Month/Year

DISP. (Display) Button

Press this button to display

the image at a larger size.

Press it again to restore it to

its original size.

Power Button

LCD Monitor

It displays the memory card images

and current settings information.

Print/Stop Button

Press this button to start

printing. Pressing this button

while printing is in progress

stops it. It still consumes one

print's worth of ink even

when printing is stopped.

CP730

CP720

Print Image

Number of

Prints of

Selected Image

Total Number of

Prints

Installed Ink

Cassette Type

Print Layout

Image Number

Date Imprint

My Colors

Printing

Mode

Selected Image

Image Number

Selected Image

Print Layout

Date Imprint

Print Image

Number of Prints of

Selected Image

Total Number of Print

Installed Ink Cassette Type

Printing

Mode

1010

EFFECT Button (CP730 only)

This button sets the My Colors function.

Off B/W Sepia

Vivid Neutral

This button starts the trimming mode, which lets

you enlarge a portion of an image for printing.

How to Select the Trimming Area

1. Press the TRIM. button, followed by the

DISP. button.

2. Press the and buttons to adjust the

print area size, and the and buttons

to rotate the print area frame 90 degrees.

3. Press the DISP. button again, followed by

the , , and buttons to move the

print area as desired.

4. Press the TRIM. button to put the settings

into effect.

TRIM. Button (CP730 only)
