1. Installing the Printer

For the procedure with icon, you can watch the video

tutorials for installing the printer by accessing the following

URL or scanning the QR codes.

Watch the

movie

Checking Included Items

CD-ROM for

computer

(Windows)

Manuals

Removing Packing Materials/Turning

on the Printer

You can watch the procedure on a movie by scanning

the QR codes.

Android iOS

1 Remove the packing materials (such as tape

and protective lm on the LCD) from outside the

printer.

2 aHook the hollows on the both sides of

the printer with your ngers and open the

scanning unit / cover.

bRemove the orange tape and discard it.

3 Close the scanning unit / cover.

4 aConnect the power cord.

bLift the operation panel.

cPress the ON button.

Do not connect a USB cable yet.

5 Use the {or }button to select a language, and

then press the OK button.

6 Read the messages and press the OK button.

7 Select Agree or Do not agree, and then press the

OK button.

8 Read the message and press the OK button.

Installing the Ink Tank

You can watch the procedure on a movie by scanning

the QR codes.

Android iOS

1 Open the scanning unit / cover.

Do not touch the print head holder (A) until it

stops.

(A)

2 aRemove the orange tape.

bRemove the protective wrap.

Remove the orange tape completely.

3 Hook the orange cap with your nger to remove it

GENTLY.

(A) Do not push the both sides of the ink tank with

the Y-shape air hole blocked.

(B) Do not touch.

(A) (B)

4 Insert the ink tank into the print head holder and

push it down rmly until it snaps into place.

After the lamp lights up, install the next ink tank.

5 Check that all lamps are lit.

6 Close the scanning unit / cover.

If an error message appears, make sure the ink

tanks are installed correctly.

Loading Paper / Aligning the Print

Head

You can watch the procedure on a movie by scanning

the QR codes.

Android iOS

To obtain better print result, print a pattern for print head

alignment and scan it.

1 Open the rear tray cover and pull out the paper

support.

ENGLISH

2 aOpen the feed slot cover.

bSlide the right paper guide to the end.

3 aLoad several sheets of plain paper with the

print side facing up.

bSlide the right paper guide to align it with the

side of the paper stack.

4 Close the feed slot cover.

5 Pull out the paper output tray.

6 Use the [or ]button to select OK, and then

press the OK button.

7 When the pattern for print head alignment is

printed, select Yes and press the OK button.

8 Follow the on-screen instructions to load the

pattern on the platen glass.

9 Close the document cover, and then follow the on-

screen instructions to press the OK button.

If the following screen appears, press the OK

button.

The print head alignment is now

complete.

Selecting a Printer Connection Method

The connection method varies depending on how you use the printer. Select a printer connection method according to the

table below. In the following description, smartphones and tablet devices are collectively described as smartphone.

Using the printer with your computer or smartphone connected Using the printer without

connecting any other devices

Wireless LAN connection USB connection Do not connect

Connecting the printer to your computer

or smartphone via a wireless router

router

Connecting the printer to your computer

or smartphone directly without a

wireless router *

USB cable

Use the {or }button to select

Do not connect on the connection

method selecting screen, and then

press the OK button. The setup is

now complete.

* You may not connect your smartphone to the Internet wirelessly during connecting the

printer to the smartphone directly. In that case, you may be charged depending on the

contract with your service provider.

* Up to 5 devices can be connected to the printer via wireless LAN connection directly.

1 Select your printer connection method, and then

press the OK button.

Follow the on-screen instructions to proceed

with the setup.

Users who select USB connection:

Do not connect a USB cable until you are

instructed.

2 If the following screen appears, proceed to the

next page.

■If you select Wireless LAN connection:

■If you select USB connection:

ENGLISH

Connecting with Computer

You need connection setup for each computer. Proceed

with the setup from step 1 for each computer.

The followings describe the procedures for Windows and

Mac OS.

If you use a computer except for Windows or Mac OS

such as Chrome OS, access "http://canon.com/ijsetup",

and then follow the instructions on the Canon website to

set up your computer.

1 Select one of the following steps or to start

up the setup le.

Accessing the Canon website

aVisit the Canon website below and click Set Up.

Follow the on-screen instructions to proceed

with the setup.

bIf the following screen appears, click Download.

cStart up the downloaded le.

Using the Setup CD

aInsert the setup CD into your computer.

When using Windows 10, Windows 8.1 or Windows 8:

bClick or File Explorer on the taskbar.

cSelect This PC or Computer on the left side of the

opened window.

dDouble-click the CD-ROM icon on the right side

of the window.

* If the contents of the CD-ROM appear, double-click

MSETUP4.EXE.

2 Click Start Setup.

Follow the on-screen instructions to proceed

with the setup.

You can set up your smartphone in the middle

of the steps.

On the following screen, click Instructions to

proceed with setup of your smartphone.

* Depending on your settings, the screen above may

not appear. In that case, proceed to "Connecting with

Smartphone" on page 6 after nishing the connection

to your computer.

3 If the following screen appears, click Exit.

The connection with your computer

is now complete. You can print from

your computer.

2. Connecting with Computer and Smartphone/Tablet

If you connect the printer to both your computer and your smartphone, connect it to the

computer rst.

To connect the printer only to your smartphone, proceed to "Connecting with

Smartphone" on page 6.

Connecting with Smartphone

You need connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone.

Preparation

• Turn on Wi-Fi on your smartphone.

• If you have a wireless router, connect your smartphone to the wireless router.

* For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.

1 Install the application software Canon PRINT Inkjet/SELPHY in your smartphone.

: Search "Canon PRINT" in App Store.

: Search "Canon PRINT" in Google Play.

Or access the Canon website by scanning the QR code.

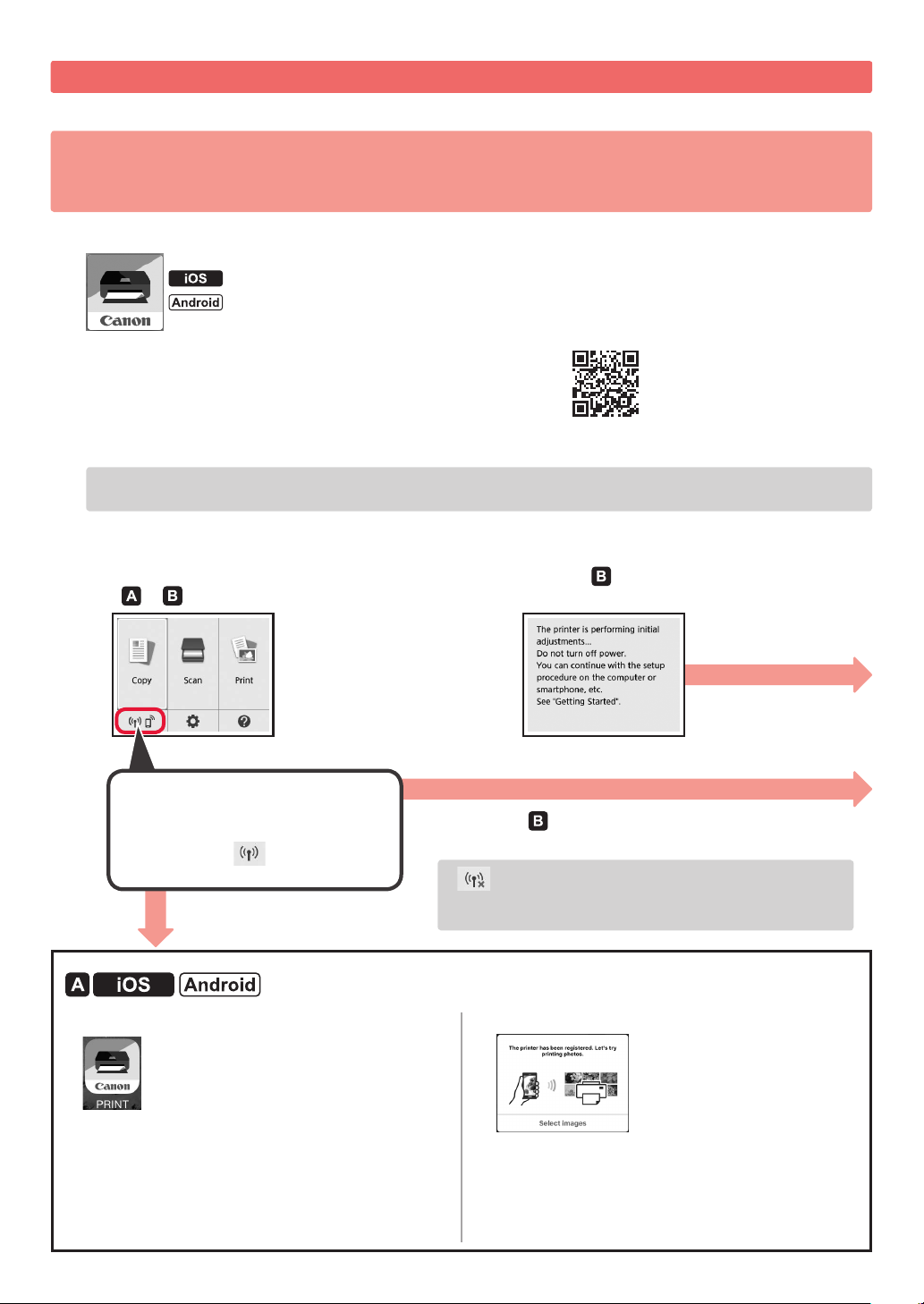

2 Check the display on the printer.

The screen turns off when no operation is made for 10 minutes. Press one of the buttons on the operation panel

(except for the ON button) to display the screen.

■If the following screen appears:

Check the icon on the lower left, and then proceed

to or .

If appears, the printer can not communicate by

wireless LAN connection. For details, access "http://canon.

com/ijsetup" to see Frequently Asked Questions.

■If the following screen appears:

Proceed to .

No (Proceed to .)

Yes

The following icon appears.

(The printer is connected to a network.)

aTap the installed application software.

bFollow the on-screen instructions to register the

printer.

cMake sure that the following screen appears.

The connection with your smartphone is

now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading

Photo Paper" on page 8.

ENGLISH

Procedures below vary depending on iOS or Android. Select your operating system and proceed to its procedure.

aTap Settings on the HOME screen, and then tap

Canon_ij_XXXX on the Wi-Fi settings.

If Canon_ij_XXXX does not appear on the list, see

"Preparation of the Printer" below to operate the

printer, and then repeat step a.

bTap the installed application software.

cFollow the on-screen instructions to register the

printer.

Follow the on-screen instructions to proceed

with the setup.

If you select Auto Select Conn. Method

(recommended) on the connection method

selecting screen, the appropriate connection

method is selected automatically depending on your

environment.

dMake sure that the following screen appears.

aTap the installed application software.

bFollow the on-screen instructions to register the

printer.

If a message saying "Printer is not registered.

Perform printer setup?" does not appear, see

"Preparation of the Printer" below to operate the

printer, and then wait for a while until a message

appears.

Follow the on-screen instructions to proceed

with the setup.

The appropriate connection method is selected

depending on your environment.

cMake sure that the following screen appears.

Preparation of the Printer

The connection with your smartphone is now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading Photo Paper" on page 8.

aPress the HOME button on the printer.

bUse the {, }, [, or ]button to select the icon

on the lower left of the HOME screen, and then

press the OK button.

cUse the [or ]button to select Yes or No, and

then press the OK button.

dUse the {or }button to select LAN settings

> Wireless LAN > Wireless LAN setup >

Easy wireless connect in order, and then press

the OK button.

eUse the [or ]button to select Yes, and then

press the OK button.

fReturn to the operation of your smartphone.

1 Open the rear tray cover and pull out the paper

support.

2 aOpen the feed slot cover.

bSlide the right paper guide to the end.

3 aLoad several sheets of photo paper with the

print side facing up.

bSlide the right paper guide to align it with the

side of the paper stack.

4 Close the feed slot cover.

Read the message on the printer's screen and

5 Pull out the paper output tray.

Loading Photo Paper

1 Make sure the printer is turned on.

2 Load several sheets of photo paper.

3 Insert the memory card into the card slot.

4 Select photos to be printed.

5 Press the Start button.

The printer starts printing.

Printing Photos Saved on a Memory Card

You can print photos saved on a memory card with easy operations.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Impresora de Canon

Canon

Canon MultiPASS MP390 Manual de usuario

Canon

Canon imageCLASS X LBP1238 Manual de usuario

Canon

Canon TR8500 Series Guía de configuración

Canon

Canon iP5200R - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon PIXMA MX392 Guía de configuración

Canon

Canon imagePROGRAF TX-3000 Guía de configuración

Canon

Canon PIXMA TR4720 Guía de configuración

Canon

Canon G4000 series Manual de usuario

Canon

Canon BJC-80 Manual de usuario

Canon

Canon iP4600 - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon LBP-3260 Manual de usuario

Canon

Canon i950 Series Manual

Canon

Canon PIXMA iX4000 Manual de usuario

Canon

Canon imageCLASS LBP237dw Manual de usuario

Canon

Canon BJC-4200 Color Bubble Jet Manual de usuario

Canon

Canon SELPHY ES30 Manual de usuario

Canon

Canon PIXMA MG3520 Instrucciones de instalación y mantenimiento

Canon

Canon Pixma iP110 series Manual de usuario

Canon

Canon i860 Series Manual de usuario

Canon

Canon iP4200 - PIXMA Photo Printer Manual de usuario

Canon

Canon i9100 Series Manual

Canon

Canon BJC-250 Series Manual de usuario

Canon

Canon imagePROGRAF iPF6400S Series Manual de usuario

Canon

Canon LASER SHOT LBP-3600 Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario

Epson

Epson Stylus Photo PX700W Instrucciones de montaje

Ricoh

Ricoh SP204SF Manual de usuario

Star Micronics

Star Micronics futurePRNT TSP100 Manual de usuario

Epson

Epson TM-TM88V-i Manual de uso y cuidado
