Canon PIXMA MX452 Manual de usuario

Setting Up Your MX452 In

Default Mode (Tel Priority Mode)

Without An Answering Machine

DSL/Cable Modem Connection

Fax Easy Setup

NextPrevious

Click Next to step through this image-friendly version of Fax Easy Setup.

If you started Fax Easy Setup, on the fax machine’s operation panel, and

prefer to go through this image-friendly version…

Step 1

Press the FAX button at any screen

to go to fax standby mode.

Step 2

Click Next to proceed

through the setup.

Connecting The Phone Lines

NextPrevious

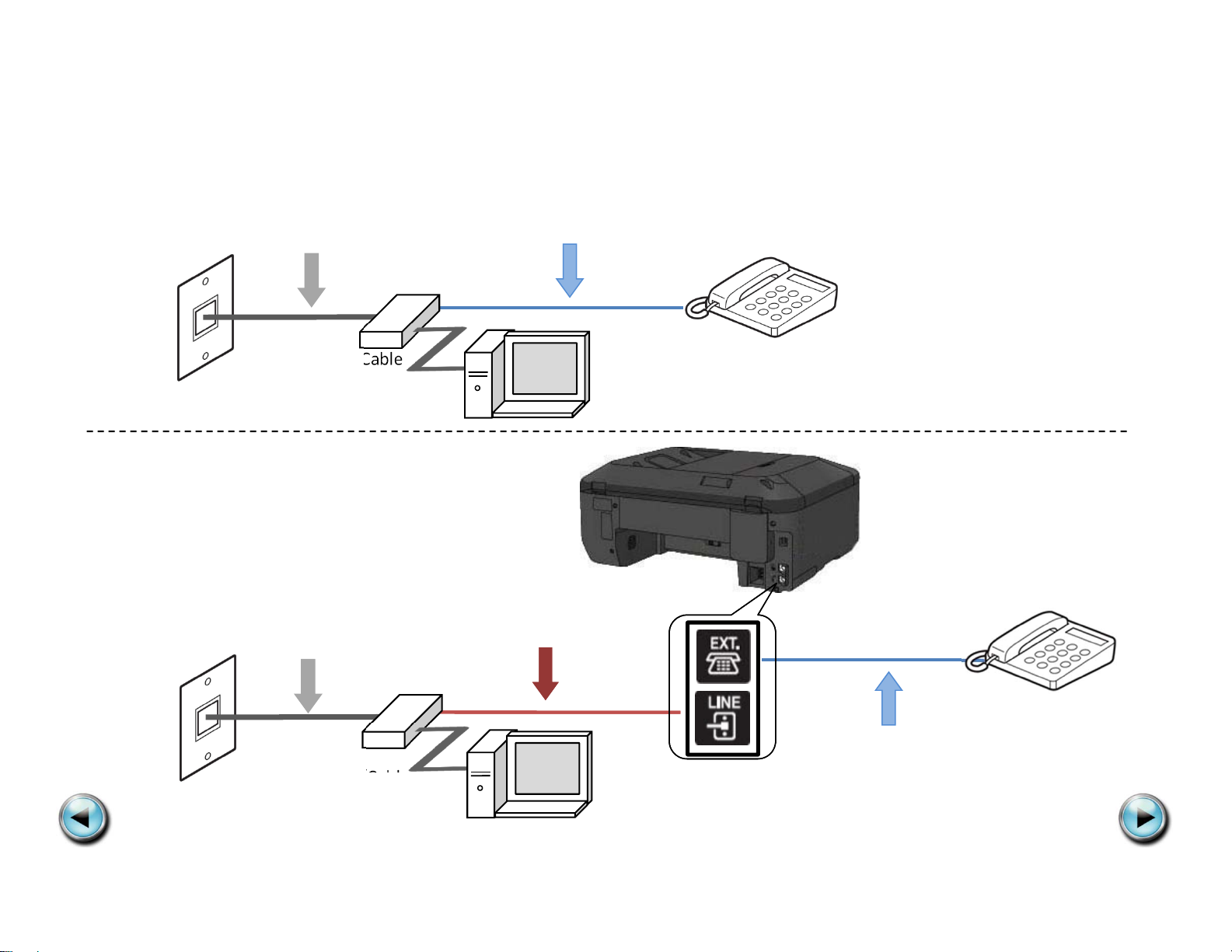

Fax to Phone Line Connection

NextPrevious 4

Before

HandSet

(Phone)

(ExistingPhone Cord)

Walljack

DSL/Cable

Modem P

(ExistingPhoneCord)

After

(ExistingPhoneCord)

(PhoneCordincludedwith

Canonprinter)

(ExistingPhone Cord)

Walljack DSL/Cable

Modem

HandSet

(Phone)

Fax to Phone Line Connection

NextPrevious 5

•PlugtheprovidedphonecordintotheDSL/CableModem.

(ExistingPhoneCord)

(PhoneCordincludedwith

Canonprinter)

(ExistingPhone Cord)

Walljack DSL/Cable

Modem

HandSet

(Phone)

Fax to Phone Line Connection

NextPrevious 6

•Plugtheprovidedphonecordintothe“LINE”jackontherearof

themultifunction.

(ExistingPhoneCord)

(PhoneCordincludedwith

Canonprinter)

(ExistingPhone Cord)

Walljack DSL/Cable

Modem

HandSet

(Phone)

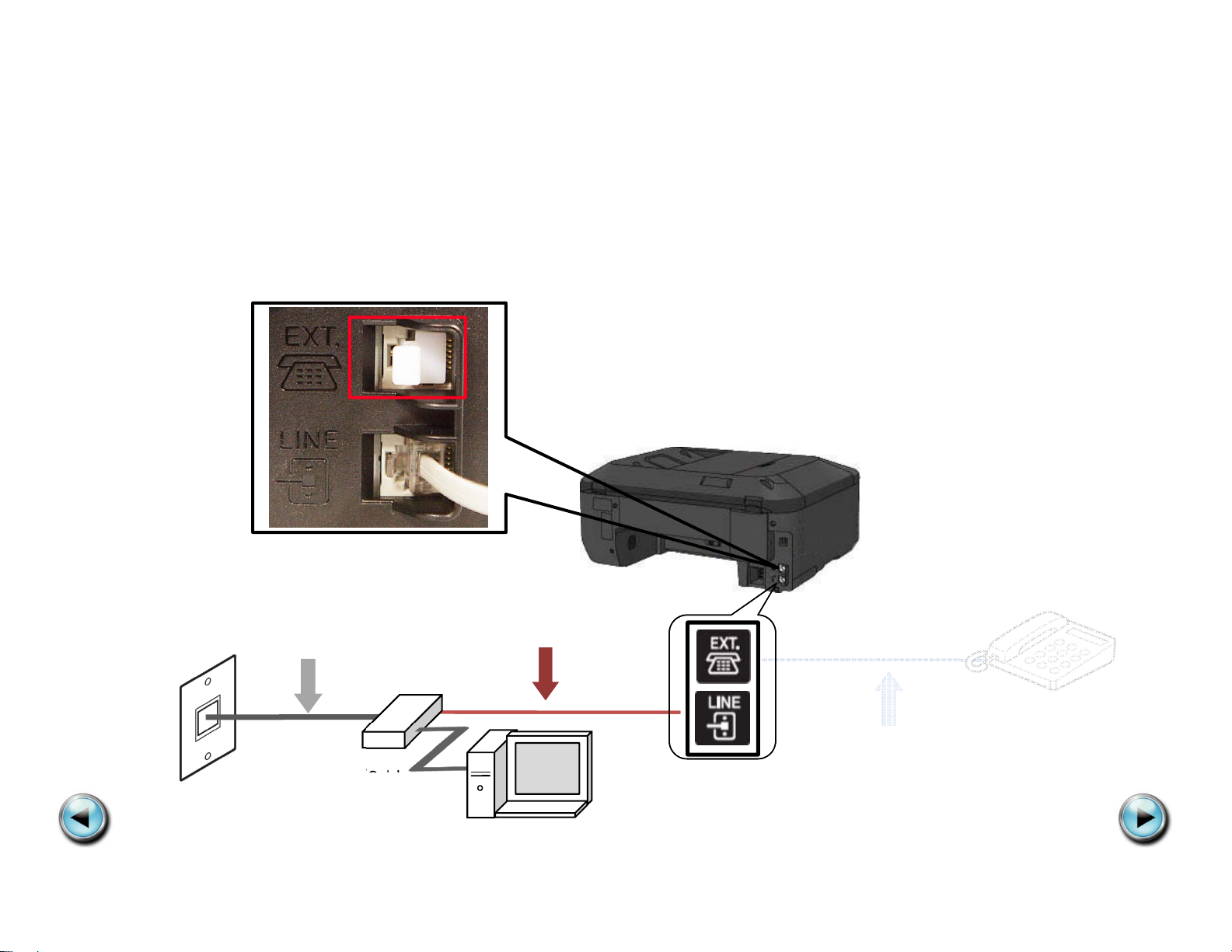

Fax to Phone Line Connection

NextPrevious 7

•Removethewhiteplugfromtheupperjacklabeled“EXT.”

(ExistingPhoneCord)

(PhoneCordincludedwith

Canonprinter)

(ExistingPhone Cord)

Walljack DSL/Cable

Modem

HandSet

(Phone)

Fax to Phone Line Connection

NextPrevious 8

•Plugthesecondphonecordintothe“EXT.”jacklocatedontherearof

themultifunction.

(ExistingPhoneCord)

(PhoneCordincludedwith

Canonprinter)

(ExistingPhone Cord)

Walljack DSL/Cable

Modem

HandSet

(Phone)

Fax to Phone Line Connection

NextPrevious 9

•Plugtheexistingphonecordintothephone

(ExistingPhoneCord)

(PhoneCordincludedwith

Canonprinter)

(ExistingPhone Cord)

Walljack DSL/Cable

Modem

HandSet

(Phone)

Setting Up The Receive Mode

NextPrevious
