Canon MultiPASS L6000 Manual de usuario

Congratulationsonyourpurchaseofthe

CanonMultiPASS™L6000LaserPrinter-

Fax-Copier-Scanner.

ThisQuickStartGuidedescribes

thestepsyoufollowtounpack

andsetupyournew

multi-talentedprinter.

Quick Start Guide

Laser Printer

Fax Copier Scanner

See What We Mean.

™

Important! Youmustfollowthesteps

describedinthisQuickStartGuide.

Quick Start Guide

Laser Printer

Fax Copier Scanner

Carefully remove

all items from

the box.

Remove the items from the documentation package.

Remove these hardware items from the top tray:

Important! Before you start, make sure you have the following computer setup.

(These are the minimum requirements.)

IBM®PC or compatible computer with a 486 PC processor or better

(Pentium® recommended)

Microsoft®Windows®95 (not compatible with Windows 3.1)

16 megabytes (MB) of RAM

Hard disk space:

MultiPASS Printer Driver, MultiPASS Desktop Manager for Windows 95,

and ScanGear™ for MultiPASS – 25 MB

WebRecord™ – 8 MB

Internet Utilities 97™ – 7 MB

AT&T WorldNetSM Service including Microsoft Internet Explorer – 36 MB

Bi-directional, Centronics®-compatible parallel cable (IEEE 1284-compliant);

a cable less than 6.6 feet in length is recommended

14.4 Kbps modem or faster (28.2 Kbps recommended)

Standard telephone line

CD ROM drive (2x or better) (If you do not have a CD ROM drive, you can call

the Canon Customer Care Center to order the MultiPASS Desktop Manager and

Printer Setup on diskettes. See page 23 for details.)

Lift out the MultiPASS unit.

Always lift the unit from the bottom.

PAPER REST

TELEPHONE

LINE POWER

CORD

SUPPORT TRAYS

FX-3 TONER

CARTRIDGE

Important! Save the box and shipping

materials. You may need them later if

you have to transport the MultiPASS.

Unpack the MultiPASS L6000

PAPER LOADING

LABEL

EXTENSION TRAY

Make sure your

documentation

package includes

these items.

MultiPASS L6000 and Creative Web

Solutions CD (INSTALL ME FIRST)

Quick Start Guide (this booklet)

User's Manaul

Important! Save your sales receipt for proof of purchase in case your MultiPASS

requires warranty service.

Registration card

Warranty card

Customer Care rolodex card

Be sure to register electronically or fill out your Registration card and send it to

Canon. After you set up the MultiPASS L6000, you can fax the Registration card

directly to Canon (see the Registration card for details).

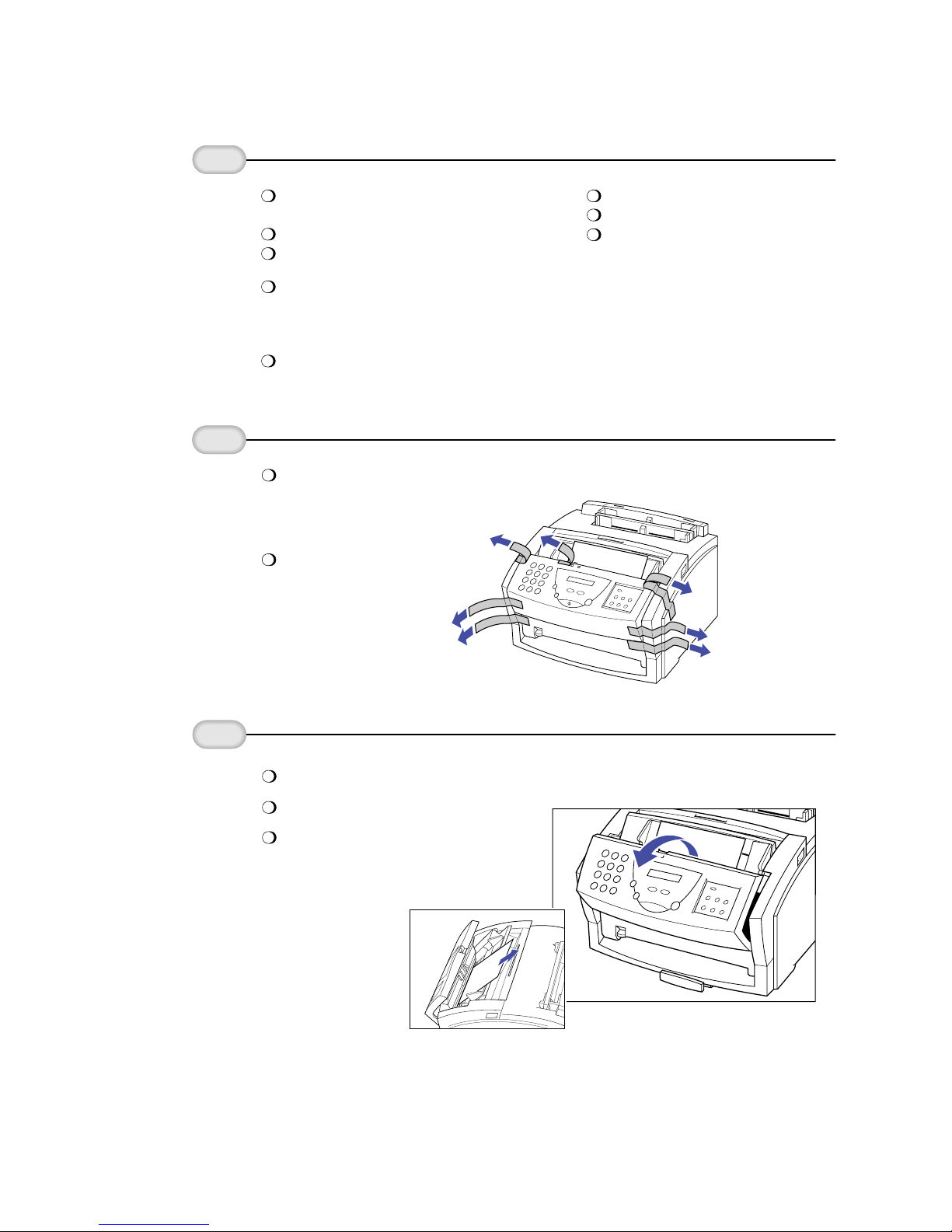

Remove all

pieces of

shipping tape

from the unit.

Remove all pieces of shipping tape from the outside of the MultiPASS.

Note that tape

may not be in

the exact locations

shown here.

Lift the

operator panel

and remove the

soft styrofoam

from the unit's

Automatic

Document

Feeder (ADF).

Use both hands to grip the operator panel, and gently pull it toward you.

Remove the soft styrofoam sheet.

Gently press the operator panel

to close it.

Setting Up the MultiPASS L6000

Peel the clear

protective

sheet off the

LCD display.

With the paper rest tilted toward you, fit the tabs on the paper rest into the slots

above the multi-purpose tray.

PlacethemainunitoftheMultiPASSL6000onalevelsurfacewithplentyofroom

towork.

Attach the

paper rest.

Attaching Miscellaneous Items

Gently move the paper rest

back into position.

Attach the

extension tray.

Lift up the front of the MultiPASS L6000 unit.

Slide the extension tray into the rails on the bottom of the unit.

The paper loading label is included with your MultiPASS unit.

Attach the label to the left of

the multi-purpose tray.

Attach the

paper loading

label.

EXTENSION TRAY

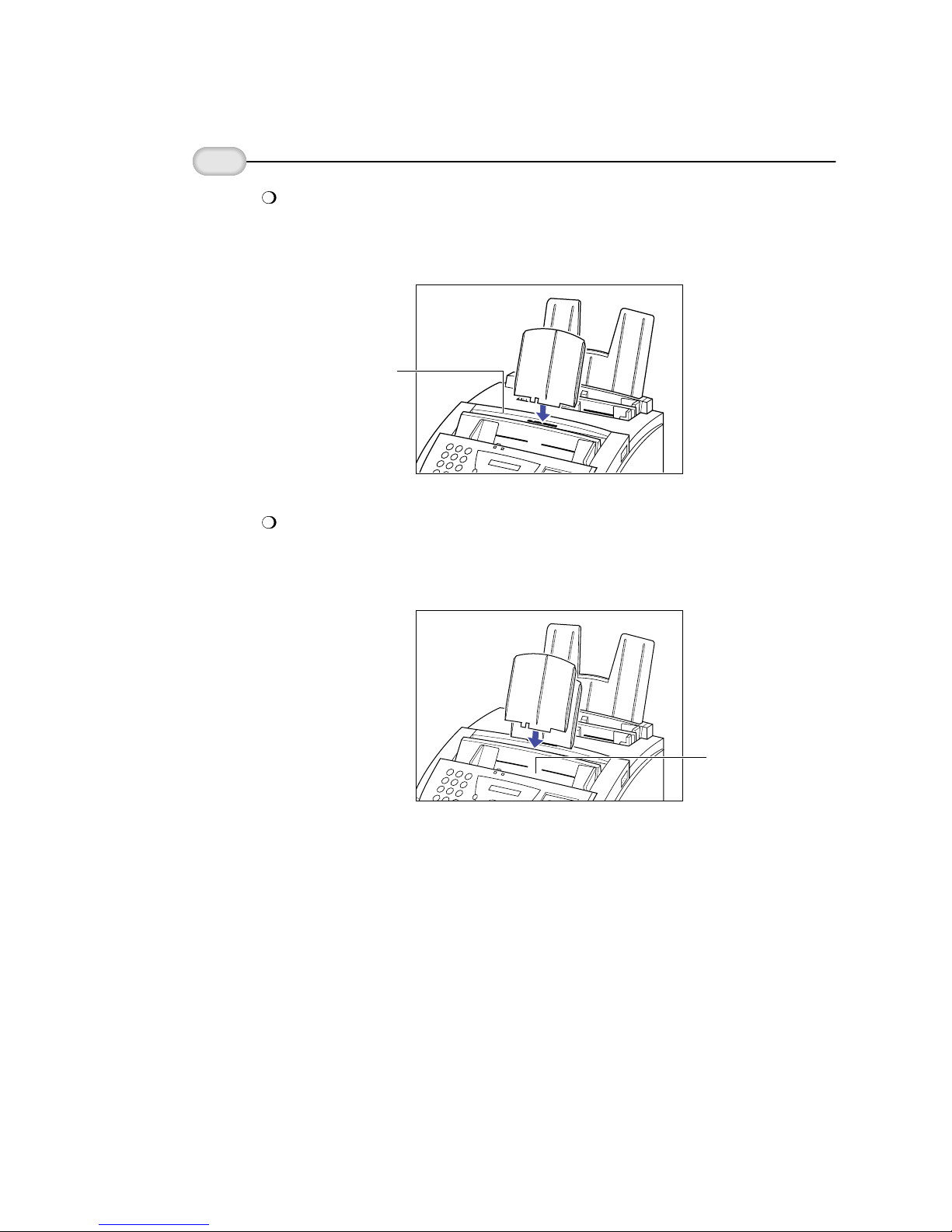

Attach the

support trays.

There are two identical support trays. One of the support trays holds paper as it

comes out of the facedown delivery slot. To install this support, insert the tabs

into the corresponding slots above the facedown delivery slot, making sure that

the smaller tab is on the left.

FACEDOWN

DELIVERY

SLOT

The other support tray holds documents as they are fed into the Automatic

Document Feeder (ADF). To install this support, insert the tabs into the

corresponding slots above the ADF, making sure that the smaller tab

is on the left.

AUTOMATIC

DOCUMENT

FEEDER

(ADF)

Connect one end of the supplied telephone line to the jack on the side of

the MultiPASS.

Connect the

phone line.

Connecting the Phone Line(s), Printer Cable, and Power Cord

Connect the other end of the line to the telephone jack in your wall.

You can connect a telephone, answering machine, or data modem to the jack

on the side of the MultiPASS.

Connect a

telephone,

answering

machine, or

data modem.

If you have only one telephone line, the most efficient way to use your system

is to attach a cordless phone with a built-in answering machine to the

MultiPASS L6000.

If you have a separate telephone and a separate answering machine, be sure to

attach the telephone to the answering machine, and then attach the answering

machine to the MultiPASS L6000.

If you have a modem installed in your computer, you can attach it to the

MultiPASS L6000. Connect the telephone line from the wall outlet to the jack.

Then connect the line from the jack on the MultiPASS to the jack on

the modem. If others access your computer frequently through the modem, or if

you use your modem extensively, you may want a dedicated telephone line for

your modem.

HINTS

If you have only one telephone line and plan to use the MultiPASS L6000

for receiving both faxes and voice calls, you must attach a telephone and/or

answering machine to the unit.

Connect one end of the supplied telephone line to the jack on the side of

the MultiPASS.

Connect the

phone line.

Connecting the Phone Line(s), Printer Cable, and Power Cord

Connect the other end of the line to the telephone jack in your wall.

You can connect a telephone, answering machine, or data modem to the jack

on the side of the MultiPASS.

Connect a

telephone,

answering

machine, or

data modem.

If you have only one telephone line, the most efficient way to use your system

is to attach a cordless phone with a built-in answering machine to the

MultiPASS L6000.

If you have a separate telephone and a separate answering machine, be sure to

attach the telephone to the answering machine, and then attach the answering

machine to the MultiPASS L6000.

If you have a modem installed in your computer, you can attach it to the

MultiPASS L6000. Connect the telephone line from the wall outlet to the jack.

Then connect the line from the jack on the MultiPASS to the jack on

the modem. If others access your computer frequently through the modem, or if

you use your modem extensively, you may want a dedicated telephone line for

your modem.

HINTS

If you have only one telephone line and plan to use the MultiPASS L6000

for receiving both faxes and voice calls, you must attach a telephone and/or

answering machine to the unit.

Connect a

bi-directional

parallel cable to

the MultiPASS.

Make sure the computer is turned off.

You can purchase a Centronics-compatible, parallel cable with bi-directional

capability from your dealer or from any computer store. Make sure the cable is

IEEE 1284-compliant.

A cable of 6.6 feet or less in length is recommended.

Align the cable connector with the interface port so the shapes match.

Gently press the cable connector into the port.

Secure the cable connector by snapping the two wire clips (located on the sides

of the port) into the cable connector.

Connect the other end of the cable to the parallel interface port

on your computer.

Plug the power cord connector into the back of the unit.

Attach the

power cord.

Plug the other end of the power cord into a properly grounded AC outlet

(three-pronged outlet).

The MultiPASS L6000 is equipped with a 3-prong, grounding-type plug

(the third pin is a grounding pin). This plug will only fit into a grounding-type

outlet. This is a safety feature. If you are unable to insert the plug into your

outlet, contact an electrician to replace your outlet (do not use a 3-to-2 adapter).

Do not defeat the safety purpose of the grounding-type plug.

Do not plug the MultiPASS L6000 into the same outlet as your computer or

into an outlet shared with an appliance such as an air conditioner, electric

typewriter, or copier. These devices generate electrical noise that may interfere

with the operation of the MultiPASS L6000.

TheMultiPASSL6000hasnopowerswitch.Thepowerisonaslongasthesystemis

pluggedin.

AstheMultiPASSwarmsup,itdisplaysthePLEASE WAIT messageintheLCD.

Caution

PLEASE WAIT

CHECK COVER/CART

Because the toner cartridge is not installed yet, you will also see this message:
