Canon ImagePROGRAF iPF8300S Guía del usuario

Printer Relocation

Software

Installation 3

Printer Operations

Troubleshooting

Read this manual before attempting to operate the printer.

Keep this manual in a handy location for future referencing.

This Basic Guide includes three booklets.

Be sure to read " Safety Precautions" in the ﬁrst

booklet, Printer Operations.

ENG

Printer Relocation

Software Installation

Basic Guide

Large-Format Printers

Please read the following electronic

manuals also.

• User's Guide

• Paper Reference Guide

Preparing to Transfer the Printer ......................2

Reinstalling the Printer .....................................8

Installing the Software (Windows) ..................12

Installing the Software (Mac OS X) ................14

Convenient Printer Driver Features................16

Troubleshooting................................................2

If Roll Paper Jams ..........................................20

If a Sheet Jams...............................................22

If Paper is Soiled ............................................24

If Printing is Faint............................................26

If Vertical Lines are Warped or Colors are

Misaligned ..................................................27

If Banding Occurs...........................................29

If Line Length Does Not Match.......................31

Error Messages ..............................................33

Safety Precautions........................................2

The Manuals Supplied with This Printer...........5

How to read the Basic Guides..........................6

Parts .................................................................8

Attaching the Roll Holder to Rolls...................12

Loading Rolls in the Printer ............................14

Removing the Roll from the Printer ................18

Loading Sheets in the Printer .........................20

Removing Sheets ...........................................22

Consumables..................................................23

Replacing Ink Tanks .......................................24

Replacing the Maintenance Cartridge ............30

Replacing the Printhead .................................36

Menu Map.......................................................42

It is not possible to prepare the printer for transfer if the Display Screen requests you to replace the Maintenance

Cartridge or check the remaining capacity. Replace the Maintenance Cartridge before transfer preparations.

(→, Replacing the Maintenance Cartridge)

•

Depending on the state of the printer, part replacement may be necessary when preparing to transfer the printer

(that is, when you execute the printer menu item to prepare for transfer).

•

Be sure to contact your Canon dealer before transferring the printer to a new location. Ink may leak and damage

the printer if you do not prepare the printer correctly and it is tipped or stood on end in transit.

•

Ink must be drained before Level 2 or Level 3 printer transfer, as described in the following table. Prepare a

Maintenance Cartridge in advance.

•

Always follow the instructions of the service representative when transferring the printer under Level 3 conditions.•

To protect the internal parts in transit, always follow these steps before transferring the printer to a new location.

Refer to the Setup Guide for details on packing the printer and installing it after transfer.

Preparing to Transfer the Printer

Prepare to transfer the printer as follows.

Level Shipping Method

(Example)

Amount of Ink to

Dispose of

1 By truck 0

Tipping the printer or

holding it upright for

elevators or stairs

By plane

Approx. 1.2 L (40.6 fl oz)

Required

Maintenance

Cartridges(*1)

0 or 1

1 or 2

Permitted Angle of Inclination

Lengthwise: 0–30º

Lengthwise: 0–90º

All directions: 0–30º

Rotation: 0–10º

Rotation: 0–30º

*1: The quantity of cartridges required depends on the capacity of the Maintenance Cartridge in use.

Preparing to Transfer the Printer

If the Tab Selection screen is not displayed, press the Menu button.•

If consumables must be replaced, the message Consumables must be replaced. Call for service. is

shown on the Display Screen and preparation is not possible. If this message is displayed, press the

OK button and contact your Canon dealer for assistance.

•

Remove the paper.

Press the OK button.

Press ▲or ▼to select Prep.MovePrinter, and then

press the OK button.

On the Tab Selection screen of the Control Panel, press

◄or ►to select the Settings/Adj. tab ( ).

Remove paper

Access the Prep.MovePrinter menu

Rolls: (→, Removing the Roll from the Printer)

Sheets: (→, Removing Sheets)

The Set./Adj. Menu is displayed.

Press ▲or ▼to select the level of transfer, and then

press the OK button.

Press ▲or ▼to select Execute, and then press the OK

button to display the conﬁrmation screen.

The printer is now prepared for transfer.

Level 1•

Once preparations are ﬁnished, a message on the

Display Screen requests you to turn off the printer.

Turn off and pack the printer. There is no need to

remove the ink tanks.

Level 2 and Level 3•

Once preparations are ﬁnished, a message on the

Display Screen requests you to open the Ink Tank

Cover.

Remove the ink tanks before packing the printer.

Press ▲or ▼to select Yes, and then press the OK

button.

678

Tot.Print Area(m2):

Maint.C Remain.: 80%

Ready

OK:Setting/Adj. Menu

Preparing to Transfer the Printer

Store the Ink Tank you removed in the box with the ink

hole (a) facing up. Otherwise, ink may leak and cause

stains.

•

Open the left and right ink tank covers.

Lift the stopper (a) of the Ink Tank Lock Lever. Lift the

Ink Tank Lock Lever until it stops, and then push it down

to the front.

Hold the Ink Tank by the handle (a) and remove it.

Remove the Ink Tank

Repeat steps 2 and 3 to remove all ink tanks.

Push down the release lever (a) as shown as you gently

return all ink tank lock levers to the original position.

Preparing to Transfer the Printer

Do not remove the Maintenance Cartridge during this process. Ink may leak out.•

6Close the Ink Tank Cover.

At this point, ink is drawn out from inside the tubes.

When the process is ﬁnished, Preparations for moving

the printer ﬁnished. Turn the power off is displayed.

Preparing to Transfer the Printer

Turn off the printer before you unplug it. It may damage the printer if you unplug it before it is off and

transfer it in that state. If you accidentally unplug the printer, plug it in again, reinstall the ink tanks, and

follow this procedure again.

•

Disconnect the power cord, interface cable, and Media

Take-up Unit Power Inlet.

Open the Top Cover and lift the Ejection Guide.

Remove the four ejection supports and lower the Ejection

Guide.

Press the Power button and turn off the printer.

Pack the printer

Preparing to Transfer the Printer

Here, the Belt Stopper is the one that was removed and stored after initial installation. Neglecting to

attach the Belt Stopper may damage the printer.

•

Grasp the Belt, insert it between the Belt Stopper, and

afﬁx the Belt Stopper with a hex screw at the position

indicated.

Close the Top Cover.

Tape down printer covers to secure them, in the reverse

order of tape removal during installation.

If the Output Stacker is installed, reverse the installation

procedure to remove the Output Stacker.

Remove the Stand by reversing the installation procedure,

when it was attached to the printer.

Disassemble and repackage the Stand by following the

installation procedure in reverse.

Repack the Roll Holder, Holder Stopper, and printer in

shipping materials, and then package them in a shipping

box.

The Stand must be assembled by at least two people on a ﬂat surface. Attempting assembly by yourself poses a

risk of injury or bending the Stand.

•

The iPF8300S alone weighs approximately 111 kg (244.7 lb). Moving the printer requires at least six people, holding

it on both sides. Be careful to avoid back strain and other injuries.

•

When assembling the Stand, lock the casters.•

In addition, always unlock the casters before moving the assembled Stand. Attempting to move the stand when the

casters are locked poses a risk of injury or damage to the location site.

When moving the printer, ﬁrmly grasp the Carrying Handles (a)

under each side. The printer may be unsteady if you hold it at other

positions, which poses a risk of injury from dropping the printer.

•

Reinstalling the Printer

The basic workﬂow for reinstalling the printer is as follows.

For detailed instructions, see the Setup Guide.

Install the printer

Referring to the Printer Stand Setup Guide, assemble the Stand.

Mount the printer on the assembled Stand and tighten the screws

ﬁrmly.

Assemble the stand

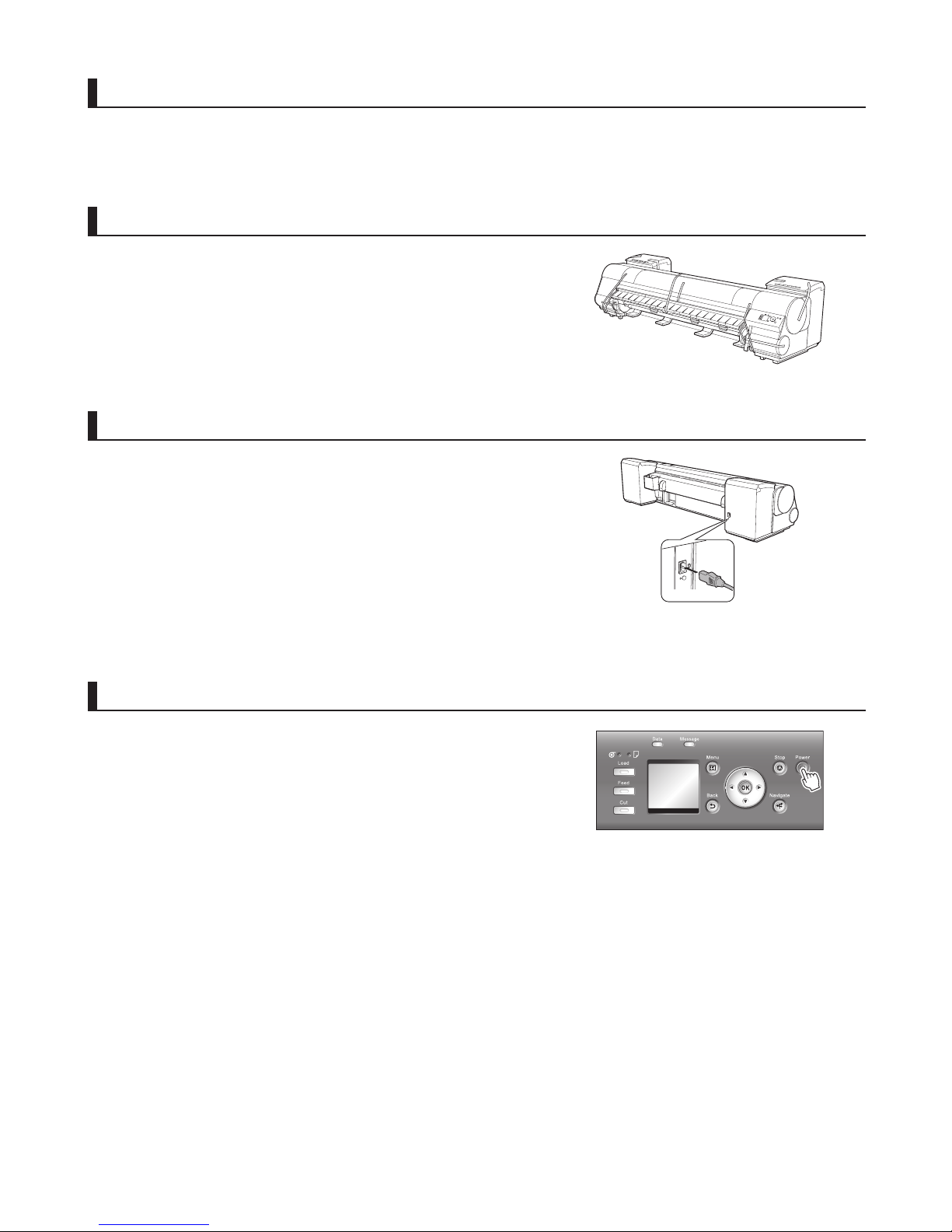

Reinstalling the Printer

Remove the packaging material

Remove tape and packaging material attached to the printer.

Connect the power cord

Connect one end of the power cord to the Power Supply

Connector on the back of the printer and plug the other end into

the outlet.

Turn the printer on

Press the power button to turn the printer on.

Attach the media take-up unit (optional)

Referring to the Setup Guide included with the Media Take-up

Unit, attach the Media Take-up Unit.

Reinstalling the Printer

Attach the roll holder to a roll

Attach the Roll Holder to the Roll Media.

(→, Attaching the Roll Holder to Rolls)

Install the software and electronic manuals

Note that the driver installation procedure varies depending on the

type of connection.

(→, Installing the Software (Windows))

(→, Installing the Software (Mac OS X))

Install the ink tanks

Open the Ink Tank Cover and install the ink tanks.
