Quick Start Guide

BUBBLE JET PRINTER

ENGLISH

Table of Contents

Preface 1

Shipping Materials 1

Introduction 1

Setting Up 2

Preparing the Printer 2

Connecting the Printer to the Computer 2

Installing the Print Head 4

Loading Paper 7

Installing the Printer Driver 8

Aligning the Print Head 12

Basic Operations 16

Printing with Windows 16

Printing with Macintosh 18

Print Head Maintenance 20

Appendix 21

Printing Photographs Directly from a Digital Camera 21

Notes on Handling the USB Interface (for Windows Users) 26

For Further Details... 26

i9900_i9950_COV.fm Page 1 Friday, January 9, 2004 3:59 PM

ENGLISH

Exif Print

This printer supports Exif Print.

Exif Print is a standard for enhancing the communication between digital cameras and printers.

By connecting to an Exif Print-compliant digital camera, the camera’s image data at the time of shoot-

ing is used and optimized, yielding extremely high quality prints.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions from a digital

apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,”

ICES-003 of the Industry Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils

numériques de Classe B prescrites dans la norme sur le matériel brouilleur NMB-003 d'Industrie

Canada intitulée « Appareils numériques ».

International ENERGY STAR®Program

As an ENERGY STAR®Partner, Canon Inc. has determined that this product meets the ENERGY

STAR guidelines for efficiency.

The International ENERGY STAR®Office Equipment Program is a global program

that promotes energy saving through the use of computer and other office equipment.

The program backs the development and dissemination of products with functions

that effectively reduce energy consumption. It is an open system in which business

can participate voluntarily. The targeted products are office equipment such as com-

puters, monitors, printers, faxes and copiers.

Their standards and logos are uniform among participating nations.

Power Requirements

Never use a power supply voltage other than that supplied in the country of purchase. Using the incor-

rect voltage could cause a fire or electric shock. The correct power supply voltages and frequencies are

as follows:

AC 100-127V, 50-60Hz

AC 220-240V, 50-60Hz

Printer Model: K10238 (i9900/i9950)

i9900_i9950_COV.fm Page 2 Friday, January 9, 2004 3:59 PM

ENGLISH

Preface

Shipping Materials

Thank you for purchasing a Canon Bubble Jet Printer.

Check that all the following items are in the box. If anything is missing or is damaged, contact your Canon

Authorized Dealer or Sales Representative.



Printer



Setup Software & User’s Guide CD-ROM



Quick Start Guide



Print Head



8 Ink Tanks

* A USB cable or an FireWire cable should be purchased separately according to your computer. For

details on cable specifications, refer to page 2.

Introduction

This Quick Start Guide uses the following symbols to indicate important information. Always observe the

instructions indicated by these symbols.

Instructions that, if ignored, could result in death or serious personal injury caused by incorrect

operation of the equipment. These must be observed for safe operation.

Instructions that, if ignored, could result in personal injury or material damage caused by incorrect operation

of the equipment. These must be observed for safe operation.

The computer screens and diagrams in this manual refer to the i9950. The operations are exactly the same

with the i9900.

Also read the Safety Precautions in the

User’s Guide

. Observe the warnings and cautions to avoid

personal injury or damage to the printer.

Trademark Notices

• Canon

is a registered trademark of Canon Inc.

•BJ

™

is a trademark of Canon Inc.

• Microsoft

and Windows

are registered trademarks of Microsoft Corporation in the U.S. and other

countries.

• Apple, Mac, Macintosh, FireWire, and Safari are trademarks of Apple Computer, Inc., registered in the

U.S. and other countries.

• All other trademarks and registered trademarks appearing in this

Quick Start Guide

are the property of

their respective owners.

without the express written permission.

i9900_i9950_QSG.fm Page 1 Friday, January 9, 2004 3:59 PM

ENGLISH

Setting Up

1 Preparing the Printer

Take the printer out of the box as

shown.

Hold the box firmly when taking out the printer.

Place the printer on a flat surface.

Remove the packing material and tape

from the printer as shown.

The tape position is subject to change.

2 Connecting the Printer to the Computer

Use a USB cable or a FireWire cable. This printer has two types of USB ports and a FireWire 400 port.

• USB 2.0 Hi-Speed port (the upper USB port)

Connect to this port only when using the following systems:

Computer on which Windows XP or Windows 2000 is running and that has a USB 2.0 Hi-Speed port.

Macintosh series computer on which Mac OS X v.10.2.7 or later is running and that has an internal USB

2.0 Hi-Speed port.

Ensure that USB cables also support USB 2.0 Hi-Speed.

To determine whether your computer supports USB 2.0 Hi-Speed, refer to its manual or contact its

manufacturer.

• USB 2.0 Full Speed port (the lower USB port)

Connect to this port when your computer or your cables do not support USB 2.0 Hi-Speed or when it

is not clear whether they support it.

• FireWire 400 port

Connect to this port only when your computer has a FireWire 400 port and is running Mac OS 9.0.4

to 9.x, or Mac OS X v.10.2.1 or later.

USB cable FireWire cable

i9900_i9950_QSG.fm Page 2 Friday, January 9, 2004 3:59 PM

ENGLISH

Recommended

USB 2.0 Hi-Speed: Certified USB Hi-Speed cable, up to 3 meters in length.

USB 2.0 Full Speed: Canon or other computer manufacturer cable, up to 5 meters in length.

FireWire 400: Certified FireWire cable, up to 3 meters in length.

Follow the steps below to install the printer driver

correctly.

Ensure the printer and the computer are

switched off.

Connect the cable.

Figure A shows the USB 2.0 Hi-Speed cable connection

(1) and the USB 2.0 Full Speed cable connection (2).

Figure B shows FireWire cable connection.

• Correct operation of USB Hi-Speed 2.0 is not guaranteed under Windows Me, Windows 98, Mac

OS 8.6-9.x or Mac OS X v.10.0-10.2.6.

• Windows only: Use the USB 2.0 driver supplied by Microsoft.

The driver is available when updating Windows or applying a Windows Service Pack.

Correct operation is not guaranteed with non-Microsoft USB 2.0 drivers.

• Correct operation of IEEE1394 (FireWire) is not guaranteed under Windows.

• If you do not intend to use the printer for a long period of time, unplug the power cord from the

power outlet after turning off the printer.

• If your computer has an earth connection, make sure that this is attached.

If the Add New Hardware Wizard or Found New

Hardware Wizard screen appears when carrying out

the following operations, click Cancel and turn off

the computer.

Figure A (1)

(2)

Figure B

i9900_i9950_QSG.fm Page 3 Friday, January 9, 2004 3:59 PM

ENGLISH

3 Installing the Print Head

• Never attempt to plug the power cord into the power outlet or unplug the power cord when your

hands are wet.

• Never damage, modify, stretch, or excessively bend or twist the power cord. Do not place heavy

objects on the power cord.

• Never use any power supply other than the standard power supply available in the country of

purchase. Using the incorrect voltage and frequency could cause a fire or electric shock.

• Always push the plug all the way into the power outlet.

Installing the Print Head

Plug the printer in.

Turn on the printer. Do NOT turn on the

computer yet.

The POWER lamp flashes and the printer begins to

operate. Wait until the POWER lamp remains fully lit.

Open the paper output tray and the front

cover.

Remove the tape.

Raise the lock lever.

Do not touch internal parts other than the lock lever.

lock lever

i9900_i9950_QSG.fm Page 4 Friday, January 9, 2004 3:59 PM

ENGLISH

Remove the protective cap from the

print head.

Place the print head in the holder.

Lock the print head into place by

lowering the lever.

Do not touch the lock lever once the print head has been

installed.

Installing the Ink Tanks

• For safety reasons, store ink tanks out of the reach of small children.

• Do not drop or shake ink tanks as this may cause the ink to leak out and stain your clothes and hands.

• Be sure to remove the clear film from the ink tank in the exact order as shown in step 2.

Take out the yellow ink tank.

Pull the orange tape in the direction of

the arrow and remove the clear film.

• Do not touch the print

head nozzles or

electrical contacts.

• Do not attempt to

reattach the protective

cap once it has been

removed.

Be careful not to touch any parts inside the printer.

electrical

contacts

print head

nozzles

print head holder

i9900_i9950_QSG.fm Page 5 Friday, January 9, 2004 3:59 PM

ENGLISH

Hold the ink tank as shown in the

diagram and remove the protective cap.

Insert the yellow ink tank into the right-

hand slot. Press the top until it clicks

into place.

Use the same procedure to install the

other ink tanks in their appropriate slots.

Check the labels to make sure that each tank is in the

correct position.

Close the front cover.

Wait until the POWER lamp remains fully lit (about 60

seconds).

• Do not squeeze the sides of

the ink tanks as this may

cause the ink to leak out and

stain your clothes and hands.

• Do not touch the ink port.

• Do not attempt to reattach the

protective cap once it has

been removed.

• Only install the ink tanks in the positions specified

by the labels.

• If ink tanks are not installed in the right position,

colors will not be printed correctly. Immediately

reinstall the tank in the correct position and carry

out print head cleaning. For details, refer to the

User’s Guide.

protective cap

ink port

Black

(BCI-6BK)

Yellow

(BCI-6Y)

Magenta

(BCI-6M)

Photo Cyan

(BCI-6PC)


Magenta

(BCI-6PM)

Cyan

(BCI-6C)

Red

(BCI-6R)

reen

(BCI-6G)

i9900_i9950_QSG.fm Page 6 Friday, January 9, 2004 3:59 PM

ENGLISH

4 Loading Paper

Loading A4 (Letter) Size Plain Paper

Pull out the paper rest and the paper

output tray as shown.

Load the paper, aligning it with the right

side of the sheet feeder.

You can load up to 150 sheets of plain paper (64 gsm).

Do not exceed this limit.

Pinch the paper guide and slide it

against the left side of the stack of

paper.

Open the paper rest extension when printing on

paper larger than A4. When printing on paper larger

than B4, pull the output tray extension out three

steps.

You now need to install the printer driver:

Windows: Go to page 8

Mac OS X: Go to page 10

paper output tray

paper rest

print side

i9900_i9950_QSG.fm Page 7 Friday, January 9, 2004 3:59 PM

ENGLISH

5 Installing the Printer Driver

Installing the Printer Driver – Windows

Ensure the printer and computer are

switched off.

Turn on the computer and start

Windows. If any applications

automatically run, quit them.

Disable any virus detection programs.

Do NOT turn the printer on at this stage.

• Do not disconnect the cable or remove the CD-ROM during the installation. The driver cannot be

correctly installed.

• The screens below refer to Windows XP installation. Screen may differ depending on the operating

system you are using.

• When installing the printer driver in Windows XP, Windows 2000, log on to the system as a

member of the Administrators group.

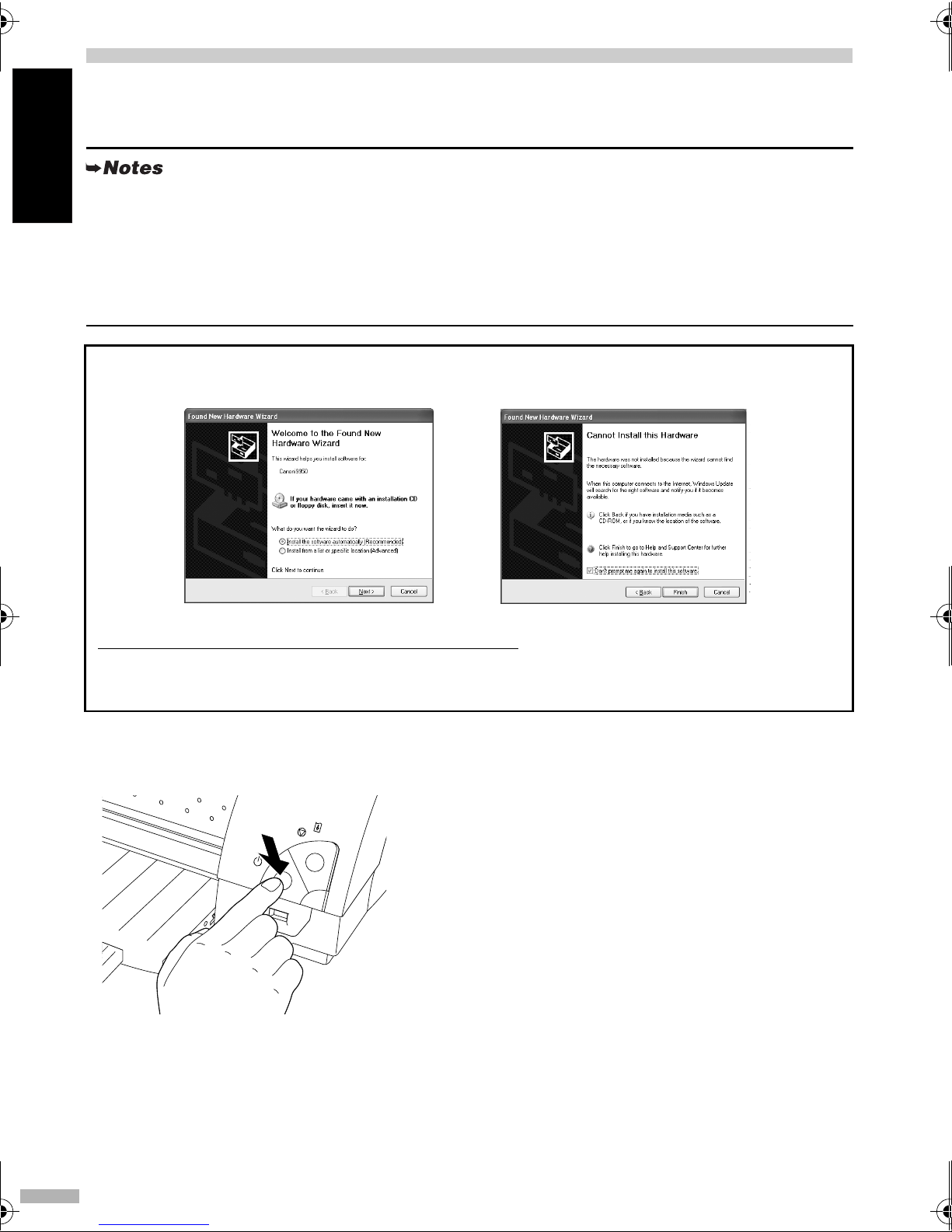

If the following screen appears automatically, click

Cancel

and follow steps 1 to 7 to install the printer

driver.

Special Notes for Windows Me or Windows 98 USB Users

Click

Cancel

to quit the screen and turn off the printer. Next, remove and replace the USB cable

connected to your computer.

OFF

i9900_i9950_QSG.fm Page 8 Friday, January 9, 2004 3:59 PM

Otros manuales para i9900 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Canon

Canon

Canon imageCLASS MF6500 Series Guía de seguridad

Canon

Canon Q30-3260-US1 Manual de usuario

Canon

Canon Color Network Printer Unit-D1 Manual de operación y mantenimiento

Canon

Canon i-SENSYS LBP236dw Manual de usuario

Canon

Canon Pixma iP110 series Manual de usuario

Canon

Canon iB4100 series Guía de configuración

Canon

Canon imagePROGRAF iPF8300S Guía del usuario

Canon

Canon imaqeRunner 1019J Manual de usuario

Canon

Canon imageCLASS MF4880dw Manual de servicio

Canon

Canon Business Inkjet WG7450Z Manual de usuario

Canon

Canon G3030 Series Guía de configuración

Canon

Canon CX-G2400 Instrucciones de montaje

Canon

Canon MAXIFY MB2320 Manual de instrucciones

Canon

Canon PIXMA MG5500 Series Guía de configuración

Canon

Canon PIXMA MX310 series Manual de usuario

Canon

Canon PC-D320 Manual de usuario

Canon

Canon BJC-S820 Manual de usuario

Canon

Canon MX490 Series Instrucciones de uso

Canon

Canon LBP5050 Series Manual de usuario

Canon

Canon iP100 - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon imageClass LBP320 Series Manual de usuario

Canon

Canon i80 Series Manual de usuario

Canon

Canon LASER SHOT LBP3210 Manual de usuario

Canon

Canon imageCLASS LBP6300dn Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario

Epson

Epson Stylus Photo PX700W Instrucciones de montaje

Ricoh

Ricoh SP204SF Manual de usuario

Star Micronics

Star Micronics futurePRNT TSP100 Manual de usuario

Epson

Epson TM-TM88V-i Manual de uso y cuidado

Canon i9900 Series Manual de usuario

Manuales populares de Impresora de otras marcas
