Preface

Shipping Materials

Thank you for purchasing a Canon Bubble Jet Printer.

Check that all the following items are in the box. If anything is missing or is damaged, contact your Canon

Authorized Dealer or Sales Representative.



Printer



Photo Paper Tray



Setup Software & User’s Guide CD-ROM



Quick Start Guide



Print Head



6 Ink Tanks

* A USB cable should be purchased separately according to your computer. For details on cable

specifications, refer to page 2.

Introduction

This Quick Start Guide uses the following symbols to indicate important information. Always observe the

instructions indicated by these symbols.

Instructions that, if ignored, could result in death or serious personal injury caused by incorrect

operation of the equipment. These must be observed for safe operation.

Instructions that, if ignored, could result in personal injury or material damage caused by incorrect operation

of the equipment. These must be observed for safe operation.

The computer screens in this manual refer to the i965. The operations are exactly the same with the i960.

For information about printing when you connect a PictBridge-compliant digital camera and digital video

camcorder, refer to ”Direct Printing for PictBridge-compliant Digital Cameras”.

Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to avoid

personal injury or damage to the printer.

Trademark Notices

• Canon

is a registered trademark of Canon Inc.

•BJ

™

is a trademark of Canon Inc.

• Microsoft

and Windows

are registered trademarks of Microsoft Corporation in the U.S. and other

countries.

• Apple, Mac, Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other

countries.

• All other trademarks and registered trademarks appearing in this Quick Start Guide are the property of

their respective owners.

without the express written permission.

Setting Up

1 Preparing the Printer

Place the printer on a flat surface.

Remove the packing material and tape

from the printer as shown.

The tape position is subject to change.

2 Connecting the Printer to the Computer

Use a USB cable.This printer has two types of USB ports.

• USB 2.0 Hi-Speed port (un upper USB port)

Connect to this port only when you use Windows XP or Windows 2000 and, your computer and

USB cables also support USB 2.0 Hi-Speed. To determine whether your computer supports USB 2.0

Hi-Speed, refer to its manual or contact its manufacturer.

• USB 2.0 Full Speed port (a lower USB port)

Connect to this port when your computer or your cables do not support USB 2.0 Hi-Speed or when it

is not clear whether they support it. Connect to this port when using a Macintosh computer.

USB cable

Recommended

USB 2.0 Hi Speed: Certified USB Hi-Speed cable, up to 3 meters in length.

USB 2.0 Full Speed: Canon or other computer manufacturer cable, up to 5 meters in length.

• Correct operation of USB Hi-Speed 2.0 is not guaranteed under Windows Me, Windows 98, Mac

OS 8.6-9.x or Mac OS X.

• If your computer has an earth connection, make sure that this is attached.

• If you do not intend to use the printer for a long period of time, unplug the power cord from the

power outlet after turning off the printer.

Follow the steps below to install the printer driver

correctly.

Ensure the printer and the computer are

switched off.

Connect the cable.

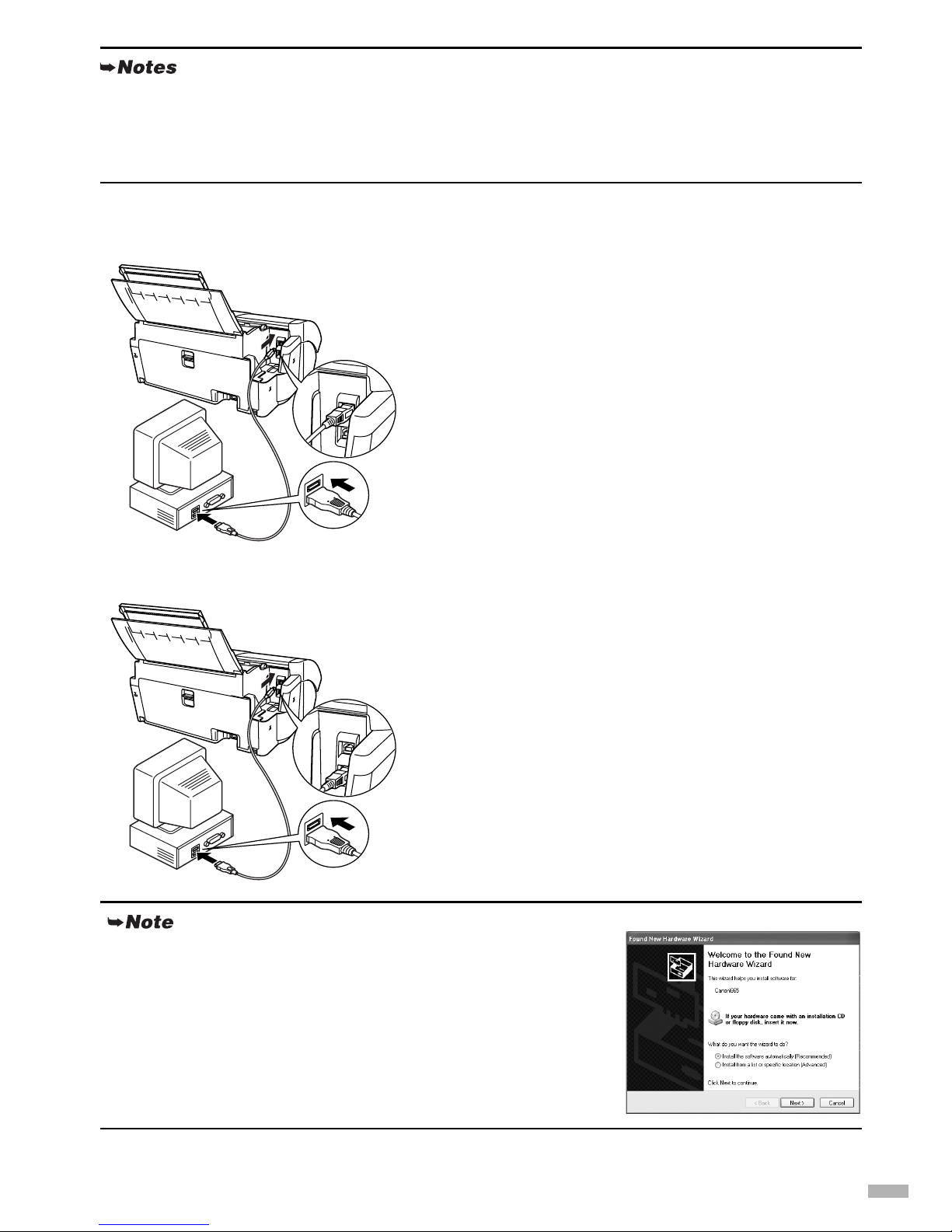

Figure A shows the USB 2.0 Hi-Speed cable connection

and figure B shows the USB 2.0 Full Speed cable

connection.

• Use the USB 2.0 driver supplied by Microsoft.

The driver is available when updating Windows or applying a Windows Service Pack.

Correct operation is not guaranteed with non-Microsoft USB 2.0 deivers.

• If your computer has an earth connection, make sure that this is attached.

Figure A

Figure B

If the Add New Hardware Wizard or Found New Hardware Wizard

screen appears when carrying out the following operations, click

Cancel and turn off the computer.

3 Installing the Print Head

• Never attempt to plug the power cord into the power outlet or unplug the power cord when your

hands are wet.

• Never damage, modify, stretch, or excessively bend or twist the power cord. Do not place heavy

objects on the power cord.

• Never use any power supply other than the standard power supply available in the country of

purchase. Using the incorrect voltage and frequency could cause a fire or electric shock.

• Always push the plug all the way into the power outlet.





Installing the Print Head

Plug the printer in.

Turn on the printer. Do NOT turn on the

computer yet.

The POWER lamp flashes and the printer begins to

operate. Wait until the POWER lamp remains fully lit.

Open the front cover.

Remove the tape.

Raise the lock lever.

Do not touch internal parts other than the lock lever.

PC PM

lock lever

Remove the protective cap from the

print head.

Place the print head in the holder.

Lock the print head into place by

lowering the lever.

Do not touch the lock lever once the print head has been

installed.





Installing the Ink Tanks

• For safety reasons, store ink tanks out of the reach of small children.

• Do not drop or shake ink tanks as this may cause the ink to leak out and stain your clothes and hands.

Take out the magenta ink tank.

Pull the orange tape in the direction of

the arrow and remove the clear film.

• Do not touch the print

head nozzles or

electrical contacts.

• Do not attempt to

reattach the protective

cap once it has been

removed.

Be careful not to touch any parts inside the printer.

ectr

contacts

nozzles

print head holder

Hold the ink tank as shown in the

diagram and remove the protective cap.

Insert the magenta ink tank into the

right-hand slot. Press the top until it

clicks into place.

Use the same procedure to install the

other ink tanks in their appropriate slots.

Check the labels to make sure that each tank is in the

correct position.

Close the front cover.

Wait until the POWER lamp remains fully lit (about 60

seconds).

• Do not squeeze the sides of

the ink tanks as this may

cause the ink to leak out and

stain your clothes and hands.

• Do not touch the ink port.

• Do not attempt to reattach the

protective cap once it has

been removed.

• Only install the ink tanks in the positions specified

by the labels.

• If ink tanks are not installed in the right position,

colors will not be printed correctly. Immediately

reinstall the tank in the correct position and carry

out print head cleaning. For details, refer to the

User’s Guide.

protective cap

ink port

Black

(BCI-6BK)

Yellow

(BCI-6Y)

Magenta

(BCI-6M)

Photo Cyan

(BCI-6PC)

Photo Magenta

(BCI-6PM)

Cyan

(BCI-6C)

4 Loading Paper





Loading A4 (Letter) Size Plain Paper

Pull out the paper rest and the output

tray completely as shown.

Load the paper, aligning it with the right

side of the sheet feeder.

You can load up to 150 sheets of plain paper (64 gsm).

Do not exceed this limit.

Pinch the paper guide and slide it

against the left side of the stack of

paper.

You now need to install the printer driver:

Windows: Go to page 8

Mac OS X: Go to page 10

output tray

paper rest

print side

5 Installing the Printer Driver





Installing the Printer Driver – Windows

Ensure the printer and computer are

switched off.

Turn on the computer and start

Windows. If any applications

automatically run, quit them.

Disable any virus detection programs.

Do NOT turn the printer on at this stage.

• Do not disconnect the cable or remove the CD-ROM during the installation. The driver cannot be

correctly installed.

• The screens below refer to Windows XP installation. Screen may differ depending on the operating

system you are using.

• When installing the printer driver in Windows XP, Windows 2000, log on to the system as a

member of the Administrators group.

If the following screen appears automatically, click

Cancel

and follow steps 1 to 7 to install the printer

driver.

Special Notes for Windows Me or Windows 98 USB Users

Click

Cancel

to quit the screen and turn off the printer. Next, remove and replace the USB cable

connected to your computer.

OFF

Otros manuales para i960 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Canon

Canon

Canon iP100 - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon imagePROGRAF iPF8300 Guía del usuario

Canon

Canon imageFORMULA DR-6030C Manual de usuario

Canon

Canon i560 Series Manual de usuario

Canon

Canon BJC-80 Manual de usuario

Canon

Canon imagePROGRAF iPF6350 Manual de usuario

Canon

Canon imageRUNNER ADVANCE C3330 Series Manual de uso y cuidado

Canon

Canon PIXMA MG4120 Manual de uso y cuidado

Canon

Canon LBP654C Series Manual de usuario

Canon

Canon BJC-50 Manual de instrucciones

Canon

Canon Laser Class 700 Series Manual de usuario

Canon

Canon BJ330 - BJ 330 B/W Inkjet Printer Manual de usuario

Canon

Canon C5000 - MultiPASS Color Inkjet Printer Manual de usuario

Canon

Canon PIXMA MX310 series Manual de usuario

Canon

Canon PIXMA G5040 Guía de configuración

Canon

Canon PIXMA TS6160 Manual de usuario

Canon

Canon i455 Series Guía de configuración

Canon

Canon TB-206 Manual de usuario

Canon

Canon imageCLASS MF269dw Manual de usuario

Canon

Canon Pixma G1000 series Manual de usuario

Canon

Canon MX520 series Guía de configuración

Canon

Canon imageFORMULA DR-M1060 Manual de usuario

Canon

Canon iP90v - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon imageRUNNER ADVANCE DX 527i Guía del usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario

Epson

Epson Stylus Photo PX700W Instrucciones de montaje

Ricoh

Ricoh SP204SF Manual de usuario

Star Micronics

Star Micronics futurePRNT TSP100 Manual de usuario

Epson

Epson TM-TM88V-i Manual de uso y cuidado

Canon i960 Series Manual de usuario

Manuales populares de Impresora de otras marcas
