Canon I470D - i Color Inkjet Printer Guía de configuración

BUBBLE JET PRINTER

Direct Printing Guide

Table of Contents

Operation Panel Names and Functions 1

Printing Flow 4

Using a Memory Card 6

Printing a Photograph 9

Printing an Image List – Print Index 9

Selecting and Printing an Image – Print One 11

Loading Paper 13

Using the Photo Viewer 16

Other Useful Functions 18

Printing According to the Settings Made on the Camera

– DPOF Printing 18

Changing the Date Style 20

Setting up the Card Slot as the Memory Card Drive of the

Computer 20

Printing Photographs Directly from a Digital Camera 22

Printing Maintenance 25

Replacing an Ink Tank 31

Troubleshooting 35

QA7-2637-V01 XX2003XX ©CANON INC.2003 PRINTED IN VIETNAM

QA7-2637-V01

Operation Panel Names and

Functions

Names and functions of the controls on the operation panel and meanings of the icons displayed on the LCD

are summarized below.

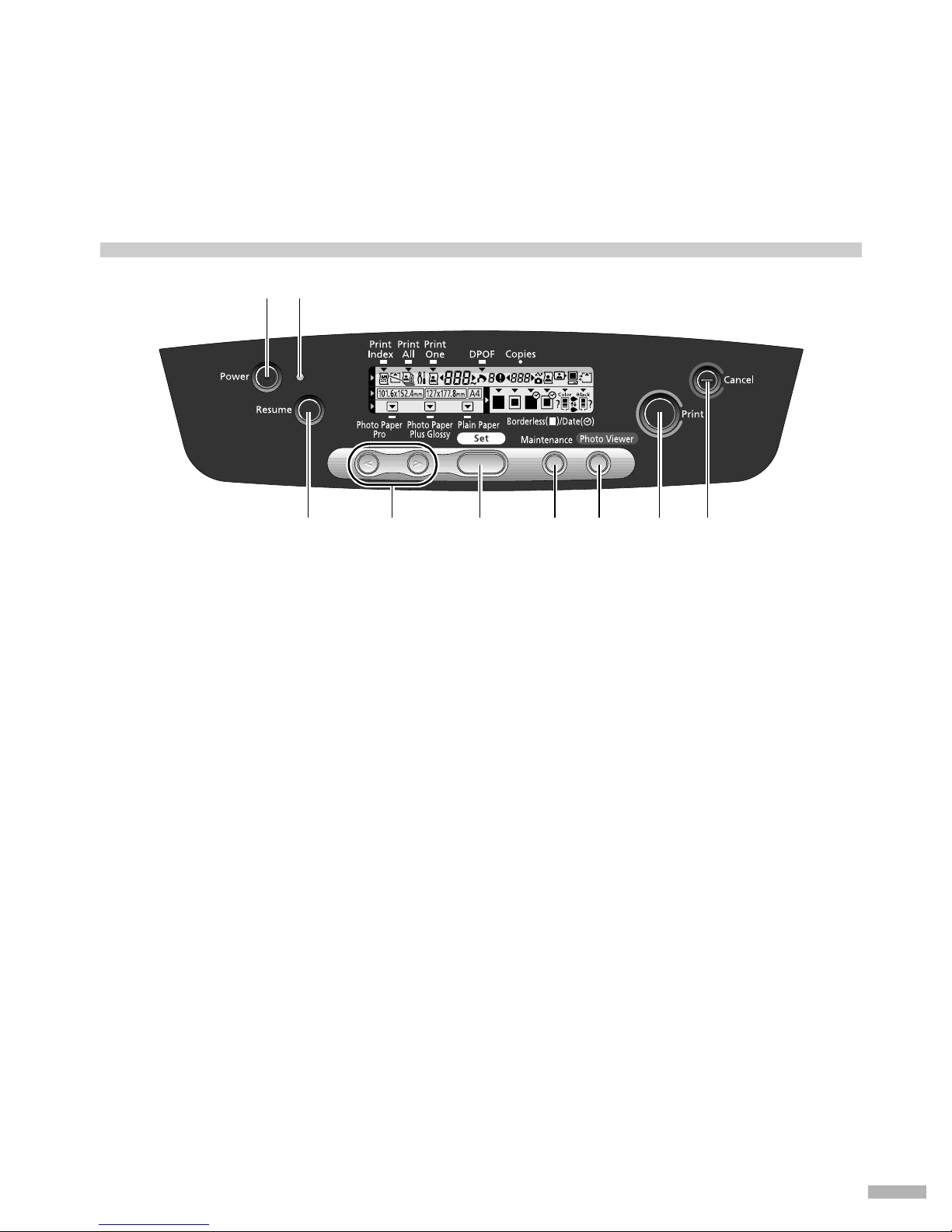

Operation Panel

(1) Power Button

Press to turn the printer on or off.

(2) Power Lamp

Off: the printer is turned off.

Green: the printer is ready to print.

Flashing green: the printer is preparing to print, or is currently printing.

Flashing orange: an error has occurred and the printer is not ready to print.

Flashing orange and green alternately: an error has occurred that may require a service call.

(3) Resume Button

Press this button after resolving a printer problem to resume printing. If this button is pressed during

printing, the printer aborts printing.

(4) Cursor Buttons

These buttons are used to select setting items and enter numeric values.

(5) Set Button

Press this button to allow the setting you have just made to take effect and proceed to the next setting

item. To return to the previous setting item, keep pressing this button until the desired setting item is

displayed.

(6) Maintenance Button

Press this button when you want to perform maintenance such as printing a nozzle check pattern, print

head cleaning, and print head alignment. Also press this button when you want to change the date

style.

(1) (2)

(3) (4) (5) (6) (7) (8) (9)

(7) Photo Viewer Button

Press this button to start/exit the Photo Viewer. This button is also used to save the data stored in the

memory card on the hard disk of the computer.

For details about the Photo Viewer, see “Using the Photo Viewer” on page 16.

(8) Print Button

Press this button to start printing according to the settings displayed on the LCD.

(9) Cancel Button

Press this button to cancel printing.

(10)Indicator Lamp

The indicator lamp is lit when memory card reading is enabled and flashes while the memory card is

being read.

Removing the memory card or turning off the printer while the Indicator Lamp is flashing can damage

the data stored in the memory card.

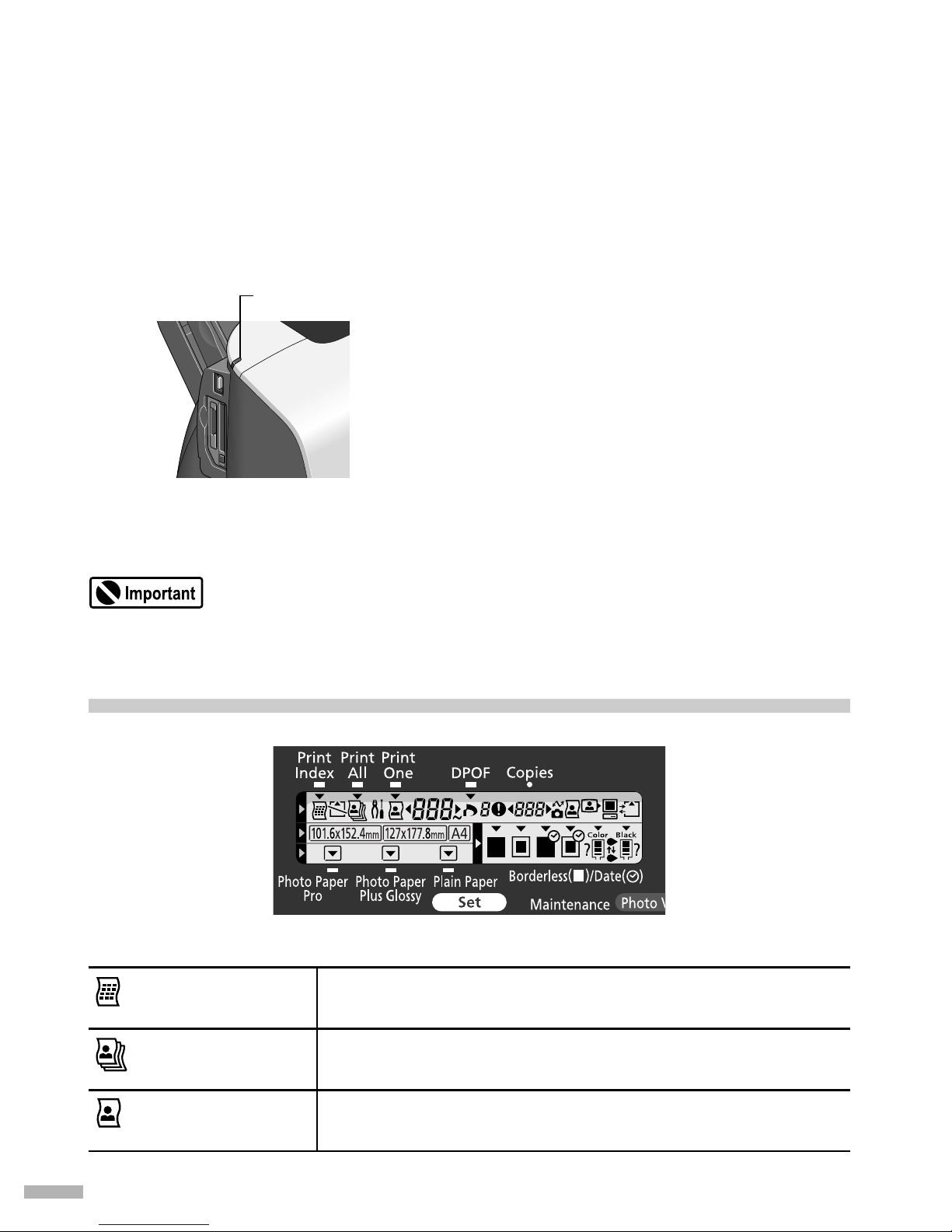

Icons on the LCD

Meanings of the icons displayed on the LCD on the operation panel are as follows:

(10)

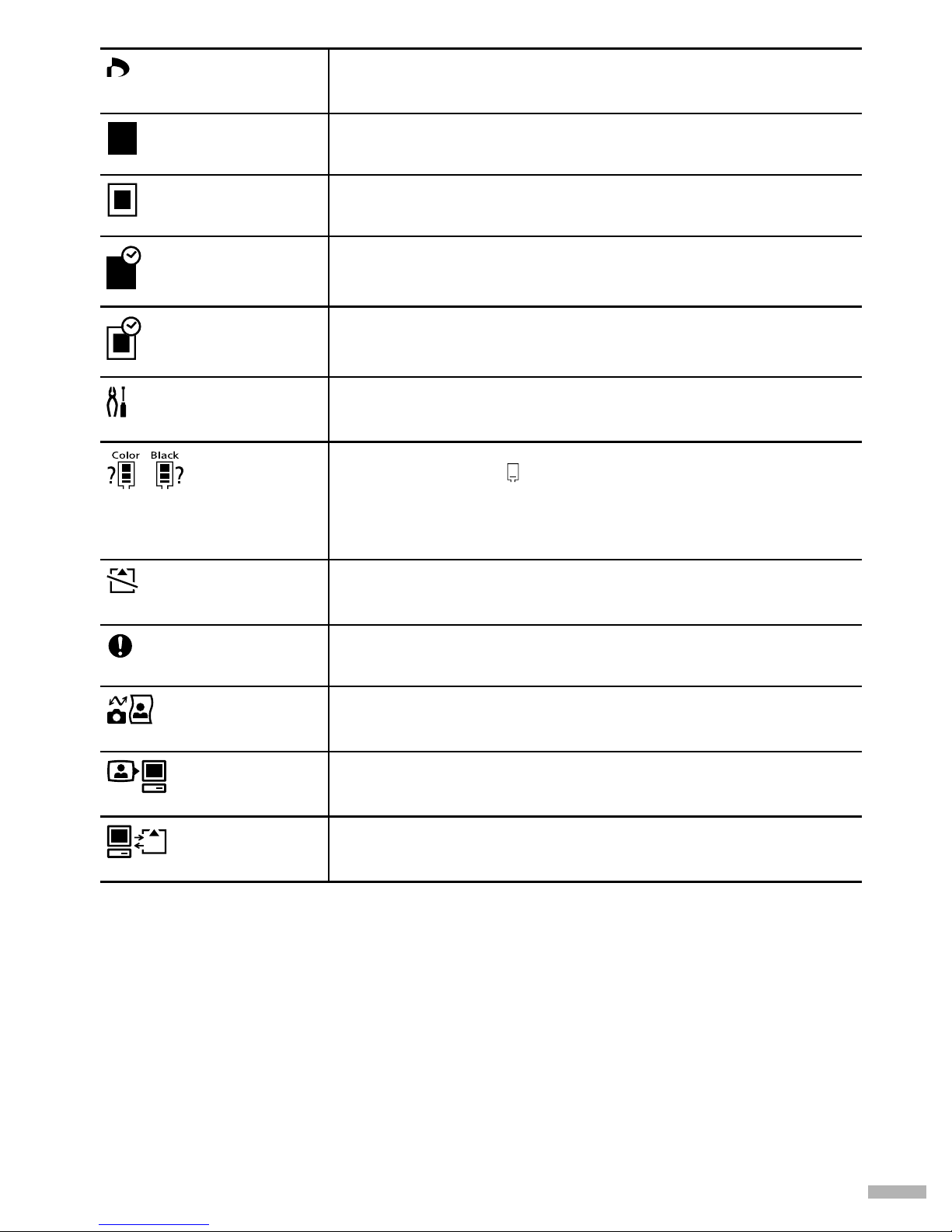

Print Index A list of images stored in the memory card in the card slot is printed,

allowing you to check image numbers.

Print All All images stored in the memory card in the card slot are printed (one copy

per image).

Print One The image with the image number you have specified is printed. You can

specify a number of copies.

DPOF This icon appears when a memory card containing DPOF information is

inserted in the card slot. Images are printed according to the DPOF

information edited on the digital camera.

Borderless

printing

When Print All, Print One or DPOF is specified, each image is printed

without border.

Bordered

printing

When Print All, Print One or DPOF is specified, each image is printed

with border.

Borderless

printing with

date

When Print All or Print One is specified, each image is printed without

border with the date of photographing added.

Bordered

printing with

date

When Print All or Print One is specified, each image is printed with border

with the date of photographing added.

Maintenance

Mode

This icon appears when the Maintenance button is pressed. Using the

cursor buttons, enter the number of the maintenance you want to perform.

See “Printing Maintenance” on page 25.

Remaining ink

levels

These icons indicate the remaining levels of color ink and black ink.

If the ink volume is low, is displayed.

If the remaining level of either ink is unknown, the “?” mark is displayed

beside its ink tank icon. Replace the ink tank and reset the ink counter.

Then, the “?” mark will disappear. See “An Error Icon is Displayed on the

Operation Panel.” on page 36.

No memory

card/data

This icon is displayed when no memory card is inserted in the card slot.

It flashes when the memory card in the card slot has no data that can be

printed.

Error number

indication

An error number is displayed on the Operation Panel, if an error has

occured. See “Troubleshooting” on page 35 for more information.

Digital camera

connected

This icon is displayed when a Canon “Bubble Jet Direct” compatible digital

camera or digital video camcorder is connected. See “Printing

Photographs Directly from a Digital Camera” on page 22.

Photo Viewer

running

This icon is displayed when Photo Viewer is running with the printer

connected to the computer with a USB cable. See “Using the Photo

Viewer” on page 16.

Card slot in

use

The memory card inserted in the card slot is in use from the computer. To

use the printer, start the memory card utility from the computer and stop

using the memory card.

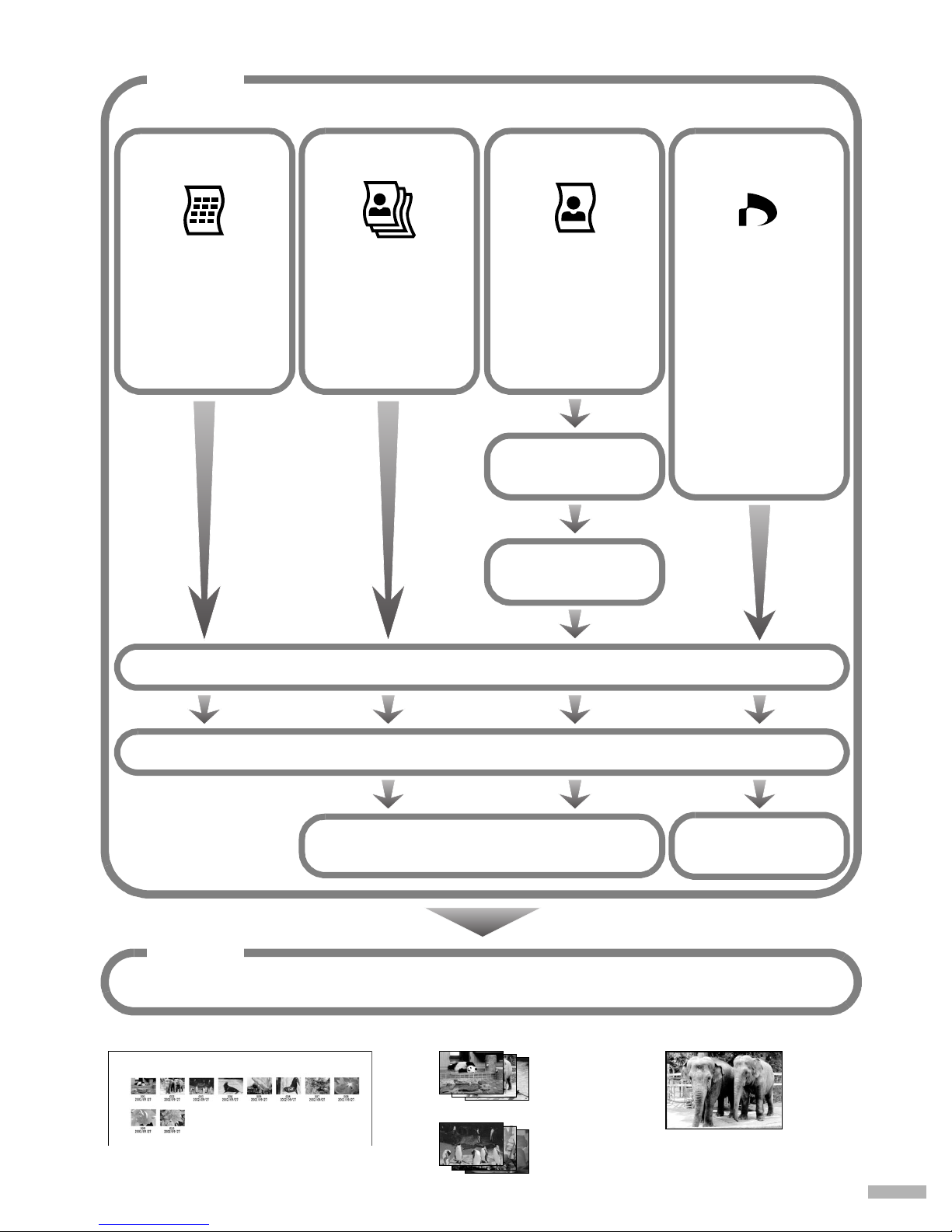

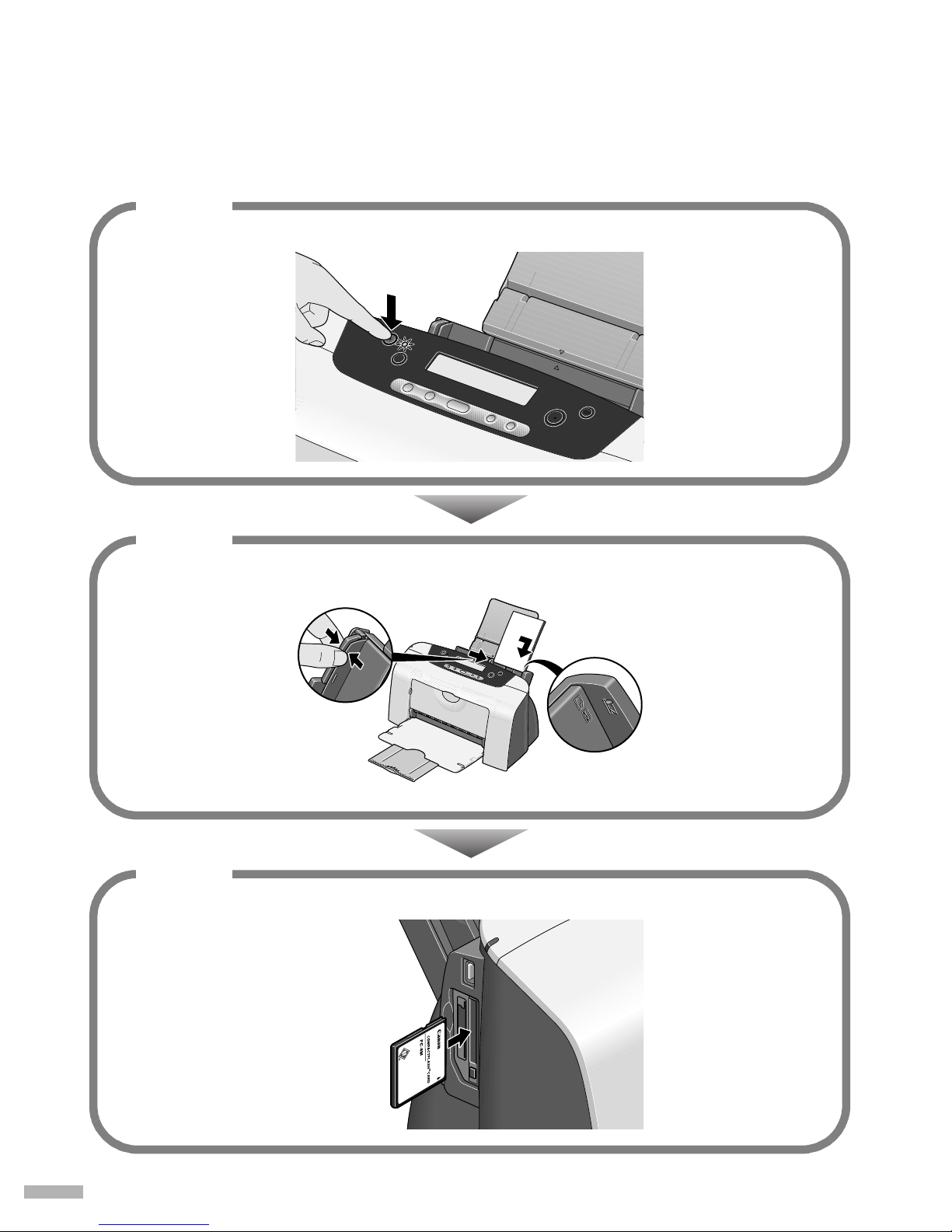

Printing Flow

Let

’

s take a look at the procedure for printing images from the memory card inserted in the card slot of the

printer.

Step 1

Turn on the Printer.

Step 2

Load the paper.

Step 3

Insert the memory card.

Select a paper size.

Step 4

Make print settings.

Step 5

Start printing

Print index

A list of images

stored in the memory

card in the card slot

is printed with an

image number added

to each image.

Print All

All images stored in

the memory card are

printed (one copy per

image).

Print One

The image with the

image number you

have specified is

printed.

DPOF

This icon appears

when the memory

card inserted in the

card slot contains

DPOF information.

See “Printing

According to the

Settings Made on the

Camera – DPOF

Printing” on page 18.

Specify an image

number.

Specify a number of

copies.

Select a media type.

Select “bordered

”

or “borderless

”

and select

“with date

”

or “without date.

”

Index printing One-image printingAll-image printing

Select “bordered

”

“borderless

”

Using a Memory Card

Let

’

s take a look at types of available memory cards and how to insert and remove them.

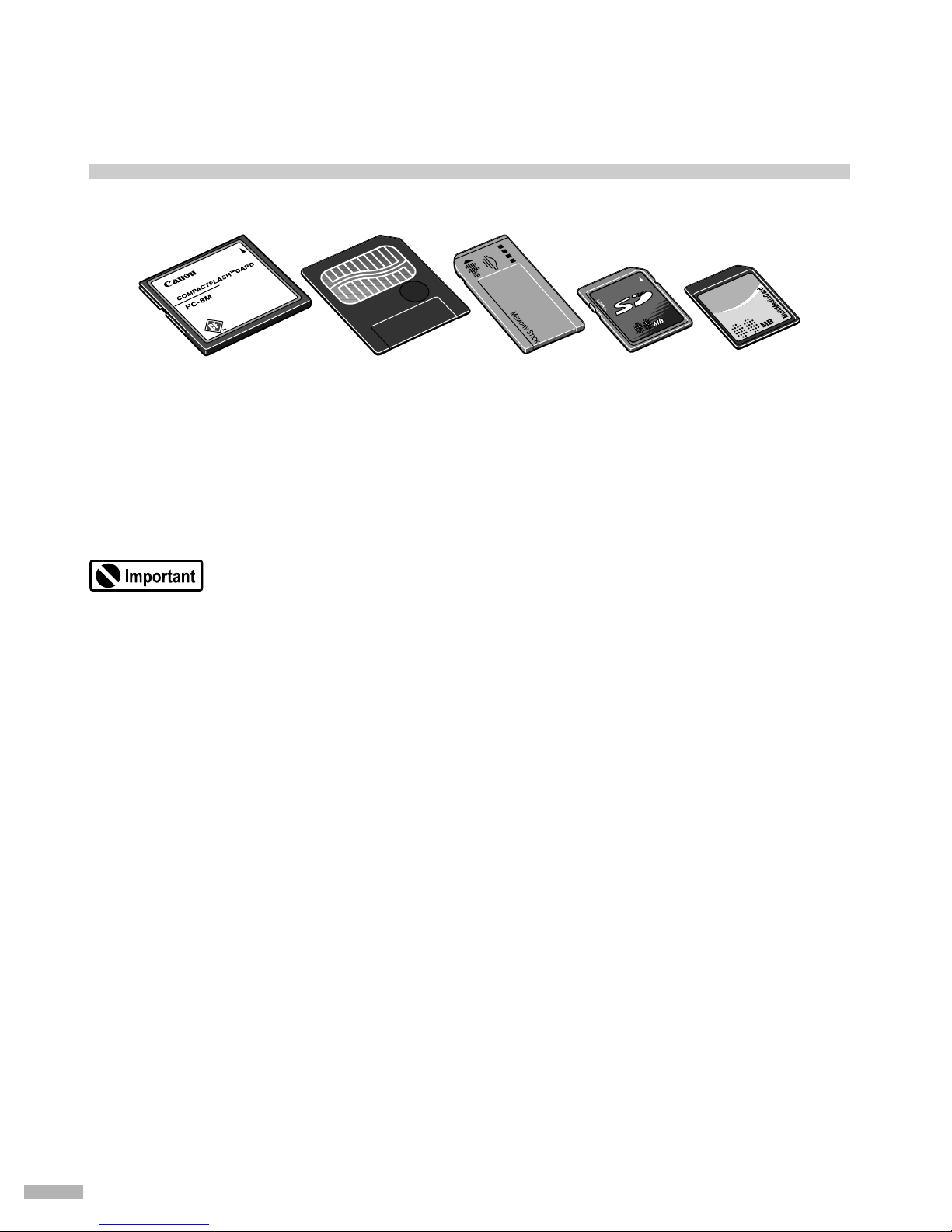

Types of Available Memory Cards

Types of available memory cards are as follows:



CompactFlash

™

(CF) Card/Microdrive

™

* Ready for TYPE I/TYPE II (3.3V or 5V).



SmartMedia

™

Card

* Ready for 3.3V card only (Not ready for 1MB and 2MB cards)



Memory Stick



Secure Digital

™

(SD) Card



MultiMedia

™

Card

• Images stored in a memory card not supported by the digital camera may fail in loading or damage.

For types of memory cards supported by the digital camera, refer to your digital camera user’s

manual.

• To format a memory card, use the digital camera. Memory card formats are not compatible with

computer-specific formats.

• Images edited on the computer may result in improper printing.

• Please use only one type of memory card at a time. If you use more than 2 types of memory cards at

the same time, you could lose data or data could be read incorrectly from the cards.

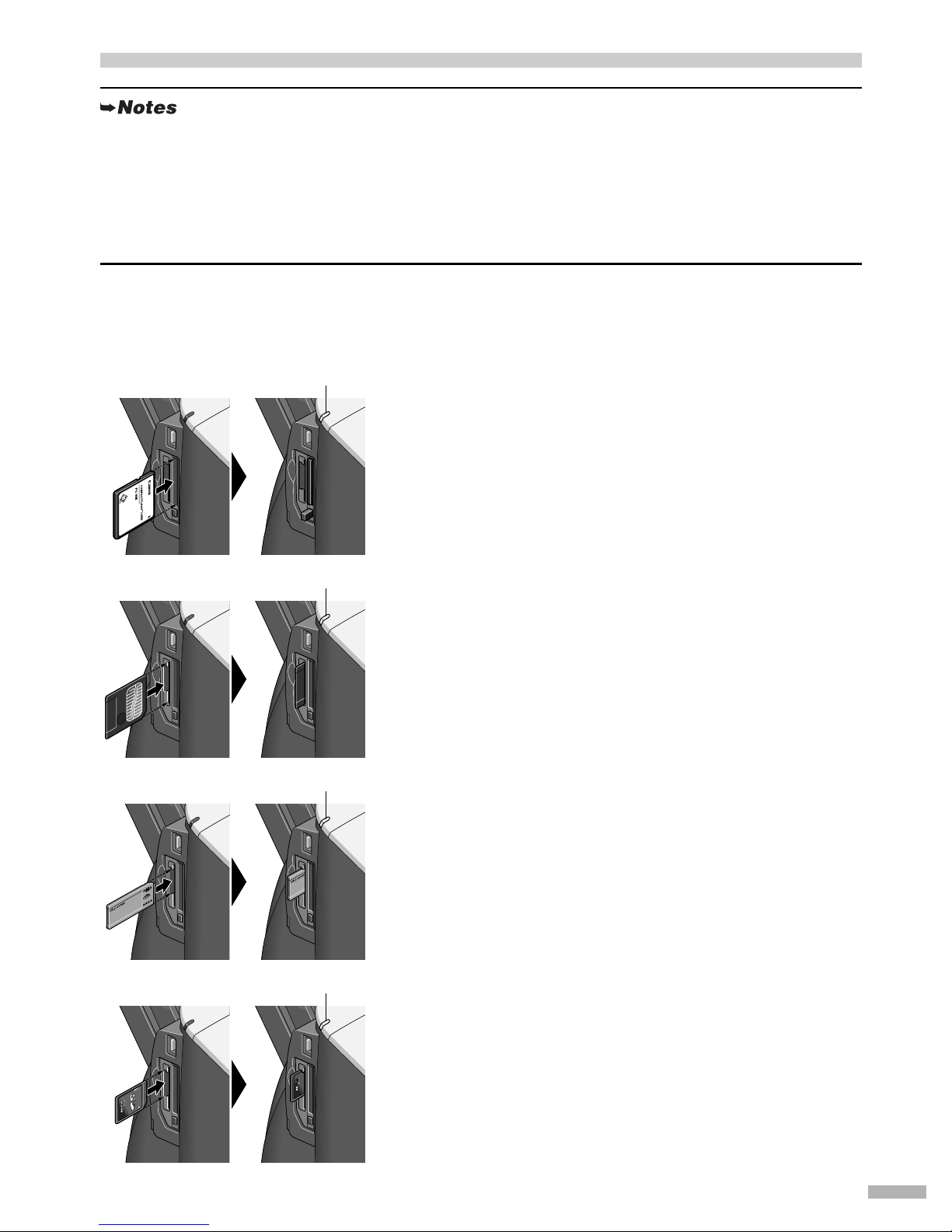

Inserting a Memory Card

Turn on the printer.

Install the memory card in the card slot.

• If you use CompactFlash (CF) card/Microdrive,

insert it as far as it will go as shown left.

• If you use a SmartMedia card, insert it until it stops

with its end projecting as shown left.

• If you use a Memory Stick, insert it until it stops

with its end projecting as shown left.

• If you use SD card/MultiMedia card, insert it until

it stops with its end projecting as shown left.

• When Read/write mode is selected in the Memory Card Utility (Windows) or BJ Utility

(Macintosh), neither printing nor maintenance can be done. After completion of the operation of

the card slot used as the memory card drive of the computer, be sure to select Read-only mode

again. See “Setting up the Card Slot as the Memory Card Drive of the Computer” on page 20.

• If you used a computer to edit or process the data stored in the memory card, be sure to print images

from the computer. Using the operation panel to print images may result in improper printing.

The Indicator lamp lights.

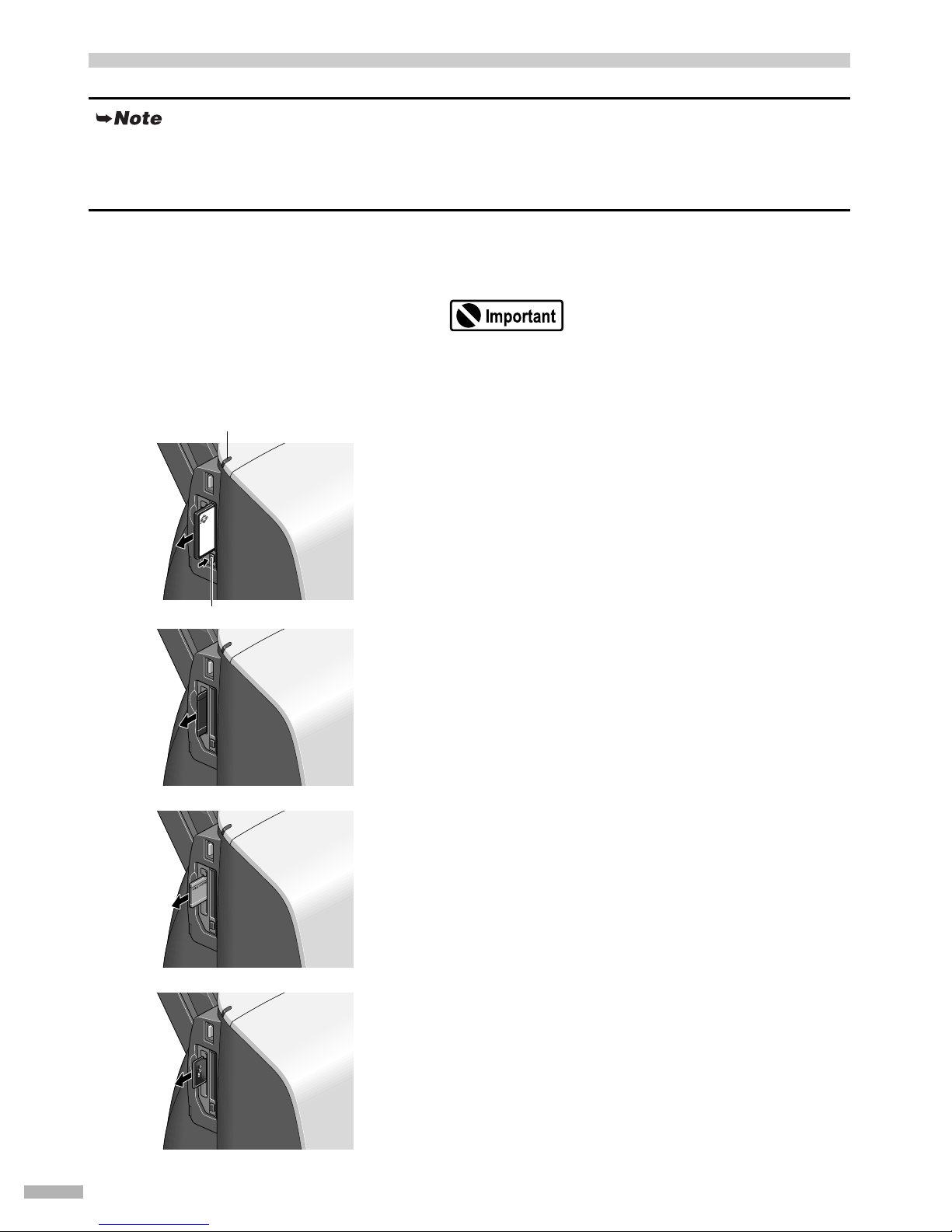

Removing a Memory Card

Ensure that the Indicator lamp is not

flashing, then remove the memory card.

Removing the memory card or turning off the printer

while the Indicator lamp is flashing can damage the

data stored in the memory card.

• If you use CompactFlash (CF) card/Microdrive,

push the card eject button to remove the card.

• If you use a SmartMedia card, remove the card

holding the exposed portion of the card with your

fingers.

• If you use a Memory Stick, remove the card

holding the exposed portion of the card with your

fingers.

• If you use SD card/MultiMedia card, remove the

card holding the exposed portion of the card with

your fingers.

If you use the printer and memory card slot as a removable disk drive, follow the instructions for

removal of the memory card from the computer. For the procedure, refer to the electronic User’s

Guide on the CD-ROM.

Indicator lamp

Card eject button
