Canon CX-G2400 Manual de usuario

GettingStartedGuide

COLOR CARD PRINTER

Read this guide rst.

Please read this guide before operating this product.

When nished reading, store it in a safe place for future reference.

CX-G2400

■Conventions

WARNING

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly.

To use the machine safely, always pay attention to these warnings.

CAUTION

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the

machine safely, always pay attention to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine

correctly, and avoid damage to the machine or property.

NOTE

Indicates a clarification of an operation, or contains additional explanations for a procedure. Reading these notes

is highly recommended.

Indicates an operation that must not be performed. Read these items carefully, and make sure not to perform the

described operations.

■Sample Screens

The sample CX-2400 printer driver screens displayed in this manual were created with Windows 10.

■Trademarks

• Canon and the Canon logo are registered trademarks of Canon Inc.

• Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States

and/or other countries.

• Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated in the United

States and/or other countries.

• Other brand and product names may be trademarks or registered trademarks of their respective companies.

■Abbreviations

Throughout this document the following abbreviations are used in text.

• Microsoft Windows 10 is abbreviated as “Windows 10”

• Microsoft Windows 8.1 is abbreviated as “Windows 8.1”

• Microsoft Windows 7 is abbreviated as “Windows 7”

• Microsoft Windows is abbreviated as “Windows”

Setup Flow

Step 1 Preparation for Installation (P. 2 )

Step 2 Installing Printer (P. 6 )

Step 4 Connecting Power Cord (P. 11 )

Step 6 Installing Software (P. 14 )

⿟USB Connection (P. 15 )

⿟LAN Connection (P. 23 )

⿟Installing User’s Guide (P. 34 )

Step 3 Installing Ink Tanks (P. 8 )

Step 5 Turning on Printer (P. 12 )

Setup Complete

Step 1. Preparing for Installation

1 Checking Installation Site.

Check the following conditions to determine the installation site.

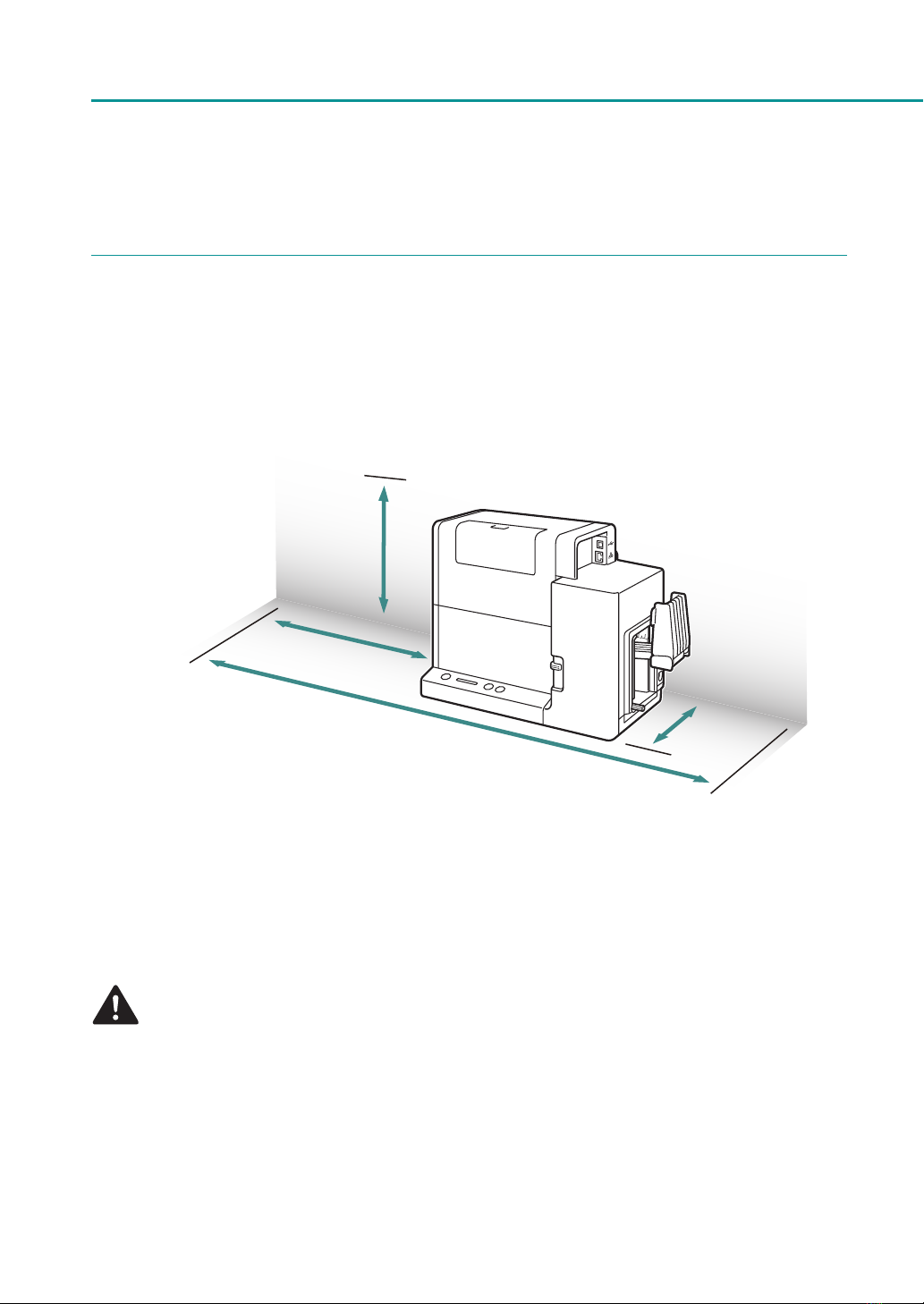

• Installation space

180 mm

(7.0 inch)

860 mm

(33.8 inch)

310 mm

(12.2 inch)

400 mm

(15.7 inch)

• Temperature and humidity

Temperature: 15 to 30 degrees Celsius (59 to 86 degrees Fahrenheit)

Humidity: 10% to 80% (no condensation)

• Power supply

Use a 1.5A or higher outlet cable.

WARNING

• Do not place the following objects on the printer:

- Necklaces and other metal objects.

- Cups, vases, flowerpots, and other containers filled with water or liquids.

If such an object is brought into contact with the electrical parts inside the printer, this could cause

a fire or electrical shock. If an object enters the inside of the printer, turn the printer off immediately,

disconnect the power plug from the power outlet and contact your place of purchase.

• The electrical contacts inside the printer become extremely hot during normal operation. To avoid

causing a fire, never store flammable substances like alcohol, thinner, etc. near the printer.

CAUTION

• Do not install the printer in the following locations:

- A damp or dusty location.

- A location exposed to oily smoke or steam; e.g., near a countertop or humidifier.

- A location exposed to rain or snow.

- A location exposed to salty wind.

- A location subject to high temperatures.

- A location near open flames.

• Do not place the printer in an unstable location; e.g., on a wobbling or inclined table, or a location

subject to frequent vibrations. The printer could fall down or fall over, resulting in personal injury.

• Never place the printer where it will be exposed to rapid changes in temperature, such as in direct

sunlight, near an air conditioner, or in a car on a hot day. This could cause a fire or damage to the printer.

2 Verify that all of the following accessories are in the box.

• Printer • Ink tanks • AC adapter

• 120V Power cord

• Stacker

• Getting Started Guide (this document)

• Basic Operation Guide

• Printer Software CD-ROM (containing the printer driver and User's Guide)

• Warranty

• Other documents

NOTE

• Keep the shipping box, packing materials and protectors for future use, for example, storage or transportation of

the printer.

• If any accessory is missing or damaged, contact your place of purchase.

• USB and LAN cables are not supplied with the printer.

• Use a Category 5eor better twisted pair ethernet cable.

• Cyan ink may be absorbed in the ink absorber (A) inside the

transport unit. This is due to ink used in the manufacturing

process and does not signify a printer problem.

• To maintain print quality, this product absorbs excessive ink

produced during printing in an ink absorber. As you use the

printer, ink will gradually adhere to the ink absorber.

Step 2. Installing the Printer

1 Remove the printer from the box.

1. Open the plastic bag.

2. Remove the printer from the plastic bag.

⿟As shown in the figure, securely hold the printer

with both hands when removing the printer

from the bag.

CAUTION

• To avoid dropping the printer, securely hold it with both hands.

• Do not hold the printer by the feeder lift tray, doing so may break the

tray and cause the printer to drop. This may lead to injury.

2 Remove all pieces of orange tape.

3 Remove all orange protectors.

1. Open the ink tank cover.

2. Move the lock lever (A) in the direction of

the arrow.

3. Remove the protectors.

⿟Press and raise the lock knob (B) to remove the

protector.

⿟Dispose the protectors according to local laws

and regulations.

IMPORTANT

• Be careful, ink adhered on the protectors could stain clothes or the area surrounding the printer.

Step 3.

Installing the Ink Tanks

1 Preparing the ink tanks.

1. Remove each ink tank from the plastic bag.

2. Remove the orange protective cap as shown

in the figure.

⿟When removing the protective cap, be sure to hold

the ink tank as illustrated to avoid getting ink on

your fingers.

⿟Dispose the removed protective cap according to

local laws and regulations.

IMPORTANT

• Do not press on the sides of the ink tank as ink could come out.
