Quick Start Guide
Please read this guide before operating this product.
After you finish reading this guide, store it in a safe place for future reference.
Quick Start Guide
Printed on non-chlorine bleached paper.
Gedruckt auf chlorfrei gebleichtem Papier.
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON U.S.A., INC.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
CANON CANADA INC.
6390 Dixie Road Mississauga, Ontario L5T 1P7, Canada
CANON EUROPA N.V.
Bovenkerkerweg 59-61 1185 XB Amstelveen, The Netherlands
(See http://www.canon-europe.com/ for details on your regional dealer)
CANON LATIN AMERICA, INC.
703 Waterford Way Suite 400, Miami, Florida 33126 U.S.A.
CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, Sydney, N.S.W. 2113, Australia
CANON CHINA CO., LTD.
15F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue #04-01 Keppel Bay Tower, Singapore 098632
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
FT5-2009 (000) XXXXXXXXXX © CANON INC. 2008 PRINTED IN CHINA
Set Up the Machine
Unless otherwise mentioned, illustrations used in this manual are those taken when no optional
equipment is attached to the iR1024iF, and also the menus described in this manual are based on
the iR1024iF.

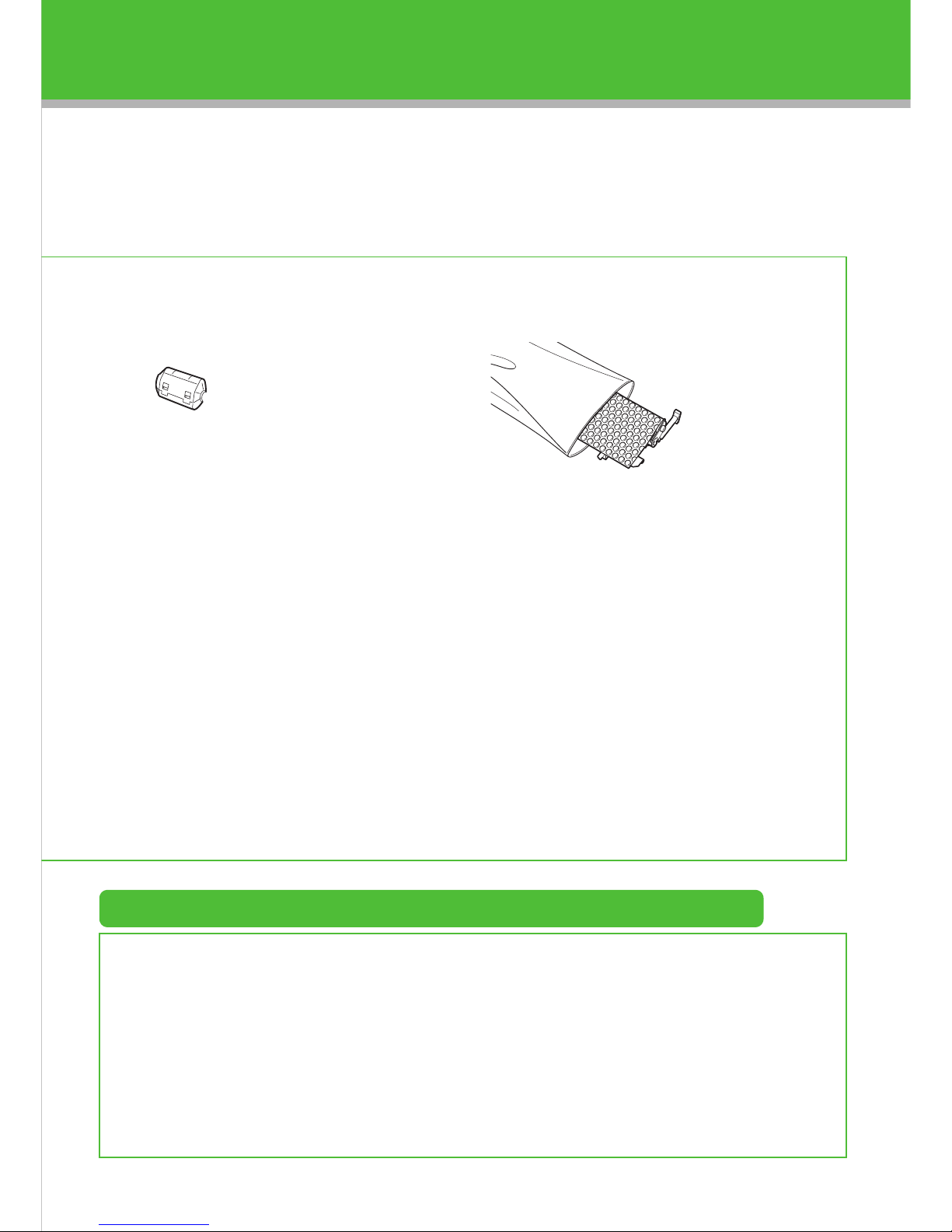

Do You Have Everything?
Before Setting Up the Machine
●Remove all shipping tape on the machine.
●When moving the machine, be sure at least
two people carry it using the provided hand
grips on the left and right sides, as seen in the
illustration right.
●The shapes of your machine and supplies may
differ slightly from those listed in this manual.
●Machine ●Paper Drawer (optional)
●Power Cord ●Telephone Cable*****
●Destination Labels*
●Quick Start Guide
●User Software CD**
●User Manual CD***
●Unpacking Instructions
1
Depending on the model of your machine, some settings may not be available and the number on
the top of each menu may vary.
Manuals for the Machine
●Quick Start Guide (This Document): Machine set-up and software installation
●Basic Operation Guide: (in User Software CD)*: Basic features, maintenance, machine
settings, and specifications
●Advanced Operation Guide (in User Software CD)*: Advanced features, network and remote
user interface, system monitor, and reports and lists
●Scanner Driver Guide (in User Software CD): Scanner settings from a computer
* Included in User Manual CD for the iR1020J
●Drum Unit●Ferrite Core for
USB Cable****
* iR1024F/iR1024i/iR1024iF only
** iR1024A/iR1024F/iR1024i/iR1024iF/iR1020 only
*** iR1020J only
**** iR1024i/iR1024iF only
***** iR1024F/iR1024iF only
2
3
Install the Toner Cartridge
1
Remove the plastic case from the box.
2
Open the case and remove the toner cartridge.
Keep the box and case for future use.
4
Pull the toner cartridge lever (A) towards you and
insert the cartridge into the machine with the
arrow (B) pointing towards the machine.
5
Holding the cartridge steady with one hand, pull
out the seal completely with the other hand.
NOTE
Do not pull out the seal at an angle.
8
Close the front cover.
CAUTION
– Be careful not to get your fingers caught.
– If you cannot close the front cover, do not force it to
close. Open the front cover and pull out the toner
cartridge, then reinsert the cartridge into the
machine.
NOTE
A toner cartridge is not included with this machine.
A
B
CAUTION
– Do not touch the portions (A) and (B).
– Do not pull out the seal (C) before inserting the
cartridge into the machine as the toner may spill
out.
3
Open the front cover.
6
Turn the cartridge lever (A) as far as it will go
counterclockwise.
7
Push down the lever.
A
C
B
A
4
5

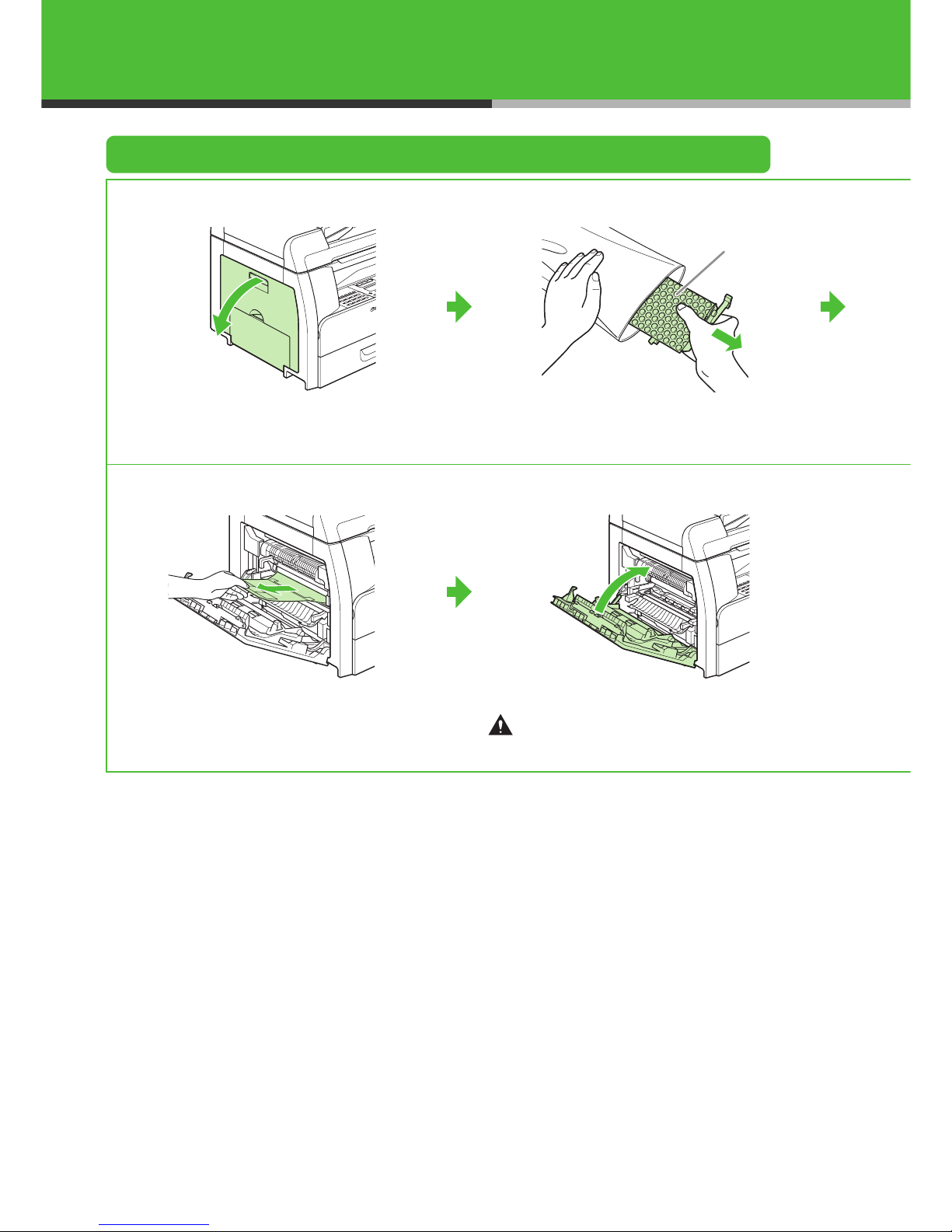

Install the Drum Unit
1
Open the left cover.
2
Open the package of the new drum unit and
remove the protective packing material (A).
5
After the unit is completely inserted, remove the
orange paper.
6
Close the left cover.
CAUTION
Be careful not to get your fingers caught.
A
3
Hold the unit by its grips on both sides.
4
Align the marks on both sides of the drum unit
(B) with the marks on the machine (A), and
push the unit into the machine as far as it will go.
CAUTION
Do not touch the portion (A) as the image quality of
printouts may deteriorate.
BB
A
A
A
6
7
Load Paper
1
Pull out the paper drawer until it stops.
2
Even the edges of the paper stack.
Connect the Telephone Cables (iR1024F/iR1024iF Only)
Connect the supplied telephone cable to the line
jack (A) and the wall jack.
Connect your external telephone to the external
device jack (B) if required.
Users in UK:
If required, use a separately available B.T.
adaptor to connect an external device.
B
A
3
Load the paper stack print side up.
NOTE
Make sure the back edge of the paper stack touches
the rear paper end guide (C), the paper stack should
not exceed the load limit mark (A), and the load is
under the small fins (B) on the paper guides.
4
Gently insert the paper drawer as far as it will go.
CAUTION
Be careful not to get your fingers caught.
NOTE
For loading paper in the stack bypass, see Chapter 3,
“Print Media,” in the Basic Operation Guide.
A
B
B
C
8
9
Connect the Power Cord, Turn On the Machine,
12
Connect the supplied power cord into the rear
socket and the wall outlet and press the [I] side of
the main power switch to ON.
If <DISPLAY LANGUAGE> appears, press []
or [ ] to select a language for the LCD, then
press [OK].
What if...
●<CLOSE COVER/FRONT OR LEFT COVER> is displayed:
Make sure that the front or left cover is closed properly.
(See “Install the Toner Cartridge,” on p. 3, or “Install the Drum Unit,” on p. 5.)
●<OUT OF TONER/CHANGE TONER> is displayed:
Make sure that the toner cartridge is installed properly.
(See “Install the Toner Cartridge,” on p. 3.)
●<DRUM IS NOT SET/INSERT THE DRUM> is displayed:
Make sure that the drum unit is installed properly.
(See “Install the Drum Unit,” on p. 5.)
●<LOAD PAPER> is displayed:
Make sure that paper is loaded in the paper drawer properly.
(See “Load Paper,” on p. 7.)
Main power switch
DISPLAY LANGUAGE
ENGLISH
Ex.
