Canon ImageRUNNER ADVANCE C2030 Manual de usuario

How to Check this Installation Procedure

When using the parts included in the package

A symbol is described on the illustration in the case of using the parts included in the package

of this product.

Packaged Item

Symbols in the illustration

The frequently-performed operations are described with symbols in this procedure.

Connector

Disconnect

Screw

Tighten Remove Connect Secure Free

Harness

Push

Insert Plug in Turn on

Sound CheckCheck Visual Check

Claw

Remove

Checking instruction

F-1-1

F-1-2

Checking the Contents

[1] Cassette Pedestal X 1 [2] Connecting Fixture X 1

[3] Screw (RS Tightening; M3X8.5) X 1 [4] Size Plate X 2

[5] Connector Cover X 1

< CD/Guides >

• FCC/IC Sheet (Only for USA and Europe)

F-1-3

Checking the Contents

Although pictures and illustrations of imageRUNNER ADVANCE C2030/C2020 Series are

used in this procedure, the procedure is the same in the case of models other than the series.

Installation Outline Drawing

Check Item when Turning OFF the Main Power

Chek that the main power switch is OFF

1) Turn OFF the main power switch of the host machine.

2) Be sure that Control Panel Display and the Main Power lamp are both turned OFF, and

then disconnect the power plug.

F-1-4

Unpacking

1) Turn OFF the main power switch of the host machine.

2) Open the plastics, and remove the 2 pads by lifting the rear of the equipment. Then, tuck

the plastics toward the front.

Plastic

Pad

F-1-5

F-1-6

3) Remove the remaining 2 pads and plastics by lifting the front of the equipment.

Plastic Pad

Pad

4) Lift the equipment down from pallet.

5) Remove all tapes attached to the equipment and packing materials from the equipment.

CAUTION:

Be sure to remove tapes on the rear side of the host machine after completing the

installation of the equipment; otherwise, cables may be trapped.

F-1-7

F-1-8

Installation Procedure

1) Open the Right Lower Cover.

CAUTION:

If mounting the host machine without opening the Right Lower Cover, the cover may get

damage.

2) If the Right Lower Sub Cover is installed to the host machine, remove it using a at-blade

screwdriver.

NOTE:

When installing the host machine at the same time, skip this step because the Right

Lower Sub Cover is packed with the host machine.

F-1-9

F-1-10

3) Mount the host machine by aligning the corners (right and left) of the front side of the host

machine with the corners (right and left) of the front side of the equipment.

CAUTION:

When mounting the host machine to the equipment, be sure to move the host machine

parallel and t the 2 Positioning Pins on top of the equipment into the holes on the Base

Plate of the host machine.

Positioning Pins

F-1-11

CAUTION:

• Be sure to perform the work in accordance with the standard to handle a heavy load

in each country.

• [imageRUNNER ADVANCE C2030/C2020 Series] the maximum weight of the

machine: 95kg (the host machine with 2 cassettes + ADF)

• [imageRUNNER ADVANCE C2030/C2020 Series [imageRUNNER ADVANCE

C2030/C2020 Series] the maximum weight of the machine: 75.4kg (the model

with FAX)

• Be sure to keep the machine leveled when lifting it.

• Because the center of gravity will be placed at rear, be careful not to lose balance

when lifting it.

F-1-12

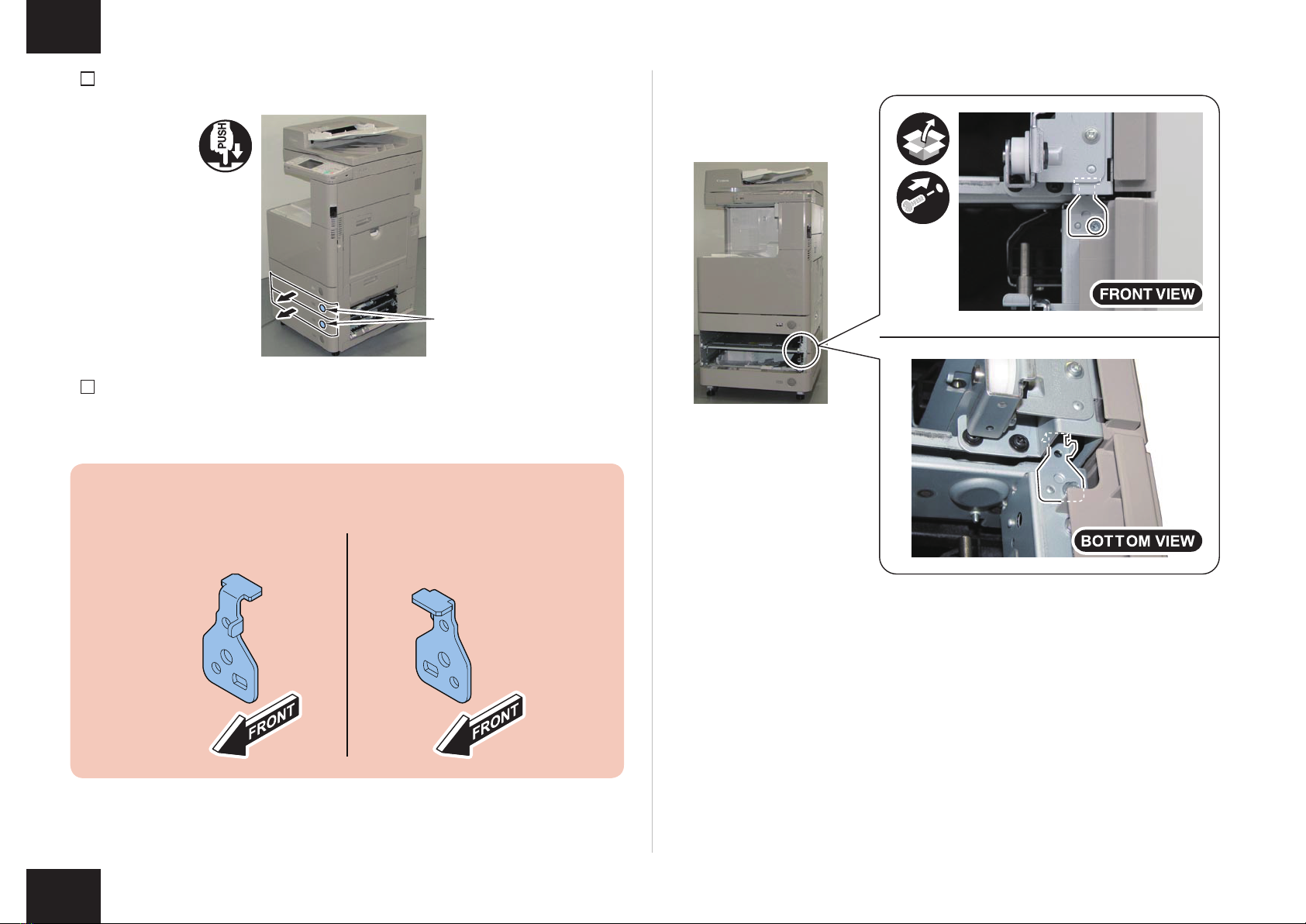

4) Press the cassette release button, and remove the Cassettes 2 and 3.

Button

5) Attach the Connecting Fixture.

• 1 Screw (RS Tightening; M3x8.5)

• 1 Boss

CAUTION:

When attaching the Connecting Fixture, be sure the attaching direction

imageRUNNER ADVANCE

C2030/C2020 Series

Models other than

imageRUNNER ADVANCE

C2030/C2020 Series

F-1-14

F-1-13

[imageRUNNER ADVANCE C2030/2025/C2020 Series]

F-1-15

[Models other than imageRUNNER ADVANCE C2030/C2020 Series]

NOTE:

Hook the [A] part of the Connecting Fixture on the plate [B] on the host machine side,

aligning with the boss at installation.

[A] [B]

6) Install the Cassette 2 and 3.

7) Close the Cassette Right Lower Cover.

F-1-16

8) Remove the Connector Cover of the host machine. (The removed Connector Cover will not

be used.)

• 1 W Sems Screw (The removed screw will be used in step 11.)

NOTE:

If a Protection Dummy Connector is attached to the AC Power Supply

Connector on the host machine side, remove the Dummy Connector before

connecting the AC Harness Connector from the Cassette Pedestal.

(The removed Dummy Connector will not be used.)

F-1-18

F-1-17

9) Connect the 3 connectors to the host machine and put the cables through the guides.

CAUTION:

Be sure to tuck the extra slack of the harness to the host machine side to prevent the

cables from being trapped.

[imageRUNNER ADVANCE C2030/2025/C2020 Series]

[Models other than imageRUNNER ADVANCE C2030/C2020 Series]

F-1-19

F-1-20

10) Loosen the screw on the Connector Cover included in the package, and install the

grounding wire between it and the toothed washer.

Screw

U Shape Terminal

Toothed Washer

CAUTION:

• Be sure to pay attention to the orientation of the Grounding Wire.

• Be sure to connect the wire from the direction of the arrow marked on the plate.

F-1-22

F-1-21

11) Install the Connector Cover.

• 1 W Sems Screw (Use the screw removed in step 8.)

12) Secure the equipment in place with the 4 adjusters.

NOTE:

Securing of the adjuster is not earthquake resistant.

F-1-23

F-1-24

NOTE:

• When installing the host machine at the same time, be sure to follow "Unpacking and

Installation" in the Installation Procedure Manual.

• When installing this equipment later, be sure to follow the following procedure.

13) Connect the power plug of the host machine to the outlet.

14) Turn ON the main power.

Setting the Cassette

1) Press the Cassette Release button, and pull out the Cassette 3.

Button

F-1-25

2) Hold the lever of the Side Guide Plate, and adjust the plate to the specied size. At this

time, move the Side Guide Plate by referring to the Size Index (Label) of the sheet size to

be set, and adjust the Side Guide Plate to the click position (position where it clicks).

3) Hold the lever of the Trailing Edge Guide Plate, and adjust it to the specied size. At this

time, move the Trailing Edge Guide Plate by referring to the Size Index (Label) of the sheet

size to be set, and adjust the Trailing Edge Guide Plate to the click position (position where

it clicks).

Side Guide Plate Lever

Side Guide Plate

Trail Edge Guide Plate

Trail Edge Guide Plate Lever

4) Place papers.

5) Open the cover at insertion area of the Size Plate.

Paper

Cover

F-1-26

F-1-27

6) Cut the 2 places of the Size Plates with nippers.

Cut

7) Set the Size Plate according to the size being set. (Lump the Size Plates not in use

together and store them at the rear.)

8) Close the cover at insertion area of the Size Plate, and insert the cassette.

9) Set the Cassette 4 in the same way.

NOTE:

The paper size settings are recognized automatically.

F-1-28

F-1-29

Adjustment

[imageRUNNER ADVANCE C2030/C2020 Series]

NOTE:

The 2nd side of 2-sided print mentioned later means 2nd side in the image formation

order.

With this machine, 2nd side in the image formation order at duplex copy/print is

equivalent to the 1st side of the original.

Margin Adjustment (1st side)

1) Print from the Cassette 3 and 4, and check that the left edge margin is within 2.5 +/- 1.5mm.

Feed direction

of paper


NOTE:

Adjustment method is the same for the Cassette 3 and 4.

2) Pull out the cassette.

F-1-30

3) Hold the lever of the Trailing Edge Guide Plate, and check the values of the scale on the 2

Adjustment Plates of the Trailing Edge Guide Plate.

4) Loosen the 3 Fixation Screws.

F-1-31

F-1-32
