Introduction

Cleaning the Video Heads

Digital video camcorders record video signals onto the tape in very thin lines (as thin

as 1/8 the width of a hair). The following anomalies may appear if the video heads

become dirty even a little.

• Mosaic or other blocky video artifacts (Fig. 1) or banding

(Fig. 2) appear on the picture during playback.

• Sound becomes distorted, or there is no sound during

playback.

• The message “HEADS DIRTY, USE CLEANING CASSETTE”

appears.

If such symptoms appear, clean the video heads with the

Canon DVM-CL Digital Video Head Cleaning Cassette* or a

commercially available dry cleaning cassette.

If the symptoms reappear shortly after the cleaning, the

videocassette may be defective. Stop using it.

* Availability differs from area to area.

Video heads may become dirty under the following conditions:

• When using the camcorder in humid or hot places.

• When using cassettes with damaged or dirty tapes.

• When using the camcorder in dusty places.

• When using the video heads for a long time without cleaning them.

NOTES

• Before you make important recordings, clean the video heads and make a test recording

first. We also recommend cleaning the video heads after use, before storing the

camcorder.

• Do not use wet type cleaning cassettes as this may damage the camcorder.

• Even after cleaning the video heads you may not be able to play back correctly tapes

that were recorded with dirty video heads.

Fig. 1

Fig. 2

COPY

Important Usage Instructions

WARNING!

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

WARNING!

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING

INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.

CAUTION:

DISCONNECT THE MAINS PLUG FROM THE SUPPLY SOCKET WHEN NOT IN USE.

The Mains plug is used as the disconnect device. The Mains plug shall remain readily operable to disconnect

the plug in case of an accident.

While using the compact power adapter, do not wrap it or cover it with a piece of cloth, and do not place it in

confined narrow spaces. Heat may build up, the plastic case may deform and it could result in electric shock

or fire.

CA-590E identification plate is located on the bottom.

Using any device other than the Compact Power Adapter CA-590E may damage the camcorder.

European Union (and EEA) only.

This symbol indicates that this product is not to be disposed of with your household waste, according to

the WEEE Directive (2002/96/EC) and your national law. This product should be handed over to a

designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product

or to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper

handling of this type of waste could have a possible negative impact on the environment and human

health due to potentially hazardous substances that are generally associated with EEE. At the same time, your

cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For

more information about where you can drop off your waste equipment for recycling, please contact your local city

office, waste authority, approved WEEE scheme or your household waste disposal service. For more information

regarding return and recycling of WEEE products, please visit

www.canon-europe.com/environment.

(EEA: Norway, Iceland and Liechtenstein)

COPY

Table of contents

Introduction ______________________________

8 About this Manual

9 Getting to Know the Camcorder

9 Supplied Accessories

10 Components Guide

13 Screen Displays

Preparations _____________________________

15 Getting Started

15 Charging the Battery Pack

17 Installing the Backup Battery

17 Preparing the Wireless Controller ( only)

and Accessories

19 Basic Operation of the Camcorder

19 Operating Modes

19 Joystick and Joystick Guide

20 Using the Menus

22 First Time Settings

22 Changing the Language

22 Changing the Time Zone

23 Setting the Date and Time

23 Getting Ready to Start Recording

23 Opening the Lens Cover and Adjusting the LCD Screen

25 Inserting and Removing a Tape

COPY

Table of contents

Video ____________________________________

26 Basic Recording

26 Shooting Video

28 Zooming: Optical, Advanced and Digital Zoom

30 Quick Start Function

31 Reviewing the Last Scene Recorded

31 Basic Playback

31 Playing Back Video

33 Returning to a Pre-marked Position

33 Locating the Beginning of a Recording Date

34 Locating the End of the Last Scene

34 On-Screen Displays (Data Code)

35 Advanced Function

35 : Special Scene Recording Programs

37 Flexible Recording: Changing the Shutter Speed

38 LCD Video Light

38 Self Timer

39 Audio Recording Mode

40 Audio Playback Modes

41 Manual Focus Adjustment

42 Manual Exposure Adjustment

42 White Balance

43 Image Effects

44 Digital Effects

COPY

External Connections _______________________

46 Connecting to a TV or VCR

47 Connection Diagrams

48 Playback on a TV Screen

48 Copying your Recordings to an External Video Recorder

49 Audio Dubbing

51 Connecting to a Computer

51 PC Connection Diagram

52 Transferring Video Recordings

COPY

Table of contents

Additional Information ______________________

53 Appendix: Menu Options Lists

53 FUNC. Menu

54 Setup Menus

54 Camera Setup (Advanced Zoom, Image Stabilizer, etc.)

55 VCR Setup (Recording Mode, TV Type, etc.)

55 Audio Setup (Audio Mode, Wind Screen, etc.)

56 Display Setup (LCD Brightness, Language, etc.)

57 System Setup (Beep, Power Save, etc.)

58 Date/Time Setup

59 Trouble?

59 Troubleshooting

61 List of Messages

63 Do’s and Don’ts

63 Handling Precautions

65 Maintenance/Others

67 Using the Camcorder Abroad

68 General Information

68 System Diagram

69 Optional Accessories

72 Specifications

75 Index

COPY

Introduction

Thank you for purchasing the Canon MD235/MD216/MD215/MD205. Please read

this manual carefully before you use the camcorder and retain it for future reference.

Should your camcorder fail to operate correctly, refer to Troubleshooting ( 59).

Conventions Used in this Manual

• IMPORTANT: Precautions related to the camcorder’s operation.

• NOTES: Additional topics that complement the basic operating procedures.

• POINTS TO CHECK: Restrictions or requirements regarding the function

described.

• : Reference page number.

• : Text that applies only to the model(s) shown in the icon.

• “Screen” refers to the LCD and the viewfinder screen.

• The photos included in the manual are simulated pictures taken with a still camera.

Note that unless indicated otherwise, illustrations in this manual refer to the

model.

About this Manual

Setting the Date and Time

1Open the date and time setup

screen.

[ MENU]

[ DATE/TIME SETUP]

[DATE/TIME]

Blinking arrows will be displayed

around the first field of the date.

2Change each field of the date and

time with the joystick ( ) and

move ( ) to the next field.

3Press ( ) to start the clock.

4Press to close the menu.

NOTES

You can also change the date format

( 93).

FUNC.

( 30)

FUNC.

Brackets [ ] and capital letters are used to refer to menu

options as they are displayed on screen. In tables in this

manual the default value is shown in boldface.

For example [ON], [OFF].

Buttons and switches to be operated

Names of buttons and switches other than the joystick

are indicated within a “button” frame.

For example .

FUNC.

COPY

Getting to Know the Camcorder

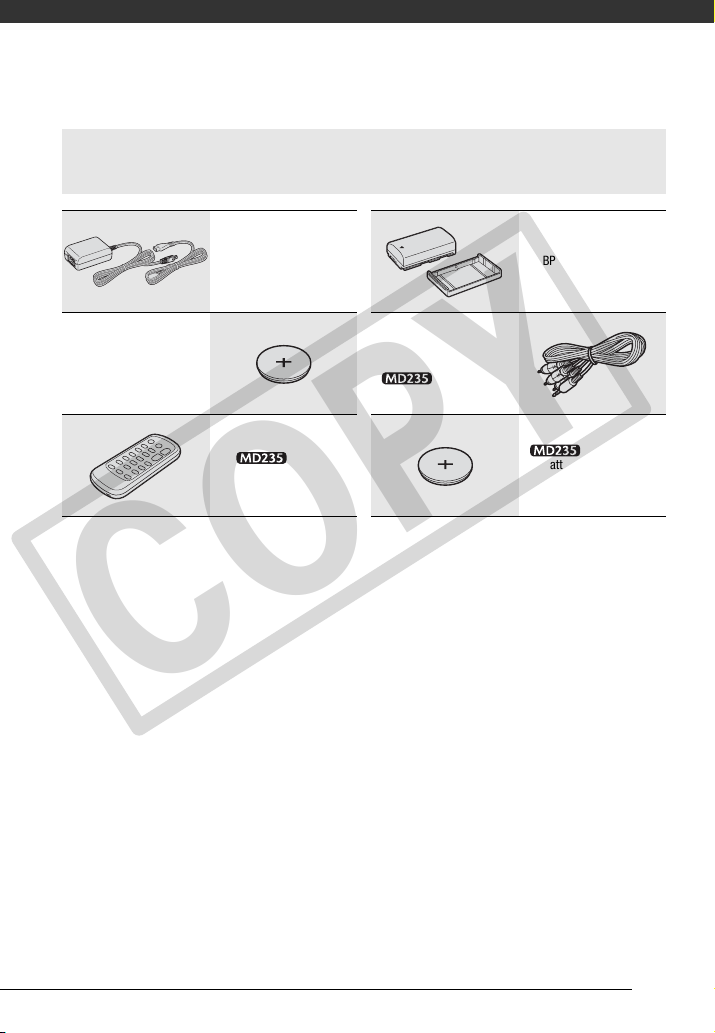

Supplied Accessories

CA-590E Compact Power

Adapter

(incl. power cord)

BP-2L5 Battery Pack

Lithium Button Battery

(CR1616)

STV-250N Stereo Video

Cable

(

incl. ferrite core

)

WL-D85

Wireless Controller

Lithium Button

Battery (CR2025) for

Wireless Controller

COPY

Introduction

Names of buttons and switches other than the

joystick are indicated within a “button”frame

(for example ).

Components Guide

Left side view

Front view

Right side view

Lens cover switch ( 26)

( open, closed)

DV terminal ( 47, 51)

MIC (microphone) terminal ( 39)

AV terminal ( 47)

CHARGE indicator ( 15)

Speaker

Mode switch ( 27)

Easy recording

Recording programs

Grip belt ( 18)

Strap mount

( 71)

Lock button

switch ( 19)

Stereo microphone

FUNC.

COPY
