Canon PIXMA MX452 Manual

<<PreviousNext>>

GettingYourMultifunctionBackOn

YourNetworkAfterARouterOr

NetworkChange

PIXMAMX452

WindowsOS

Ifanyofthefollowingsituationsexist:

•Youhavereplacedyourrouteroraccesspoint

•Youwanttouseadifferentwirelessnetwork

•Routersettingshavebeenchanged

Pleasecompletethefollowingstepstoapplythenew

configurationsettingstoyourmultifunctionprinter.

<<Previous Next>>

InstallingYourMultifunction

toYourNetworkfortheFirstTime

PIXMAMX452

WindowsOS

PreparingtoConnectMyMultifunctiontoMyNetwork 3

NetworkRequirements 3

ImportantInformationYouNeedBeforeAddingYourMultifunction 4

ConnectingthePrintertoYourAccessPoint5

InstallingtheDriversandSoftware 11

DownloadingandInstallingtheDrivers 16

Downloading&InstallingApplicationSoftware 24

NetworkRequirements

Beforeconnectingthemachinetothenetwork,makesurethatconfigurationofthecomputerandaccesspointorrouteris

complete,andthatthecomputerisconnectedtothenetwork.

NotesonNetworkConnection

•Theconfiguration,routerfunctions,setupproceduresandsecuritysettingsofthenetworkdevicevarydependingonyour

systemenvironment.Fordetails,refertoyourdevice'sinstructionmanualorcontactitsmanufacturer.

•Themachinecannotbeusedoverawirelessandwiredconnectionatthesametime.

WirelessConnection

Connecttoyournetworkenvironmentoverawirelessconnection.

PreparingtoConnectMyMultifunction

ToMyNetwork <<Previous Next>>

PreparingtoConnectMyMultifunction

ToMyNetwork <<Previous Next>>

Besuretoprepareanaccesspoint.

ImportantInformationYouNeedBeforeAddingYourMultifunction

Thefollowinginformationisrequiredtoconnecttoyouraccesspointorrouter.

•AccessPointName/NetworkName:

AlsoreferredtoasSSID.Anametoidentifythespecificaccesspoint.

•NetworkKey:

Alsoreferredtoasencryptionkey,WEPkeyorWPA/WPA2passphrase,Pre‐Sharedkey.

Apasswordrequiredtosettopreventunauthorizedaccesstocommunication.

Checkyouraccesspointorrouterforthefollowinginformation,andthenwriteitdown.

•Wi‐FiProtectedSetup(WPS)AccessPoint/Router:

Whenwirelessmodeisactivatedontheprinter,itwillautomaticallysearchforaWPScapableaccesspoint.Ifdiscovered,theprinter’s

displaywillnotifyyoutopressandholddowntheWPSbuttonontheaccesspoint.IfaWPScapableaccesspointisnotdetected,continue

theinstallusingtheStandardsetupprocedure.

•DonotconnectthesuppliedUSBcableuntil youarepromptedtodosoduringtheinstallation.

NOTE: Fordetailsonhowtocheckthefollowinginformation,refertothemanualofyouraccesspointorrouter,orcontactitsmanufacturer.

An"Ad‐hocconnection,"whichestablishesadirect

connectiontothecomputeroverawirelessconnection

withoutusinganaccesspoint,isnotsupported.

ConnectingthePrintertoYourAccessPoint

InstallingtheDriver

Tousethemachinebyconnectingittoacomputer,softwareincludingthedriversneedstobecopied(installed)tothecomputer'sharddisk.The

installationprocesstakesabout20minutes.(Theinstallationtimevariesdependingonthecomputerenvironmentorthenumberofapplications

tobeinstalled.).WerecommendusingtheSetupCD‐ROMforinstallation.IfyoudonothavetheCD‐ROMorwanttousedriversdownloaded

fromourwebsite,Clickhereforinstructions.

<<Previous Next>>

StepOne

Turnonthecomputer,theninserttheSetupCD‐

ROMintotheCD‐ROMdrive.

Iftheprogramdoesnotstartautomatically,double‐

clicktheCD‐ROMiconinComputerorMy

Computer.

WhentheCD‐ROMcontentsappear,double‐click

MSETUP4.EXE.

StepTwo

OntheopeningscreenselectStartSetupAgain.

StepThree

OntheConnectionMethodSelection window,clickWireless

Connection.

StepFour

PresstheON buttonontheprintertopoweritonandthenclick

Next onthesetupguide.

ConnectingthePrintertoYourAccessPoint <<Previous Next>>

Onthenextscreens,aninteractiveSetupGuidewillappearonyourcomputerscreen.Inmostcases

itwillincludeinstructionsforyoutoperformontheprinter’soperationpanel.Performthesesteps

beforeproceedingtothenextsetupguidewindow.Select(click)theappropriatebuttononthe

setupguidewindowtogotothenextstep.

StepFive

On2‐1PrinterSetup,clickConnecttothenetwork.

StepSix

On2‐2PrinterSetup,presstheSetupbutton(illustratedby(A))and

thenclickNext.

ConnectingthePrintertoYourAccessPoint <<Previous Next>>

StepSeven

On2‐3PrinterSetup,presstheleftorrightarrowtoselectDevice

settings.PressOK buttonandthenclickNext onthesetup

guide.

StepEight

On2‐4PrinterSetup,presstheleftorrightarrowtoselectLAN

settings.PressOK buttonandthenclickNext onthesetup

guide.

ConnectingthePrintertoYourAccessPoint <<Previous Next>>

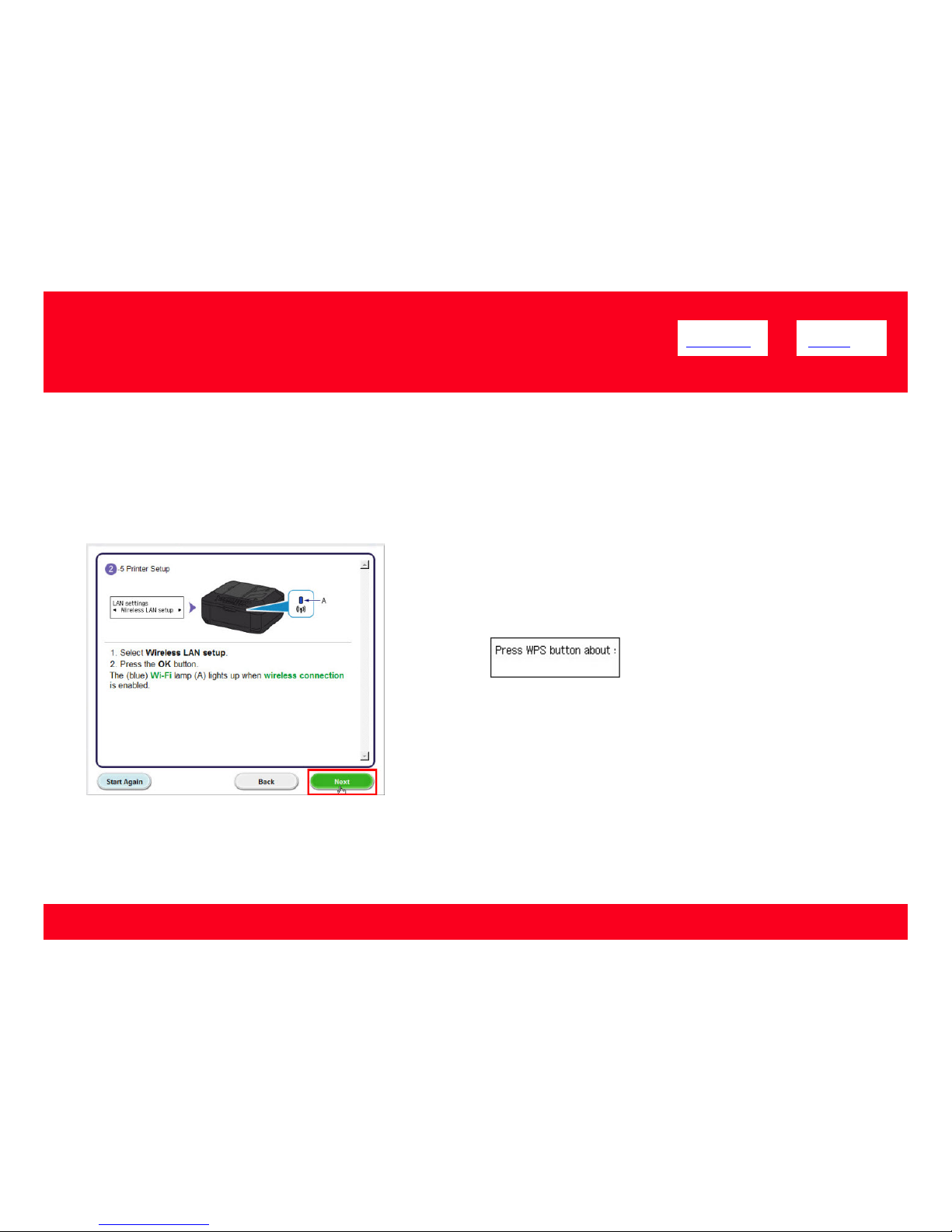

StepNine

On2‐5PrinterSetup,presstheleftorrightarrowtoselectWireless

LANsetup andthenpresstheOKbutton.

TheWi‐Filightwilllightupblue.

IMPORTANT:

WhenWi‐Fiisfirstenabledontheprinter,itwillautomatically

searchforaWi‐FiProtectedSetup(WPS)accesspoint.IfaWPS

accesspointisdetected,ascrollingmessage(liketheoneshown

below)willappearforyoutopresstheWPSbuttononyour

accesspoint.IfyouareunsurewheretheWPSbuttonislocated

orifyouraccesspointsupportsthistechnology,presstheStop

ontheprintertoproceedwiththeinstallusingStandardsetup

method.

ConnectingthePrintertoYourAccessPoint <<Previous Next>>

Note:

Theinstructionsinthisdocumentwillinstallthesoftwarefor

wirelessLANusingStandardsetup.

ToproceedwithWPS method,followtheinstructionsonthe

setupguidewindowofyourcomputerscreen.
