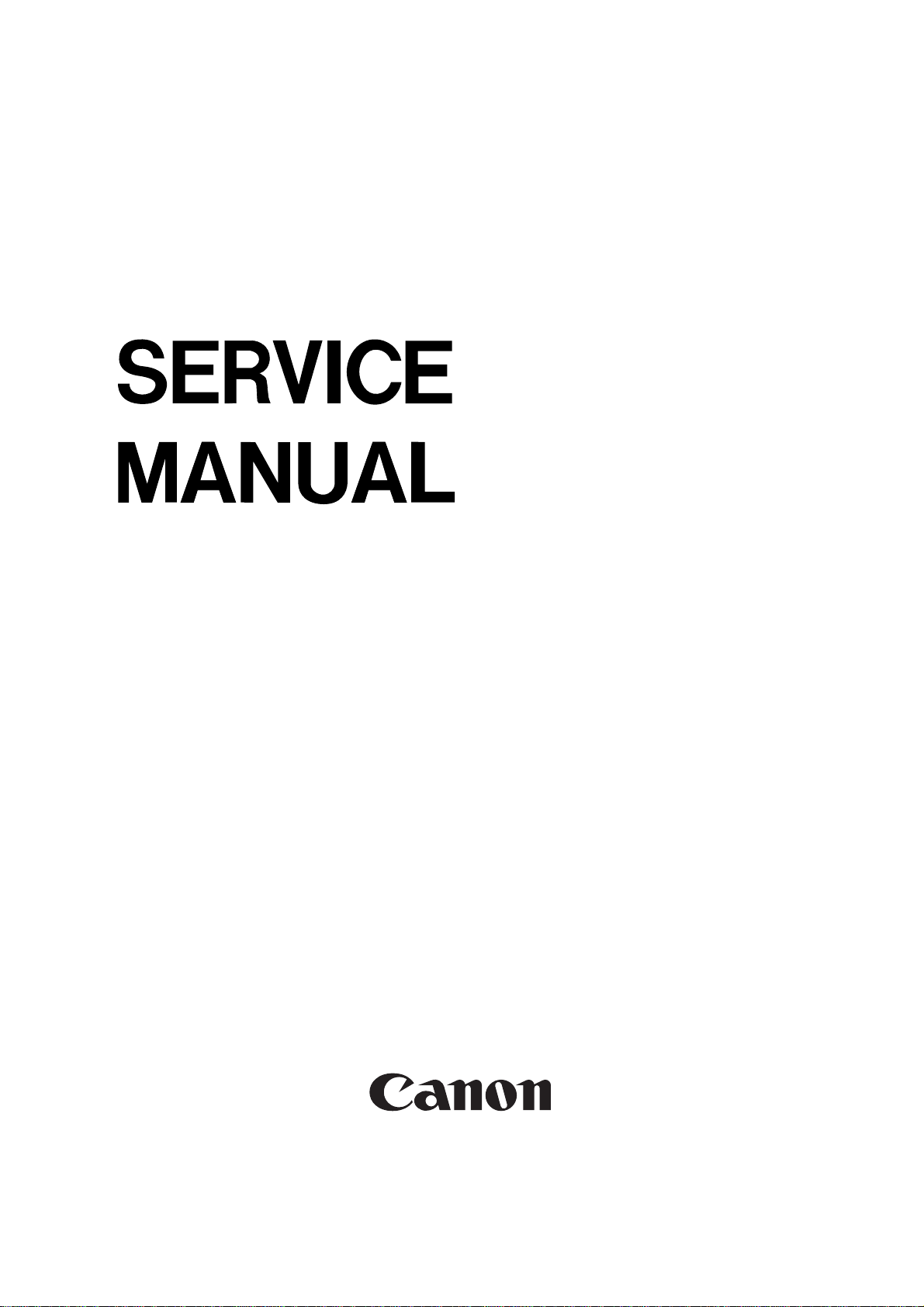

Canon IR5000 - iR B/W Laser Manual de usuario

FY8-13GS-000

JULY 2000

iR5000/iR6000

REVISION 0

2000 CANON INC. CANON iR5000/iR6000 REV.0 JULY 2000 PRINTED IN JAPAN (IMPRIME AU JAPON)

Download Free Service Manual at http://printer1.blogspot.com

Application

This manual has been issued by Canon Inc. for qualified persons to learn technical

theory, installation, maintenance, and repair of products. This manual covers all

localities where the products are sold. For this reason, there may be information in this

manual that does not apply to your locality.

Corrections

This manual may contain technical inaccuracies or typographical errors due to

improvements or changes in products. When changes occur in applicable products or in

the contents of this manual, Canon will release technical information as the need arises.

In the event of major changes in the contents of this manual over a long or short period,

Canon will issue a new edition of this manual.

The following paragraph does not apply to any countries where such provisions are

inconsistent with local law.

Trademarks

The product names and company names used in this manual are the registered

trademarks of the individual companies.

manual may not be copied, reproduced or translated into another language, in whole or

in part, without the written consent of Canon Inc.

Caution

Use of this manual should be strictly supervised to avoid disclosure of confidential information.

Printed in Japan

Imprimé au Japon

2000 CANON INC. CANON iR5000/iR6000 REV.0 JULY 2000 PRINTED IN JAPAN (IMPRIME AU JAPON)

Download Free Service Manual at http://printer1.blogspot.com

2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

INTRODUCTION

Indicates an item of a non-specific nature, possibly classified as Note, Caution,

or Warning.

1.Symbols Used

This documentation uses the following symbols to indicate special information:

Symbol Description

Indicates an item requiring care to avoid combustion (fire).

Indicates an item prohibiting disassembly to avoid electric shocks or problems.

Indicates an item requiring disconnection of the power plug from the electric

outlet.

Indicates an item intended to provide notes assisting the understanding of the

topic in question.

Memo

Indicates an item of reference assisting the understanding of the topic in ques-

tion.

REF.

Provides a description of a service mode.

Provides a description of the nature of an error indication.

Refers to the Copier Basics Series for a better understanding of the contents.

Indicates an item requiring care to avoid electric shocks.

Download Free Service Manual at http://printer1.blogspot.com

2000 CANON INC.2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

INTRODUCTION

2.Outline of the Manual

This Service Manual contains basic information needed to service the iR5000/iR6000 and

its accessories (i.e., side paper deck, shift tray) in the field, conducted for the purpose of

maintaining its product quality and a specific level of performance. A separate Service

Manual is made available for each of its accessories (except for the side paper deck and shift

tray); for details, refer to the appropriate manual.

This Service Manual consists of the following chapters:

1. System Unit

Chapter 1 Introduction: features, specifications, names of parts, func-

tions, operation, system configuration, rou-

tine maintenance by the user

Chapter 2 Main Controller: functional construction, outline of electrical

circuitry, principles of operation of the image

processing system, power supply

Chapter 3 Installation: site conditions and installation procedure,

relocation of the machine, installation of ac-

cessories

2. Reader Unit

Chapter 1 Basic Operation: functional construction, outline of electrical

circuitry, basic sequence of operations

Chapter 2 Original Exposure System: principles of operation of the exposure sys-

tem, timing of operation, disassembly/assem-

bly and adjustment

Chapter 3 Image Processing System: principles of operation of the image process-

ing system, timing of operation, disassembly/

assembly and adjustment

3. Printer Unit

Chapter 1 Introduction: safety of the laser, image formation, auxiliary

processes

Chapter 2 Sequence of Operations: basic operations, outline of electrical cir-

cuitry, basic sequence of operations

Chapter 3 Laser Exposure System: principles of operation of the laser exposure

system, timing of operation, disassembly/

assembly and adjustment

Chapter 4 Image Formation System: principles of operation of the image forma-

tion system, timing of operation, disassem-

bly/assembly and adjustment

Chapter 5 Pickup/Feeding System: principles of operation of the pickup/feeding

system, timing of operation, disassembly/

assembly and adjustment

Download Free Service Manual at http://printer1.blogspot.com

2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

INTRODUCTION

iii

Chapter 6 Fixing System: principles of operation of the fixing system,

timing of operation, and disassembly/assem-

bly and adjustment

Chapter 7 Externals and Controls: principles of operation of the externals/con-

trols, timing of operation, disassembly/as-

sembly and adjustment

Chapter 8 Paper Deck: principles of operation, timing of operation,

disassembly/assembly and adjustment

Chapter 9 Shift Tray: principles of operation, timing of operation,

disassembly/assembly adjustment

4. Troubleshooting

Chapter 1 Maintenance and Inspection: table of periodically replaced parts, table of

consumables/durables, scheduled servicing

chart

Chapter 2 Image Adjustment Basic Procedure:

basic procedure for image adjustment

Chapter 3 Standards and Adjustments: standards and adjustments

Chapter 4 Troubleshooting Image Faults/Malfunctions:

troubleshooting image faults/malfunctions

Chapter 5 Service Mode: how to use service mode, list of service

modes

Chapter 6 Self Diagnosis: codes, causes of errors, timing chart

Appendix: general timing chart, general circuit diagrams

The descriptions are updated from time to time to reflect product improvements, and ma-

jor changes are communicated in the form of Service Information bulletins.

All service persons are expected to familiarize themselves with the contents of this Ser-

vice Manual and Service Information bulletins and acquire a level of knowledge and skill

required to promptly respond to the needs of the field.

Download Free Service Manual at http://printer1.blogspot.com

2000 CANON INC.2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

INTRODUCTION

The following rules apply throughout this Service Manual:

1. Each chapter contains sections explaining the purpose of specific functions and the re-

lationship between electrical and mechanical systems with reference to the timing of

operation.

In the diagrams, represents the path of mechanical drive; where a signal name

accompanies the symbol , the arrow indicates the direction of the electric sig-

nal.

The expression “turn on the power” means flipping on the power switch, closing the

front door, and closing the delivery unit door, which results in supplying the machine

with power.

2. In the digital circuits, ‘1’ is used to indicate that the voltage level of a given signal is

“High,” while ‘0’ is used to indicate “Low.” (The voltage value, however, differs from

circuit to circuit.) In addition, the asterisk (*) as in “DRMD*” indicates that the

DRMD signal goes on when ‘0’.

In practically all cases, the internal mechanisms of a microprocessor cannot be

checked in the field. Therefore, the operations of the microprocessors used in the ma-

chines are not discussed: they are explained in terms of from sensors to the input of the

DC controller PCB and from the output of the DC controller PCB to the loads.

The descriptions in this Service Manual are subject to change without notice for product

improvement or other purposes, and major changes will be communicated in the form of

Service Information bulletins.

All service persons are expected to have a good understanding of the contents of this Ser-

vice Manual and all relevant Service Information bulletins and be able to identify and isolate

faults in the machine.

Download Free Service Manual at http://printer1.blogspot.com

2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

INTRODUCTION

System Configuration

The iR5000/iR6000 may be configured with the following accessories for a fully inte-

grated system:

[1]

[2]

[3] [5]

[6]

[4]

[1] Finisher-F1/Saddle Finisher-F2

[2] Copy Tray-C1

[3] Shift Tray-B1

[4] DADF-D1 (standard)

[5] Paper Deck-G1

[6] Puncher Unit-B1/C1/D1

Figure 1

Download Free Service Manual at http://printer1.blogspot.com

2000 CANON INC.2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

INTRODUCTION

[1] Execution/Memory lamp

[2] Main power switch

[3] Cassette heater switch

[4] Environment switch

Figure 2 Arrangement of the Switches

Important!

Be sure to turn off the main power switch and disconnect the power plug before starting

to disassemble the machine; in addition, keep the following in mind for the work:

1. In printer mode, turning off the main power switch can result in the loss of data being

processed. Check to make sure that the Execution/Memory lamp on the control panel

is off before operating the main power switch.

2. Do not turn off the main power switch while downloading is taking place. Otherwise,

the machine may become disabled.

3. The cassette heater and the drum heater remain powered as long as the environment

switch and the heater switch are on (even when the main power switch is off).

4. Not all power is removed when the front cover is opened if the main power switch is

on, requiring care.

[2]

[4] [3]

COPY Mail BOX SCAN

ON/OFF

Reset

Guide

Interrupt Clear

Error

Processing/Data Power

Start

Stop

123

456

789

0CID

Display Contrast Energy Saver

Additional Function

Counter Check

[1]

Download Free Service Manual at http://printer1.blogspot.com

2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

SYSTEM UNIT
