Candy CTE 104 Manual de usuario
39
EN
This Instruction Manual
contains everything you need
to know about the everyday
running of your machine.
Keep it for future reference.
An Installation and
Maintenance Manual is also
provided which you should
consult during the installation
and routine maintenance of
your washing machine. The
manual also contains
information about possible
working problems, advice
about the wash load, an
explanation of label symbols
and hints about how to remove
stubborn stains.
INTRODUCTION
Read this manual carefully as it offers practical advice to help you get the most from your
washing machine.
1.- CONTROL PANEL
2.- LID
3.- DRUM
4.- DETERGENT COMPARTMENT
5.- FILTER DOOR
6.- FILTER
When contacting a CANDY or one of its Technical Assistance Cen-
tre always refer to the model (see control panel) and the registration
and series numbers which are indicated at the bottom of the machine
under the lower panel or on the warranty certificate. That is to say,
everything that appears in the box.
Providing this information will ensure a faster and more efficient service.
40
INDEX
GUARANTEE..............................................................................
41
TECHNICAL DATA .......................................................................
42
OPENING THE LID – LOADING ................................................
43
DETERGENT DISPENSER ........................................................
44
AUTOMATIC VARIABLE CAPACITY - FUZZY LOGIC
ELECTRONICS ...........................................................................
45
PROGRAMME SELECTION .......................................................
45
CONTROL DESCRIPTION ..........................................................
46
TABLE OF PROGRAMMES .......................................................
50
page
Place the attached «program label»
in the corresponding language in the
rear slot of the panel window.
41
GUARANTEE
1.
The appliance comes with a guarantee certificate.
2.
Complete part Aand keep it in a safe place. It should
be presented to the Technical Assistance Centre in
the event of a repair being necessary along with the
legal receipt issued by the dealer on purchase.
SERVICE
A
42
TECHNICAL DATA
Load capacity ........................................................................
kg.
Voltage .....................................................................................
V.
Wash motor power rating ........................................................
W.
Spin motor power rating ..........................................................
W.
Electropump power rating .......................................................
W.
Heating element power rating .................................................
W.
Max. power input .....................................................................
W.
Fuse ........................................................................................
A.
Water pressure ...................................................................
MPa
Spin speed ..............................................................
r.p.m./min
Water consumption (60º C programme) ................................
lit.
Energy consumption (60º C programme)/5 kg...................
kWh
Energy efficiency rating ..............................................................
5
230
175
340
30
1.950
2.200
10
0,05 min.
0,8 max.
1000
45
0,95
A
CTE 104
43
OPENING THE DRUM
1.
Lift the lid (
A
) and open it completely. Next, open the drum
door following these instructions:
2.
Place your hand on the rear door (
D
).
Hold the catch (
B
) down.
Press the front door (
C
) to unlock the two doors (
C
and
D
).
3.
Open the rear door (
D
). Open the front door (
C
).
Place the washing in the drum.
4.
Close the front door (
C
).
Close the rear door (
D
) so that the front door (
C
)
fasteners fit perfectly into the slots.
5.
Ensure that the doors fit together perfectly and are
properly closed.
ATTENTION:
CLOSE THE DRUM CAREFULLY. OTHERWISE, THE
MACHINE OR THE LAUNDRY COULD GET
DAMAGED.
WASHING
MACHINE LID
FRONT OF THE
WASHING MACHINE
2 min. ATTENTION:
A special safety device
prevents the lid from
being opened
immediately after the
wash has finished. Once
the spin cycle has
finished, wait for 2
minutes before trying to
open the lid.
FRONT OF THE
WASHING MACHINE
FRONT OF THE
WASHING MACHINE
FRONT OF THE
WASHING MACHINE
44
Note: WE RECOMMEND USING DETERGENT IN POWDER FORM WHENEVER
A PRE-WASH IS PROGRAMMED.
DETERGENT DISPENSER
The detergent dispenser is divided into 4 compartments:
• Compartment I, is for prewash powder detergent. The recommended quantity is
60 gm of detergent (for 5 kg of laundry).
• Compartment II, is for wash powder detergent. The recommended quantity is 120
gm of detergent (for 5 kg of laundry).
• The compartment is for bleach. The recommended quantity is 7 cl.
• The compartment is for fabric conditioners, scenting agents and special
additives. The recommended quantity is 5 cl.
The detergent compartment has two guidance lines:
• RECOMMENDED (lower line).This indicates the recommended level for the prewash
and wash compartments.
• MAX. This indicates the maximum level which should never be exceeded.
MAXIMUM
(wash)
MAXIMUM
(bleach and scenting agent)
MAXIMUM
(prewash)
RECOMMENDED
45
AUTOMATIC VARIABLE CAPACITY – FUZZY LOGIC ELECTRONICS
This machine has electronics that automatically process all stages of the wash to
ensure exceptional results and at the same time save you time and money.
Once a programme has been selected, the machine optimises the following elements
depending on the wash load and type of fabric:
-quantity of water and power consumption
-wash time
-drum rotation rate
-rinse efficiency
The washing machine also:
-detects suds and increases the amount of rinse water if necessary
-adjusts spin speed according to load distribution, thus forestalling any imbalance in
the mechanism.
HALF LOAD
APPROX.
5%
20%
20%
EXAMPLE: COTTONS PROGRAMME AT 60º
LOAD
POWER KWH
TIME MIN.
WATER LITRES
FULL LOAD
(5 KG)*
0,95
134
45
SMALL LOAD
APPROX.
30%
30%
50%
The programme duration indicated is APPROXIMATE.
GAIN WITH REGARD TO
5 kg CYCLE
GAIN WITH REGARD TO
5 kg CYCLE
PROGRAMME SELECTION
WHEN SELECTING A PROGRAMME, ENSURE THAT THE START/STOP BUTTON IS
NOT ACTIVATED.
To select a programme:
• Programmes are selected by means of the corresponding control knob (A). See the
table of programmes.
• Select the wash temperature by means of the corresponding control knob.
• Select spin speed
• Select the different options available by pressing the corresponding buttons.
46
A
B
C
D
E
G
H
p
CONTROL DESCRIPTION
CTE 104
Programme selector knob ...........................................................
Temperature selector knob .........................................................
Spin selector ...............................................................................
Easy-iron button .........................................................................
Super rinse button ......................................................................
ON/OFF pilot light .......................................................................
ON/OFF button ...........................................................................
Reference indicator ....................................................................
47
USE OF THE SELECTION CONTROLS
A
. PROGRAMME SELECTOR KNOB
This control allows you to select the washing programmes.Turn
the selector so that the number or symbol of the desired
programme is opposite the reference indicator (p).
ALWAYS ROTATE the control in a clockwise direction, never in
an anticlockwise direction. Do not press the “on” button (H)
before selecting the programme
.
If you wish to modify the position of the control or select another
programme once a cycle has commenced, press the On/Off
button. Press again to recommence once the modification has
been completed.
B
. TEMPERATURE SELECTOR KNOB
THE KNOB CAN BE TURNED IN BOTH DIRECTIONS.
This control allows you to select the temperature of your wash.
If you wish to carry out a cold wash, turn the knob until the cold
symbol coincides with the selector mark.
Do not exceed the maximum temperature recommended for
each cycle in the table of programmes.
C.
SPIN SELECTOR
THE CONTROL CAN BETURNED IN BOTH DIRECTIONS
This is one of the most important parts of the wash cycle.This
machine has a spin cycle flexible enough to meet all
requirements.Turn the selector to reduce maximum and
intermediate spin speeds. Spin can even be eliminated
altogether (setting ).
NB:THE ELECTRONICS INTHE MACHINE DISABLETHE
SPIN FUNCTION WHEN THE LOAD IS UNEVENLY
DISTRIBUTED, AND LIMIT VIBRATIONS AND NOISE
DURING WASHING.
48

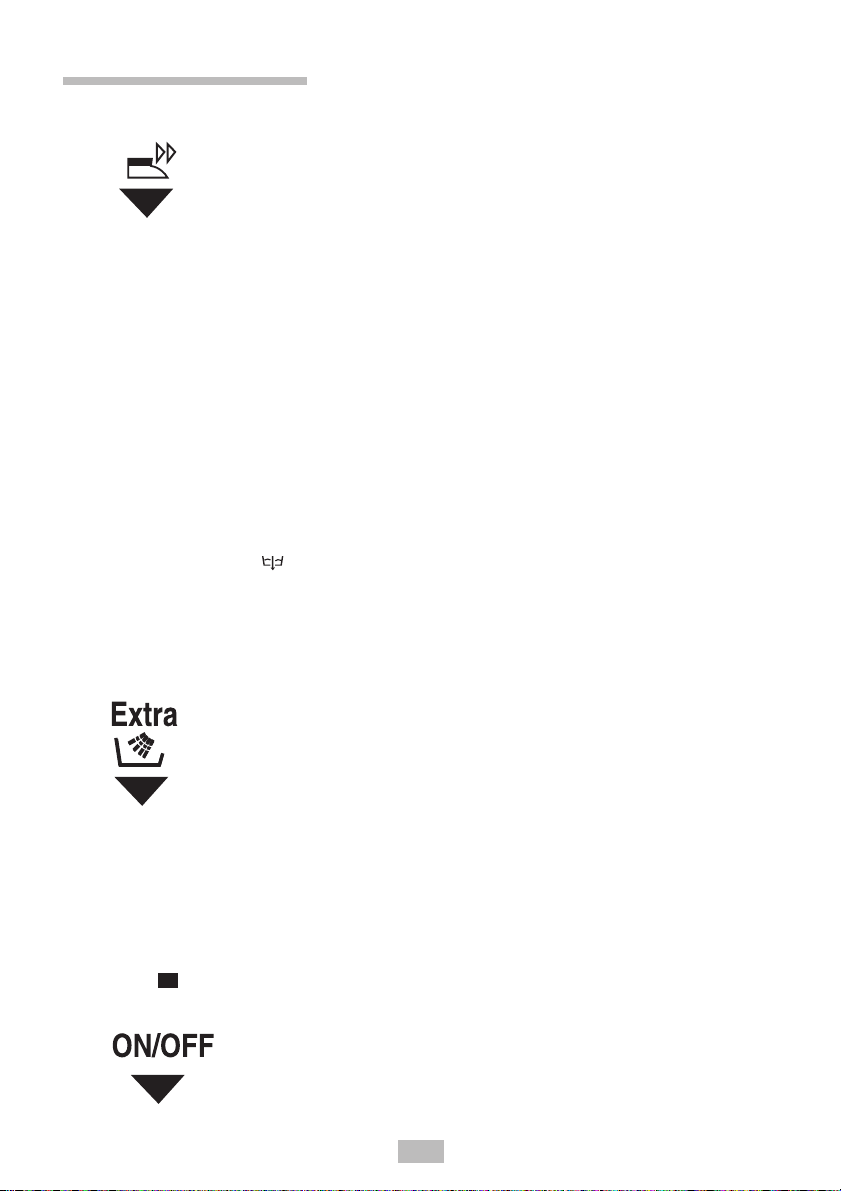

USE OF THE SELECTION CONTROLS
D.
EASY IRON BUTTON
This function helps reduce creasing, depending on the programme
selected and the type of fabric washed.
MIXED FABRICS:
- the water is cooled gradually to prevent heat shock
- the drum is not moved mechanically during emptying
- a mild spin is used to ensure that fibres are smoothed out as much
as possible.
DELICATE FABRICS (OTHER THAN WOOLLENS):
-The machine operates as indicated above and stops with the drum full of water after the
last rinse.
WOOLLENS:
-The machine stops with the drum full of water.
To complete the cycle, proceed as follows
1.- Disengage the Easy Iron (wrinkle reduction) button.The cycle will then run to completion,
with emptying and spin.
2.- Or just empty the drum:
- stop the machine by pressing Start/ Stop.
- set the programme control to OFF.
- select programme .
- wait 5 seconds.
- start up the machine.
E.
SUPER RINSE BUTTON
The new electronic system engaged by this button activates a special
rinse cycle. More water and a new combination of drum rotation
movements during filling and emptying ensure that washing is perfectly
rinsed.
This function is designed for people with sensitive, delicate skins
in whom even tiny amounts of bleach could cause irritation or
allergic reactions.
It is also recommendable for washing baby clothes, heavily soiled
clothes which need large amounts of bleach and spongy articles
which tend to retain bleach.
G.
ON/OFF PILOT LIGHT
H
.ON/OFF BUTTON
