Candy AQUAMATIC8T Manual de usuario
31081631 AQUAMATIC8T
Service Manual
Copyright 2004 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin

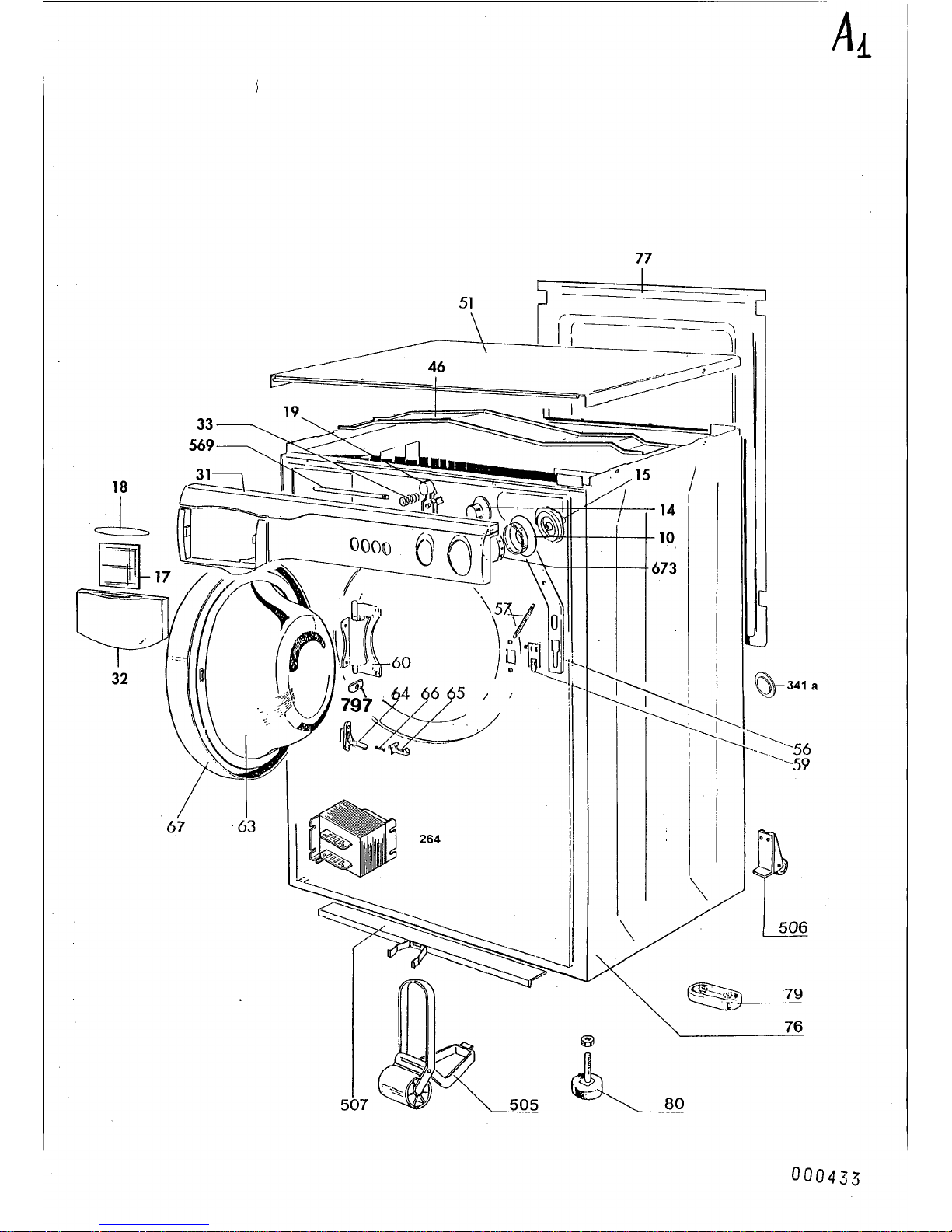

Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 31081631 AQUAMATIC8T 9842 (16/10/1998)
10 Timer/select. knob 91600528
14 Temp.regulation knob 91600544
15 Cam disc 92959931
17 Progammes card 91600053
17t Progammes card POL. 91626945
18 Progammes.card support 91600585
31 Control panel 92962760
32 Dispenser drawer front 92934033
46 Upper cross piece 92894914
51 Work top 92894930
56 Latch 92891696
57 Spring 92482793
58 Latch block 91600510
59 Latch guide 92676303
60 Hinge 92734813
64 Catch holder 92676287
65 Door catch 92729821
66 Spring 92483411
67 Glass door with frame 91942128
76 Cabinet assy 92991835
77 Rear panel 92894906
79 Rear foot 92606474
80 Front foot 92696475
101 Dispenser drawer 92959899
109 Dispenser bottom section assy 92959873
110 Dispenser top section 92959881
111 Water injector nozzle 92959915
112 Distribution connecting rod 92895242
113 Lever 92959907
114 Driving lever 92691682
116 Cam 92621614
Copyright 2004 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 31081631 AQUAMATIC8T 9842 (16/10/1998)
118 Spring 92483148
131 Hose clip 92470020
132 Valve hose cold water 92131366
133 Hose clip 92470012
134 Solenoid valve 92210368
138 Drain hose 90456310
138b Hose clamp 92895051
142 Fill hose 92250869
151 Timer 92746940
152 Switch assy 92747773
152a Opening delay 92129592
153 Pressure switch 92747674
157 Harness 90483223 0221 (20/05/2002)
157 Harness 41002439 0221 (20/05/2002)
161 Drain/recycle pump 92747799
164 Anti jamming filter radio 92748581 0221 (20/05/2002)
164 Anti jamming filter radio 91212795 0221 (20/05/2002)
202 Drum 92794510
205 Drum shaft assy 92999325
212 Asbestos washer 92439512
214 Selflocking nut 92427574
215 Tub gasket 92131358
217 Seal retainer 92445212
218a Bearing 92440189
219 Bolt 92417617
221 Nut 92424209
224 Bearing 92440197
225a Gasket 92603968 0220 (16/05/2002)
225a Gasket 92445626 0220 (16/05/2002)
226 Shoch absorber bearing 92607100
228 Shock absorber bearing 80006661
230 Tub gasket clip 92764612
Copyright 2004 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 31081631 AQUAMATIC8T 9842 (16/10/1998)
230a Tub gasket clip 92759463
237 Bracket 92864370
242a R/H support spring 92484385
242b L/H support spring 92484393
242c R/H bush 91600619
245 Asbestos washer 92438720
246 Bolt 92419399
247 Upper balance weight 92544022
248 Lower balance weight 91501445
250 Damper pads 92697838
251 Shoch absorber spring 92483205
256 Clamp 92851302
271 Door gasket 92606771 0311 (14/03/2003)
271 Door gasket 41006628 0311 (14/03/2003)
272 Discharge pipe 92131317
273 Fill pipe 92607928
274 Pressure switch air chamber 92673847
275 5x8 hose 92643486
280 Hose clip 92470269
281 Shock Absorder grommet 90421165
286 Heater 92213933
287g Thermostat 92747690
288 Temperature regulator 92744697 0221 (20/05/2002)
288 Temperature regulator 91200287 0221 (20/05/2002)
290 Drum pulley 92734953
292 Drive belt 92131333
292b Bottom panel 41003014 0221 (20/05/2002)
299 Hose 92959923
301 Hose clip 92470327
304 Gasket 92447119
305 R/H plate 92864362
308 Front half tub 92962349
Copyright 2004 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 31081631 AQUAMATIC8T 9842 (16/10/1998)
309 Rear half tub 92962356 0220 (16/05/2002)
309 Rear half tub 41006029 0220 (16/05/2002)
473 Commutator motor 91202424
479 Electronic control 92743111 0221 (20/05/2002)
479 Electronic control 91214551 0221 (20/05/2002)
483a Brush with brush holder 92126721
488 Rivet 92466655
491 Mains cable 92747831 0221 (20/05/2002)
491 Mains cable 91200194 0221 (20/05/2002)
529 Evaporator discharge hose 92131325
547 Module protection 92608777
617 Cont.tray fix. bracket 92724665
673 Timer knob cover 92929850
734 Timer protection 91600833
797 Hinge plaque 92895390
809 Cabinet hole stopper 90415753 0221 (20/05/2002)
828b Tach.coil 91950881
829 Metallic cover 91950899
830 Drain hose protection 91607739 0205 (01/02/2002)
839 Clip 92470384
999 Wiring diagram 92085638 0221 (20/05/2002)
999 Wiring diagram 41002435 0221 (20/05/2002)
