INSTALLATION INSTRUCTIONS

NOUVEAU

NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN FOR 24 HOURS

QUESTIONS OR CONCERNS CONTACT CANARM AT:

1-800-265-1833 (ENGLISH)

1-800-567-2513 (FRENCH)

Monday through Friday 8:00 a.m. to 5:00 p.m. EST

IMPORTANT

FOR YOUR RECORDS, RECORD AND KEEP

THE FOLLOWING INFORMATION

Date of purchase:

Place of purchase:

Model on carton:

I.D.# (bottom of carton):

UPC (bottom of carton):

1. Turn off power at main electrical service box before starting installation.

2. Electrical connections must comply with local code ordinances or

national electrical codes.

3. Make sure the installation site you choose allows the fan blades to rotate

freely without any obstructions.

4. When mounting the fan on a ceiling outlet box, use a metal octagon box.

The outlet box and its support must be able to withstand the moving

weight of the fan (minimum of 35 lbs.).

SAFETY PRECAUTIONS

TOOLS AND MATERIALS REQUIRED

Adjustable wrench

Phillips screwdriver

Blade screw driver

Step ladder

Wire cutters

Wiring supplies as required

• to reduce the risk of personal injury DO NOT bend the blade brackets

when installing the brackets, balancing the blades or cleaning the fan.

Also, DO NOT insert foreign objests in between rotating fan blades.

• mount only to an outlet box marked acceptable for fan support

• mount with the lowest moving parts at least 2.1 meters (6.9 feet) above

oor grade level.

• DO NOT operate reversing switch while fan blades are in motion. Fan

must be turned off and rotating blades stopped, reverse chain pull, the

speed chain pulled again to start in the opposite direction.

WARNING

pg. 2

pg. 3

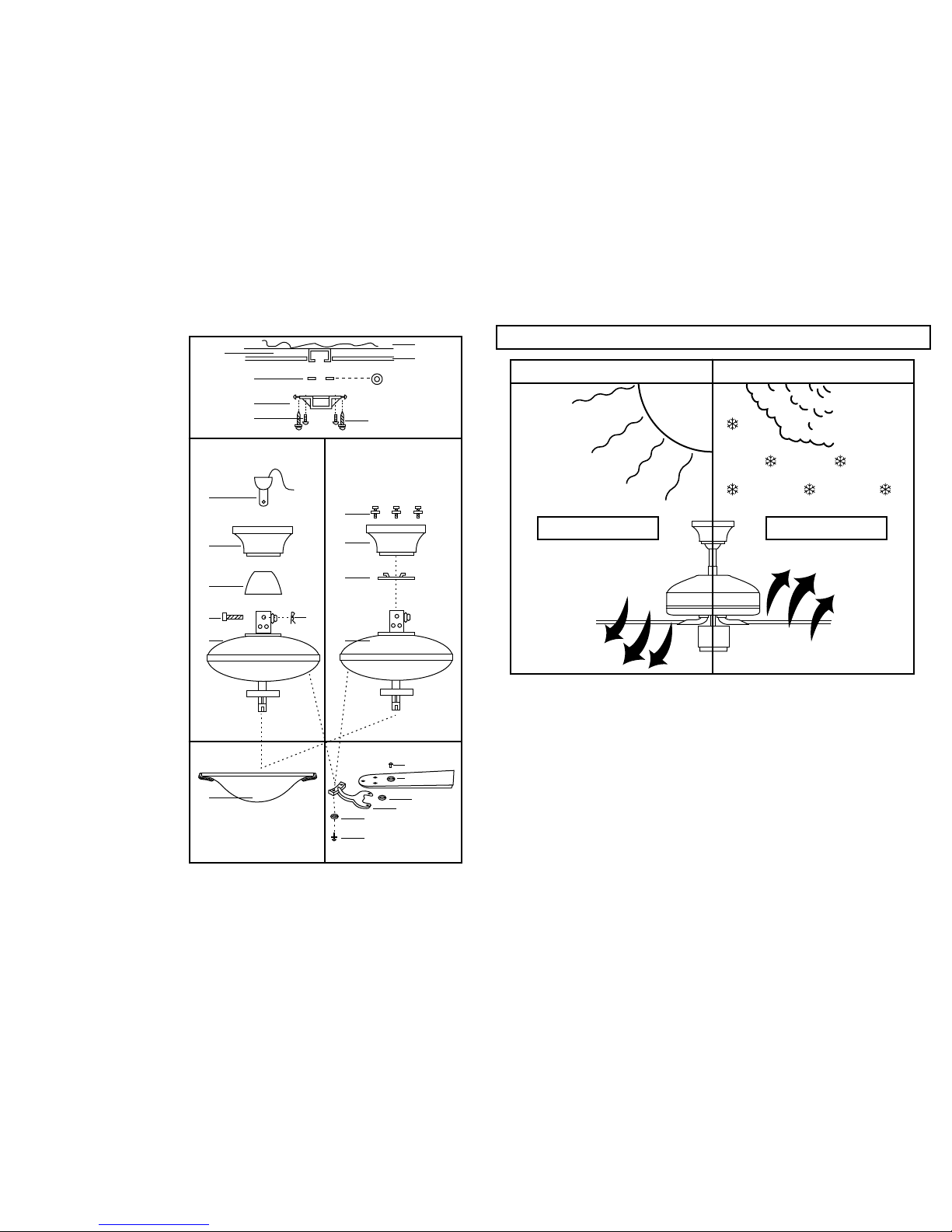

ASSEMBLY DRAWING

1. wooden joist

2. metal outlet box (not provided)

3. ceiling

4. rubber gasket

5. mounting bracket

6. outlet box screws

7. wood screws & at washers

8. downrod

9. canopy

10. rubber ring

11. motor housing

screws & washers

12. bolt

13. cotter pin

14. motor

15. blade bracket screw

16. bre washer

17. blade

18. rubber washer

19. blade bracket

20. lock washer

21. motor screw

22. light kit

23. yoke cover

NOTE: Item #18 is only supplied on fans with high gloss blades

pg. 4

INSTRUCTIONS

• the slide switch is for FORWARD/REVERSE rotation

COLD weather set to FORWARD (clockwise) rotation.

*Airﬂow will be directed upward, circulating warm air

WARM weather set to REVERSE (counter-clockwise) rotation.

*Airﬂow will be directed downward, circulating cool air

REMOTE CONTROL - install 9V battery (not included)

Operations on remote control:

CEILING FAN OPERATION

HI - fan high speed

MED - fan medium speed

LOW - fan low speed

OFF - fan off

LIGHT ON/OFF - light on/off

*DIMMER - light dimmer

*Hold down to increase or decrease the light. The light has a memory function so the

light will saty at the same brightness as the last time it was turned off.

DOWNDRAFT UPDRAFT

reverse rotation forward rotation

WARM WEATHER COLD WEATHER

20 19 18

16 17

WITH DOWNROD

WITHOUT DOWNROD

pg. 5

• obtain fan motor

• remove cotter pin and bolt from yoke

• loosen jam screw in yoke until it is ush with the inside surface

• obtain dowrod and canopy (and yoke cover - optional)

• place downrod inside canopy (and yoke cover - optional)

• route wires and safety cable exiting motor through canopy and downrod

• insert bolt through hole in shaft and downrod

*be careful not to damage or cut the fan wires

• secure bolt with cotter pin

• secure downrod in position by tightening jam screws and lock nut

• place glass motor housing onto motor top

• slide yoke cover (optional) over yoke

1. MOUNTING

*NOTE: all set screws must be checked and re-tightened where

necessary after installation.

INSTALLATION

A. DOWNROD MOUNT

jam screw

lock nut

motor

yoke cover

(optional)

jam screw

yokecotter pin bolt

yoke

jam

screw

pg. 6

INSTALLATION

• remove rubber ring from canopy.

• place canopy on fan housing by aligning 3 larger holes of canopy over

3 existingscrews on the motor housing.

• secure canopy to motor housing by placing 3 screws and washers

(supplied in hardware package) in the 3 smaller holes in the canopy.

1. MOUNTING (CONTINUED)

B. FLUSH MOUNT

• secure rubber gasket and mounting bracket to metal outlet box using outlet box screws

• secure once more by placing two wood screws and at washers (supplied) through

outer slots of mounting bracket and into the wood joist. Leave one of the wood screws

sufciently loose to allow the safety cable to be looped around before nal tightening.

2. INSTALL MOUNTING BRACKET

wood screws &

at washers

outlet box

screws

mounting

bracket

rubber gasket

metal outlet box

wood joist

ceiling

canopy

rubber ring

pg. 7

A. DOWNROD MOUNT

• obtain fan and place hemisphere of downrod into mounting bracket

• rotate fan until the slot in the hemisphere locks into the tab of the

mounting bracket

• place looped end of safety cable over the wood screw and at washer

not previously tightened (in Step 3)

• tighten above wood screw securing the safety cable

3. HOOKING UP SAFETY CABLE

safety

cable

hemisphere

mounting

bracket

safety

cable

tab

slot

hemisphere

mounting

bracket

INSTALLATION

B. FLUSH MOUNT

• obtain fan and align one of the two oblong holes in canopy with the pin on

the mounting bracket.

• hang motor on pin.

• place looped end of safety cable over the wood screw and at washer

not previously tightened (in step 2).

• tighten above wood screw securing the safety cable.

oblong holes

canopy

pg. 8

This fan is equipped with a canopy type remote control unity for controlling the

fan speeds and light kit. Please refer to the instruction sheet packed with the

control unit for more information about the wiring and installation.

4. ELECTRICAL HOOKUP

INSTALLATION

NOTE: Once ground wires are connected, carefully tuck wires and marrette into

the metal outlet box making sure that the wires are clear of the hemisphere and

downrod when positioning in the moutning bracket.

*If you want a replacement remote control (CQ002), please contact your dealer

or your customer service 1-800-265-1833

120V SUPPLY CIRCUIT

receiver

blue

black

white

black

white

black

ground green

ground to downrod

outlet

box

pg. 9

5. MOUNTING FAN ASSEMBLY

INSTALLATION

• loosen two screws and washers (B) on mounting bracket which correspond

with the slots in the canopy

• remove two screws and washers (A) on the mounting bracket which

correspond with the oblong holes in the canopy.

• position the canopy to the mounting bracket, aligning slots to the screws (B)

then twist to lock

• position and tighten two screws and washers (A) then tighten the two screws (B)

pg. 10

6. MOUNTING BLADE BRACKETS TO BLADES

INSTALLATION

A. “DIECAST” BLADE BRACKETS

• obtain hardware package containing blade bracket screws and washers.

• place bre washer over screw.

• place screw through blade hole and slip a rubber washer over the screw.

• align screw with blade bracket and secure.

• repeat for other two screws.

• once all blade brackets are attached to blades double check that screws are tight.

NOTE: Rubber washers only supplied on those fans with high gloss blades

B. “MEDALLION STYLE” BLADE BRACKETS

• obtain hardware package containing blade bracket screws and washers.

• place bre washer over screw.

• place rubber washers in holes of blades.

• position bottom blade bracket and top blade bracket with blade.

• start screws and bre washers by placing into top blade bracket and blade

and threading into the bottom bracket.

• tighten screws only after the 3 screws have been started and blade brackets

are straight on the blades.

blade bracket screw

blade bracket

blade

bre washer

rubber washer

bre washer

blade bracket screw

blade

bottom

blade bracket

top

blade bracket

rubber washer

pg. 11

7. MOUNTING BLADE BRACKETS TO BLADES TO MOTOR

INSTALLATION

NOTE: Choice of 4 or 5 blades (option on some fans)

Some fans offer the option of four or ve blade operation. In these cases there will

be two rows of screw holes in the motor casing. The inside row will contain 8 holes

for 4 blades and the outside row will contain 10 holes for 5 blade use.

• obtain hardware containing motor screws and lock washers.

• place lock washers over motor screws, position motor screws in blade

brackets,and secure to motor.

• make sure all screws are tightened securely.

NOTE: On those fans with an extra

wide switch housing cover there will

be a cut out section provided allowing

access to screws when installing the

blade brackets.

NOTE: Fan comes with THREE RUBBER

STOPS on motor for shipping purposes

only. Remove stops before installing the

blades to the motor.

inside holesoutside holes

motor

lock washer

motor screw

cut out section

switch housing

cover remove rubber stops

pg. 12

8. DETACHABLE LIGHT KITS (FIXED STYLE SWITCH HOUSING)

INSTALLATION

• loosen all 3 screws, removing only one

• align 2 remaining screws with keyhole slots in metal pan of light kit

• insert metal pan over two screws, twisting to locked position

• reinstall single screw that was removed.

Make sure wires are fed through hole in pan.

WARNING: BE SURE TO TURN OFF POWER BEFORE INSTALLING

• loosen wire hold down, move all wires as far from bulb as possible,

retighten wire holddown over 2 wires from fan

• connect 2 wires from fan to 2 wires on light kit (male to female) (female to male)

• install bulb supplied without touching bulb with ngers

• 3 bolts on glass can be inserted into key holes in metal pan

• the glass has to be turned clockwise to lock glass into pan

wire hold down

screws

glass

bulb

pg. 13

TROUBLE SHOOTING

TROUBLE SUGGESTION

Fan will not start • check fuses and circuit breakers

• check wiring connections to the fan

• check wiring connections in switch housing

*CAUTION: Turn power off for last two items

Fan sounds noisy • check to make sure that all screws in motor housing are snug

• check to make sure that blade bracket screws are tight

• check to make sure marrettes in switch housing are not

rattling against the wall of the switch housing

• if fan has a light kit make sure switch housing, screws and

set screws are tight

• some fan motors are sensitive to signals from solid state

variable controls. If solid state controller is used, change to

alternative control (See a Canarm representative for a list of

available controls.)

• allow a 24 hour break in period to eliminate noises

Fan wobbles or

shakes excessively

• check that all blades are screwed rmly into blade brackets

• check that all blade brackets are secured rmly to motor

• check distance from tip of blades to ceiling. Gently bend

the blade brackets up or down until all distances are the same

• check distance between blade tip to blade tip.

All measurements should be equal. Loosen blade screws

and position blade until even then re-tighten

• check that the downrod hemisphere notch is engaged in canopy

• check to make sure that jam screws in downrod are tightened

• make sure canopy and mounting bracket are tightened

securely to wooden joist

• make sure warpage has not occurred in wooden blades.

If so, contact the Canarm customer service department for

replacement parts

• occasionally slight weight variations can be caused by

moisture during transportation. All fans are supplied with

balancing kits and installation instructions to eliminate this

problem

CANARM LTD.

2157 Parkedale Ave.

Brockville, Ontario

K6V 5V6

PH: 613-342-5424

FX: 613-342-8437

CANARM LTÉE.

2555 Rue Bernard Lefebvre

Laval, Quebec

H7C 0A5

PH: 450-665-2535

FX: 450-665-0910

ROYAL COLLECTION FANS LIMITED LIFETIME WARRANTY

“THANK YOU” for purchasing a Canarm product. It is our policy to furnish you

with high quality products at a fair price. With proper installation your fan should

provide you with years of money saving comfort.

The electrical motor in this product is warranted against defects in workmanship

and material for as long as the original purchaser owns the product. All other parts

ie: (switches, capacitors,blades, blade brackets and the nish) are warranted for a

period of one year.

All defective product returned to Canarm will require a RA# (return authorization

number) which can be obtained by calling Canarm Customer Service Department

at 1-800-265-1833. Returned product must be accompanied by a copy of your

proof of purchase.

All product being returned must be shipped freight prepaidto Canarm and Canarm

will in turn return the product back prepaid.Canarm does not cover the cost to

remove or re-install any defective product.

WARRANTY VOID: In cases of alteration, abuse, installation not in accordance

with instructions or REMOVAL of the cUL Sticker.

Tabla de contenidos

Otros manuales de Admirador de Canarm

Canarm

Canarm PALISADE Manual de usuario

Canarm

Canarm Industrial Manual de usuario

Canarm

Canarm CA20AG-FVD1 Manual de usuario

Canarm

Canarm 3LEC Series Manual de usuario

Canarm

Canarm Tri-Lite HVLS SERIES Guía

Canarm

Canarm HUGGER STYLE Series Manual de usuario

Canarm

Canarm PLF Series Manual de usuario

Canarm

Canarm PENTA-LITE 6LEC Series Manual de usuario

Canarm

Canarm 3000M Series Manual de usuario

Canarm

Canarm FGI18 Manual de usuario

Canarm

Canarm DPL-12 Manual de lista de piezas

Canarm

Canarm CITIE Manual de usuario

Canarm

Canarm AgSystems PRF36 Manual de usuario

Canarm

Canarm SD08-EC Manual de usuario

Canarm

Canarm AgSystems MAX-AIR PLUS Manual de usuario

Canarm

Canarm AgSystems FGC Series Manual de lista de piezas

Canarm

Canarm PACIFIC WIND Manual de usuario

Canarm

Canarm Tri-Lite 3LMPEC Manual de usuario

Canarm

Canarm AgSystems PF52 Manual de usuario

Canarm

Canarm DUAL MOUNT SERIES Manual de usuario

Canarm

Canarm PENTA-LITE 5LEC Series Manual de usuario

Canarm

Canarm HAF18 Manual de usuario

Canarm

Canarm CPF Series Manual de usuario

Canarm

Canarm HVR Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
