Camo LEVER Instrucciones de funcionamiento
How To Use the LEVER™
800-968-6245 •INFO@CAMOFASTENERS.COM •WWW.CAMOFASTENERS.COM GRAND RAPIDS, MI 49519
WWW.NATIONALNAIL.COM

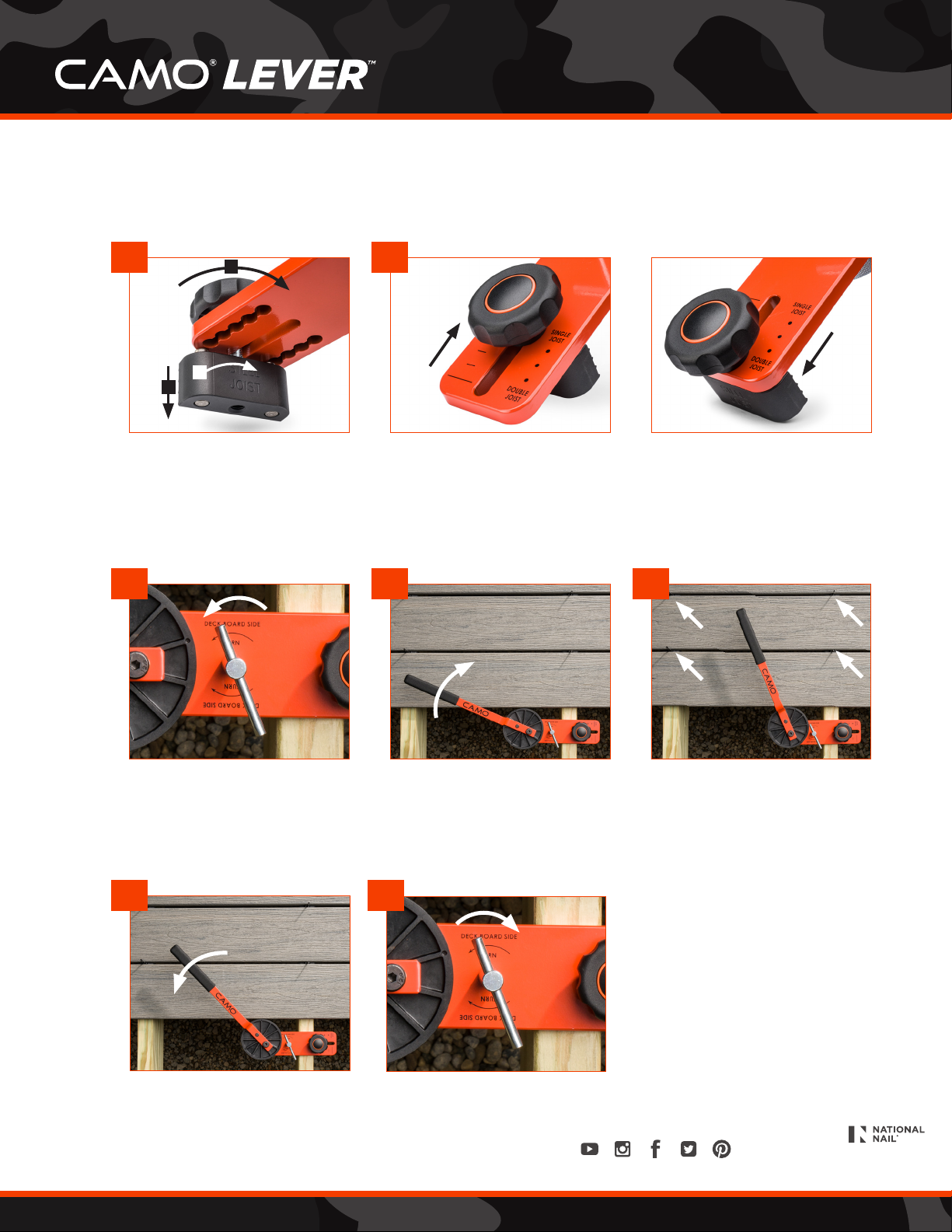

HOW TO ASSEMBLE
A- Straighten the handle.
B- Align both holes by
rotating the board cam.
1
Use supplied hex key to
securely tighten the screw.
3
Insert flathead screw from
the bottom of board cam.
2
A
B
BOARD CAM
CUSHIONED
NON-SLIP
HANDLE
PIVOT PIN
JOIST ADJUSTMENT
KNOB
2-SIDED
STOP BLOCK
JOIST CAM
How To Use the LEVER™
800-968-6245 •INFO@CAMOFASTENERS.COM •WWW.CAMOFASTENERS.COM GRAND RAPIDS, MI 49519
WWW.NATIONALNAIL.COM
Apply pressure by moving the handle towards
the deck board. Do not over-tighten as the
boards can buckle.
Leave LEVER in place until all clips are
fastened.
Place LEVER on the joist and tighten
the joist cam with the Pivot Pin.
A - Loosen joist knob until the stop
block disengages.
B - Rotate block so the word on the
side facing the joist cam matches
the joist material.
4
2
Adjust the stop block to the proper joist width and tighten the knob.
SET THE JOIST TYPE -
WOOD OR METAL SET THE JOIST WIDTH
LOCK-IN FASTENPOSITION
REMOVE
3
1
7
RELEASE
6
SINGLE JOIST DOUBLE JOIST
A
A
B
5
LOCK-IN GROOVED BOARDS & CLIPS
Loosen the joist cam and remove
LEVER.
Release pressure by moving the
handle away from the deck board.
How To Use the LEVER™
800-968-6245 •INFO@CAMOFASTENERS.COM •WWW.CAMOFASTENERS.COM GRAND RAPIDS, MI 49519
WWW.NATIONALNAIL.COM
STRAIGHTEN WARPED BOARDS
Apply pressure by moving the handle
towards the deck board.
Keep turning until the board is in
desired fastening position.
Place LEVER on the joist and tighten
the joist cam with the Pivot Pin.
Leave LEVER in place until all
fastening is complete.
A - Loosen joist knob until the stop
block disengages.
B - Rotate block so the word on the
side facing the joist cam matches
the joist material.
Loosen the joist cam and remove
LEVER.
4
2
Adjust the stop block to the proper joist width and tighten the knob.
SET THE JOIST TYPE -
WOOD OR METAL SET THE JOIST WIDTH
BEGIN BENDING CLOSE THE GAPPOSITION
FASTEN REMOVE
3
6
1
8
RELEASE
Release pressure by moving the
handle away from the deck board.
7
SINGLE JOIST DOUBLE JOIST
A
AB
5
