CamFive EMB HT1501 Manual de usuario
HT1501 / HT1502
INSTALLATION
MANUAL
2
Unboxing
Pág.
Pág.
Pág.
Pág. Pág.
Mounting the Base
Mounting the Worktable
Installing
the thread Rack
Installing
the thread Rack
3
4
6
12 14
3
Unboxing
On all four sides of the
crate there are bolts as
seen below that need
to be removed prior to
unboxing your new 1501
embroidery.
Once all bolts
are removed,
two people are
required in order
to lift the box
o of the base
and then the
machine can be
unwrapped.
2
1
4
Mounting the Base
The 1501 embroidery
machine comes
with a base,
and a worktable
that needs to be
mounted prior to
using the machine.
The parts should
look like this:
In order to
mount the base
you will need
the following to
secure the base
properly:
1
2
5
Prompt the two
sides with wheels
and use the
bigger piece for
the bottom of
the base. Once
the bottom of the
base is secured
and tightened, you
are able to use
the two smaller
parts for the sides
of the base as
shown below:
The finished
base should
look like this:
3
4
6
Mounting the Worktable
If you require
the worktable,
in order to mount
it you need to
use the following
parts to complete
the table:

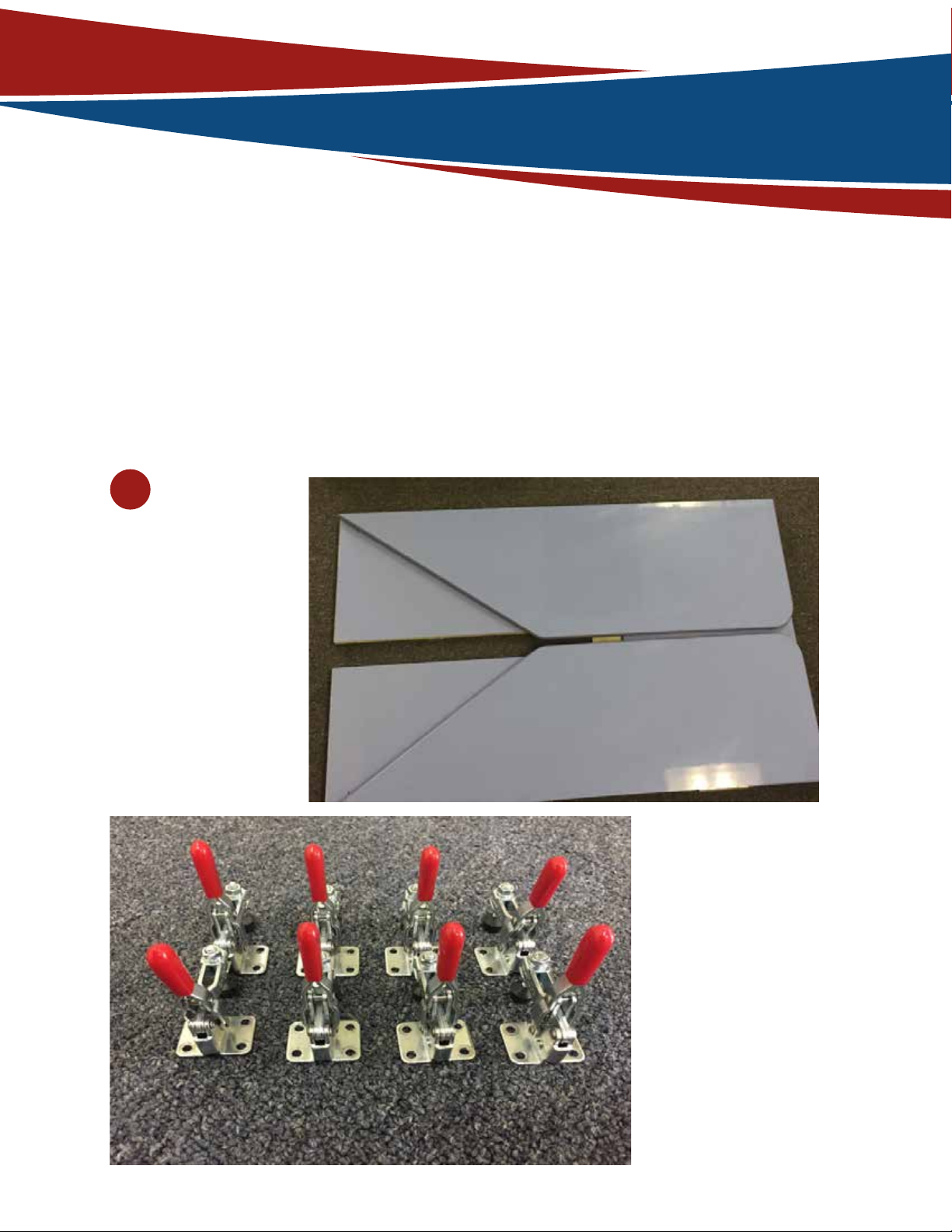

1
Worktable x1
Table Locks x8
7
2
Table Lock Plates x6
Screws x44
Once the plates
and table locks
are screwed into
the worktable,
the final
outcome should
look like this:
8
3
Now with the
assistance of
another person,
you must lift the
machine onto the
base, remember
to place the
four black round
washers prior
to mounting
the machine
and secure the
machine to the
base with these
bolts:
The Washers will
looks like this
and it is fastened
through the
bottom once the
machine is placed
on the base.
9
4
In order to
place the
worktable onto
the embroidery
machine, you
must first
remove the hat
hoop if it is on:
Once the
screw
is loose,
twsit and
pull the
hat hoop
o
10
5
7
6
Now slide the
table with the
nose towards
the machine, flat
surface on top
and table locks on
the bottom.
Fasten
the table
in the
bottom:
Then use
the following
screws in order
to screw the
table in place:
