CAME FAST KIT Manual de usuario

CAME UNITED KINGDOM LTD

UNIT 3,

ORCHARD PARK INDUSTRIAL ESTATE,

TOWN STREET, SANDIACRE,

NOTTINGHAM NG10 5BP

TEL: 0115 921 0430

FAX: 0115 921 0431

INTERNET - www.cameuk.com

E-MAIL - [email protected]

TECHNICAL

HELPLINE

0115 921 0430

FAST KIT

Installation Instructions

FAST-P, Pair of gates automation kit

Kit consists of :

2 x fast motors 240V

1 x built-in control panel 240V

1 x radio receiver

1 x tuned antenna

2 x remote control handsets

1 x pair safety photocells

1 x flashing “in movement” light

Full installation guide

FAST-S, Single gate automation kit

Kit consists of :

1 x fast motor 240V

1 x built-in control panel 240V

1 x radio receiver

1 x tuned antenna

2 x remote control handsets

1 x pair safety photocells

1 x flashing “in movement” light

Full installation guide

UNITED KINGDOM LTD.

LOCK

UNLOCK

RG58

LOCK

UNLOCK

CAME

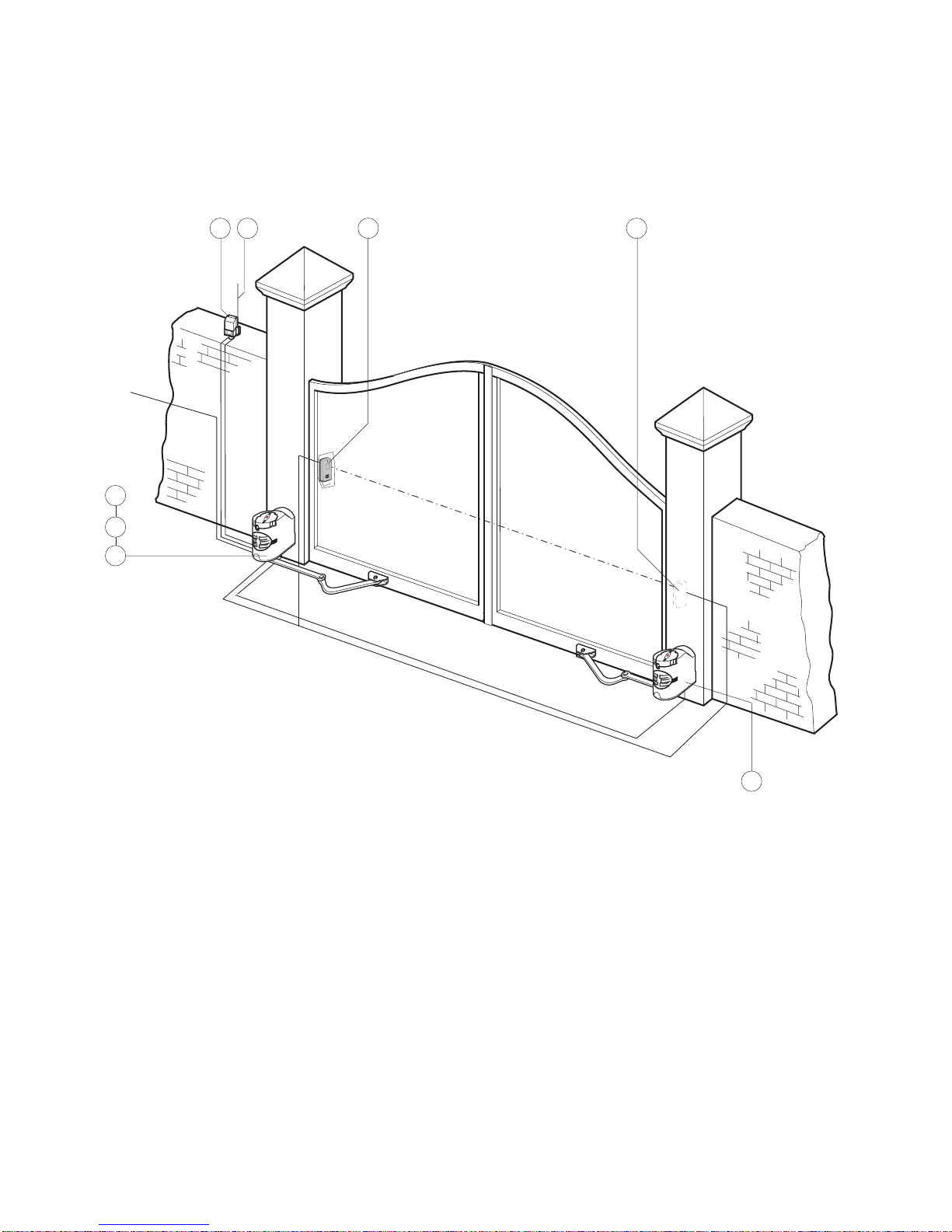

Standard installation

45 7 7

INTRODUCTION

These instructions will show you how to install a FAST gate kit to a pair of gates.

Please read these instructions and diagrams carefully before starting any work.

Installation Type

1 - Gear Motor

Accessories:

2- Control panel

3- Radio receiver

4- Antenna

5- Flashing light indicating door movement

7- Safety photocells

UNDER NO CIRCUMSTANCES SHOULD THIS EQUIPMENT BE OPERATED UNLESS FITTED TO A GATE.

FAILURE TO COMPLY WILL INVALIDATE THE GUARANTEE.

INSTALLATION INSTRUCTIONS

CONTENTS

1) Stage 1:- Civil & Mechanical Section Page

1.1 PRE-INSTALLATION CHECK 3

1.2 MOUNTING THE MOTOR BASE PLATE 4

2) Stage 2:- Wiring & Electrical

2.1 BASIC CABLE LAYOUT 6

3) Stage 3:- Installation Section

3.1 INSTALLING THE MOTORS 8

3.2 INSTALLING THE DRIVE ARMS 9

3.3 ADJUSTING THE OPEN & CLOSED CAMS 10

4) Stage 4:- Wiring the Motors

4.1 ELECTRICAL CONNECTIONS TO THE ZF1 BOARD WITH PAIR OF GATES 12

4.2 ELECTRICAL CONNECTIONS TO THE ZF1 BOARD WITH SINGLE\ GATE 13

4.3 ELECTRICAL CONNECTIONS 14

5) Stage 5:- Commissioning the control Panel

5.1 INITIAL WIRING & CONTROL PANEL SETUP 16

5.2 OPENING & CLOSING THE GATES 17

5.3 CONTROL PANEL ADJUSTMENTS 18

5.4 AUTOMATIC CLOSE & SAFETY PHOTOCELLS 19

5.5 PROGRAMMING THE REMOTE CONTROLS TO THE CONTROL PANEL 20

5.6 CODING THE ADDITIONAL REMOTE 21

5.7 FINAL ASSEMBLY 22

6) Technical Information

7.1 ELECTRICAL CONNECTIONS 24

7.2 FUNCTION SELECTIONS 25

7.3 TECHNICAL DESCRIPTION - ZF1 CONTROL PANEL 25

7.4 MOTHERBOARD 26

7.5 ADJUSTMENTS 26

7) Troubleshooting Guide 27

8) Contact Information

“Time marches on but Came automation equipment stands the test of time...”

1.1 - Requirements

EXTERNAL DIMENSIONS AND OPERATING LIMITS

BEFORE INSTALLING...

Before proceeding with the installation of the automation, check the following:

- the structure of the door must be sufficiently sturdy, the hinges must be efficient and there must be

no friction between fixed or mobile parts;

- the path of the electrical cables must be made according to the control and safety requirements (see

the system type);

- there must be a centre stop firmly secured in the ground for the gates to close onto to prevent the

gate overextending,

Width of gate wing Weight of gate wing

1 m 300 Kg

1,5 m 250 Kg

2 m 215 Kg

2,3 m 200 Kg

194 mm 218 mm

245 mm

Opening angle

A B

90° 137–210 0

90° 137–205 50

90° 137–200 75

90° 137–195 100

90° 137–190 125

90° 137–185 150

90° 137–180 175

90° 137–175 200

110° 180–210 0

110° 200–205 50

Hinge

Mechanical stop

Pilastro

Pillar

Piller

Pleifer

Pilar

430A

330

i = 240 mm. max

with 90° opening angle

Pillar

1.2 - Mounting the Motor Base Plate

Using suitable anchor bolts or chemical resin for brick pier securely mount the motor plate to the brick

pier. For wooden posts it is advised to fix the motor plate to the post. A threaded bar should be placed

all the way through the post then bolted.

Use M8 screws and ø14 screw anchors to mount the base plate on the pillar. Be sure to respect the

100mm minimum distance from the pavement. Attach bracket “A”to the gate wing (use M6 screws or

welds). Be sure to respect the offsets of 430mm and 68mm.

14 14

Base plate

Brac et “A”

M8M8

M6M6

Front view

430 mm

100 mm min.

68 min.

END OF INSTALLATION STAGE 1

BEFORE STARTING STAGE 2 - Wiring and Electrical

PLEASE CHECK THAT YOU HAVE CORRECTLY:

Ref Page

1. Checked Requirements 1.1 3

2. Mounted Motor Base Plate 1.2 4

NOW STAGE 1 IS FULLY COMPLETED YOU ARE READY TO BEGIN

STAGE 2 OF YOUR FAST AUTOMATION KIT INSTALLATION.

STAGE 2

WIRING AND ELECTRICAL

2.1 - Basic Cable Layout

The power supply to the control panel should be live and protected in accordance with the 16th edition

electrical regulations. The supply should be rated at a minimum of 6 amps.

When installing low voltage cable around the gateway it is advised to put all low voltage cable in either

ducting or alkathene piping. All cable jointing should be carried out above ground.

All Came accessories can be wired 0.2m stranded cable (burglar alarm type). The tuned antenna

should be wired with coaxial cable (RG59).

Tuned antenna

Coaxial cable

4 Core SWA 1.5m

Low voltage

Mains power

2 core

1mm

Flashing light

Safety

photocells

END OF INSTALLATION STAGE 2

BEFORE STARTING STAGE 3 - Installation

PLEASE CHECK THAT YOU HAVE CORRECTLY:

Ref Page

1. Installed Basic Cable Layout 2.1 6

NOW STAGE 2 IS FULLY COMPLETED YOU ARE READY TO BEGIN

STAGE 3 OF YOUR FAST AUTOMATION KIT INSTALLATION.

STAGE 3

INSTALLATION

3.1 - Installing the Motors

Open the lock cover cap (1). Push the key in and turn clockwise (2). Raise the cover, loosen the

3.9x13 screw and remove the cover from the gearmotor unit (3).

Insert the gearmotor in the base plate, align with the 4 holes and secure it with the two M8x90 bolts

and nuts provided.

(1) 3,9x133,9x13

3,9x133,9x13

3,9x13

(1) (2) (3)

M8x90M8x90

M8x90

M8M8

(4)

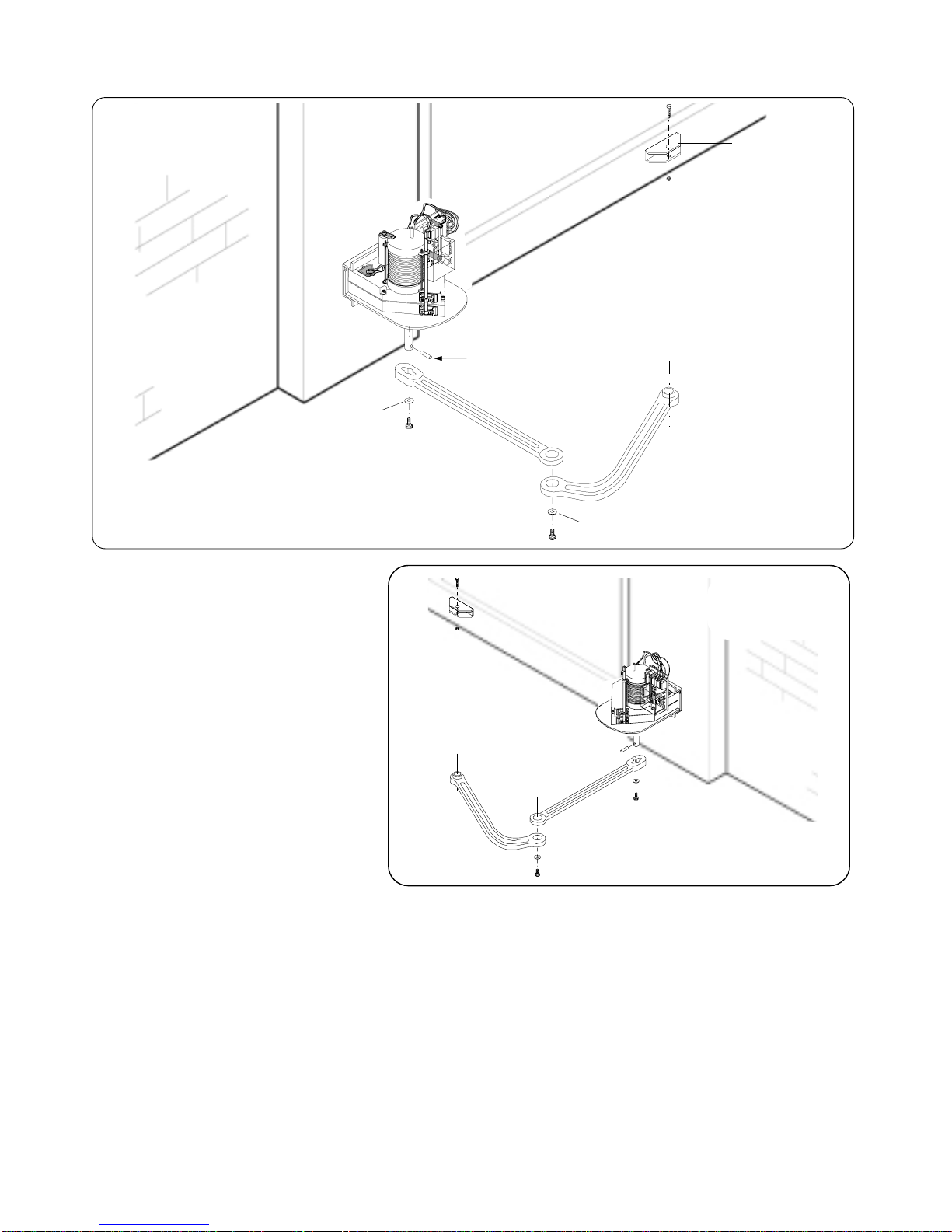

3.2 - Installing drive arms

Insert the Ø10x14 pin and the straight arm into the shaft of the gearmotor and secure it with the

M10x14 screw and 10x35 washer. Lubricate the pin of the straight arm. Join and secure the two arms

with the M6x10 screw and 6x24 washer. Release the gearmotor and fix the curved arm to the bracket

“A”with the M12x40 screw and the M12 nut, checking it is free moving. For application on the right-

hand side see fig.2.

M6x10M6x10

M6x10

M12x40M12x40

M12x40

M12M12

M12

6x24 6x24

6x24

10x35 10x35

10x35

M10x14M10x14

M10x14

10x40

Bracket A

Fig. 2
