Cadillac XT4 2023 Manual de usuario

2023 XT4

Scan to Access

United States

United States and Canada

Connected Services

1-888-4-ONSTAR

Canada

Customer Assistance

1-888-446-2000

Canada

• Owner’s Manuals

• Warranty Information

• Connected Services

• My Cadillac Rewards

• myCadillac Mobile App

• How-To Videos

• Vehicle Diagnostics

• Scheduled Maintenance

• Vehicle Features

• Many Additional Resources

United States

Customer Assistance

1-800-458-8006

Roadside Assistance

1-800-224-1400

84807760 A

XT4

OWNER’S MANUAL

Roadside Assistance

1-800-882-1112

2023

CMY

ai16493411099_23_CAD_XT4_COV_en_US_84807760A_2022APR7.pdf 1 4/7/2022 10:18:31 AM

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . 1
Keys, Doors, and Windows . . . . . 8
Seats and Restraints . . . . . . . . . . 44
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Instruments and Controls . . . 108
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Infotainment System . . . . . . . . . . 156
Climate Controls . . . . . . . . . . . . . . . 221
Driving and Operating . . . . . . . . 227
Vehicle Care . . . . . . . . . . . . . . . . . . . . 326
Service and Maintenance . . . 423
Technical Data . . . . . . . . . . . . . . . . . 432
Customer Information . . . . . . . 435
Reporting Safety Defects . . . 447
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . 451
Connected Services . . . . . . . . . . 458
Index........................461
Introduction

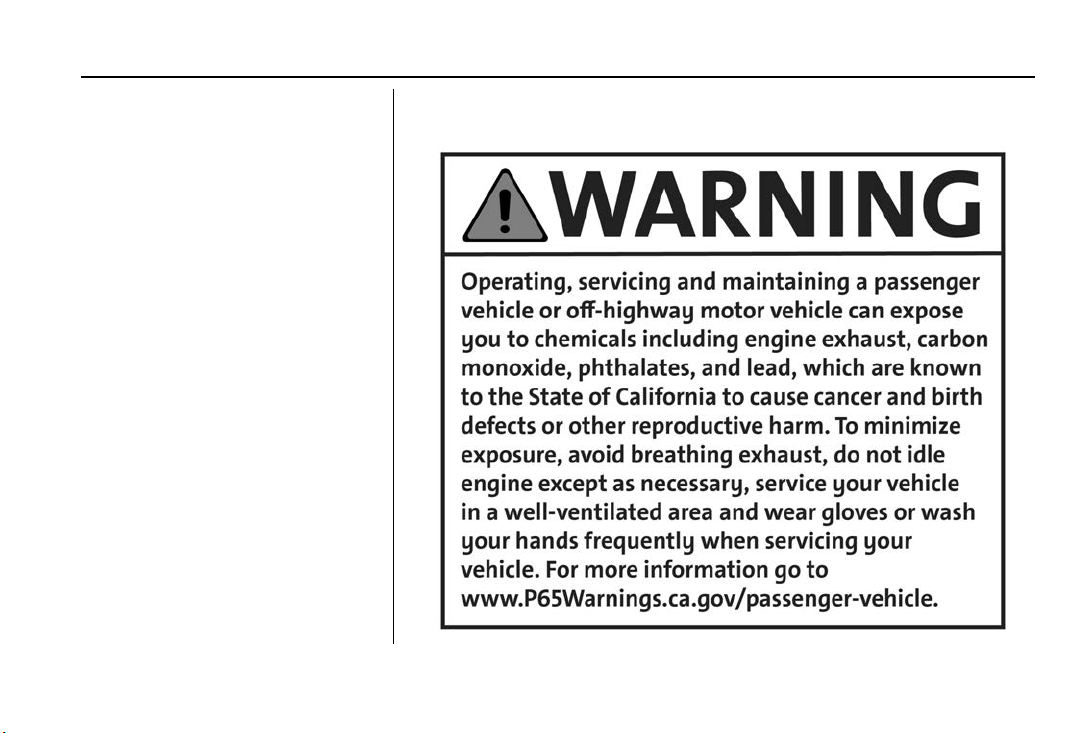

California Proposition 65 Warning
Litho in U.S.A.
Part No. 84807760 A First Printing ©2022 General Motors LLC. All Rights Reserved.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

16412876) - 2023 - CRC - 3/25/22

2 Introduction

Introduction

The names, logos, emblems,

slogans, vehicle model names,

and vehicle body designs

appearing in this manual

including, but not limited to,

GM, the GM logo, CADILLAC,

the CADILLAC Emblem, and

XT4 are trademarks and/or

service marks of General

Motors LLC, its subsidiaries,

affiliates, or licensors.

For vehicles first sold in

Canada, substitute the name

“General Motors of Canada

Company”for Cadillac Motor

Car Division wherever it

appears in this manual.

This manual describes

features that may or may not

be on the vehicle because of

optional equipment that was

not purchased on the vehicle,

model variants, country

specifications, features/

applications that may not be

available in your region,

or changes subsequent to the

printing of this owner’s

manual, including changes in

standard or optional content.

Refer to the purchase

documentation relating to

your specific vehicle to

confirm the features.

Keep this manual in the vehicle

for quick reference.

Canadian Vehicle

Owners

A French language manual can

be obtained from your dealer,

at www.helminc.com, or from:

Propriétaires Canadiens

On peut obtenir un exemplaire

de ce guide en français auprès

du concessionnaire ou à

l'adresse suivante:

Helm, Incorporated

Attention: Customer Service

47911 Halyard Drive

Plymouth, MI 48170

USA

Using this Manual

To quickly locate information

about the vehicle, use the

Index in the back of the

manual. It is an alphabetical list

of what is in the manual and

the page number where it can

be found.

About Driving the

Vehicle

As with other vehicles of this

type, failure to operate this

vehicle correctly may result in

loss of control or a crash. Be

sure to read the driving

guidelines in this manual in the

section called “Driving and

Operating”and specifically

Driver Behavior 0228, Driving

Environment 0229, and

Vehicle Design 0229.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

16412876) - 2023 - CRC - 3/25/22

Introduction 3

Danger, Warning, and

Caution

Warning messages found on

vehicle labels and in this

manual describe hazards and

what to do to avoid or

reduce them.

{Danger

Danger indicates a hazard

with a high level of risk

which will result in serious

injury or death.

{Warning

Warning indicates a hazard

that could result in injury or

death.

Caution

Caution indicates a hazard

that could result in property

or vehicle damage.

A circle with a slash through it

is a safety symbol which

means “Do not,” “Do not do

this,”or “Do not let this

happen.”

Symbols

The vehicle has components

and labels that use symbols

instead of text. Symbols are

shown along with the text

describing the operation or

information relating to a

specific component, control,

message, gauge, or indicator.

M:Shown when the owner’s

manual has additional

instructions or information.

*:Shown when the service

manual has additional

instructions or information.

0:Shown when there is more

information on another page —

“see page.”

Vehicle Symbol Chart

Here are some additional

symbols that may be found on

the vehicle and what they

mean. See the features in this

manual for information.

u:Air Conditioning System

G:Air Conditioning

Refrigerant Oil

9:Airbag Readiness Light

!:Antilock Brake

System (ABS)

$:Brake System Warning

Light

9:Dispose of Used

Components Properly

P:Do Not Apply High

Pressure Water

B:Engine Coolant

Temperature

_:Flame/Fire Prohibited

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

16412876) - 2023 - CRC - 3/25/22

4 Introduction

H:Flammable

[:Forward Collision Alert

R:Fuse Block Cover Lock

Location

+:Fuses

j:ISOFIX/LATCH System

Child Restraints

Q:Keep Fuse Block Covers

Properly Installed

|:Lane Change Alert

@:Lane Departure Warning

A:Lane Keep Assist

*:Malfunction

Indicator Lamp

::Oil Pressure

X:Park Assist

~:Pedestrian Ahead Indicator

O:Power

7:Rear Cross Traffic Alert

I:Registered Technician

/:Remote Vehicle Start

h:Risk of Electrical Fire

>:Seat Belt Reminders

I:Side Blind Zone Alert

h:Stop/Start

7:Tire Pressure Monitor

d:Traction Control/

StabiliTrak/Electronic Stability

Control (ESC)

a:Under Pressure

k:Vehicle Ahead Indicator

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

16412876) - 2023 - CRC - 3/25/22

Introduction 5

Instrument Panel Overview

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

16412876) - 2023 - CRC - 3/25/22

6 Introduction

1. Air Vents 0225.

2. Exterior Lamp Controls

0148.

Turn Signal Lever. See

Turn and Lane-Change

Signals 0152.

IntelliBeam System Button

(If Equipped). See Exterior

Lamp Controls 0148.

3. Tap Shift Controls. See

Manual Mode 0262 (If

Equipped).

4. Instrument Cluster 0119.

Driver Information Center

(DIC) Display. See Driver

Information Center (DIC)

0136.

5. Windshield Wiper/Washer

0110.

Rear Window Wiper/

Washer 0113.

6. ENGINE START/STOP

Button. See Ignition

Positions 0247.

7. Light Sensor. See

Automatic Headlamp

System 0151.

8. Home Button. See

Overview 0157.

9. Dual Automatic Climate

Control System 0221.

10. Heated and Ventilated

Front Seats 053 (If

Equipped).

11. Lane Keep Assist (LKA)

0307 (If Equipped).

12. Power Outlets 0115.

13. MODE Switch. See Driver

Mode Control 0269.

14. Auto Stop Disable Switch.

See Stop/Start System

0249.

15. Traction Control/

Electronic Stability Control

0267.

16. Hazard Warning Flashers

0152.

17. USB Port 0169.

18. Infotainment Controls. See

Overview 0157.

19. Shift Lever. See Automatic

Transmission 0257.

20. Park Assist Button. See

Assistance Systems for

Parking or Backing 0286.

Automatic Parking Assist

(APA) Button. See

Assistance Systems for

Parking or Backing 0286.

21. Steering Wheel Controls

0159.

Driver Information Center

(DIC) Controls. See Driver

Information Center (DIC)

0136.

22. Horn 0110.

23. Steering Wheel

Adjustment 0109 (Out

of View).

24. Cruise Control 0270.

Adaptive Cruise Control

(Advanced) 0273 (If

Equipped).

Heated Steering Wheel

0110 (If Equipped).

Forward Collision Alert

(FCA) System 0297 (If

Equipped).

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

16412876) - 2023 - CRC - 3/25/22

Introduction 7

25. Head-Up Display (HUD)

0139 (Out of View) (If

Equipped).

26. Data Link Connector. See

Malfunction Indicator

Lamp (Check Engine Light)

0126 (Out of View).

27. Instrument Panel

Illumination Control 0153.

28. Hood Release. See Hood

0329 (Out of View).

29. Electric Parking Brake

0264.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

16412876) - 2023 - CRC - 3/25/22

8 Keys, Doors, and Windows

Keys, Doors, and

Windows

Keys and Locks

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Remote Key . . . . . . . . . . . . . . . . . . . . . 9

Remote Key Operation . . . . . . 9

Remote Vehicle Start . . . . . . . 18

Door Locks . . . . . . . . . . . . . . . . . . . . 20

Power Door Locks . . . . . . . . . . 22

Delayed Locking . . . . . . . . . . . . . 22

Automatic Door Locks . . . . . 23

Lockout Protection . . . . . . . . . 23

Safety Locks . . . . . . . . . . . . . . . . . 24

Doors

Liftgate ......................... 24

Vehicle Security

Vehicle Security . . . . . . . . . . . . . 32

Vehicle Alarm System . . . . . . 32

Immobilizer . . . . . . . . . . . . . . . . . . . . 33

Immobilizer Operation . . . . . 33

Exterior Mirrors

Convex Mirrors . . . . . . . . . . . . . . 34

Power Mirrors . . . . . . . . . . . . . . . 34

Folding Mirrors . . . . . . . . . . . . . . 35

Heated Mirrors . . . . . . . . . . . . . . 36

Automatic Dimming

Mirror . . . . . . . . . . . . . . . . . . . . . . . . . 36

Reverse Tilt Mirrors . . . . . . . . 36

Interior Mirrors

Interior Rearview

Mirrors . . . . . . . . . . . . . . . . . . . . . . . . 36

Manual Rearview Mirror . . . 36

Automatic Dimming

Rearview Mirror . . . . . . . . . . . . 36

Rear Camera Mirror . . . . . . . . 37

Windows

Windows . . . . . . . . . . . . . . . . . . . . . . . 39

Power Windows . . . . . . . . . . . . . 39

Sun Visors . . . . . . . . . . . . . . . . . . . . . 41

Roof

Sunroof ........................ 42

Keys and Locks

Keys

{Warning

Leaving children in a vehicle

with a remote key is

dangerous and children or

others could be seriously

injured or killed. They could

operate the power windows

or other controls or make

the vehicle move. The

windows will function with

the remote key in the

vehicle, and children or

others could be caught in

the path of a closing

window. Do not leave

children in a vehicle with a

remote key.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

16412876) - 2023 - CRC - 3/25/22

Keys, Doors, and Windows 9

The key, inside the remote key,

can be used for all locks.

To remove the key, press the

button on the side of the

remote key, near the bottom,

and pull the key out. Never pull

the key out without pressing

the button.

If it becomes difficult to turn

the key, inspect the key blade

for debris. Periodically, clean

with a brush or a pick.

See your dealer if a new key is

needed.

Contact Roadside Assistance

if locked out of the vehicle.

See Roadside Assistance

Program 0439.

With an active OnStar or

connected service plan, an

OnStar Advisor may remotely

unlock the vehicle. See OnStar

Overview 0451.

Remote Key

See Radio Frequency

Statement 0446.

If there is a decrease in the

remote key operating range:

.Check the distance. The

remote key may be too far

from the vehicle.

.Check the location. Other

vehicles or objects may be

blocking the signal.

.Check the remote key's

battery. See “Battery

Replacement”later in this

section.

.If the remote key is still not

working correctly, see your

dealer or a qualified

technician for service.

Remote Key

Operation

The Keyless Access system

allows for vehicle entry when

the remote key is within 1 m

(3 ft). See “Keyless Access

Operation”following.

The remote key functions may

work up to 60 m (197 ft) away

from the vehicle.

Otros manuales para XT4 2023

Tabla de contenidos

Otros manuales de Automóvil de Cadillac

Cadillac

Cadillac ATS 2015 Manual de usuario

Cadillac

Cadillac 2014 XTS Manual de usuario

Cadillac

Cadillac XT5 2021 Manual de usuario

Cadillac

Cadillac XT5 2017 Manual de usuario

Cadillac

Cadillac XLR-V 2006 Manual de usuario

Cadillac

Cadillac Escalade 2017 Manual de usuario

Cadillac

Cadillac CTS-V COUPE 2013 Manual de usuario

Cadillac

Cadillac V16 VVI Manual de usuario

Cadillac

Cadillac 2000 DeVille Manual de usuario

Cadillac

Cadillac XT5 2017 Manual de usuario

Cadillac

Cadillac STS 2007 Manual de usuario

Cadillac

Cadillac 1996 Eldorado Manual de usuario

Cadillac

Cadillac DTS 2006 Guía de referencia

Cadillac

Cadillac CTS-V 2019 Manual de usuario

Cadillac

Cadillac 2015 SRX Manual de usuario

Cadillac

Cadillac 2011 Escalade EXT Manual de usuario

Cadillac

Cadillac 2013 Escalade ESV Manual de usuario

Cadillac

Cadillac Chevrolet Tahoe 2012 Manual de usuario

Cadillac

Cadillac ESCALADE - BROCHURE 2011 Manual de usuario

Cadillac

Cadillac ATS 2014 Manual de usuario

Cadillac

Cadillac 2015 XTS Manual de usuario

Cadillac

Cadillac 2015 SRX Manual de usuario

Cadillac

Cadillac Escalade 2013 Manual de usuario

Cadillac

Cadillac 2011 Escalade Manual de usuario

Manuales populares de Automóvil de otras marcas

Toyota

Toyota 2000 Tundra Manual de usuario

CITROËN

CITROËN DS4 DSign Manual de usuario

Lexus

Lexus 2015 CT 200h Manual de usuario

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manual de usuario

Porsche

Porsche Boxster S Manual de usuario

GMC

GMC 2010 Savana 1500 Cargo Manual de usuario

KIAM

KIAM SPORTAGE 2014 Manual de lista de piezas

GMC

GMC 2013 Terrain Instrucciones de montaje

GMC

GMC T-Series 1999 Manual de usuario

Mercury

Mercury 1998 Mystique Manual de usuario

Mercury

Mercury 2007 Mariner Manual de usuario

Mazda

Mazda 2007 Mazdaspeed 3 Guía

Mazda

Mazda 2014 CX-5 Manual de usuario

GMC

GMC Chevrolet Express 2022 Manual de usuario

GMC

GMC 1997 Jimmy Manual de usuario

Chevrolet

Chevrolet 2012 Malibu Manual de usuario

Skoda

Skoda FABIA RS - ANNEXE 118 Manual de usuario

Seat

Seat toledo Manual de usuario
