Cadel WALL3 PLUS Guía del usuario

INSTALLER MANUAL

Pellet Stove

WALL3PLUS  TILE3PLUS  MOON  LEAN3 PLUS

WALL3PLUS - TILE3PLUS - MOON - LEAN3PLUS

SUMMARY

1 MANUAL SIMBOLOGY....................................3

2 PACKAGING AND HANDLING..........................3

2.1 PACKAGING .............................................................3

2.2 STOVE HANDLING....................................................3

3 CHIMNEY FLUE ...........................................3

3.1 INTRODUCTION.......................................................3

3.2 CHIMNEY FLUE........................................................4

3.3 TECHNICAL FEATURES.............................................4

3.4 HEIGHTDEPRESSION..............................................5

3.5 MAINTENANCE........................................................5

3.6 CHIMNEY POT..........................................................6

3.7 CHIMNEY COMPONENTS.........................................6

3.8 CHIMNEY FLUE CONNECTION..................................7

3.9 EXAMPLES OF CORRECT INSTALLATION..................8

4 COMBUSTION AIR.........................................9

4.1 EXTERNAL AIR INLET...............................................9

4.2 COMBUSTIBLE AIR INLET FOR SEALEDCHAMBER

INSTALLATION .................................................................10

5 INSTALLATION............................................11

5.1 INTRODUCTION.....................................................11

5.2 OVERALL DIMENSIONS .........................................12

5.3 GENERAL INSTALLATION WITH PEDESTAL............15

5.4 WALL MOUNTING..................................................16

5.5 SAFETY FIXING .....................................................19

5.6 STOVE DOOR REMOVAL/INSTALLATION................19

5.7 PANEL ASSEMBLY WALL3PLUS MODEL .............20

5.8 PANEL ASSEMBLY LEAN3PLUS MODEL ..............20

5.9 PANEL ASSEMBLY MOON MODEL ......................21

5.10 PANEL ASSEMBLY TILE3PLUS MODEL ...............21

5.11 CONNECTION TO THE EXTERNAL THERMOSTAT.....22

5.12 ELECTRIC CONNECTION.........................................22

5.13 HOT AIR DUCTING SYSTEM....................................23

5.14 STOVE CALIBRATION AND DEPRESSION

MEASUREMENT ...............................................................24

6 IN CASE OF ANOMALY..................................24

6.1 PROBLEM SOLVING ...............................................24

7 TECHNICAL DATAS ......................................28

7.1 REPAIR INFORMATION ..........................................28

7.2 CE MARKING..........................................................28

7.3 FEATURES..............................................................29

WALL3PLUS - TILE3PLUS - MOON - LEAN3PLUS

1 MANUAL SIMBOLOGY

USER

AUTHORISED TECHNICIAN

(ONLY to interpret or the Stove-manufacturer or the Authorized Techni-

cian of Technical Assistance Service approved by the Stove-manufacturer)

SPECIALIZED STOVE-REPAIRER

CAUTION:

READ CAREFULLY THE NOTE

CAUTION:

DANGER OR IRREVERSIBLE DAMAGE POSSIBILITY

• The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/

or the AuthorizedTechnician and/or the Specialized Stove-repairer).

• WARNING symbols indicates an important note.

2 PACKAGING AND HANDLING

2.1 PACKAGING

• The packaging is made up of recyclable cardboard boxes according to RESY standards, recyclable expanded polystyrene inserts

and wooden pallets.

• All packaging materials can be re-used for a similar use or eventually discharged as waste assimilable to the municipal solid

ones, in accordance with current regulations.

• After having removed the packaging please assure you about the integrity of the product.

2.2 STOVE HANDLING

Both whether the stove is packed or not it is necessary to observe the following instructions for handling and transporting the

stove from its sale point to its installation point and for any future movements:

• The stove must be handled with idoneous means paying attention to the existing safety regulations;

• do not turn the stove upside down and/or upset it on one side, but keep it in vertical position or as accorded with the construc-

tor instructions;

• if the stove is made up of ceramic, stone, glass or any particularly fragile material components, all must be moved with the

utmost care.

3 CHIMNEY FLUE

3.1 INTRODUCTION

This chapter about the Chimney Flue has been drawn up in cooperation with Assocosma (www.assocosma.org) and is based on

European Standards (EN 15287 - EN 13384 - EN 1856 - EN 1443) and UNI 10683:2012.

WALL3PLUS - TILE3PLUS - MOON - LEAN3PLUS

It provides instructions for a good and correct execution of the chimney flue but it does not absolutely replace the current stan-

dards which the qualified manufacturer/installer should comply with.

3.2 CHIMNEY FLUE

Fig. 1 - Chimney Flues

LEGEND Fig. 1

1Chimney flue with insulated stainless-steel pipes

2Chimney flue on the existing chimney

3Inspection plug

4Inspection door

5≥ 3,5 mt

• The chimney flue or chimney is of great importance for the correct running of the heating appliance.

• It is fundamental that the chimney flue is perfectly built and always maintained with a perfect efficiency.

• The chimney flue must be sole (see Fig. 1) with insulated stainless-steel pipes (1) or installed on the existing chimney flue (2).

• Both this solutions must be endowed with an inspection plug (3) and/or an inspection door (4).

3.3 TECHNICAL FEATURES

Fig. 2 - Inclined roof

WALL3PLUS - TILE3PLUS - MOON - LEAN3PLUS

LEGEND Fig. 2

1Height over the ridge of the roof = 0,5 mt

2Roof inclination ≥ 10°

390°

4Measured distance at 90° from the roof surface = 1,3 mt

• The chimney flue must be sealed from fumes.

• It must have a vertical run without narrowing. It must be realized with fume and condensation resistant materials with ther-

mal insulation and able to last against usual mechanical stresses.

It must be insulated to avoid condensation and to reduce fume cooling effects.

• The stove must be spaced out from fuels or flammable materials with an air gap or with insulating materials. Check the distan-

ce with the chimney manufacturer.

• The chimney entrance must be placed in the same room where the appliance is installed or otherwise in the adjacent room and it

must be provided with a solid and condensation collection chamber under the entrance, accessible through the sealed metal gate.

• Auxiliary exhaust fans cannot be installed neither along the chimney nor on the chimney pot.

• The inner section of the chimney flue can be round (the best one) or square and the jointed sides must have a minimum radius

of 20 mm.

• The section dimension must be:

•minimun Ø100 mm

•recommended max Ø180 mm

• Made the efficiency of the chimney flue overhauled by an expert stove-repairer and if necessary cover the chimney flue with

materials in compliance with current regulations.

• The flue system must be placed on the roof.

• The chimney flue must be provided CE in accordance with EN 1443 regulation. Please find attached an example of label:

Fig. 3 - Example of label

3.4 HEIGHTDEPRESSION

The depression (draught) of a chimney flue depends also on its height. Check the depression with the values provided at FEATU-

RES a pag. 29. Minimum height 3,5 meters.

3.5 MAINTENANCE

• The fumes extraction pipes (fumes conduit + chimney flue + chimney pot) must always be cleaned, scrubbed and checked

by an expert stove-repairer, in compliance with current regulations, with the instructions of the stove-manufacturer and the

directives of your insurance company.

• In case of doubts, please follow the most restrictive regulations.

• Have your chimney flue and chimney pot checked and cleaned by an expert chimney sweep at least once a week. The chimney

sweep has to release a written declaration about the security of the system.

• Not cleaning compromise safety.

WALL3PLUS - TILE3PLUS - MOON - LEAN3PLUS

3.6 CHIMNEY POT

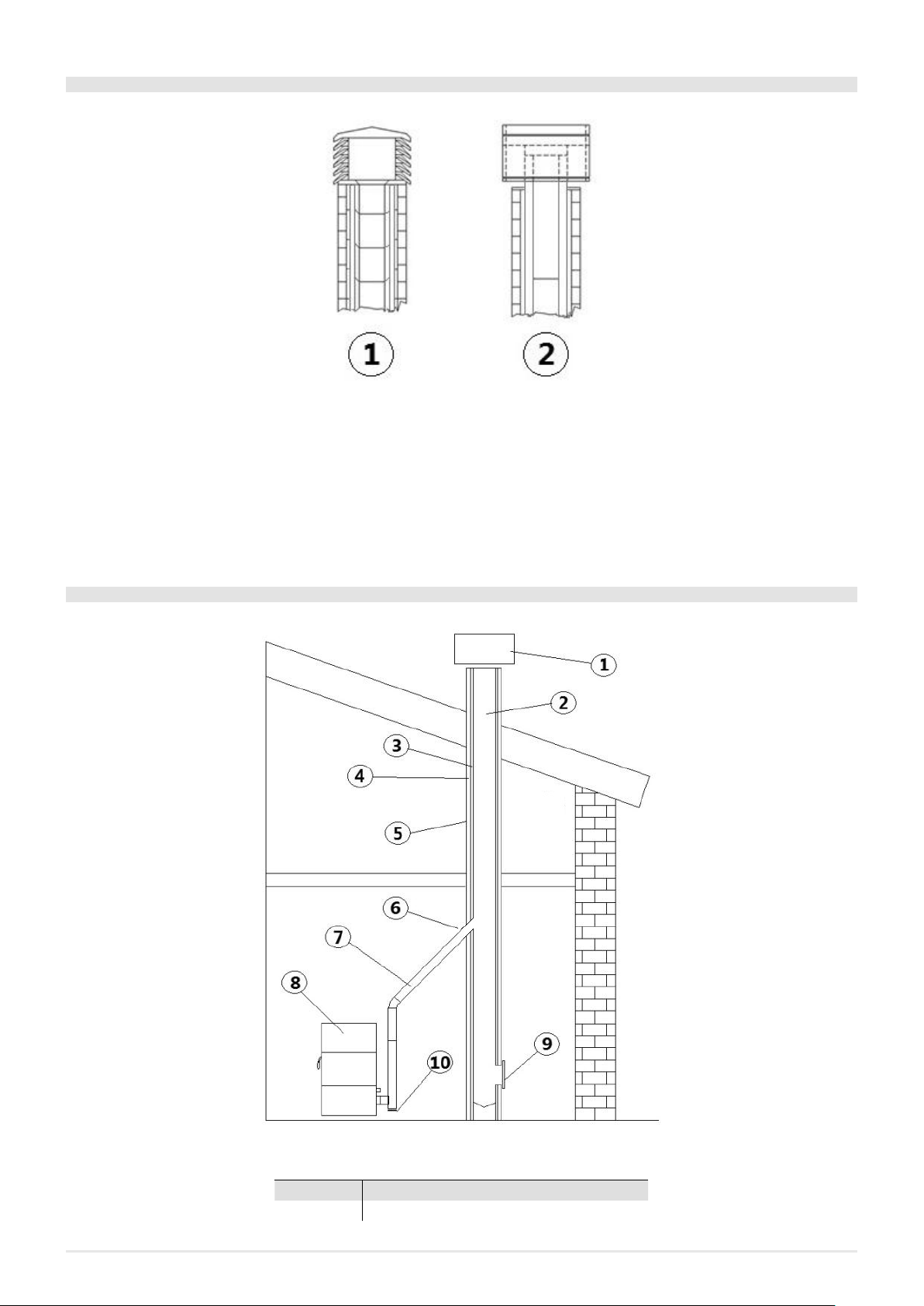

Fig. 4 - Anti-wind chimney pots

The chimney pot is important for the correct running of the heating appliance:

• We recommend using an anti-wind chimney pot, see Fig. 4.

• The hole width for fumes exhaust must be the double of the chimney flue width and fitted in a way that the fume exhaust is

assured also in case of wind.

• It should prevent the infiltration of rain, snow and animals.

• The outlet height in the atmosphere must be away from the reflux area caused by the roof structure or by obstacles laying

nearby (see Fig. 2).

3.7 CHIMNEY COMPONENTS

Fig. 5 - Chimney components

LEGEND Fig. 5

1Chimney pot

2Fume outlet

WALL3PLUS - TILE3PLUS - MOON - LEAN3PLUS

LEGEND Fig. 5

3Chimney flue

4Termal insulation

5External wall

6Chimney union

7Fume pipe

8Heat generator

9Inspection door

10 T-union with inspection plug

3.8 CHIMNEY FLUE CONNECTION

Your pellet stove works through a fume draught forced by a fan. It is obligatory to check that all pipes are realized in compliance

with the following regulation on material selection: EN 1856-1, EN 1856-2 e UNI/TS 11278. All must be effected by specialized

personnel or companies as provided by UNI 10683:2012.

• The connection between the appliance and the chimney flue should be short in order to favor the draught and to avoid con-

densation in the pipes.

• The fume conduit should be equivalent or longer than the outlet joint ones (Ø 80 mm).

• Some stove models are endowed with a lateral and/or back exhaust. Check that the unused exhaust is sealed with the plug

given with standard equipment.

SYSTEM TYPE Ø80 mm PIPE Ø100 mm PIPE

Minimum vertical length 1,5 mt 2 mt

Maximum length (with 1 union) 6,5 mt 10 mt

Maximum length (with 3 unions) 4,5 mt 8 mt

Maximum number of unions 3 3

Level section (minimum inclination 3%) 2 mt 2 mt

Installation at a height above 1200 m a.s.l. NO Obligatory

• Use a plate pipe for stoves of Ø80 mm or Ø100 mm depending on the type of system and with silicone gaskets.

• It is forbidden to use metal, fibre cement or aluminium flexible pipes.

• For change of direction it is obligatory always to use a union (with angle > 90°) with inspection plug which enables an easy

periodic cleaning of the pipes.

• Please assure you that after the cleaning the inspection plugs are sealed with its efficient gasket.

• It is forbidden to exhaust flue gases directly from the wall towards the outside and closed spaces also at open top.

• The fume conduit must be placed at a distance of minimum 500 mm from flammable or heat-susceptible components.

• It is prohibited to connect more than one wood/pellet (*) or any other type of appliance (vent cowling...) to the same flue.

(*) unless there are national derogations (for instance in Germany), which under suitable conditions allow for the installation of

several appliances in the same fireplace. In any case, strictly follow the product/installation requirements of the relative regulations/

legislation in force in that country.

WALL3PLUS - TILE3PLUS - MOON - LEAN3PLUS

3.9 EXAMPLES OF CORRECT INSTALLATION

Fig. 6 - Example 1

LEGEND Fig. 6

1Insulating material

2Reduction from Ø100 to Ø80 mm

3Inspection plug

4Minimum safety distance = 0,5 mt

• Chimney flue installation Ø100/120 mm with an enlarged drilling for pipe transit.

Fig. 7 - Example 2

LEGEND Fig. 7

1Insulating material

2Inspection plug

3Chimney inspection entrance

4Minimum safety distance = 0,5 mt

5Inclination ≥ 3°

6Level section ≤ 1 mt

• Old chimney flue with an inserted pipe of minimum Ø100/120 mm and with an external door which enables the chimney cleaning.

WALL3PLUS - TILE3PLUS - MOON - LEAN3PLUS

Fig. 8 - Example 3

LEGEND Fig. 8

1Insulating material

2Inspection plug

3Minimum safety distance = 0,5 mt

• External chimney flue entirely made up of insulated stainless steel pipes, i.e. with double wall of minimum Ø100/120 mm: all

must be firmly attached to the wall. For chimney against wind effects please (see Fig. 4).

• Ducting system through T-unions which enables an easy cleaning without disassembling the pipes.

We recommend to check with your chimney flue manufacturer the safety distances which must be respected

and the type of insulating material. The aforesaid regulations are valid also for holes made on the wall (EN

13501 - EN 13063 - EN 1856 - EN 1806 - EN 15827).

4 COMBUSTION AIR

4.1 EXTERNAL AIR INLET

Fig. 9 - Direct air inow

LEGEND Fig. 9

1Room to ventilate

2External air inlet

• The room must be endowed with an external air recycling for a good climate in your ambient.

• The air inflow from outside to the inner occurs directly, through an opening on the external wall of the room (see Fig. 9).

WALL3PLUS - TILE3PLUS - MOON - LEAN3PLUS

• Bedrooms, garages, and store of flammable materials are excluded.

• The air inlet should have a total net surface of 80 sqcm2: the aforesaid surface is to widen if inside the room there are other activated

appliances (for example: electric ventilators for foul air suction, cooker hoods, other stoves, etc...) which depress the environment.

• At switched on appliance it is necessary to check that the pressure fall between the room and the outside does not exceed 4,0

Pa value: if necessary widen the air inlet (EN 13384).

• The air inlet must be realized at a height close to the floor with an external grid against birds. In such a way it cannot be ob-

structed by any object.

• In case of installation with sealed-chamber the air inlet is not necessary.

4.2 COMBUSTIBLE AIR INLET FOR SEALEDCHAMBER INSTALLATION

Check FEATURES a pag. 29 if the purchased stove has a sealed-chamber. If the stove is endowed with a sealed-chamber and

you want also the whole installation with sealed chamber, please read the following instructions:

• It is necessary to extract the air for combustion directly from outside.

• Use a tube with minimum Ø60 mm and maximum 2 meters lenght; to connect see the back of the stove.

• French standards require installation in double-walled flues (concentric system). The combustion air is drawn from the cavity.

• During installation step is necessary to verify the minimum distances required for the combustible air inlet as (for example) an

open door or window causes a vortex which could remove the combustible air necessary to the stove (see the underlying scheme).

• On the external wall it is necessary to install a curve at 90° to protect the combustible air inflow from wind effects: turn the

curve inlet downwards, see Fig. 10.

• Endow the curve with an external shield grid against birds in such a way that it cannot be obstructed by any object.

Check with your local authorities if exists any restrictive regulation regarding the combustible air inlet: if pre-

sent, they must be applied

In some countries and/or regions the installation with sealed-chamber is obligatory: in case of doubt, please

follow the most restrictive regulations.

Fig. 10 - Air inlet for sealed-chamber installation

LEGEND Fig. 10

1≥ 1,5 mt

2≥ 0,3 mt

3-3 Sectional view

4Shield grid

5Curve inlet to turn downwards

• Remove the galvanised part near the combustion air pipe (see Fig. 11).

Otros manuales para WALL3 PLUS

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cocina de Cadel

Cadel

Cadel PRINCE 11 Manual de usuario

Cadel

Cadel WALL 9 kW Manual de usuario

Cadel

Cadel MITHOS3 PLUS 14 PS Manual de usuario

Cadel

Cadel ARCO 7 T1 Guía del usuario

Cadel

Cadel family Manual de usuario

Cadel

Cadel AMARANTO 9 Guía del usuario

Cadel

Cadel SFERA3 11KW Guía del usuario

Cadel

Cadel CRISTAL 9 Manual de usuario

Cadel

Cadel Venus Plus Manual de servicio

Cadel

Cadel PRINCE 11 Guía del usuario

Cadel

Cadel VERA 7.0 UP Manual de usuario

Cadel

Cadel ROXY Manual de usuario

Cadel

Cadel TESIS 16 AIRTIGHT T2 Manual de usuario

Cadel

Cadel GRACE 7 Guía del usuario

Cadel

Cadel PRINCE3 11KW- GLOBE AIRTIGHT SFERA3 PLUS... Guía del usuario

Cadel

Cadel INDIGO EVO Guía del usuario

Cadel

Cadel IDRO PRINCE 3 12 Guía de inicio rápido

Cadel

Cadel aquos 15 Guía de inicio rápido

Cadel

Cadel IDRO PRINCE3 12 Guía del usuario

Cadel

Cadel aquos 15 Instrucciones de instalación y funcionamiento

Cadel

Cadel ATENA3 PLUS 14 Manual de usuario

Cadel

Cadel MITHOS PLUS 12 PS Guía del usuario

Cadel

Cadel GRACE 3 Manual de usuario

Cadel

Cadel SATURNO 16 Guía del usuario

Manuales populares de Cocina de otras marcas

Arada

Arada Cassette Stove Manual de usuario

Parmco

Parmco FS 600 Manual de usuario

MCZ

MCZ SUITE AIR 10 M2 Manual de usuario

HearthStone

HearthStone Stowe DV 8321 Guía de solución de problemas

Cattara

Cattara FAMILY Manual de usuario

Stanley

Stanley Argon F500 OVAL Manual de usuario

Avalon

Avalon B-VENT Manual de usuario

Nordpeis

Nordpeis Vega Manual de usuario

Exquisit

Exquisit EKC601-5 Manual de operación

Stanley

Stanley Oisin Oil MK II Manual del propietario

Thermocet

Thermocet Brookfield S/CC Manual de usuario

HASE

HASE delhi Manual de usuario

Vermont Castings

Vermont Castings Intrepid 2 Manual de usuario

Italiana Camini

Italiana Camini CLASSICA Guía de inicio rápido

Avalon

Avalon Vashon Avanti DVS FS Manual de usuario

Spartherm

Spartherm ambiente a1 Manual de usuario

Dimplex

Dimplex MCFSTV12AU Manual de usuario

Warmlite

Warmlite WL46040 Manual de usuario
