Cablexpert NCT-3 Manual de usuario
USER MANUAL •HANDBUCH •HANDLEIDING •MANUEL
DESCRIPTIF •РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ •
КЕРІВНИЦТВО КОРИСТУВАЧА •INSTRUKCJA OBSŁUGI
DIGITAL NETWORK CABLE TESTER
DIGITALER NETZWERKKABEL TESTER
DIGITALE NETWERKKABELTESTER
TESTEUR DE CÂBLE RÉSEAU NUMÉRIQUE
ЦИФРОВОЙ ТЕСТЕР СЕТЕВЫХ КАБЕЛЕЙ
ЦИФРОВИЙ ТЕСТЕР МЕРЕЖЕВИХ КАБЕЛІВ
CYFROWY TESTER KABLI SIECIOWYCH
DIGITÁLNÍ SÍŤOVÝ KABEL TESTER
NCT-3
2
NCT-3
DIGITAL NETWORK CABLE TESTER
All brands and logos are registered trademarks of their respective owners
Features
•Indicates wiring problems in Cat 5E, 6E, coaxial and telephone cables:
open circuit, short circuit, jumper wire, reverse connection
•Measures the cable length and determines the distance to the open
circuit
•The length measurement accuracy up to 97% via built-in calibration
•Self-checks and automatically compensates any change in battery
capacity or ambient temperature
•Up to 50 working hours of the battery life
Specifications
•Power supply: 4 x 1.5 V DC AAA batteries (not included)
•Power consumption: up to 16 mA
•Display: 4 x 16 character LCD screen, 61.6 x 25.2 mm
3
NCT-3
DIGITAL NETWORK CABLE TESTER
All brands and logos are registered trademarks of their respective owners
•Designed for: STP/UTP twin twisted, coaxial & telephone cable
•Working ambient temperature: -10 ... + 60°C
•Tester port: tester RJ45 master port (M), tester LOOPBACK RJ45 port
(L), far-end recognizer RJ45 port (R)
•Max cable length: up to 1350 m
•Calibration accuracy: 3% (+/- 0.5 m)
•Calibration cable length: > 5 m
•Cable problems detected: open circuit, short circuit, reverse
connection, crossover or cross-talk interference
•Automatic shut-down: after 30 minutes
•Dimensions: 180 x 80 x 40 mm
•Net weight: 0.25 kg
4
NCT-3
DIGITAL NETWORK CABLE TESTER
All brands and logos are registered trademarks of their respective owners

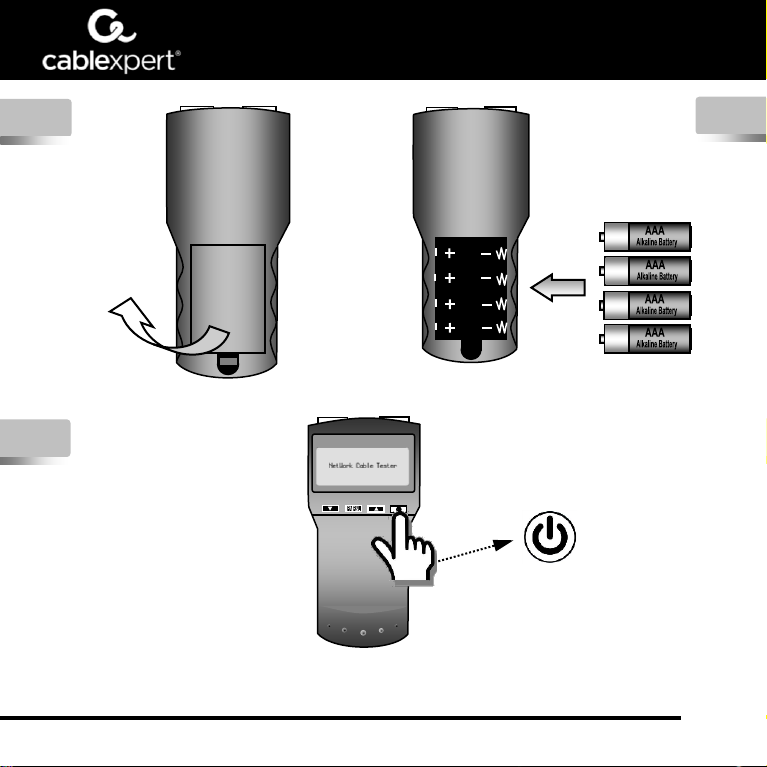

1
3
2
5
NCT-3
DIGITAL NETWORK CABLE TESTER
All brands and logos are registered trademarks of their respective owners
4
6
NCT-3
DIGITAL NETWORK CABLE TESTER
All brands and logos are registered trademarks of their respective owners
5
7
NCT-3
DIGITAL NETWORK CABLE TESTER
All brands and logos are registered trademarks of their respective owners
feet
meter
6
8
NCT-3
DIGITAL NETWORK CABLE TESTER
All brands and logos are registered trademarks of their respective owners
7
7.2
7.1
9
NCT-3
DIGITAL NETWORK CABLE TESTER
All brands and logos are registered trademarks of their respective owners
10
NCT-3
DIGITAL NETWORK CABLE TESTER
All brands and logos are registered trademarks of their respective owners
