C.P. Electronics SPIR-F/C/IP Manual de usuario

The SPIR-F/C/IP presence detector switch is designed to provide automatic control

of lighting, heating or ventilation loads. They detect movement using a PIR sensor

and turn the load on. When an area is no longer occupied the load will switch off

after an adjustable time out period.

An adjustable internal light sensor provides additional energy saving in lighting

applications. When an area is occupied lighting is only switched on when the level

of natural light is below a preset level.

When the unit is first powered up the PIR sensor will always detect immediately

regardless of whether the room is occupied.

The /IP variant of these products is sealed to IP55 when used with the gasket pro-

vided.

Wiring

Warning. This device works at mains potential. Be sure to take care when working with electricity.

1. Make sure the load is connected and in working order.

2. Isolate the mains supply to the circuit at the main consumer unit.

3. Connect the controller via the terminal block. Live supply to the Lterminal, Neutral to the N terminal and the load to the LIVE OUT terminal.

4. Set the LUX level to maximum and the time to minimum.

5. Switch the mains supply back on at the distribution board.

6. The load should come on immediately.

7. Vacate the room or remain very still and wait for the load to switch off (should take no more than 2 minutes).

8. Check that the load switches on when movement is detected.

9. To set the final LUX level wait until the level of natural daylight is just enough that lighting is required. Starting with the LUX control fully clock-

wise (at minimum), very slowly turn the control anti-clockwise until the lights come on. Note that when the LUX control is at maximum then the

lights will always come on with occupancy.

10. Set the time required.

Installation

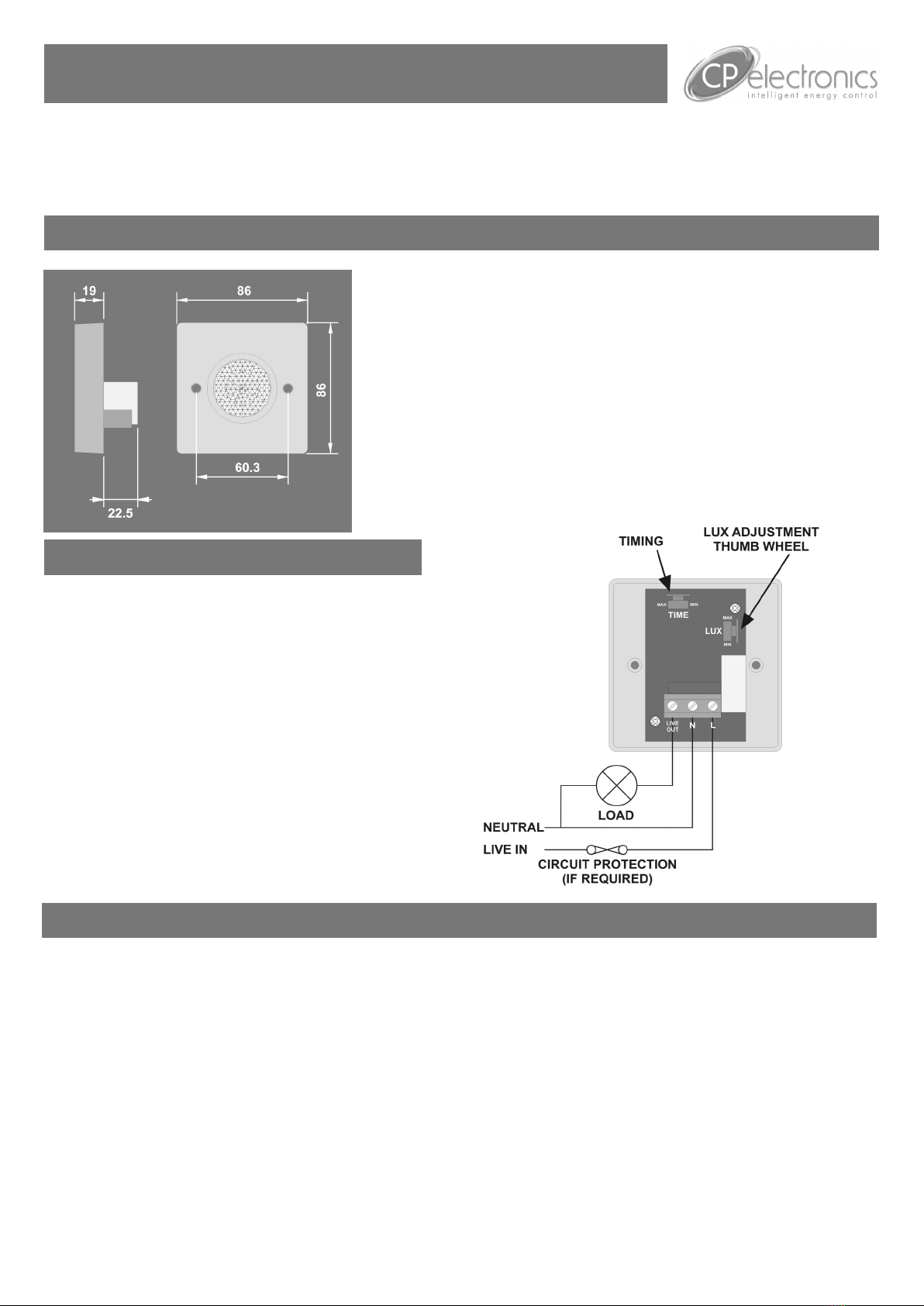

Wire the SPIR-F/C products as in the diagram.

To switch from more than one position simply wire two or more units

in parallel to achieve two way and intermediate switching.

The detector should be sited so that the occupants of the room fall

inside the detection pattern shown overleaf, at a recommended

height of 3-4m on the ceiling. Note that the lower the sensor is in-

stalled the smaller the detection range will be, subject to the pa-

rameters shown on the diagram.

 Avoid direct sunlight entering the sensor.

 Do not site within 1m of forced air heating

or ventilation.

 Do not site within 1m of any lighting.

 Do not fix to a vibrating surface.

 To maintain the IP rating the unit must not be used on ceilings with an

uneven surface.

 Place the gasket (provided) between the unit and the ceiling.

 The units is supplied with 2 washers to seal the screw holes.

Overview

Ceiling Presence Detector IP55

Product Guide

SPIR-F/C/IP

LOAD

16 Amp resistive load

10 Amp incandescent lighting

6 Amp fluorescent lighting

3 Amp compact fluorescent lighting

3 Amp low energy lighting

3 Amp low voltage lighting (switch primary of transformer)

Fluorescent lighting (max 6 fittings recommended)

For fluorescent lighting total power factor correction capacitance must not exceed 40μF.

3 Amp fans and ventilation equipment

Switch SON lighting loads via a contactor

SUPPLY VOLTAGE 220-240 Volts AC 50 Hz

TIME OUT PERIOD Adjustable 10 seconds to 30 minutes

LIGHT LEVEL Light to dark.

FIXING METHOD Surface fixing 25mm deep plastic surface mount moulded box.

Flush fixing 25mm steel wall box or 32mm deep cavity wall box.

TERMINAL CAPACITY4.0mm2

MATERIAL Flame retardant ABS

TYPE Class 2

IP RATING IP55

TEMPERATURE -10°C to 35°C

CONFORMITY EMC-89/336/EEC

LVD-73/23/EEC

LOAD DOES NOT COME ON

Check to see if the live supply to the circuit is

good. Strap across the L and LIVE OUT termi-

nal to turn the load on.

If the supply and wiring are good, check the

LUX level setting. Increase the LUX level set-

ting to allow the controller to turn on at higher

ambient natural light level.

If the detection range is smaller than expected,

check the diagram above. Rotating the sensor

slightly may improve the range.

LIGHTS DO NOT GO OFF

Ensure that the area is left unoccupied for

longer than the selected timer setting.

Make sure that the sensor is not adjacent to

circulating air, heaters or lamps.

PART NUMBERS

FAULT FINDING SPECIFICATION

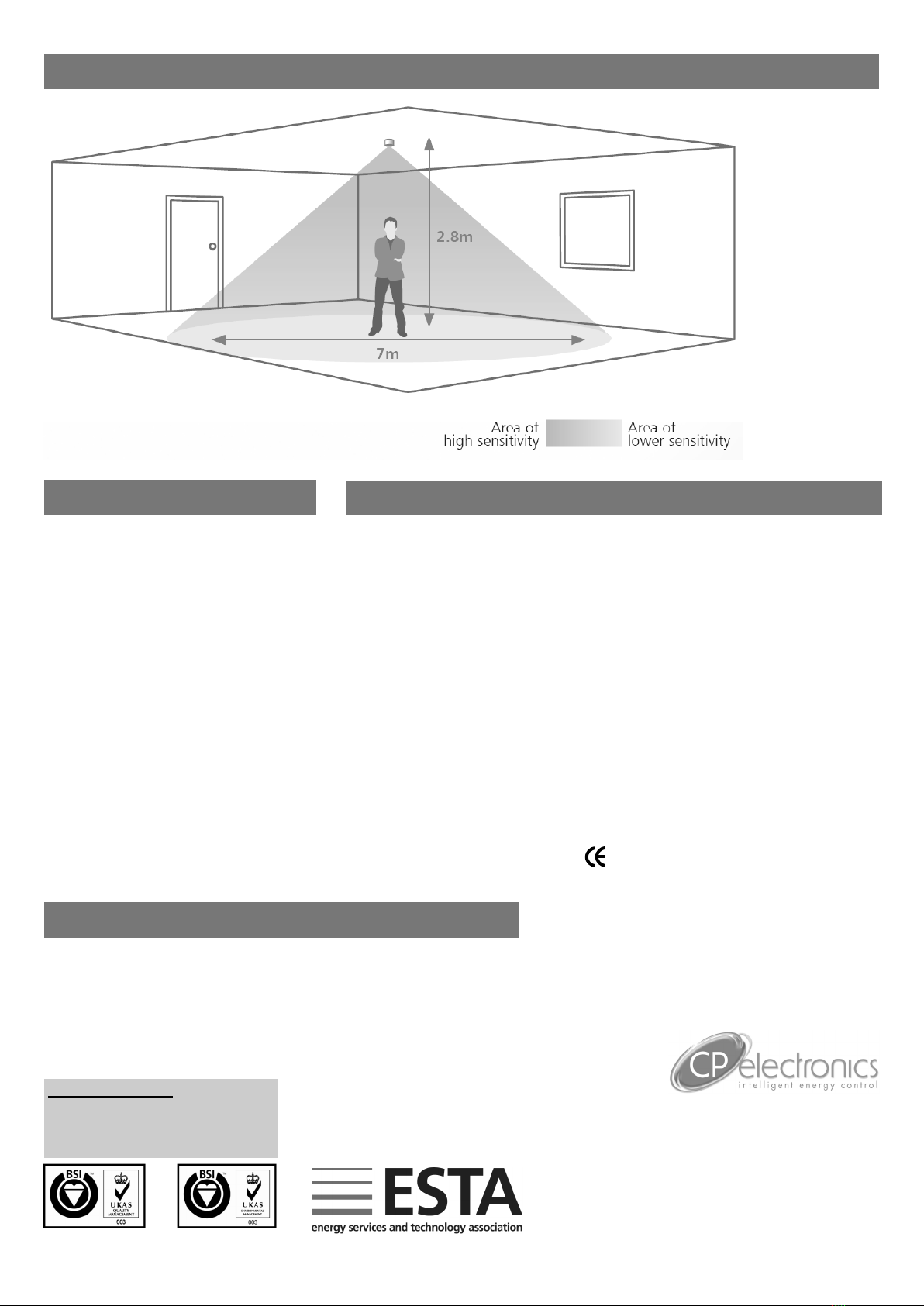

DETECTION PATTERN

SPIR-F/C/IP Ceiling mounted presence detector c/w internal lux sensor

Ref #WD224 Issue 2

C.P. Electronics Ltd

Brent Crescent

London

NW10 7XR

United Kingdom

Tel: + 44 (0) 333 900 0671

Fax: + 44 (0) 333 900 0674

www.cpelectronics.co.uk

enquiry@cpelectronics.co.uk

IMPORTANT NOTICE!

This device should be installed by a

qualified electrician in accordance with

the latest edition of the IEE wiring

regulations.

Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.

FM 45789 EMS 534520
