Bunker Hill Security 61565 Instrucciones de montaje

Visit our website at: http://www.harborfreight.com

Email our technical support at: [email protected]

REV 14f

Batteries sold separately.

To ensure security of your safe, Bunker Hill Security

does NOT provide replacement keys.

Owner’s Manual & Safety Instructions

Save This Manual Keep this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the

back of the manual near the assembly diagram (or month and year of purchase if product has no number).

Keep this manual and the receipt in a safe and dry place for future reference.

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 61565

Specifications

Overall Dimensions 22.82"H x 14.17"W x 13"D

Inside Dimensions 18.25"H x 12.75"W x 11.25"D

Capacity 1.5 cubic foot

Construction

9 ga. steel plate housing

6 ga. steel plate door frame

5 ga. steel door

Keypad Features

0 - 9, A & B key code set

Green LED code “OPEN”

Red LED code “Battery Change”

Yellow LED code “Change Accepted”

Emergency Keys 2 emergency override keys

Interior Padded oor

Adjustable shelf

Placement,

Mounting

4 Removable wheels;

Can be wall mounted

Finish Dark gray powder coat

Weight 76.5 lbs.

IMPORTANT SAFETY INFORMATION

Installation Precautions

1. Verify that installation surface has no hidden

utility lines before drilling or driving screws.

2. Wear ANSI-approved safety

goggles during installation.

3. Mount securely before use.

4. Install only according to these instructions.

Improper installation can create hazards.

5. Keep installation area clean and well lit.

6. Keep bystanders out of the area during installation.

7. Do not install when tired or when under the

influence of alcohol, drugs or medication.

8. At least two people are needed to move this product.

9. Place the Safe on correct surface.

Only use this Safe on a stable, level, clean and dry

surface that is capable of sustaining the load.

Use Precautions

1. Keep closed and locked whenever unattended.

RISK OF CHILD ENTRAPMENT AND

SUFFOCATION.

Check inside before closing.

Do not allow children to play with or near safe.

Keep keys and codes away from children.

2. Keep clear of door when closing.

3. Position batteries in proper polarity and

do not install batteries of different types,

charge levels, or capacities together.

4. Use as intended only.

5. Inspect before every use; do not use

if parts are loose or damaged.

6. Maintain product labels and nameplates.

These carry important safety information.

If unreadable or missing, contact

Harbor Freight Tools for a replacement.

7. Do not store Keys inside of the Safe.

Place the emergency keys in a location

outside of the safe making sure they are

in a secure location that you can find.

Page 3For technical questions, please call 1-888-866-5797.Item 61565

8. WARNING: The brass components of this product

contain lead, a chemical known to the State

of California to cause cancer and birth defects

or other reproductive harm. (California Health

& Safety Code § 25249.5, et seq.)

9. The warnings, cautions, and instructions discussed

in this instruction manual cannot cover all possible

conditions and situations that may occur. It must

be understood by the operator that common sense

and caution are factors which cannot be built into

this product, but must be supplied by the operator.

10. The Safe is not fireproof.

NOTE: Harbor Freight Tools is not responsible

for the loss of any property stored within this safe

due to theft, fire, or any other circumstance.

Installation Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document

including all text under subheadings therein before set up or use of this product.

This safe may be used as a roll-about with the included casters, or may

be bolted to the wall for more permanent installation.

Wheel Assembly:

1. Place the Safe on its side for easy

access to the bottom of the Safe.

2. Assemble each wheel using the included wheel axles.

3. Secure each wheel in place using Cotter Pin.

Wheel

Cotter

Wheel

Axle

4. The Safe may be bolted to a wall or

a floor to deter theft and prevent tipping.

There are mounting holes in the back wall and

bottom of the safe. See Figure A below.

Mounting

Holes

Figure A: Rear Mounting Hole Locations

5. Use Anchor Bolts, or seek a bonded professional

for installation of the Safe into cement.

Note: For floor or wall mounting, use bolts of a suitable

size (not included) to bolt into wall studs or floor joists.

6. Using the back of or bottom of the Safe as a

template, mark the location of the mounting holes on

the concrete surface using a pencil or other marker.

7. Move the Safe aside, and drill four suitable pilot

holes in the mounting surface. Make certain that

the drilling path is clear and free of obstacles such

as wires, cables and electrical lines. Drill holes

should be the diameter of the Anchor Bolt sleeves.

8. Insert the Anchor Bolts into each drilled hole and

tap Bolts into concrete. Remove washer and nut

from each bolt. The Safe now has to be lifted into

position to fit over the four anchor bolts. Because of

the heavy weight of the Safe, this task should only

be done by several capable workmen. With the

Safe in position, add washers and nuts to Anchor

Bolts. By tightening the nuts in place, the sleeve

around each bolt will expand, and secure each bolt

into the concrete to secure the Safe in place.

Page 4 For technical questions, please call 1-888-866-5797. Item 61565

Operation

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document

including all text under subheadings therein before set up or use of this product.

Opening with Code

Note: The Safe comes preset with a code of

1. Press the numbers on the Key Pad,

then press either the or Key.

Note: The Yellow Light will illuminate each time a key

is pressed. If it does not, open the safe with the key,

see below, and replace the batteries, see page 7.

2. Once the Green light is on:

a. turn the Knob clockwise,

b. turn the Handle clockwise, and

c. pull the Door open.

Note: The Knob and Handle remain unlocked only

for several seconds after inputting numbers.

Note: Three wrong entries will

sound an alarm and disable the Key Pad

for 20 seconds.

Three additional wrong entries will

sound an alarm and disable the Key Pad

for 5 minutes.

To stop the alarm: Open the safe with the key

and temporarily remove a battery.

Yellow Light

“Proceed”

Green Light

“Ready”

Red Light

“Low Battery”

Knob

Key

Pad

Handle

Manual

Lock Cover

Figure B: Key Pad Controls

Opening with Key

Note: The Key is used to open the safe.

DO NOT STORE KEYS IN SAFE!

1. Gently remove the Manual Lock Cover.

2. Insert Key into the lock and turn clockwise. Then:

a. turn the Knob clockwise,

b. turn the Handle clockwise, and

c. pull the Door open.

Manual

Lock Cover

Keys

Handle

Knob

Figure C: Manual Lock

Page 5For technical questions, please call 1-888-866-5797.Item 61565

Changing the Code

Note: The Safe comes preset with a code of

1. Follow the instructions for opening

the Safe to open the door.

2. Make sure that the Key is available

before changing the code.

3. Keep door open during the entire procedure

of changing the code.

On the inside of the Door near the hinge, there is

the small, red, Code Reset Button. See Figure D.

Code

Reset

Button

Figure D: Code Reset Button

4. USER CODE:

a. Press the Code Reset Button until the Yellow Light

on the Front Control Panel lights up.

b. Input your new Code (3 to 8 digits) into the

Key Pad, followed by either the or Key.

c. The Safe will beep twice to confirm

that the Code has been changed.

Important: If the Safe beeps three times, the code

has not been accepted. Repeat the steps above.

d. Leave the door open until the code

has been tested, see below.

5. MASTER CODE:

a. Press on the Key Pad and press the

Code Reset Button until the Yellow Light

on the Front Control Panel lights up.

b. Input your new Code (3 to 8 digits) into the

Key Pad, followed by either the or Key.

c. The Safe will beep twice to confirm

that the Code has been changed.

Important: If the Safe beeps three times, the code

has not been accepted. Repeat the steps above.

d. Leave the door open until the code

has been tested, see below.

6. With the door still open, TEST the new code:

a. First extend the door lock latch to the locked

position by turning Handle counterclockwise

and then turning Knob clockwise.

b. Once the latch is in the locked position,

use the new code to open the latch

and ensure that it works.

Note: If desired, make a note of the

new Code and store it in a safe place.

Closing

Keep closed and locked whenever unattended.

RISK OF CHILD ENTRAPMENT AND SUFFOCATION.

Check inside before closing.

Do not allow children to play with or near safe.

Keep keys and codes away from children.

1. Close the door and turn the Handle counterclockwise.

2. Turn the Knob counterclockwise.

3. Pull on the door to make certain it is properly locked. Knob

Handle

Figure E: Closing

Page 6 For technical questions, please call 1-888-866-5797. Item 61565

Maintenance

Procedures not specifically explained in this manual must

be performed only by a qualified technician.

1. Low battery power warning: The red LED light on the keypad will light when the batteries

wear down. When you observe the red LED light on, immediately replace the batteries.

2. Protect the safe from moist or wet conditions. This may cause electronic

fault in the keypad, or corrosion of the steel construction.

3. Occasionally wipe the safe and keypad with a soft dry cloth or brush to remove dust.

4. Occasionally apply a small amount of light oil or lock lubricant to the mechanical lock

mechanism. Be careful not to get any oil or other liquids on or near the electronic mechanism.

5. Occasionally apply a small amount of oil to the wheel axles.

6. Occasionally vacuum or brush dust from the carpet lining of the safe.

Page 7For technical questions, please call 1-888-866-5797.Item 61565

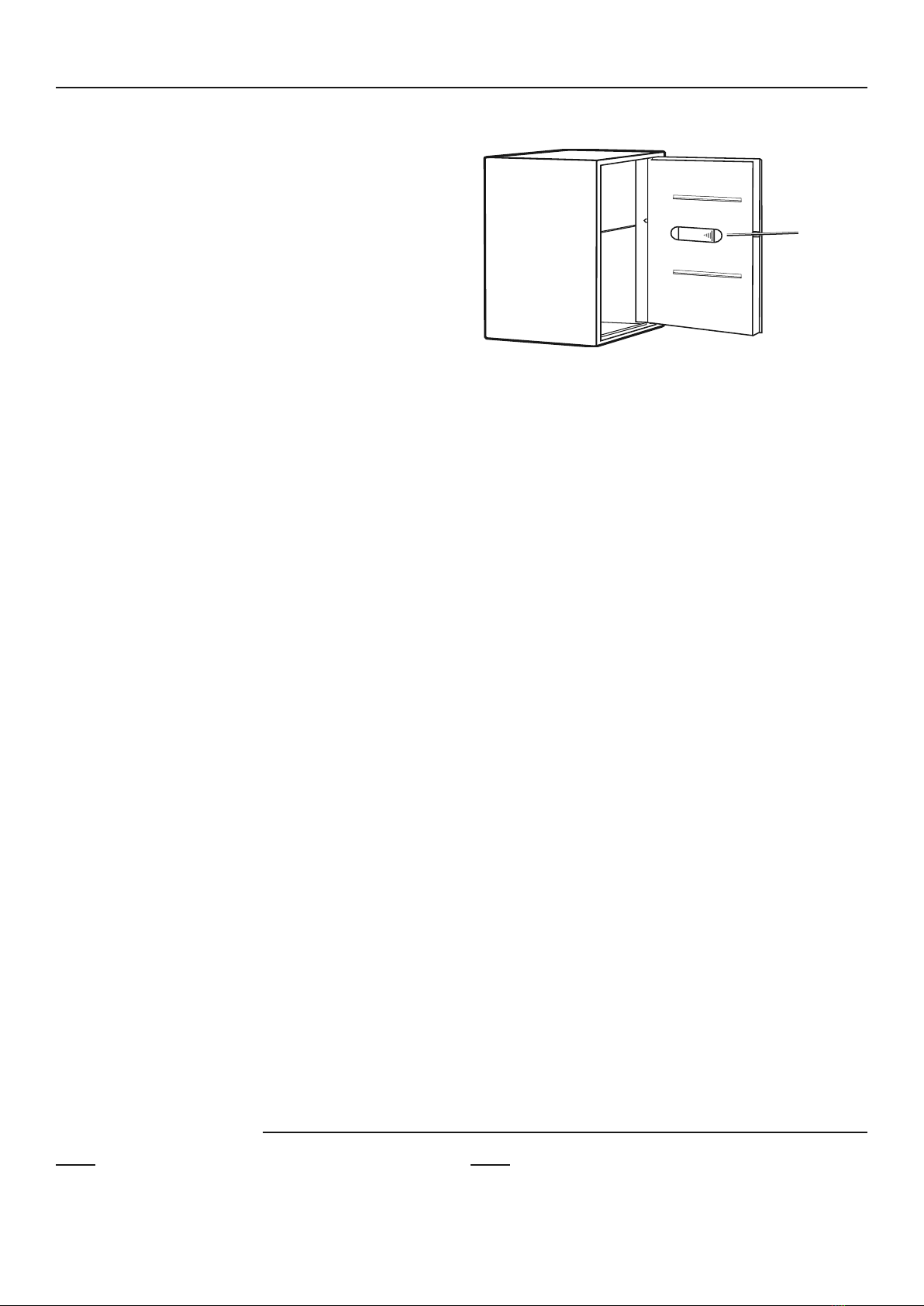

Replacing the Batteries

1. If the Red Light illuminates the

Batteries need to be changed.

2. Follow the instructions for opening the Safe.

3. The Battery Compartment is located on the

inside of the Door. Gently slide the Battery

Cover off the Battery Compartment.

4. Remove used batteries.

Dispose of them properly or recycle them.

5. Insert four new “AA” Batteries. Position batteries

in proper polarity and do not install batteries of

different types, charge levels, or capacities together.

6. Reinstall battery cover by placing it low against the

Battery Compartment and sliding it into place.

7. After changing the batteries, test the Code and

change it as needed before closing the Door.

Battery

Cover

Figure F: Battery Compartment

Record Serial Number Here:

Note: If product has no serial number, record

month and year of purchase instead.

Note: Replacement parts are not available for this item.

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges

prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or we may

elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will

return repaired products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797

Tabla de contenidos

Otros manuales de Seguro de Bunker Hill Security

Bunker Hill Security

Bunker Hill Security 62240 Instrucciones de montaje

Bunker Hill Security

Bunker Hill Security 61724 Manual de usuario

Bunker Hill Security

Bunker Hill Security 97644 Manual de instrucciones original

Bunker Hill Security

Bunker Hill Security 95815 Manual de lista de piezas

Bunker Hill Security

Bunker Hill Security 61724 Instrucciones de montaje

Bunker Hill Security

Bunker Hill Security 45891 Manual del propietario

Bunker Hill Security

Bunker Hill Security Security 64008 Manual de usuario

Bunker Hill Security

Bunker Hill Security Security 297081 Manual de usuario

Manuales populares de Seguro de otras marcas

Squire

Squire Stronghold Keysafe Manual de usuario

Phoenix

Phoenix FS0352C Hoja de información del producto

Phoenix

Phoenix KS0030E Series Manual de usuario

Vaultek

Vaultek 10 Series Hoja de especificaciones

Arregui

Arregui CLASS Manual de usuario

Beaumont

Beaumont SMART KEYBOX Manual de usuario

Honeywell

Honeywell 2077D - 1.21 Cubic Foot Anti-Theft Safe Manual de usuario

Hornady

Hornady SnapSafe Trunk Safe II Manual de usuario

SPORTS AFIELD

SPORTS AFIELD SA-HD5-BIO Manual de usuario

Honeywell

Honeywell 5912 Manual de usuario

Phoenix

Phoenix FS1280F Manual de usuario

Phoenix

Phoenix SS0992K Hoja de información del producto

Technomax

Technomax Trony Series Manual

SPORTS AFIELD

SPORTS AFIELD INSTINCT BIOMETRIC Series Manual de usuario

RICHTER CZECH

RICHTER CZECH LA Manual de operación

Olymp

Olymp GOsafe 110 Manual de usuario

Phoenix

Phoenix SS0100E Hoja de información del producto

Clarke

Clarke Strong-Arm CS1000K Manual de instrucciones
