Buffalo TeraStation iSCSI Manual de usuario

User Manual

TeraStation iSCSI

TS-ITGL/R5

www.buffalotech.com v1.4

Introduction

Congratulations on your new TeraStation! Your TeraStation iSCSI is a huge block of iSCSI

storage, ready to add to your server or PC via ordinary wired Ethernet connections. This

guide will help you congure it.

There are many ways to congure and use iSCSI storage products like the TeraStation. In

this guide we give one example of conguring a simple iSCSI volume on a single workstation.

Many other congurations are usable.

Because we’re constantly updating our product, the images and text in this manual may vary

slightly from the images and text displayed by your TeraStation. These changes are minor

and should not affect the ease of setup adversely. As time passes, future user interfaces,

updated software, and later versions of this manual may be available for download at our

web site: www.buffalotech.com.

If you run into difculties or need additional help, feel free to contact our technical support.

Contact information for Buffalo Technology and our technical support is available on pages

47 and 48.

Table of Contents

TeraStation Layout............................................................4

Installation .......................................................................7

Conguration GUI ..........................................................15

IP Address ...............................................................20

RAID Settings ..........................................................22

UPS .........................................................................27

Alerts....................................................................... 29

Troubleshooting .............................................................. 39

Replacing a Hard Drive ................................................... 41

Technical Specications .................................................. 46

Technical Support...........................................................47

GPL Information .............................................................49

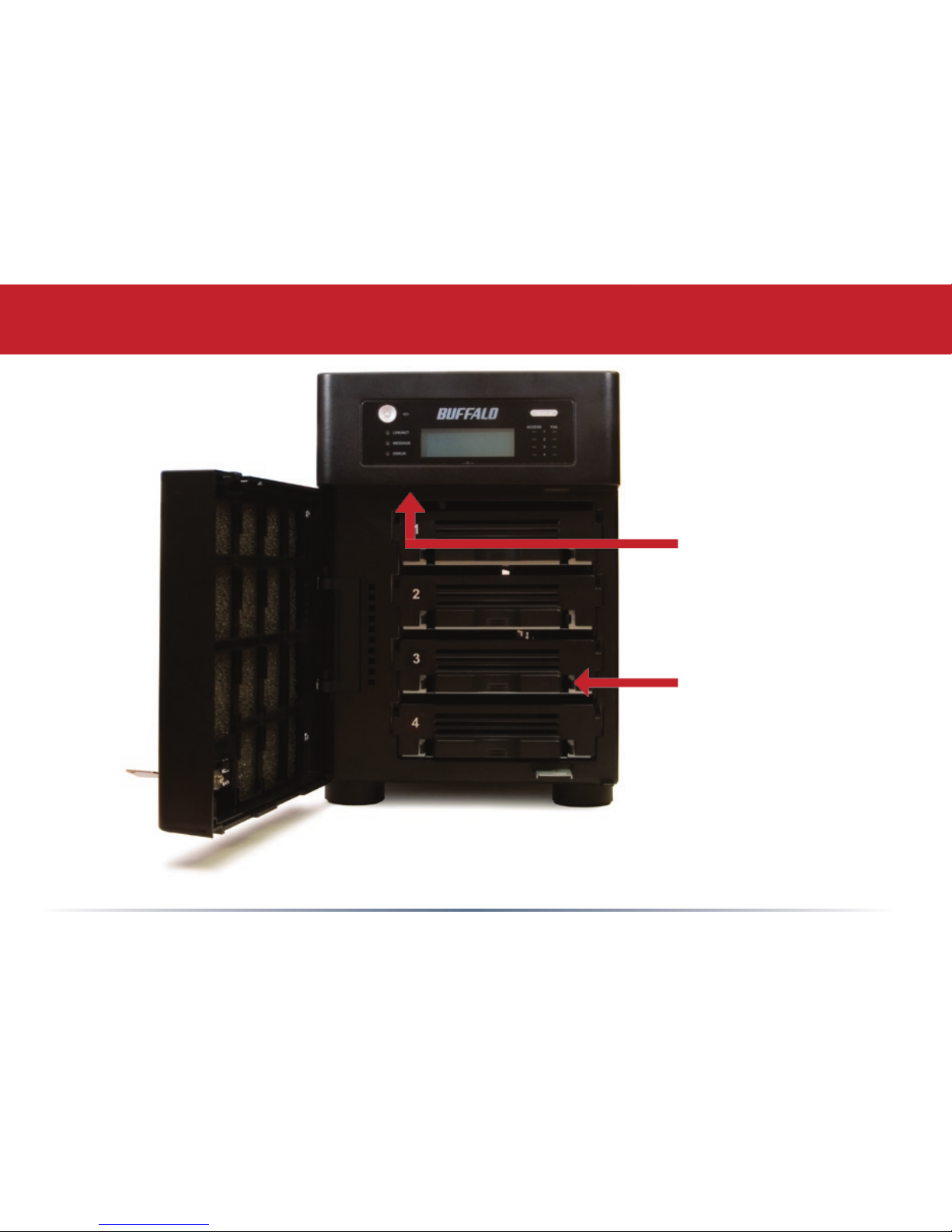

Layout

Power Switch

Door Lock (Turn counter-

clockwise to release)

Door opens for access

to hard drives.

Display Mode Switch

Hard Drives

(Squeeze tabs to release)

Layout

Init Button returns

settings to factory

defaults.

USB in

Layout

Power Cable (to outlet

or surge protector)

UPS

Ethernet (to NIC,

Router, or Switch

Insert the TeraNavigator CD into your computer’s CD-ROM drive.

On a PC, setup should automatically launch. If it does not, manually

launch setup.exe by pressing Start and selecting the Run... option.

When the Run dialog opens, type d:\TSnavi.exe (where d is the drive

letter of your CD-ROM drive). Press OK to continue.

Begin by connecting your TeraStation’s power and Ethernet cables. The Ethernet cable should be

connected to an extra NIC on your server or to a router, hub, or switch on your network.

For best performance, all network equipment should be gigabit or better. Use a NIC with enough

RJ-45 ports for all your iSCSI devices, or separate NICs for each iSCSI device. Assign static IP

addresses for each iSCSI device. Bridge the ports for all the NICs in the server (including the LAN

connection). Statically assign the IP address for the LAN to the “Bridged” connection, not on the

actual NIC for the LAN. Provided uninterruptable power supplies for all iSCSI devices, as well

as the server itself. Simpler congurations may work, but this kind of uncompromising setup is

recommended for best performance and reliability.

After all connections are made, turn the TeraStation on by pushing the power button on the front

panel. It will take about a minute to boot.

Installation

Press the Begin Installation button to begin.

Easy Setup will step you through physically connecting your

TeraStation. It will then install software.

Advanced Setup skips the connection tutorial and goes

directly to installing software.

Installation

If your TeraStation is connected correctly when you get

to this window, it will be highlighted in the drop-down

list. If you have multiple units to set up, select the correct

TeraStation from the list.

Select First Setup for the initial installation.

To install the software on additional computers, chose

Additional Setup.

Installation

Once the TeraStation is installed, you’ll need to install

the iSCSI connection tool. Click Next, then continue to

click Next, stepping through the menus until the iSCSI

connection tool is installed.

Click Yes to launch the iSCSI connection tool.

Installation
