Chapter 1

Setup

LinkNavigator Setup (LS-XHL, LS-CHL)

To set up your LinkStation (initial setting), from your computer, you will need to install Link-

Navigator, which is included on the Utility CD. NAS Navigator2 program, which will also be

installed during set up, can be used to open shares on the unit.

In a DHCP network environment, you simply connect this device to the network and power it on to

use. It is suggested that the workgroup setting, network drive mapping, date, time and other set-

tings be congured manually using the following procedures.

1Insert the Utility CD in your computer’s CD drive. LinkNavigator will launch.

Note:– If you are using Windows 7 or Vista, the autoplay screen may appear. Click ‘Run LSNavi.

exe’.

– If “Do you want to allow the following program to make changes to this computer ?” is

displayed in Windows 7, please click‘Yes’.

– If “Your permission is necessary to continue program” is displayed in Windows Vista,

please click ‘Continue’.

– For Mac OS, double-click on the LinkNavigator icon in the utility CD.

– Temporarily disable your anti-virus software and software rewall before installing. You

may not be able to set up this device if they are enabled. Refer to the software’s manual

for instructions. After setup is complete, re-enable the software.

Click [Begin Installation].

The example here shows the Windows' screen (on LS-XHL).

Note: – If this screen is not displayed on Windows,Double

click on icon (LSNavi.exe) included in the Utility

CD.

Chapter1 Setup

LinkStation Setup Manual 4

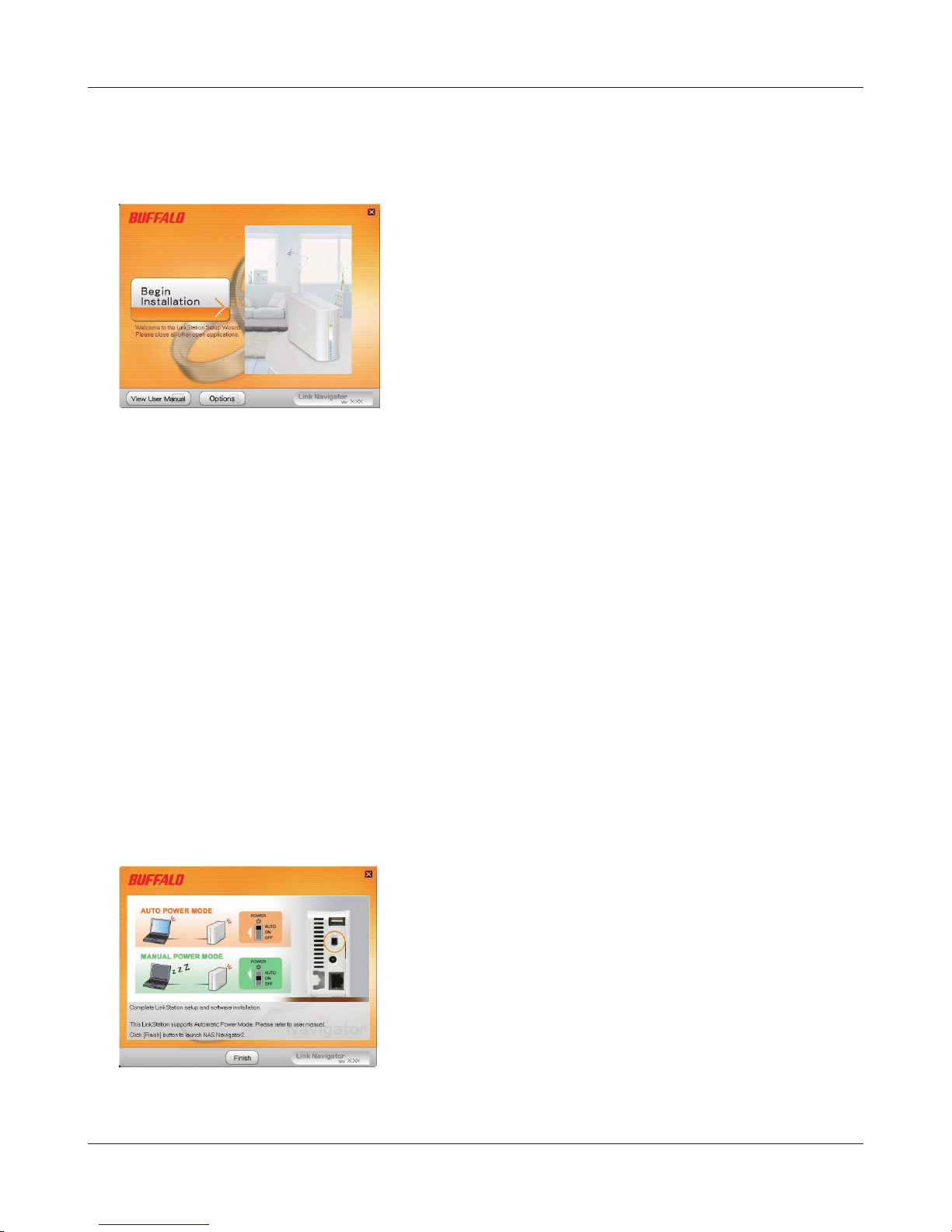

3Follow the instructions on the screen to connect and set up (initialize) the LinkStation.

4Now you have completed the setup (initial settings) of your LinkStation.

Click to close the LinkNavigator.

Then, open the shared folder of the LinkStation using NAS Navigator2 which was installed

during setup.

5Launch NAS Navigator2.

Note: – On Windows, click [start] - [All Programs] - [BUFFALO] - [BUFFALO NAS Navigator] - [BUF-

FALO NAS Navigator2].

– On Mac OS, double click on [NAS Navigator2] icon in the Dock.

7The shared folder in the LinkStation is displayed.

Note: – On Mac OS, LinkStation is either mounted as a drive icon on the desktop, or displayed in

the sidebar on the Finder.

Now you have completed the setup. You can now use the LinkStation’s shared folder to save les just

like another hard drive.

Double click on the LinkStation's icon.

The example here shows the Windows' screen (on

LS-XHL).

Hub or Router

Chapter1 Setup

LinkStation Setup Manual 5

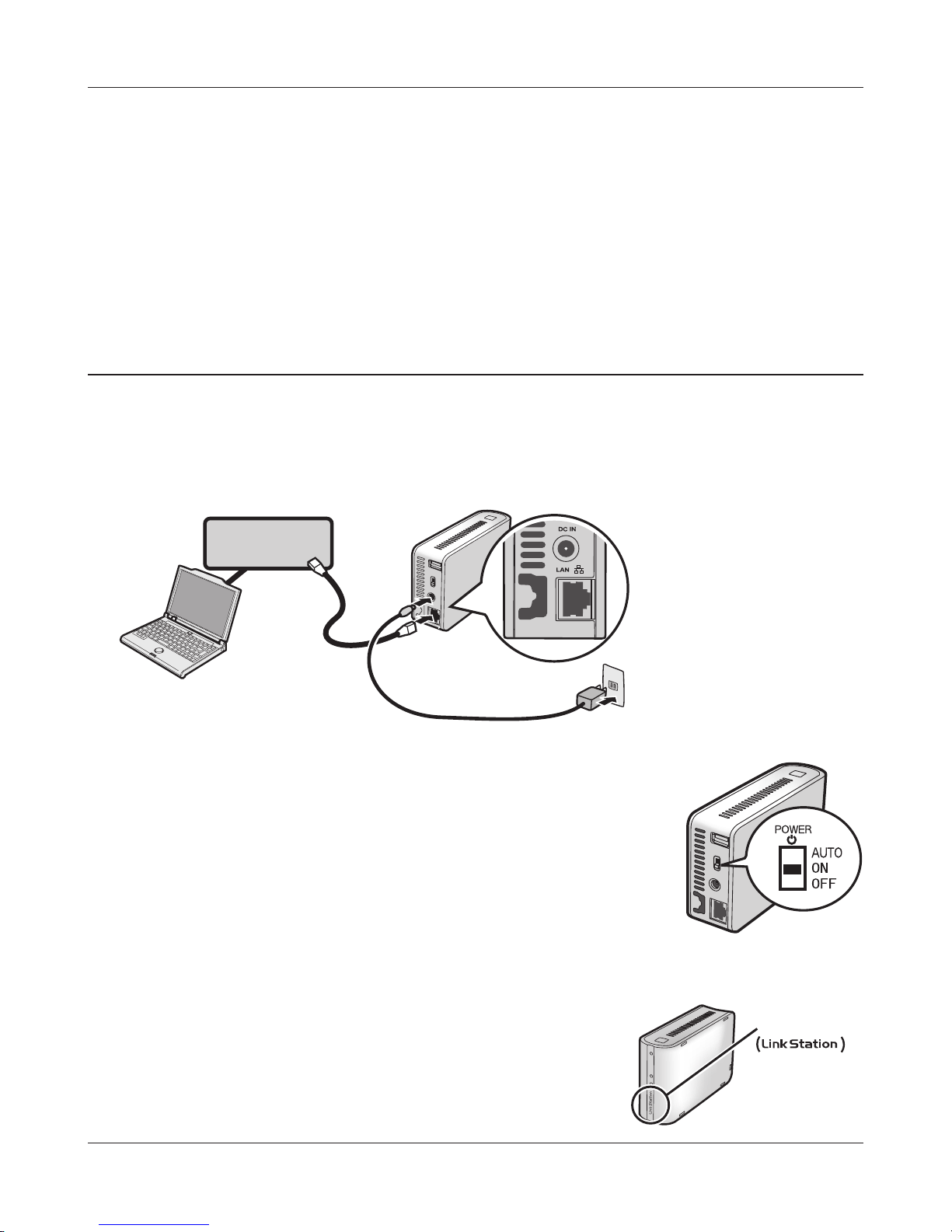

1Connect an Ethernet cable and AC adaptor to the LinkStation.

The Ethernet cable will “click” and lock in place when inserted properly.

ÈõâïòÒïõôåò

2Move the power mode switch on the back of the LinkStation to‘on’.

Note: – Do not set the power mode switch to‘auto’at this time. After

the initial installation is complete, then the auto power mode

may be used.

3Wait until the power LED stops blinking and becomes a steady blue.

4Insert the Utility CD in your computer’s CD drive. LinkNavigator will launch.

Click ‘Begin Installation’.

LinkNavigator Setup (LS-WXL)

󰩷ໃʳʽʡ

If LinkNavigator doesn’t open,

open the Utility CD and double-click ‘LSNavi.exe’icon .

The screen is an example of execution with Windows.

Power LED

Chapter1 Setup

LinkStation Setup Manual 6

Note: – If you are using Windows 7 or Vista, the autoplay screen may appear. Click ‘Run LSNavi.

exe’.

– If “Do you want to allow the following program to make changes to this computer?” is

displayed in Windows 7, please click‘Yes’.

– If “Your permission is necessary to continue program” is displayed in Windows Vista,

please click ‘Continue’.

– For Mac OS, double-click on the LinkNavigator icon in the utility CD.

– Temporarily disable your anti-virus software and software rewall before installing. You

may not be able to set up this device if they are enabled. Refer to the software’s manual

for instructions. After setup is complete, re-enable the software.

– If your computer doesn’t have a CD drive, you may download the LinkNavigator soft-

ware from www.bualotech.com.

7The LinkStation’s shared folder opens. You can now use the LinkStation’s shared folder to save

les just like any other hard drive.

Click 'Finish'. NAS Navigator2 starts automatically.

In NAS Navigator2, double-click your LinkStation’s icon.

Chapter1 Setup

LinkStation Setup Manual 7

1Connect an Ethernet cable and AC adaptor to the LinkStation.

The Ethernet cable will “click” and lock in place when inserted properly.

ÈõâïòÒïõôåò

2Move the power mode switch on the back of the LinkStation to‘On’.

Note: – Do not set the power mode switch to“Auto” at this time.

After the initial installation is complete, then the auto

power mode may be used.

3Wait until the power LED stops blinking and

becomes a steady blue.

LinkNavigator Setup (LS-WSXL)

PowerLED

You can now use the LinkStation’s shared folder to save les just like another hard drive.

Note: – With Mac OS, the LinkStation is mounted as a drive icon on the desktop, or it is displayed

in the sidebar of the Finder.

Setup is now complete.

Chapter1 Setup

LinkStation Setup Manual 8

4Insert the Utility CD in your computer’s CD drive. LinkNavigator will launch.

Click ‘Begin Installation’.

Note:– If LinkNavigator doesn’t open, open the Utility CD and double-click ‘LSNavi.exe’.

– If you are using Windows 7 or Vista, the autoplay screen may appear. Click ‘Run

LSNavi.exe’.

– If “Do you want to allow the following program to make changes to this

computer ?”is displayed in Windows 7, please click‘Yes’.

– If “Your permission is necessary to continue program” is displayed in Windows

Vista, please click‘Continue’.

– For Mac OS, double-click on the LinkNavigator icon in the utility CD.

– Temporarily disable your anti-virus software and software rewall before

installing. You may not be able to set up this device if they are enabled. Refer to

the software’s manual for instructions. After setup is complete, re-enable the

software.

– If your computer doesn’t have a CD drive, you may download the LinkNavigator

software from www.bualotech.com.

5Click 'Finish'. NAS Navigator2 starts automatically.

Chapter1 Setup

LinkStation Setup Manual 9

7The shared folder in LinkStation is displayed.

You can now use the LinkStation’s shared folder to save les just like another hard drive.

Note: – On Mac OS, LinkStation is mounted as a drive icon on a desktop screen or it is displayed

in the sidebar of Finder.

Setup is now complete.

If the screen on the left side is displayed, double-click

the icon of LinkStation displayed on the screen of NAS

Navigator2.
